Dreametech DreameBot L10 Pro - Robot Vacuum and Mop Manual

Product Overview

Accessories

Note: The illustrations in this manual are for reference only. Please refer to the actual product.

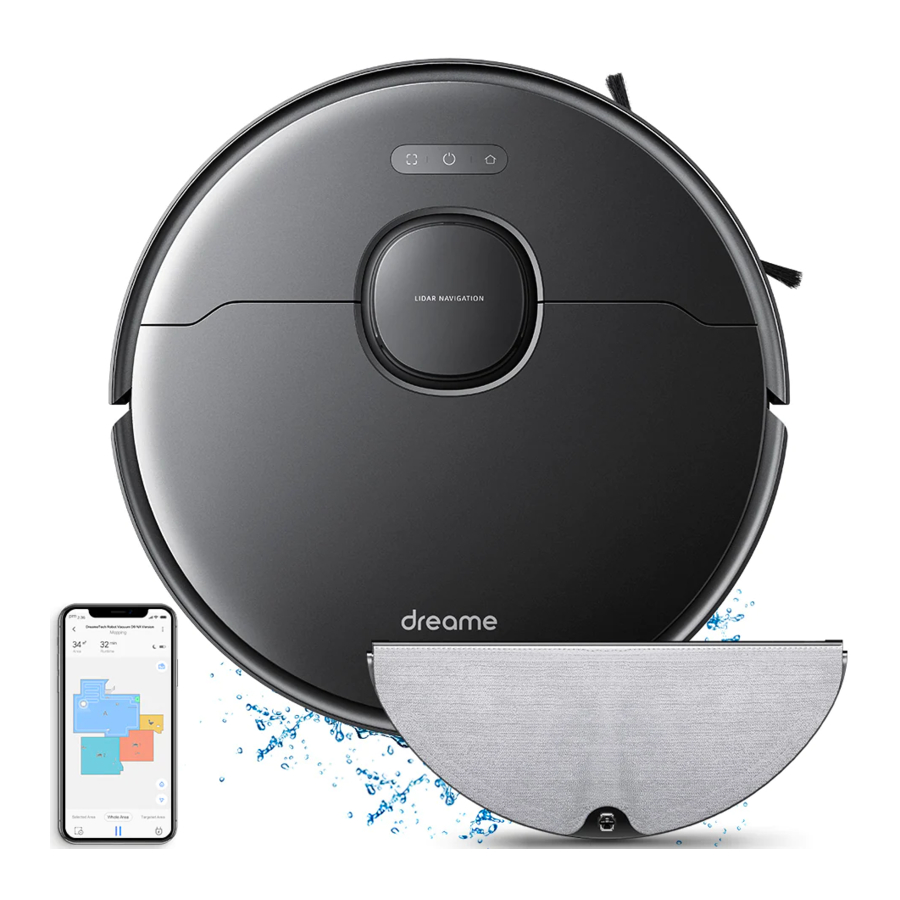

Robot

Spot Clean Button

• Press briefly to begin Spot Clean Mode

Power/Clean Button

• Press and hold for 3 seconds
• Press to begin cleaning after the robot is powered on

Status Indicator

• White: Cleaning or cleanup is completed
• Blinking Orange: Error

Dock Button

• Press to send robot back to the charging dock

Reset Button

• Press and hold for 3 seconds to restore the robot to factory settings

Robot Sensors

Dust Bin

Charging Dock

Mopping Module

Clearing Home Environment

To improve the working efficiency of your robot, put away any loose cords (including the power cord of the charging dock), rags, slippers, toys, etc.

Before cleaning, place a physical barrier at the edge of the stairs and sofa to ensure safe and smooth operation of the robot.

Open the door of the room to be cleaned, and put the furniture in its proper place to make more space.

To prevent the robot from not recognizing the area to be cleaned, do not stand in the front of the robot, threshold, hall way, or narrow places.

Preparation Before Use

1. Remove the protective matter

2. Install the side brush

   Note: Install the side brush until it clicks into place.
3. Place the charging dock on the level ground against the wall and connect it to a power outlet.

   Note:
   • Keep the immediate area 1.5m in front of the charger and 0.5m to both sidesof the charging dock clear of objects.
   • To ensure you can connect to the robot with your phone well, make sure the robot and charging dock are within the range of Wi-Fi.
   • Do not place the charging dock in an area with direct sunlight or where other objects might block the signal, as this may hinder the robot from returning to the charging dock.
4. Place the robot onto the charging dock to recharge. The robot will turn on automatically and begin recharging.

   Battery Level Indicator
   • White: Battery level is more than 15%
   • Orange: Battery level is less than 15%

   Note:
   • Fully charge is recommended before first-time use.
   • Do not install the mopping module while charging. Be extra careful with the wet mop as it can damage the floor.

Connecting with Mi Home/Xiaomi Home App

Download the Mi Home/Xiaomi Home App

Scan the QR code to download and install the app. You will be directed to the connection setup page if the app has been installed already. Alternatively, search "Mi Home/Xiaomi Home" in the app store to download and install it.

Add Device

Open the Mi Home/Xiaomi Home app, and tap " " in the upper right. Then tap " " in the top right corner, scan the QR code, add "Dreame Bot L10 Pro", and follow the prompts to finish the connection.

Note:

• Only 2.4GHz Wi-Fi is supported.
• The version of the app might have been updated, please follow the instructions based on the current app version.

Reset Wi-Fi

Wi-Fi Indicator

• Blinking slowly: To be connected
• Blinking quickly: Connecting
• On: Wi-Fi connected

Simultaneously press and hold the buttons and until you hear a voice say, "Waiting for the network configuration." Once the Wi-Fi indicator is blinking slowly, the Wi-Fi has been successfully reset.

Note: If your robot cannot connect to the app successfully, reset the Wi-Fi and add the device again.

How to Use

Turn On/Off

Press and hold the button for 3 seconds to turn on the robot. Once the power indicator turns solid white, the robot is in standby mode. To turn off the robot, press and hold the button for 3 seconds when the robot is not moving. Turning off the robot will end the current cleaning task.

Start Cleaning

Press the button briefly to turn on the robot. Upon activation, the robot will accurately map out a route, methodically clean along the edges and walls, then finish by cleaning each room in an S-shaped pattern to ensure a thorough job.

Note:

• Before a cleaning task, make sure the robot is fully charged and starts from the charging dock. Do not move the charging dock while the robot is cleaning.
• If the battery is too low, the robot will automatically return to the dock to charge. It will resume unfinished cleaning tasks after charging to the necessary battery level. (The breakpoint continuous cleaning function must be enabled on the app in advance.)

Cleaning Mode

Dreame Bot L10 Pro has four cleaning modes: Quiet, Standard, Strong and Turbo. The default mode is Standard. You can specify the cleaning mode in the Mi Home/Xiaomi Home app.

Pausing/Sleep Mode

Pausing: Press any button to pause the robot during cleaning. Sleep Mode: The robot will automatically enter Sleep Mode after 10 minutes of inactivity, then the power and charging indicators will go off. To wake up the robot, press any button.

Note:

• The robot will turn off automatically if left in Sleep Mode for more than 12 hours.
• When the robot is paused, placing it onto the charging dock will end the current cleaning task.

Do Not Disturb Mode

Do Not Disturb Mode prevents the robot from automatically starting cleaning tasks, and the power indicator remains off. You can enable Do Not Disturb Mode or modify its hours in the app. (The mode is on by default from 22:00 to 08:00.)

Note:

• Scheduled cleaning tasks will still be carried out during the DND period.
• The robot will continue cleaning after the DND period ends.

Spot Clean mode

When the robot is paused or in Standby Mode, press and hold the button for 3 seconds to start Spot Clean Mode. In this mode, it will clean a square-shaped area of 1.5 ×1.5 meters directly around the robot. When the spot cleaning is done, the robot will automatically return to its original location and power off.

Note: Activating Spot Clean Mode will end the current cleaning task of the robot.

Scheduled Cleaning

You can schedule cleaning time in the Mi Home/Xiaomi Home app. The robot will automatically start cleaning at the designated time and then return to the charging dock to recharge when the cleaning is done.

Additional App Functions

The app can be used to enable more functions such as selected room cleaning, zone cleaning, forbidden area / virtual wall, etc.

Note:

• Follow the instructions on the app interface to use more functions.
• The version of the app might have been updated; please follow the instructions based in the current app version.

Use the Mopping Function

It is recommended that all floors are vacuumed at least three times before the first mopping session to achieve a better cleaning effect.

1. Dampen the mop pad and wring out excess water. Slide the pad all the way into the slot of the water tank until it is securely in place.

2. Open the water tank lid, fill the tank with water, then securely close the lid.

   Note: Do not use detergent or disinfectant.
3. Align the mopping module as indicated by the arrow, then slide it into the back of the robot until it clicks into place. Press the button or use the Mi Home/Xiaomi Home app to start cleaning.

   Note:
   • It is not recommended to use the mopping function on carpets.
   • Use the app to adjust the water flow as required.
4. Press the two side clips inwards and slide the water tank backwards to separate it from the robot.

   Note: When the robot is charging or not in use, remove the mopping module, pour out all the remaining water in the tank, and clean the mop pad to prevent mildew or odor.

Routine Maintenance

Clean the Dust Bin and Filter

1. Open the robot cover, then press the dust bin clip to remove the dust bin.

2. Open the dust bin cover as indicated by the diagram.

3. Remove the filter and tap its basket gently.

   Note: Do not attempt to clean the filter with a brush or finger.
4. Rinse the dust bin and filter with water until they are clean. Thoroughly dry the filter before re-installing.

   Note:
   • Only clean water should be used to clean the filter. Do not use detergent.
   • Before using, keep it in a well-ventilated or cool place.

Clean the Mopping Module

1. Press the two release clips on the side of water tank, remove the mopping module and pull the mop pad off the mopping module.

2. Pour out the water in the tank. Clean with water only and leave to air dry before re-installing.

   Note: Do not expose the tank to the sun directly.
3. Clean the mop pad with water only and leave to air dry before reinstalling.

   Note:
   • Remove the pad from the mopping module before cleaning it, and make sure dirty water does not flow back into the water outlet to avoid clogging.
   • For optimal performance, it is recommended to replace the mop pad every 3 to 6 months.
4. If slow water flow occurs, or the volume is not well-distributed, please clean the air hole in the cover of the water tank.


Clean the Main Brush

Press the brush guard clips inwards to remove the brush guard and lift the brush out of the robot.

Pull out the brush cover as shown in the diagram. Use the included cleaning tool to remove any hairs tangled in the brush.

Note: Do not pull out the hair excessively to avoid damaging the main brush when the hair is tightly tangled in the main brush

Clean the Side Brush

Pull out the side brushes and use the included cleaning tool to remove any hair tangled on the brush.

Clean the Main Wheel / Omnidirectional Wheel

Note: Use a tool such as a small screwdriver to separate the axle and the tire.

Note: Wet cloths can damage sensitive elements within the robot and charging dock. Please use dry rags for cleaning.

Clean the LDS Laser Sensor/Edge Sensor

Clean the High Precision 3D

Clean the Charging Contact

Clean the Cliff Sensor

Robot Restarting

If the robot stops responding or cannot be turned off, press and hold down the button seconds to forcefully turn it off. Then press and hold the button on.

Battery

The robot contains a high-performance lithium-ion battery pack. Please ensure that it remains well-charged for daily use to maintain optimal battery performance. If the robot is not used for an extended period of time, turn it off and put it away. To prevent damage from over-discharging, the robot should be recharged at least once every three months.
