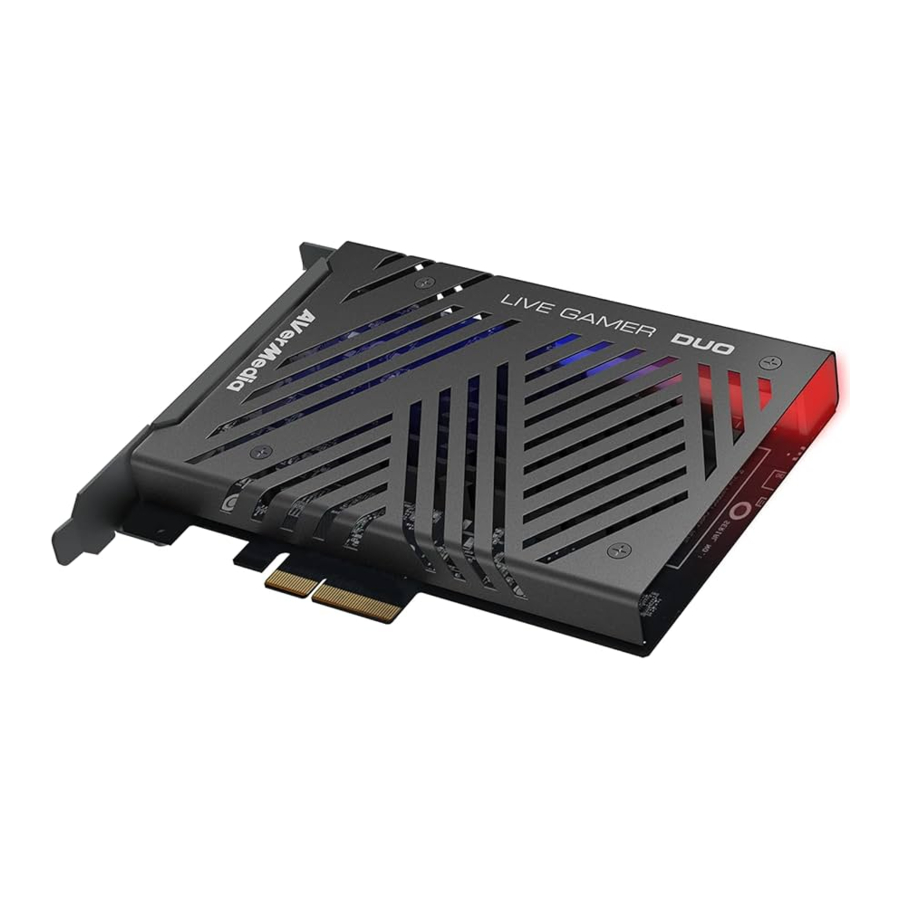

Avermedia LIVE GAMER DUO GC570D Manual

Table of Contents

Contents

1 PREPARATION
- 1.1 Inside the Box
- 1.2 Ports
2 INSTALLATION
- 2.1 DEVICE
- 2.2 RECentral
3 LED INDICATIONS
4 SPECIFICATIONS
5 Important Safety Instructions
6 Documents / Resources
- 6.1 References
- 6.2 Download manual

PREPARATION

Inside the Box

Ports

HDMI Output Port 1 (Pass-Through)
HDMI Input Port 1
HDMI Input Port 2
LED Indicator

INSTALLATION

DEVICE

DEVICE INSTALLATION

Insert LGD to a PCIe x4 Gen 2 slot in your PC
Connect your monitor to the HDMI-OUT 1 port for passthrough of captured content
Connect your first video source (console / graphics card / another PC) to the HDMI-IN 1 port
Connect your second video source (DSLR / camcorder) to the HDMI-IN 2 port

RECentral

RECentral is the default streaming/recording software designed for Live Gamer capture cards. It also includes settings for the LGD's lighting effects.
Download it from: q.avermedia.com/gc570d_recentral

LED INDICATIONS

Solid Blue / RGB Effects	Ready
Slow Flashing Red	Recording
Slow Flashing Blue	Streaming
Fast Flashing Red	Disk Almost Full
Solid Red	Disk Full Error: Streaming / Recording Stopped

SPECIFICATIONS

Interface	PCI Express x4 Gen 2
Input	Input 1: HDMI 2.0 Input 2: HDMI 1.4
Output (Pass-Through)	Output 1: HDMI 2.0
Max. Recording Resolution	Input 1: 1080p60 HDR Input 2: 1080p60
Supported Resolution	Input 1: 2160p, 1440p, 1080p, 1080i, 720p, 576p, 480p Input 2: 1080p, 1080i, 720p, 576p, 480p
Max. Pass-Through Resolution	2160p60 HDR / 1080p240
Record Format	MPEG 4 (H.264 + AAC) or (H.265 + AAC)*
Dimensions (W x D x H)	125 x 140 x 22 mm
Weight	209 g

*H.265 compression and HDR recording are supported by RECentral

Note: Specifications are subject to change without notice. Please refer to our website for the latest details.

Important Safety Instructions

Read these instructions.
Keep these instructions.
Follow all instructions.
Heed all warnings.
Do not use the apparatus on uneven or unstable surfaces.
Do not use this apparatus in a wet environment or near water.
Unplug the apparatus before cleaning. Clean only with a dry cloth.
Use in a well ventilated environment. Do not block any ventilation openings.
Use the apparatus within ambient temperatures 32–104°F (0–40°C).
Use power sources within the specified voltage range.
Do not place heavy objects on the apparatus.
Do not install near heat sources such as radiators or stoves.
Do not defeat the safety purposes of the polarized or grounding-type plug.
Protect the power cord from being walked on or pinched, particularly where the cord connects with plugs or adapters.
Only use the attachments and accessories specified by the manufacturer.
Unplug this apparatus during lightning or when unused for prolonged periods of time.
Do not modify or disassemble the apparatus in any way.
Refer all servicing to AVerMedia Customer Service.
Do not dispose the apparatus as general household waste. Dispose in accordance with local environmental laws.
