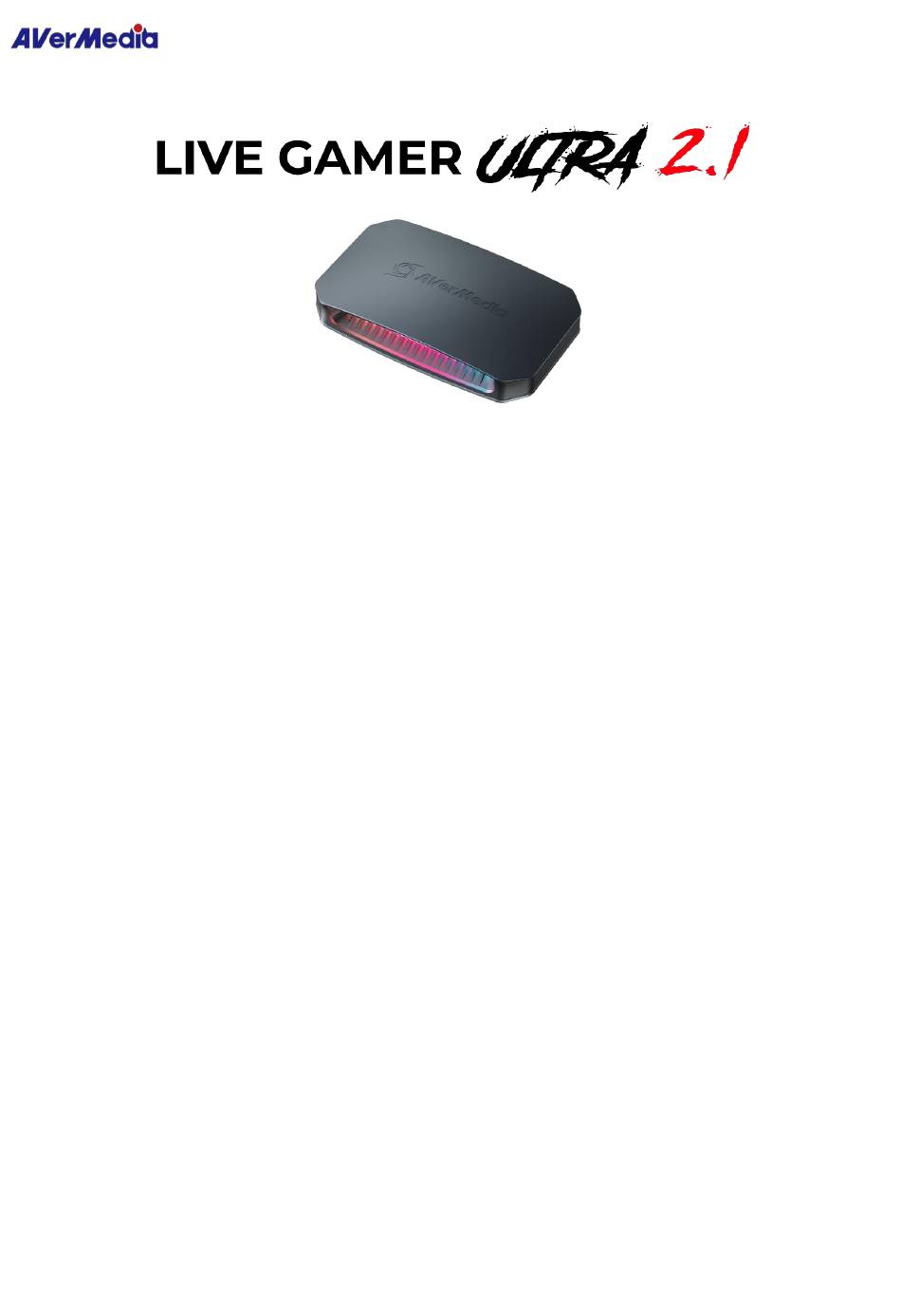

Avermedia LIVE GAMER ULTRA 2.1 User Manual
Hide thumbs
Also See for LIVE GAMER ULTRA 2.1:
- Quick start manual (21 pages) ,
- User manual (10 pages) ,
- Reviewer's manual (17 pages)
Table of Contents
Advertisement
Quick Links
GC553G2
Table of Contents
Introduction .................................................................................................................................... 2
Live Gamer ULTRA 2.1 (GC553G2) ................................................................................................. 3
Key Features ................................................................................................................................. 4
Check Your Devices and Connection ....................................................................................... 10
System Requirements ............................................................................................................... 11
Technical Specifications ............................................................................................................ 12
Pass-through and Capture Resolution Chart ......................................................................... 13
Capture Capability Breakdown by Video Format ................................................................... 14
Product Overview ...................................................................................................................... 15
Installation ................................................................................................................................. 16
RGB and Status Indicator ......................................................................................................... 16
Contact Us ..................................................................................................................................... 17
About AVerMedia .......................................................................................................................... 17
©2024 by AVerMedia
User Manual
1
Advertisement
Table of Contents
Related Manuals for Avermedia LIVE GAMER ULTRA 2.1
Summary of Contents for Avermedia LIVE GAMER ULTRA 2.1
-
Page 1: Table Of Contents
GC553G2 User Manual Table of Contents Introduction ............................ 2 Live Gamer ULTRA 2.1 (GC553G2) ....................3 Key Features ..........................4 Check Your Devices and Connection ..................10 System Requirements ....................... 11 Technical Specifications ......................12 Pass-through and Capture Resolution Chart ................. 13 Capture Capability Breakdown by Video Format .............. -
Page 2: Introduction
Live Gamer ULTRA 2.1 (GC553G2). After a quick introduction of the Live Gamer ULTRA 2.1 and who this product is intended for, we will dive into its key features, system requirements, and technical specs and show you how to set up and install the device. -
Page 3: Live Gamer Ultra 2.1 (Gc553G2)
Live Gamer ULTRA 2.1 (GC553G2) Precise Capture, Stunning Clarity The Live Gamer ULTRA 2.1 is the world-leading HDMI 2.1 USB capture card. It is designed primarily for console and PC gamers who possess HDMI 2.1 competible games and devices, such as modern consoles, GPUs and monitors, require an HDMI 2.1 capture card to release the full potential of these games and devices while streaming. -
Page 4: Key Features
*To fully utilize the performance of Live Gamer ULTRA 2.1, please refer to page 10 to check your hardware devices in advance. - Page 5 Experience enhanced audio immersion with stunning *5.1 channel surround sound audio capture and pass-through with RECentral or OBS plugin. * Available for Windows only ➢ RECentral Setup Install/Update the latest version of RECentral 4 → Add Recording Quality → Audio → Select 5.1 channels ©2024 by AVerMedia...
- Page 6 ➢ OBS Plugin Setup Install OBS Plugin – AVerMedia Multichannel Audio, then it will be shown on OBS. Remember to switch audio channels to 5.1 in the audio setting before recording. ©2024 by AVerMedia...
- Page 7 When recording 5.1 channel audio while using Party Chat, there might be instances of duplicate audio depending on how you set up the Party Chat. In such cases, please use the latest AVerMedia Gaming Utility to check the box “Remove duplicate audio” in Device Audio Settings to eliminate the duplicate audio.
- Page 8 RGB Lighting Customization • The Live Gamer ULTRA 2.1 is certified for Windows Dynamic Lighting, enabling effortless control directly through the Windows system. Also, you have the extra flexibility to sync with major gaming RGB ecosystems.
- Page 9 Captivating Color Box Design • Inspired by the spectrum grating of the Live Gamer ULTRA 2.1, our color box design showcases a stunning rainbow neon display with every pull of the color sleeve, creating a dynamic interplay of light and shadows. Enjoy your unboxing with our ingenious design, where form meets function in a dance of light and shadow.
-
Page 10: Check Your Devices And Connection
If your monitor supports built-in DSC (Display Stream Compression), be aware that the • maximum supported video pass-through might be 4K120. We also took a video to talk about the things you should know at AVerMedia Content Creator YouTube channel. Click the photo to watch the video now: https://youtu.be/XNULB1CQO3E?si=Oth-W5qTkWVjLJ3d... -
Page 11: System Requirements
16 GB of 2400 MHz DDR4 memory • Note: 1. For 4K60 MJPEG capture, requires M1 Ultra / M2 Ultra or above 2. Please note that macOS does not support HDR capture due to the absence of the required video codec. ©2024 by AVerMedia... -
Page 12: Technical Specifications
USB Type C to Type C Cable What's in the Box 4-Pole 3.5mm Audio Cable Quick Start Guide *Recommend using the attached cables for connection Specifications are subject to change without prior notice. Please visit AVerMedia official website for the latest information. ©2024 by AVerMedia... -
Page 13: Pass-Through And Capture Resolution Chart
Pass-through and Capture Resolution Chart ○: Can be captured in SDR ●: Can be captured in SDR or HDR ©2024 by AVerMedia... -
Page 14: Capture Capability Breakdown By Video Format
P010 (HDR) 2560x1440 MJPEG 144/120/60 144/120/60 NV12 144/120/60 YUY2 RGB24 P010 (HDR) 1920x1080 MJPEG 240/120/60 240/120/60 NV12 240/120/60 120/60 YUY2 120/60 RGB24 120/60 P010 (HDR) 120/60 *4K30 RGB24 Capture: Please switch to HDMI 2.0 option in Gaming Utility ©2024 by AVerMedia... -
Page 15: Product Overview
Product Overview Front View RGB Lighting Rear View 4-Pole 3.5mm Jack USB 3.2 Gen 2 for Headset 4-Pole 3.5mm Jack Type-C Port for Gamepad HDMI 2.1 Output HDMI 2.1 Input ©2024 by AVerMedia... -
Page 16: Installation
Installation RGB and Status Indicator Blue Comet Detecting Device Rainbow Wave Ready Flashing Blue Updating Firmware Solid Red Error: No Device Detected Flashing Red Error: Device Anomaly Flashing Orange Error: Device Connected to USB 2.0 ©2024 by AVerMedia... -
Page 17: Contact Us
AVerMedia is guided by a philosophy of contributing to society- whether through products that change customers’ lives for the better or by ensuring our operations are socially responsible.
