TMG -TSB61 Product Manual

Stone burrier
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

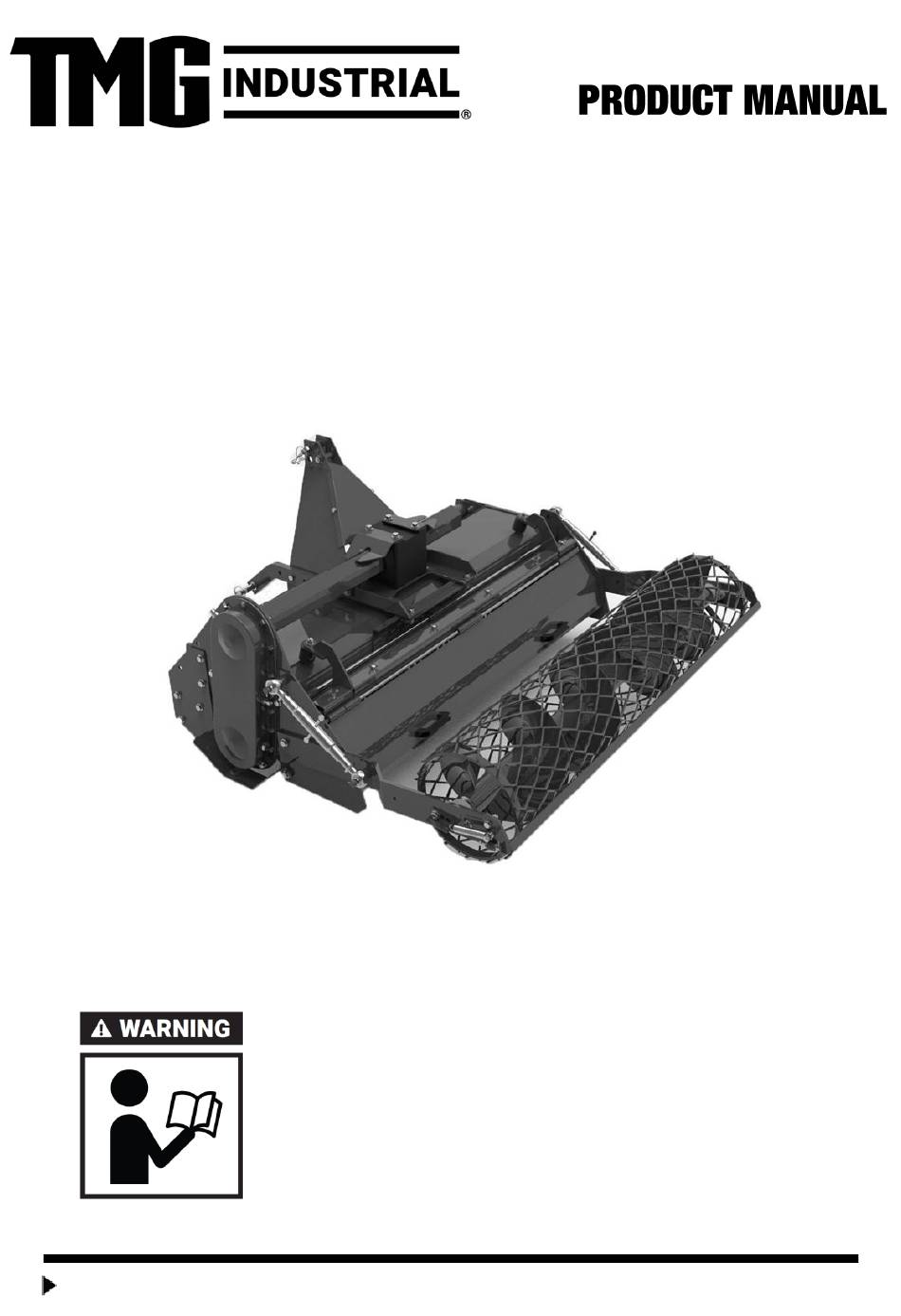

TMG-TSB61
v.2024.11.22
STONE BURRIER STB 61"
• Please read and understand the product manual completely before assembly
• Check against the parts list to make sure all parts are received
• Wear proper safety goggles or other protective gears while in assembly
• Do not return the product to dealer. They are not equipped to handle your requests.
Missing parts or have questions on assembly?
Please call: 1-877-761-2819 or email: cs@tmgindustrial.com
www.tmgindustrial.com
TOLL FREE:1-877-761-2819

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TMG-TSB61 and is the answer not in the manual?

Questions and answers

Related Manuals for TMG TMG-TSB61

Summary of Contents for TMG TMG-TSB61

  • Page 1 TMG-TSB61 v.2024.11.22 STONE BURRIER STB 61” • Please read and understand the product manual completely before assembly • Check against the parts list to make sure all parts are received • Wear proper safety goggles or other protective gears while in assembly •...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS BRIEF INTRODUCTION ..............................2 SAFETY DEVICE ................................3 GENERAL INSTRUCTIONS ............................. 3 HUNG TO THE TRACTORS ............................. 5 HUNG TO THE TRACTORS ............................. 6 OPERATION OF THE MACHINES ............................ 8 OPERATING THE MACHINE ............................9 LONG-TERM STORAGE ............................... 10 STANDARD DATA OF METRIC NUTS AND SCREWS BOLTS.

  • Page 3: Brief Introduction

    The manual concerns the rotary cultivator (hereafter called “machine”) for fields with broken stones. The rotary cultivator is and opposite rotation milling cutter, that is, its rotor turns to its advance in opposite direction. It is suitable for the fields with cobbles. It can bury cobbles (middle dimension) and dregs and residues as well to gain a level field. BRIEF INTRODUCTION The user of the machine is responsible for safety of persons in adjacent place.

  • Page 4: Safety Device

    lacks of maintenance  modify or intervene the machine  Do not observe the instructions of present notice.  You should contact adjacent retail dealer and tell him exactly the type (model) of the machine. SAFETY DEVICE No modifying the safety device of the machine, or operator and other persons are at the risk of their life. But for transport the safety device may be removed from the machine.
  • Page 5 harm the protection device. Keep the grooved parts clean, and apply lubricating oil to keep their good skidding slide performance. According to the regulations Universal Joint shaft shall be checked following the manual provided by manufacturer. The proper rotational speed of the control rod shall be determined according to its protection device generally 540 r/m, but it shall be in conformity with the manual of operation.

  • Page 6: Hung To The Tractors

    Instructions for maintenance Danger You should stop the machine and separate the control rod of the tractor for maintenance. The maintenance should be done by professionals, and consult the adjacent dealer: Never use inflammable essence or other inflammable liquids, such as detergent. The user should use commercial fire-proof and no toxic solvents approved by the authority.

  • Page 7: Hung To The Tractors

    ATTENTION Machines should fit their tractors. Stability, main part and size of machine should meet the standard of related tractor. Operator must make sure that tractors are suitable. PRECAUTION Before using the machines, check the lubrication level of the gear box. Add lubrication of the same type, and check and lubricate rotating stand.
  • Page 8 DANGER Universal joint should get coupled and locked up. In the special groove for control rod, side of tractor is the same with that of the machine. Unsealed shaft can be released by itself, which will cause personal hurts and serious mechanical problems. PRECAUTION If Universal joint needs replacing, purchase Universal joint with the same features listed in part list.

  • Page 9: Operation Of The Machines

    If the manual is lost, contact the supplier. OPERATION OF THE MACHINES Walking on roads ATTENTION Before the machine hung to tractor walks on public roads, you should be clear about local traffic. If walking in evening or on uneven roads, some ancillary blades should be installed according to instructions. Maintain the machine during traveling During traveling, take note about the machine maintaining, and release the clutch.

  • Page 10: Operating The Machine

    OPERATING THE MACHINE DANGER To use milling cutters, check all security protecting devices before working. Raise them correctly and keep them in a proper situation. If malfunction happens, stop the machine and replace the security parts. You can go to the nearest help center for help. When the milling blades begin to work, take a serious check to make sure no adults, kids and animals around.

  • Page 11: Long-Term Storage

    During working, the gear case may stay without operation due to hot oil. The surface may touches hot, which is not malfunction. It is important to check the oil at a proper scale. Use milling cutters (follow related regulation.) Milling cutters are used to smash soil blocks for seeding. Implanting remained grasses onto the soil for initial preparation of seeding.
  • Page 12 Couple the machine onto tractor in the way of digital operation. When troubles happen during coupling onto the tractor, take the following steps: Release the clutch.  Hold brake tightly.  Stop engine.  Take down keys.  If operating milling cutters, do protection well. To avoid the danger caused by tractor hydraulic structure, lower the machine in case of trouble.
  • Page 13 The oil must reach the lower edge of the hole of level plug “2” fig.7.4.4 in versions without a dipstick. Top up the level by pouring oil through plug “1”. Check the gear case on the side of the lubrication scale. Lift bonnet1.

  • Page 14: Replace The Blades

    Adjust the tension max as so as possible, loose the screw 2 one rotation, and keep the nut of safety device 1  tight state. Turn rotor a few times by hand to inspect if rotational resistance is too excessive, repeat the above-mentioned ...
  • Page 15 Pay attention to add the oil www.tmgindustrial.com 14/30 TOLL FREE:1-877-761-2819...

  • Page 16: Standard Data Of Metric Nuts And Screws Bolts

    STANDARD DATA OF METRIC NUTS AND SCREWS BOLTS. Nm=recommended twisting force N/m Screw Diameter Class 5.8 Class 8.8 Class 10.9 15.5 24.5 SPECIFICATION MODEL TMG-TSB61 Dimensions(mm) 1760*1330*920 Weight(kg) Working width(mm) 1550 Working depth(mm) Power Required(hp) 35-45 Packing Size(mm) 1870*880*790 www.tmgindustrial.com...

  • Page 17: Fault And The Reasons For Exclusion

    FAULT AND THE REASONS FOR EXCLUSION Machine failure cause Remade --Work pieces are too louse --Lack of oil in the reduction or case of side --Machine with transmission noise --Reckoned rotations of the control rod are not right --Transmission chain is too loose --Support --Rotor end is winded by grass or soil Clear rotor and get rid of impurities...

  • Page 18: Installation Steps Diagram

    INSTALLATION STEPS DIAGRAM www.tmgindustrial.com 17/30 TOLL FREE:1-877-761-2819...

  • Page 19: Package List

    1. Package list Please check the following components after unpacking www.tmgindustrial.com 18/30 TOLL FREE:1-877-761-2819...
  • Page 20 Name & Specification Host Suspension rear connecting plate Right suspension plate Left suspension plate Lower suspension support plate Lower hanging pin Upper hanging pin Cotter pin A 4 x 25 Plain washer 20 Spool sleeve Hanging spacer Spring tension plate Lock nut M12 Bolt M12×60 Bolt M12×35...
  • Page 21 2. Mesh wheel assembly www.tmgindustrial.com 20/30 TOLL FREE:1-877-761-2819...
  • Page 22 Name & Specification Adjustment lever assembly spool sleeve Lock Nut M12 Plain washer 12 Bolt M12×50 Welded joint for left arm of mesh wheel Bearing UCFLU205 Spring Tension Plate Plain washer 20 Cotter pin 4×25 Nut M8 bolt M8×60 Mesh wheel Bolt M12×45 Welded joint for right arm of mesh wheel Lock Nut M10...
  • Page 23 (E17) on the M10*35 bolt of the scraper (E20), screw the lock nut (E16) on the bolt to prevent the hook from slipping, and hook the other end into the hole of the spring tension plate (E8). 3. Adjust the bolt M8*60 (E12) to ensure that the distance between the scraper (E20) and the mesh wheel (E13) is appropriate, and tighten the nut (E11).

  • Page 24: Suspension Assembly

    3. Suspension assembly Name & Specification Bolt M12×100 Plain washer 12 Luck nut M12 Left suspension plate Hanging spacer Left suspension plate Suspension rear connecting plate Bolt M8×25 Plain washer 8 Luck nutM8 Bolt M12×60 Upper suspension pin Bolt M12×35 Lower suspension supporting plate Nut M22 Spring washer 22...
  • Page 25 3.1 Installation of suspension assembly 1. As shown in the figure above, install the left suspension plate, right suspension plate, and lower suspension support plate (F4, F6, F14) on the gear box bracket welded parts of the main engine, insert the bolts 12*60 and bolts 12*35 (F11, F13) respectively, install the washers (F2) on both sides, and pre-tighten the mounting parts lock nuts (F3).

  • Page 26: Exploded View And Parts List

    EXPLODED VIEW AND PARTS LIST 1. Main frame assembly（TMG-STB61） www.tmgindustrial.com 25/30 TOLL FREE:1-877-761-2819...
  • Page 27 Name & Specification Shock absorber Plain washer 10 Lock nut M10 Cotter pin A 4 x 25 Plain washer 12 Butterfly bolt WB10×20 Flat soil tooth plate(2) Flat soil tooth plate(1) Plastic handle (center hole 120) Rear plate Spring washer 8 Hexagon socket head screw M8×20 Rear plate shaft Lock nut M12...
  • Page 28 Bolt M12×50 U bolt Rear connection plate(right) Tensioning plate Right side plate of cutter shaft Bolt M12×45 16A roller chain 21 links small chain pulley large chain pulley Spring washer for shaft A34 Spring washer for shaft 42 cork pad Chain case protection plate Front connection plate Front baffle...
  • Page 29 2. Gearbox assembly (STB145-005) Name & Specification Bolt M12×30 Spring washer 12 Plain washer 12 Shaft protective cover(2) Shaft protective cover(1) Bolt M8×25 Spring washer 8 Plain washer 8 Drive shaft Circlip for hole 80 Deep groove ball bearing 6307-2RZ Bolt M12×40 Copper washer Ø...
  • Page 30 3. Rotor assembly (STB145-004) Name & Specification Rotor shaft Lock nut M12 Spring washer 12 Bolt M12×35 Blade （right） Blade （left） Felt sealing ring Oil seal FB 50×72×10 Right bearing seat Cork pad Lock nut M10 Plain washer 10 Hexagon socket countersunk head screws M10×35 Circlip for hole 85 Deep groove ball bearing 6209-2RZ Oil seal FB 45×65×8...
  • Page 31 4. Mesh wheel assembly（STB145-003） Name & Specification Adjustment lever assembly spool sleeve Lock Nut M12 Plain washer 12 Bolt M12×50 Welded joint for left arm of mesh wheel Bearing UCFLU205 Spring Tension Plate Plain washer 20 Cotter pin 4×25 Nut M8 bolt M8×60 Mesh wheel Bolt M12×45...
