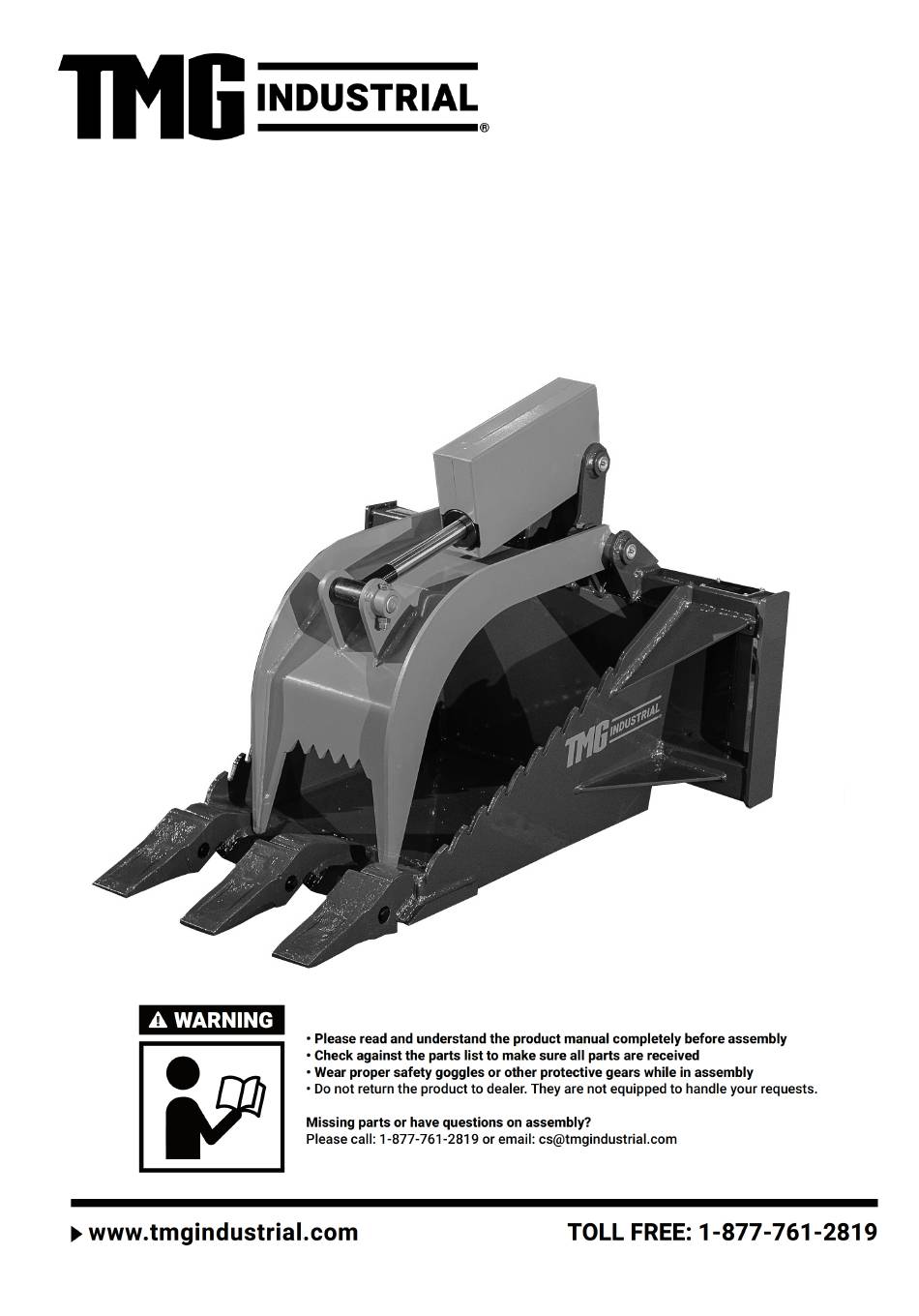

- Page 1 TMG-SSG36 PRODUCT MANUAL v.2023.09.14 36" MINI SKID STEER STUMP BUCKET GRAPPLE...
-
Page 2: Table Of Contents
EPLACEMENT ................................. 13 YDRAULIC YSTEM ................................... 13 ORQUE SPECIFICATION ..................................14 & C ..............................14 PECIFICATIONS APACITIES PARTS LIST ..................................15 TMG-SSG36 M ..................15 TEER TUMP UCKET RAPPLE SSEMBLY TMG-SSG36 ..............................16 SPARE PARTS LIST TMG-SSG36 H ..........................16... -
Page 3: Important Safety Information
Your Safety YOU are responsible for the SAFE operation and maintenance of your TMG Mini Skid Steer Stump Bucket Grapple. YOU must ensure that you and anyone else who is going to use, maintain or work around the Mini Skid Steer Stump Bucket Grapple be familiar with the using and maintenance procedures and related SAFETY information contained in this manual. -
Page 4: Equipment Safety Guidelines
- Wet weather gear - Hearing Protection 6. Install and secure all guards before starting. 7. Wear suitable ear protection for prolonged exposure to excessive noise. 8. Turn machine off, stop and disable engine, remove ignition key and place in your pocket, set park brake and wait for all moving parts to stop before servicing, adjusting, repairing, or unplugging. -
Page 5: Safety Training
10. In addition to the design and configuration of this implement, including Safety Signs and Safety Equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper training of personnel involved in the operation, transport, maintenance, and storage of the machine. Refer also to Safety Messages and operation instruction in each of the appropriate sections of the Mini Skid Steer and machine manuals. -
Page 6: Preparation
Preparation Never use the machine until you have read and completely understand this manual, the Mini Skid Steer tractor Operator's Manual and each of the Safety Messages found on the safety signs on the Mini Skid Steer tractor and machine. Personal protection equipment including hard hat, safety glasses, safety shoes, and gloves are recommended during assembly, installation, operation, adjustment, maintaining, repairing, removal, cleaning, or moving the unit. -
Page 7: Hydraulic Safety
Make sure there is plenty of ventilation. Never operate the engine of the towing vehicle in a closed building. The exhaust fumes may cause asphyxiation. Before working on this machine, shut off the engine, set the brake, and turn fuel valve off. Never work under equipment unless itis blocked securely. -
Page 8: Transport Safety
Transport Safety Comply with state and local laws governing safety and transporting of machinery on public roads. Check that all the lights, reflectors and other lighting requirements are installed and in good working condition. Do not exceed a safe travel speed. Slow down for rough terrain and cornering. Do not drink and drive. -
Page 9: Hook-Up Toro Mount Hitch
Hook-up Toro mount Hitch The Mini Steer Skid Bucket utilizes a Toro mount receiver plate for easy connection and disconnection. 1. Check loader and bucket hitch plates before hooking-up the bucket. Make sure all components are in good working condition before putting them into service: Check for and remove any debris in the loader and bucket hitch plates. -
Page 10: Hydraulic Connections & Mounting
Return to compact loader and tilt top of hitch plate (#3) slightly forward toward the bucket. Slowly lower bucket until its top angle bar (#4) and loader hitch (#3) have separated. Back compact loader slowly away from the bucket while making sure the Toro mount hitch does not interfere with the bucket. - Page 11 your backup alarm is working properly to warn others when you are in reverse, but never think that the alarm replaces your responsibility to visually check what’s behind you. Attachment control is the most important element to getting a good, steady cut. Overloading the attachment will only result in spinning the tracks or tires and will make unwanted ruts.
-
Page 12: Maintenance
WARNING! To avoid electric shock or electrocution, disconnect electricity when demolishing structures. 14. With the operator in the seat of the loader, the seat belt fastened, and the seat bar lowered (if so equipped), start the engine. 15. Raise the attachment slightly off of the ground. 16. -
Page 13: Hydraulic System
WARNING! To avoid an accident that could result in Death or Serious Injury, never find yourself in a position where any body part is located under an unsupported blade or frame when servicing this attachment. WARNING! Hazardous dust can be generated if painted surfaces are heated or welded and could result in death or Serious Injury. Remove paint before welding and always make repairs in a well-ventilated area and wear an approved respirator. -
Page 14: Specification
SPECIFICATION Specifications & Capacities With Toro Style Mount Plate，fits Toro, Dingo, Vermeer and other Toro style machine • Hydraulic motor with oil-in, oil-out • Grapple Capacity:2200lbs • Max hydraulic pressure: 2900 psi • Weight: 265lbs • www.tmgindustrial.com 14 / 16 TOLL FREE: 1-877-761-2819... -
Page 15: Parts List
PARTS LIST TMG-SSG36 Mini Skid Steer Stump Bucket Grapple Assembly • www.tmgindustrial.com 15 / 16 TOLL FREE: 1-877-761-2819... -
Page 16: Tmg-Ssg36 Spare Parts List
TMG-SSG36 spare parts list Part No. Ref. Part Description ZDT36.7 Cylinder Cover TSBG35.3 Hydraulic Components TSBG35.2 Grapple Rake Top JB/T 7940.1 Greaser M6 TSBG35.7 Pin 03 GB/T 5783 Bolt M10*55 GB/T 6170 Nut M10 GB/T 6172.1 Nut M10 TSBG35.5 Pin 01 TSBG35.1...
