Summary of Contents for TMG TMG-SLP75

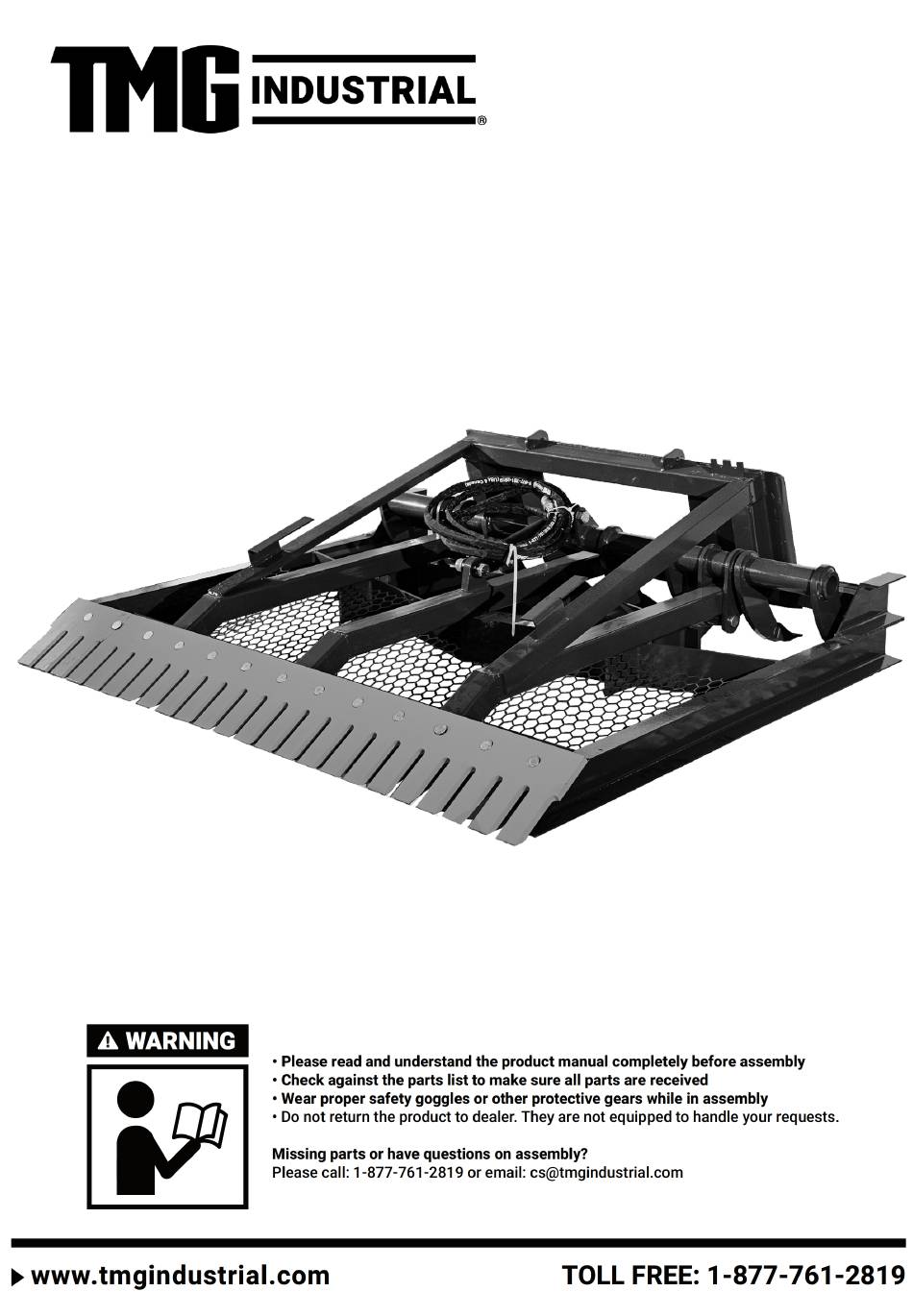

- Page 1 TMG-SLP75 PRODUCT MANUAL v.2022.11.8 72‘’ HYDRAULIC LAND PLANE...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY INFORMATION ............................3 ..................................... 3 AFETY ..................................3 ENERAL AFETY ..............................4 QUIPMENT AFETY UIDELINES ..................................5 AFETY RAINING .................................... 6 AFETY IGNS ..................................6 AFETY ECALS ..................................... 6 REPARATION ................................7 AINTENANCE AFETY ..................................7 YDRAULIC AFETY ................................... -
Page 3: Important Safety Information
Your Safety YOU are responsible for the SAFE operation and maintenance of your TMG Skid Steer Hydraulic Land Plane. YOU must ensure that you and anyone else who is going to use, maintain or work around the Skid Steer Hydraulic Land Plane be familiar with the using and maintenance procedures and related SAFETY information contained in this manual. -
Page 4: Equipment Safety Guidelines
- Protective shoes with slip resistant soles - Heavy gloves - Wet weather gear - Hearing Protection 6. Install and secure all guards before starting. 7. Wear suitable ear protection for prolonged exposure to excessive noise. 8. Turn machine off, stop and disable engine, remove ignition key and place in your pocket, set park brake and wait for all moving parts to stop before servicing, adjusting, repairing, or unplugging. -
Page 5: Safety Training
7．Never exceed the limits of a piece of machinery. If its ability to do a job, or to do so safely, is in question - DON'T TRY IT. 8. Do not modify the equipment in any way. Unauthorized modification may result in serious injury or death and may impair the function and life of the equipment. -
Page 6: Safety Signs
Safety Signs 1. Always keep safety signs clean and legible. 2. Replace safety signs that are missing or have become illegible. 3. Replaced parts that displayed a safety sign should also display the current sign. 4. Safety signs have a part number in the lower righthand corner. Use this part number when ordering replacement parts. 5. -
Page 7: Maintenance Safety
Maintenance Safety 1. Good maintenance is your responsibility. Poor maintenance is an invitation to trouble. 2. Follow good shop practices. - Keep service area clean and dry. - Be sure electrical outlets and tools are properly grounded. - Use adequate light for the job at hand. 3. -
Page 8: Transport Safety
5. If injured by a concentrated high-pressure stream of hydraulic fluid, seek medical attention immediately. Serious infection or toxic reaction can develop from hydraulic fluid piercing the skin surface. 6. Relieve pressure on hydraulic system before maintaining or working on system. Transport Safety 1. -
Page 9: Operation
OPERATION Machine Components The machine is shipped from the factory in a basic, universal configuration that allows it to be mounted to any model skid steer. However, the skid steer must be equipped with a remote hydraulic outlet on the front of the cab frame. The Hydraulic Land Plane should always be located on a level, dry area that is free of debris and other foreign objects. -
Page 10: Bolt Torque
Check that all hydraulic connections and locks are secure before beginning work. Reverse the above procedure when unhooking. Place planks or boards under the frame for extra support if required. Bolt Torque CHECKING BOLT TORQUE The tables shown below give correct torque values for various bolts and cap screws. Tighten all bolts to the torques specified in chart unless otherwise noted. -
Page 11: Specification
SPECIFICATION Specifications & Capacities Universal skid steer mount • Used to break up clumps before leveling • • Fixed sift screen trays Removable bolt-on 18mm thick planner comb • Adjustable and reversible scarifier teeth • • Heavy-Duty design structure 72-inch planers and combs •... -
Page 12: Parts List
PARTS LIST SLP72 Hydraulic Land Plane Assembly • www.tmgindustrial.com 12 / 13 TOLL FREE: 1-877-761-2819... -
Page 13: Slp72 Hydraulic Land Plane Assembly Parts List
SLP72 Hydraulic Land Plane Assembly Parts list Part No. Ref. Part Description SLP-H72.1 Frame Weldment SLP-H72.2 Ripper B-G00879A-9*35 Pin 9*35 6BS-9 Ripper Tip SLP-H72.2.1 Ripper Weldment GB/T 5782 Bolt M10*50 SLP-H72.5 GB/T 889.1 Nut M10 GB/T 5782 Bolt M24*110 SLP-H72.4 Hydraulic components SLP-H72.4-1 Cylinder...
