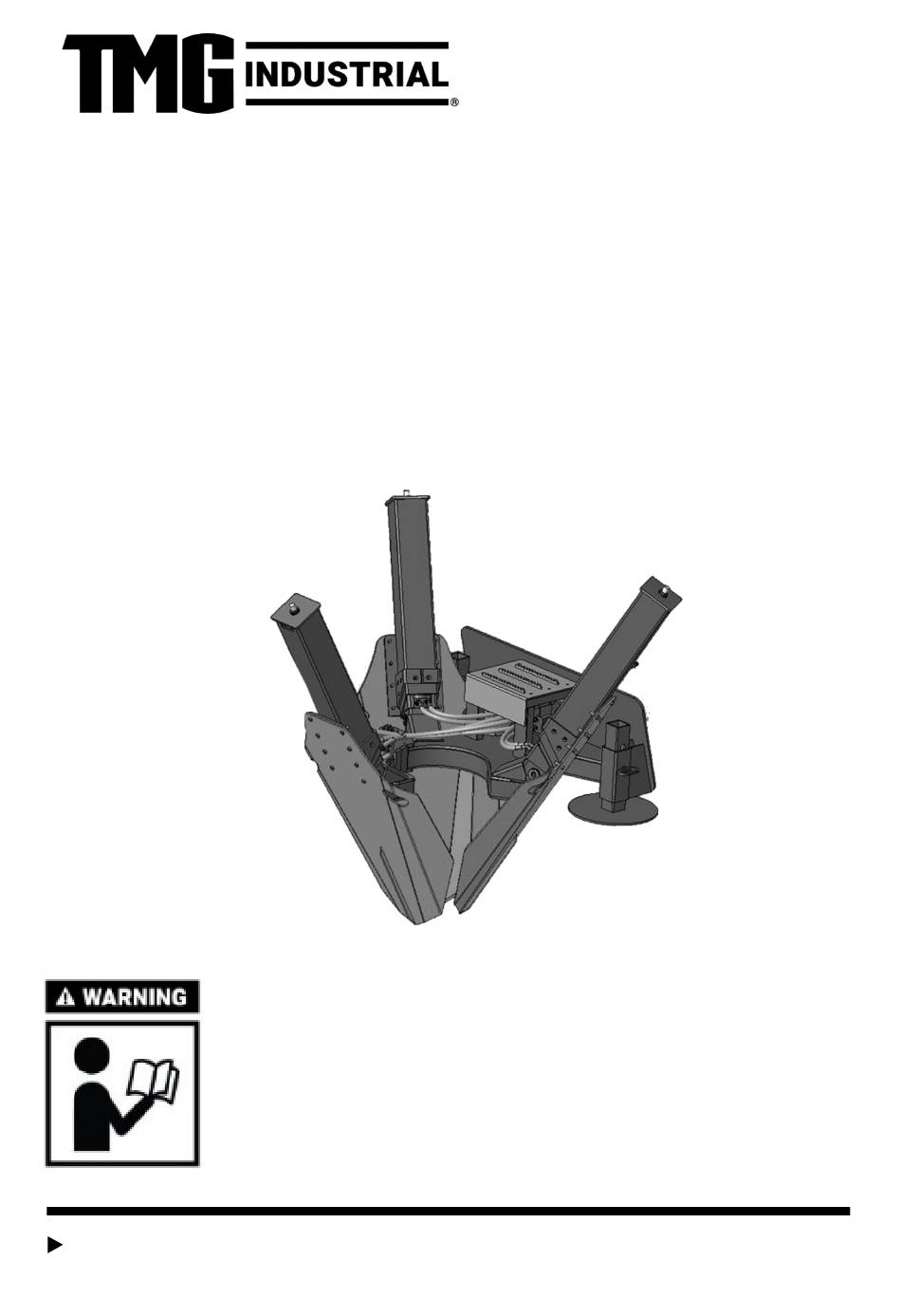

MODEL G-STS35
36" SKID STEER TREE SPADE
www.tmgindustrial.com
(3 BLADES)
Please read and understand the product manual completely before assembly
•
Check against the parts list to make sure all parts are received
•
•
Wear proper safety goggles or other protective gears while in assembly
•
Do not return the product to dealer, they are not equipped to handle your
requests.
Missing parts or questions on assembly?
Please call: 1-877-761-2819 or email: cs@tmgindustrial.com
TMG-STS35
PRODUCTMANUAL
v.2023.04.28
TOLL FREE:1-877-761-2819
Advertisement
Related Manuals for TMG TMG-STS35
Summary of Contents for TMG TMG-STS35
- Page 1 TMG-STS35 PRODUCTMANUAL v.2023.04.28 MODEL G-STS35 36" SKID STEER TREE SPADE (3 BLADES) Please read and understand the product manual completely before assembly • Check against the parts list to make sure all parts are received • • Wear proper safety goggles or other protective gears while in assembly •...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TO THE OWNER..............................3/18 SAFETY PRECAUTIONS............................4/18 SKID STEER TREE SPADE(3 BLADES) ASSEMBLY....................8/18 OPERATION INSTRUCTIONS..........................11/18 MAINTENANCE INSTRUCTIONS..........................15/18 STORAGE INSTRUCTIONS.............................16/18 SPECIFICATIONS..............................17/18 INSTALLATIN FITURE............................18/18 www.tmgindustrial.com 2/18 TOLL FREE:1-877-761-2819... -
Page 3: To The Owner
TO THE OWNER GENERAL COMMENTS Congratulations for having this skid steer tree spade(3 blades) attachment! Your skid steer tree spade(3 blades) attachment was carefully designed and manufactured to give you years of dependable service. Your skid steer tree spade(3 blades) attachment will require some minor maintenance(such as cleaning and lubricating) to keep it in top working condition. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS The skid steer tree spade(3 blades) attachments are designed to be easy to use and maintain. They are operated by the skid steer auxiliary hydraulics. The skid steer tree spade(3 blades) attachments mount to the toolbar or quick attach mechanism for easy mounting. - Page 5 SAFETY PRECAUTIONS These are common practices that may or may not be applicable to the products described in this manual. www.tmgindustrial.com 5/18 TOLL FREE:1-877-761-2819...
- Page 6 SAFETY PRECAUTIONS www.tmgindustrial.com 6/18 TOLL FREE:1-877-761-2819...
- Page 7 SAFETY PRECAUTIONS www.tmgindustrial.com 7/18 TOLL FREE:1-877-761-2819...
-
Page 8: Skid Steer Tree Spade(3 Blades) Assembly
SKID STEER TREE SPADE(3 BLADES) ASSEMBLIES www.tmgindustrial.com 8/18 TOLL FREE:1-877-761-2819... - Page 9 SKID STEER TREE SPADE(3 BLADES) ASSEMBLIES PART NO. S/N. NUMBER PART DESCRIPTION QTYS NOTE 050236.02 BLADE ARM 050236.03 EDGE BLADE GB/T 2673-2000 SOKET HEAD CAP SCREW M8*12 050236.00-01 NYLON A 050236.00-02 NYLON B 050236.00-03 NYLON C 050236.00-04 NYLON D 050236.00-05 050236.10 ROTARY PART 050236.09...
- Page 10 SKID STEER TREE SPADE(3 BLADES) ASSEMBLIES PART NO. S/N. NUMBER PART DESCRIPTION QTYS NOTE GB/T97.1-1987 FLAT WASHER D10 GB/T93-1985 SPRING WASHER D10 050236.06 050236.04 GB/T2673-2000 SOKET HEAD CAP SCREW M8*16 cylinder inner diameter:50mm 050236.11 DEPTH ADJUSTABLE CYLINDER rod diameter:30mm stroke:720mm shortest distance:980mm cylinder inner diameter:50mm...
-
Page 11: Operation Instructions
OPERATION INSTRUCTIONS The tree spade can dig the trees with the Max. tree trunck diameter 150mm,and tree ball diameter 900mm. Attach the tree spade to the toolbar or quick attach mechanism of your skid steer loader. (1)Let shovel blade 1 to 3 retract to the top end, and adjust left and right supporting legs up by the adjustable holes, to their supporting plates, but lower than the bottom surface of the open and close arms, avoid the supporting legs having the interference when the bottom surface of the open and close arms come to the bottom. - Page 12 OPERATION INSTRUCTIONS (5)As followed, shovel blade 3 moves, press the "three clicks", shovel blade 3 declines, dropping to 1/3 full stroke cylinder. (6)As followed, shovel blade 2 moves, press the "two clicks", shovel blade 2 declines, dropping to 1/3 full stroke cylinder. (7)Repeat the steps from (4),(5),(6) to let the shovel blades decline to 1/3 of the stroke cylinder.
- Page 13 OPERATION INSTRUCTIONS About Wiring Harness Connection Wiring Harness Step 1: Connect the power wiring of the control box with the power supply of the host machine. Can distinguish the positive and negative terminals as the different colors shown in the following sketch. www.tmgindustrial.com 13/18 TOLL FREE:1-877-761-2819...
- Page 14 OPERATION INSTRUCTIONS Step 2: Control Wiring Connection of Control Box www.tmgindustrial.com 14/18 TOLL FREE:1-877-761-2819...
-
Page 15: Maintenance Instructions
MAINTENANCE INSTRUCTIONS 1. Always keep the clean hydraulic oil, keep the hose joint clean, if the hydraulic oil is mixed with dirt, it will possibly cause the whole operation system abnormally. 2. Daily check all hydraulic lines, make sure the connection of the hydraulic line good, the pipe without distortion, wear, cracking, no loose joint to leak. -
Page 16: Storage Instructions
STORAGE INSTRUCTIONS 1. Clean all the debris, all mud, dirt and grease. 2. Inspect the unit for bent, loose, cracked, damaged or missing parts, Order any parts required, and make the necessary repairs to avoid delays when starting next season. 3. -
Page 17: Specifications
SPECIFICATIONS MODEL TMG-STS36 TOTAL WIDTH (MM) 1780 TOTAL LENGTH(MM) 1815 TOTAL HEIGHT (MM) 1825 Fit TREE TRUNK DIAMETER (MM) 0-150 TREE BALL DIAMETER AVAILABLE(MM) 0-900 WORKING FLOW(L/MIN) 20-65 DIGGING DEPTH(MM) ≤700 WEIGHT (KG) MAX. PRESSURE (MPA) 12-21 www.tmgindustrial.com 17/18 TOLL FREE:1-877-761-2819... - Page 18 Installation Feature www.tmgindustrial.com 18/18 TOLL FREE:1-877-761-2819...
