AeroDrive base bar and upper stem preparation

Armrest pads orientation adjustment

The upper stem is designed with a small thread on its inside. This allows you
to steady the base bar during the assembly.
Tighten this bolt to 4 Nm
As soon as you have chosen your stem size, assemble the upper stem with
the base bar as shown bellow.

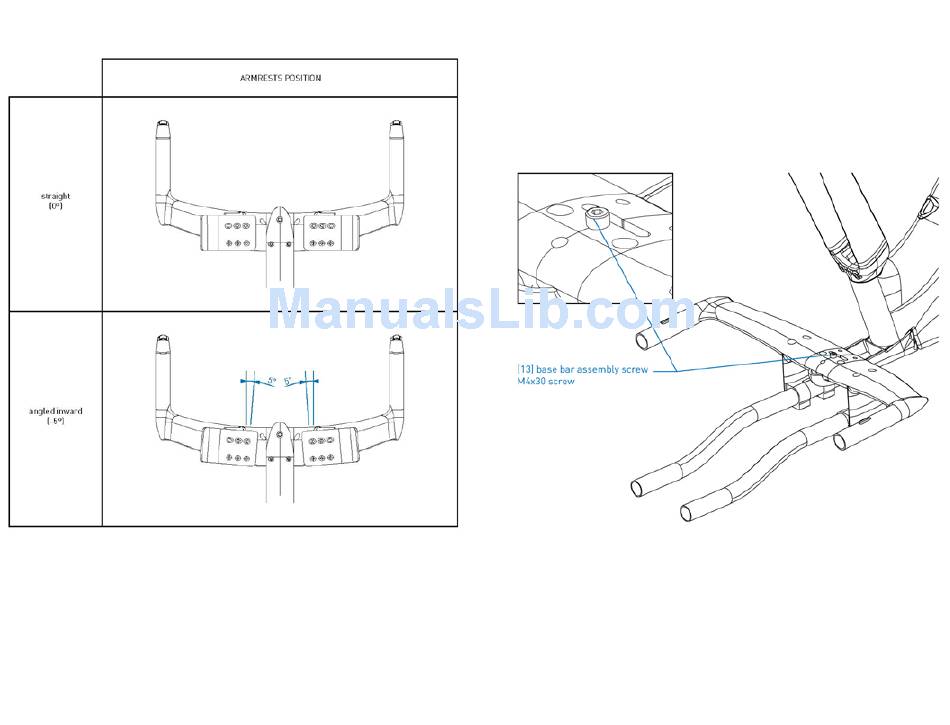

Figure 8 : Armrest pads orientation adjustment Figure 9 : Base bar and upper stem preparation
