Giant TRANCE X1 Datasheet

81

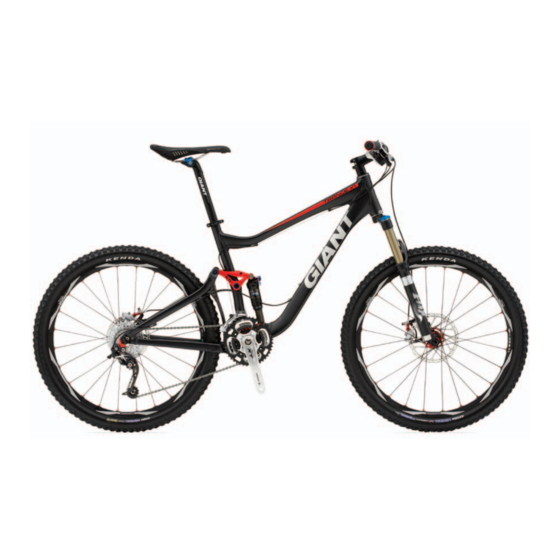

Trance X1
Specifications
SIZES XS,S,M,L,XL
COLORS Satin Black/Red
ALUXX SL-Grade Aluminum,
FRAME
5" Maestro Suspension
Fox 32 F120RL FIT w/ 15QR Thru Axle,
FORK
120mm travel
SHOCK Fox Float RP23
HANDLEBAR Giant Contact, low rise 31.8
STEM Giant Contact
SEATPOST Giant Contact, 30.9
SADDLE Fi'zi:k Gobi XM w/ K:ium rails
PEDALS Not Included
SHIFTERS Shimano Deore XT
FRONT DERAILLEUR Shimano Deore XT
Shimano XTR Shadow,
REAR DERAILLEUR
top normal
BRAKES Avid Elixir R 180F/160R
BRAKE LEVERS Avid Elixir R
CASSETTE Shimano Deore XT 11x34, 9-speed
CHAIN Shimano HG-73
CRANKSET Shimano Deore XT, 22/32/44
BOTTOM BRACKET Shimano Deore XT, External
RIMS Shimano Deore XT
HUBS Shimano Deore XT w/ 15mm Front Axle
SPOKES Shimano Deore XT
TIRES
Kenda Nevegal, 26x2.1 Folding
EXTRAS
Specifications and availability subject to change without notice.
IT'S SIMPLE: THE FASTER YOU RIDE, THE MORE
TRAILS YOU'LL CONQUER. CLIMB HIGHER, DESCEND
MORE. AND DO IT ALL WITH JUST ONE BIKE.
Frame Technology
A perfectly balanced ALUXX SL aluminum frame—bolstered with 5 inches of fully active Maestro
suspension travel—will keep you rolling through technical terrain, blitzing descents and devouring
steep climbs. Ride more trails. And ride them faster.
Key Upgrades (over Trance X2)
— Fox 32 FIT F120RL, 120mm suspension fork
w/ 15QR thru-axle, Fox Float RP23 rear shock
— Avid Elixir R disc brakes
— Giant Contact XC handlebar, stem and seatpost
— Shimano Deore XT wheelset
frame geometry
Actual Part Head Seat
Frame Size Number Angle Angle*
inches degrees degrees
XS 14.5 346052 69.5 73.5
S 16 346053 69.5 73.5
M 18 346054 69.5 73.5
L 20 346055 69.5 73.5
XL 22 346056 69.5 73.5
*Seat angle is actual
**Toptube is measured from the center of the headtube horizontally back to the top of the effective extension of the seattube
***Standover height is based on the largest size tire that will fit the bike, not necessarily the included size tire
Toptube** Headtube Chainstay Wheelbase
inches inches inches inches
21.5 4.7 17.1 41.9
22.0 5.1 17.1 42.6
23.0 5.7 17.1 43.6
24.0 6.5 17.1 44.6
25.0 7.5 17.1 45.7
Standover
Height***
inches
30.5
30.9
31.4
32.0
32.4
