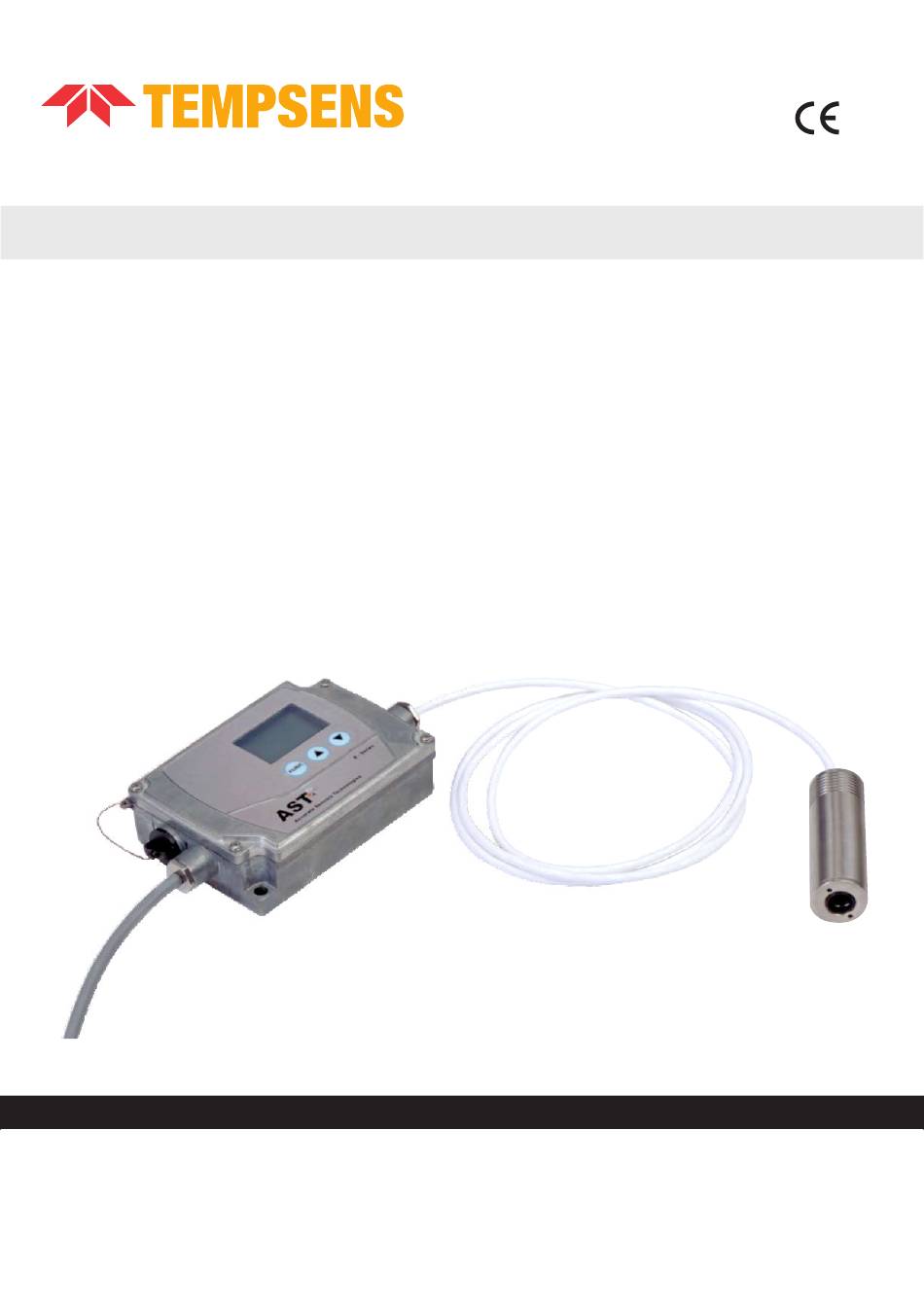

- Page 1 Thermal & Cable Solutions AST E 450C PL Non-contact Infrared Pyrometers USER MANUAL TEMPSENS INSTRUMENTS (l) PVT. LTD. B-188A, Road No.5, Mewar Industrial Area (M. I. A.), Madri, Udaipur-313003 (Rajasthan) INDIA Ph.:+91-9116554600, Email: info@tempsens.com...
- Page 3 Index 1. Chapter - 1 ........................General information 2. Chapter - 2 ........................Introduction Application, range and working principle 3. Chapter - 3 ........................Technical specification 4. Chapter - 4 ........................Setting at the instrument Operation Adjustment parameters Connection diagram Pin assignment 5.
-
Page 4: General Information
-20° to +70° C. 1.1.6 Warranty AST E 450C PL instruments have a warranty of two years from the invoice date. AST will replace defective parts, which arises from design errors or manufacturing faults. In case, if pyrometer is opened, disassembled or modified then the guarantees will loss. - Page 5 Chapter - 2 Introduction The AST E450C PL is digital two color pyrometer with extended optical head which uses ratio of two adjacent wavelengths for temperature measurement of target object. It has inbuilt LCD, LED light & keypad for parameterization to provide high performance and low maintenance of non contact temperature measurement in demanding industrial environment.
- Page 6 2.2.1 Measurement of temperature is not affected by low or changing emissivity values If the value of emissivity in both colours (wavelengths) are same as like for the black body (where emissivity =1.0) or for grey body where emissivity is less than 1.0 but a constant number and the emissivity of the target would not get influenced.
-
Page 7: Technical Specifications
Chapter - 3 Technical Specifications Model AST E 450C PL Measured Temperature Ranges 800° - 2500°C (Analog sub range adjustable) Spectral Range, µm 0.7 ..1.15 µm Photodetector Type Si / Si Distance to spot size ratio 80 : 1 Response Time 20 msec. -
Page 8: Operation
Chapter - 4 Setting at the instrument LCD display for measuring temperature and parameter USB output Sensor cable maximum length 15 mtr. 24V DC input analog Up & Down key for & digital output cable parameter setting Function key to select Wall Mounting holes different functions Fig. - Page 9 ) Emmisivity Slope This parameter will be shown if two color mode(CM2) is selected, Different material has different Emissivity slope ranging from 0.75 to 1.25. ) Set point Instrument is equipped with a relay contact controlled by the measuring signal. The turn on temperature of relay is adjusted within the measuring range.
- Page 10 Pin assignment Pin No. X Pin No. Y Optional (RS-232 / RS-485) Pin No. Z Connection PCB USB Output Sensor cable 24V DC input analog & digital output cable Connector Pin No. Connector Pin No. 1 Fig. 5 Pin Assignment Connector pin assignment: Pin number Indication...
-
Page 11: Optical Specification
Sensor head details Material : Stainless steel : 25 mm Length : 72 mm Fig. 6 Sensor Head Fig. 7 Sensor Head Dimensions Optical specification AST E 450C PL Working distance (mm) Spot size (mm) 1.12 Aperture Fig. 8 Spot size calculation * Manufactured working distance (WD) mentioned on the pyrometer. -
Page 12: Electrical Installation
Chapter - 6 Accessories Electrical Installation 6.1.1 Power Supply The input power supply is 110/230v AC check the polarity before connecting the device. Device has following specifications Power supply I/P : 100 - 240VAC, 0.35A 50/60 Hz Power supply O/P : +24V DC(well stabilized ripple max 50mV), 0.625A Fig. -
Page 13: Mechanical Accessories
Mechanical accessories 6.2.1 Water Cooling Jacket ‘ This accessory is very important in order to use pyrometer at higher temperature. A normal pyrometer can withstand a temperature of 0-70°C. For higher temperature applications the device must be used with water cooling jacket upto 200°C.( for mechanical drawing refer Appendix C.) Water pressure <... -
Page 14: Software Installation
Chapter - 7 Software Installation The provided AST software “InfraSoft” offers digital PC interface RS-232 & RS-485. Using this software we can set all the parameters like response time, analog scale, emissivity, clear time, communication mode. This software provide all necessary information about pyrometer. 4.1 Installation Install the pyrometer software using the installation guide file on CD ROM &... - Page 15 For communication of multiple pyrometers, select different com port and address. 4.2.2 Temperature It shows the temperature measured by the pyrometer 4.2.3 Parameter Setting All user selectable device parameters can be set by using the software in the Panel "Parameter" (A)Emissivity settings The emissivity can be set by clicking on "Parameters”...
- Page 16 (G) Peak Picker Setting Three Pickers are available in Pickers setting menu (Auto, tCL, Smart) & user can switch on any as per requirement, one at a time. (G1) Auto “Auto” mode is used for discontinuous measuring task, such as object being transported on a conveyer belt in such a case the maximum value for each object has to be indicated.
- Page 17 (G3) Smart If the smart picker is switched on, the highest last temperature value will always be displayed and stored. This feature is particularly useful when object temperature is not uniform across its dimension or the pyrometer is not constantly viewing an object to be measured. Smart Picker Functions Smart picker can be turn ON &...
-
Page 18: Device Information
(H)Relative energy(for two color pyrometer) The relative energy shows a signal weakening which can be caused by contaminations of the optics or a viewing window or by dust in the field of view or a too small measuring object. Relative energy shows the measured intensity compared to the intensity, a black body radiation source would have at a determined ratio temperature of the pyrometer. - Page 19 File will be stored in .xls format named as “export”. This “export.xls” file will be saved where the software is installed. To see previous record open the file by clicking on menu File open. Screen containing historical trend & historical data will appear.
- Page 20 Temperature graph of connected pyrometer is displayed on right side of the screen. This shows the measured temperature corresponding to the time. Note: After connecting the pyrometer right click on the graph screen and choose "Set to default" option from pop-up menu.
-
Page 21: Cleaning Lens
Chapter - 8 Maintenance In case of any queries, questions regarding repair, solutions to problems, calibration and assistance you may contact our sales representatives. Most of problems can be solved telephonically. 8.1 Cleaning Lens The lens should be kept clean all the time as it aims at center of target object. When cleaning lens care should be taken and it can be done as follows : Firstly blow off lightly loose particles with “canned air”... - Page 22 Chapter - 9 Calculate Spot Size Calculate Spot Size To calculate Spot Size click on Utility This option is used to calculate the spot size at installed working distance of the Pyrometer. When you click on calculate spot size the new window will open. Fig.
- Page 23 Chapter - 10 Serial communication protocol-MT500 This protocol is developed to use in the half duplex addressable communication mode. Master device should periodically issue requests to each Slave device. The request contains an address of polling “Slave” device. Slave device reply only on the requests issued by Master.
- Page 24 Device model number (read '0E00' '01' 10 bytes “AST450C “', if less than 10 byte pad with space at end only) Firmware version '1300' '01' Firmware version number of device (read only) Sensor serial number (read 6 bytes in hex, if less than 6 bytes pad with '0' at start. Only numbers '1400' '01' only)
- Page 25 Reply to above command if address '0000' contains value 1497 and address '0001' contains value 0000. Byte 1 Bytes 2, 3 Bytes 4, 5 Bytes 6-9 Bytes 10-13 Byte 14-15 059D 0000 0x02 0x30, 0x41 0x52, 0x44 0x30,0x35,0x39,0x44 0x30, 0x30, 0x30, 0x30 0x39, 0x43 in the event of an error, the reply is Byte 1...
-
Page 26: Error Codes
Error Codes: Error Code Description Comments Invalid check sum See how to calculate a check sum Unknown command Protocol uses only RD (Batch Read) and WD (Batch Write) commands Data length error Number of items in WD (Batch Write) command doesn't match number of data bytes ETX not found ETX (0x03) not present in command... -
Page 27: Broadcast Message
WD (Batch Write) command with Station ID of 0 is considered as broadcast message. Sensors process this command regardless of their Station Number and do not issue replies. It is useful when master issues a request to change the same parameters of more than one Slave devices. For more information write us at, info@tempsens.com... - Page 28 Appendix B Typical emissivity values for various materials available: All the emissivity values shown in the table are only approximate, as it depends various parameters and it may affect the emissivity of a material. These parameters are as under: Temperature Thickness of material Angle of measurement Spectral range of measurement...
-
Page 29: Mechanical Drawings
Appendix C Mechanical Drawings Water Cooling Jacket FOR 6 mm INSIDE DIAMETER HOSE 3 x M5 Ø30 138.50 Water Cooling Jacket with Adjustable Flange PL Water Cooling Jacket with Adjustable Flange TL (Reference no: 8000-02) (Reference no: 8000-06) Air Purge Unit Adjustable Mounting Stand for 3 mm inside diameter hose... -
Page 30: Maintenance
For storage in humid areas or shipment overseas, the device should be placed in welded foil (ideally along with silicone gel) to protect it from humidity. Warranty AST E 450C PL instruments have a warranty of two years from the invoice date. This warranty covers manufacturing defects. User-induced faults are not covered under this warranty. Software warranty The windows compatible software was thoroughly tested on a wide range of windows operating systems. - Page 31 Copyright: © 2009, AST. All rights reserved. This document may contain proprietary information and shall be respected as a proprietary document to AST with permission for review and usage given only to the rightful owner of the equipment with which this document is associated.
- Page 32 Tempsens Instruments (l) Pvt. Ltd. Tempsens Instruments (I) Pvt. Ltd. is a part of Pyrotech Group which was established by four technocrats in 1976 at Udaipur, with their first product as Thermocouples and RTDs. Today ‘Tempsens’ is one of the largest manufacturers of Temperature Sensors in India.
