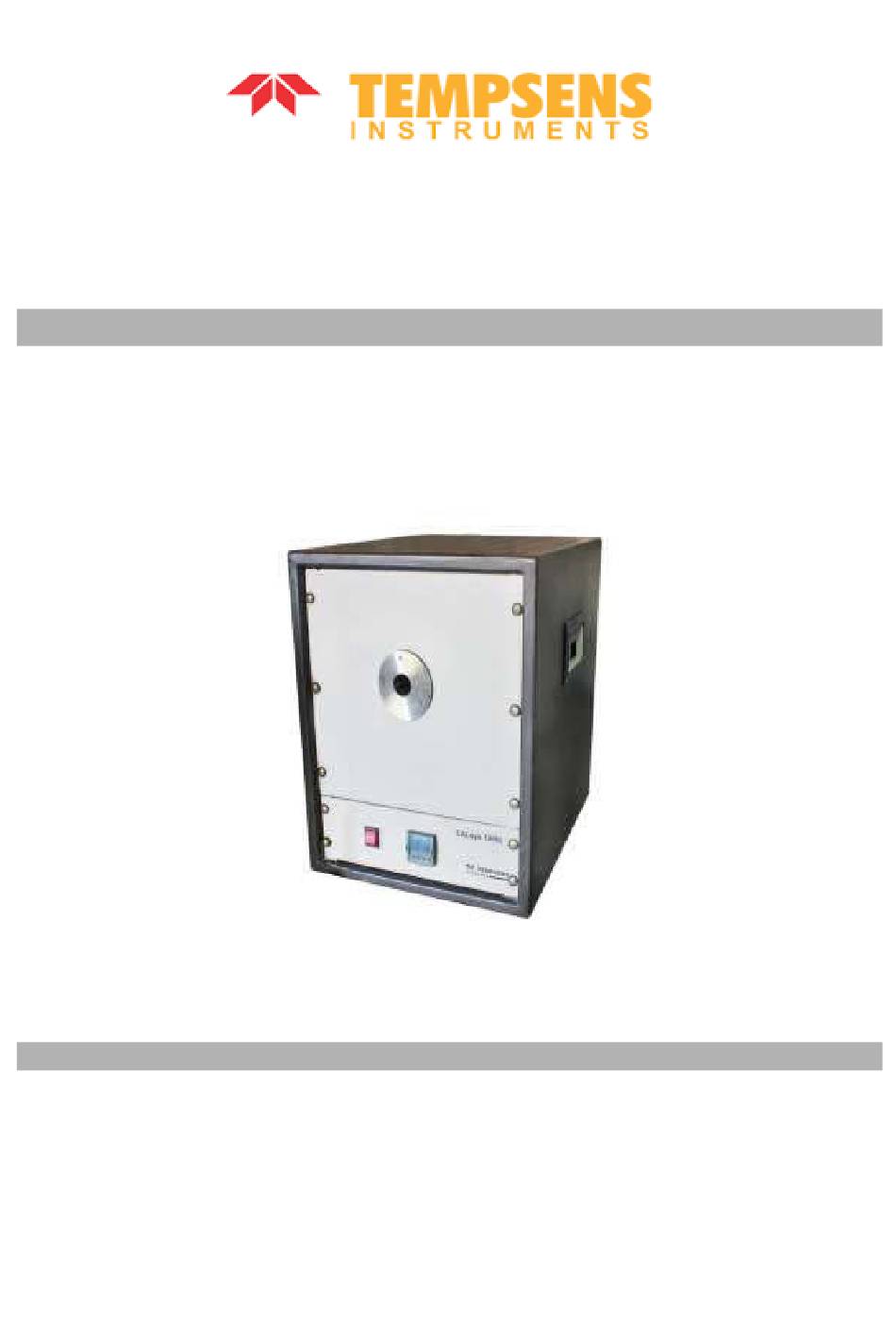

- Page 1 CALsys 1500 L CALsys 1500 L Dry block Temperature Calibrator USER MANUAL TEMPSENS INSTRUMENT (I) PVT. LTD UNIT II...
- Page 2 1. General Instruction................1 1.1 Information on operating instruction 1.2 Liability & warranty 1.3 Unpacking & initial inspection Before you start................2 2.1 Safety information 2.2 Warning 2.3 Caution Technical Data................3 3.1 Technical specification 3.2 Circuit diagram Overview..................4 4.1 Introduction 4.2 Outline description 5.
-
Page 3: General Instruction
The general safety requirements must be strictly adhered to when operating the device. The fact contained especially safety are observed. If you experience any further questions, please contact our technical support by phone or mail to tech@tempsens.com. 1.2 Liability and warranty... -
Page 4: Before You Start
2. Before you Start 2.1 Safety Information Use the instrument only as specified in this manual. Otherwise, the protection provided by the instrument may be impaired. Refer to the safety information below and throughout the manual. The following definitions apply to the terms “Warning” and “Caution”. ... -
Page 5: Technical Data
D o no t ch a n g e th e va l ue s o f th e c al i b ra ti o n c o n s t a n t s f r o m t h e f a c to r y s e t val u e s. - Page 6 4. Overview 4.1 Introduction: The ‘CALsys 1500 L’ has been designed to provide stable and accurate temperature to enable professionals to calibrate Temperature Sensing Devices by comparison method. The ‘CALsys 1500 L’model has been designed to be rugged and easily maintained. This model provides an isothermal enclosure (ceramic block) in which the thermocouple/RTD can be calibrated against the temperature of the calibrator.
- Page 7 4.3 INSTALLATION OF CALSYS 1500L Unpack the furnace carefully and inspect it for any damage that may have occurred during shipment. If there is shipping damage, notify the carrier immediately. calsys 1500L ceremic block Sic heaters Open the front plate and back sheet of CALsys 1500L and remove all packing sheet from inside.
- Page 8 After Inserting its tight by screwdriver Fix the 6 heater into the chamber and Connect all the aluminum strip in series. Heating Element connection. connect the Phase and Netural wire as per given picture. Again fix the front and back plate of calsys 1500L...
- Page 9 Fully assembled of CALsys 1500L 5. Operating Instruction (1) PID Controller (2) ON/OFF switch of controller Power cable RS-232 Power MCB (4) RS-232 cable (5) Safety controller for over heating temperature...
- Page 10 Press “UP” or “DOWN” buttons to change the change the temperature set-point value. When the set-point temperature is changed the controller will switch the CALsys 1500 L ON or OFF to raise or lower the temperature. The displayed temperature will gradually change until it reaches the setpoint temperature.
-
Page 11: Front Panel Layout
6. Master sensor take some times to reach the setpoint temperature and stable at temperature near about controller set temperature. 7. When temperature of the master and UUC (Unit under calibration) are stable record the readings of master sensor. 8. Compare the UUC reading with the master’s reading & find out the error by comparison method. 9. -
Page 12: Important Notice
6.4 Units Momentary pressing of the Scroll key will show the controller units °C or °F by using SCROLL key & UP & DOWN key unit can be change. IMPORTANT NOTICE The controller's function settings are preset and will not require adjustment. Use only up & down key. -
Page 13: Cautionary Note
Communication can be done by clicking on connect and select correct COM port address (fig. 1) where furnace is connected. Also user has to select type of controller... - Page 14 1.2.2 Scale Trend: -in scale trend you have to change the Y-Axis Min value 0 and Y-AxisMax value 1500.MaximumTime Span, Minutes have to save data the data logging up to 120 minutes, than clickon start graph button. After complete the task clickon save to file button. Set Point (°C): - in which you can set temperature of furnace as your requirement.
-
Page 15: Safety Instructions
User induced faults are not covered under this warranty. Limit of Liability TEMPSENS not liable for any damages that arise from the use of any examples or processes mentioned in this Specifications are subject to change without notice Copyright:@ 2009, TEMPSENS. - Page 16 TEMPSENS INSTRUMENT (I) PVT. LTD...
