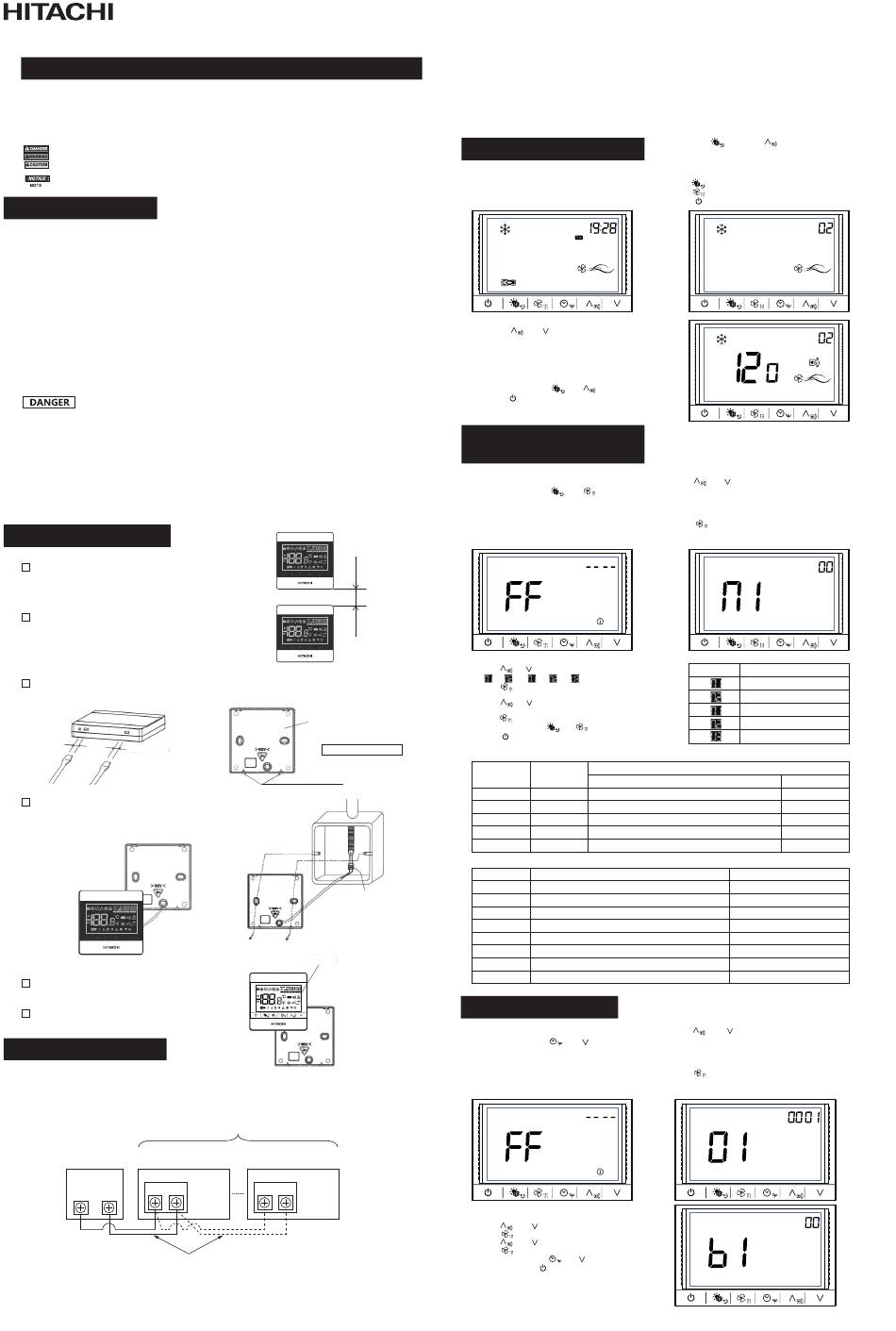

Hitachi HCWA10NEGQ Installation & Maintenance Manual

Installation & Maintenance Manual
Touch Screen Wired Controller (Model:HCWA10NEGQ)
IMPORTANT:
READ AND UNDERSTAND THIS MANUAL BEFORE USING THIS WIRED CONTROL SWITCH.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
IMPORTANT NOTICE:
● No part of this manual can be reproduced without written permission.
● Signal words are used to identify levels of hazard seriousness. Definitions for identifying hazard levels are provided in the
following table with description.
: indicates a hazardous situation, which results in death or serious injury if not avoided.
: indicates a hazardous situation, which can result in death or serious injury if not avoided.
: used with the safety alert symbol, indicates a hazardous situation which can result in minor or moderate injury
if not avoided.
: addresses practices not related to personal injury.
: provides useful information for operation and/or maintenance.
1. Safety Summary
This product has been designed for the air conditioning system.
● DO NOT install the indoor unit, outdoor unit, wired controller and cable in the following places;
1. Where oil vapor or oil is dispersed (It may cause a fire, deformation, corrosion or failure.)
2. Where the hot springs are near (in a sulfuric environment)
3. Where the sea is near (in the salty environment) (It may cause corrosion.)
4. An acid or alkaline environment
5. Where children can touch
6. Where discharge air from the unit directly blows
7. A place with humid atmosphere
8. A place possibility of water wetting
9. A place of poorly ventilated
● In order to protect the unit from malfunction, pay attention to the following points when the unit is installed in a hospital
or other facilities where electromagnetic wave is generated from medical equipment.
1. DO NOT install the indoor unit, outdoor unit, wired controller and cable within approximately 3 meters from strong
electromagnetic wave radiators such as a radio.
2. In case that the wired controller is installed in a place where electromagnetic wave radiation is generated, shield the wired
controller and cables by covering with the steel box and running the cable through the metal conduit tube.
3. In case that electric noise is applied at the power source for the indoor unit, provide a noise filter.
● When the function selection of "Thermistor of Wired controller" is used, do NOT install the unit in the following places;
1. Where the average room temperature cannot be detected
2. Where it is exposed to the direct sunshine
3. Where it is close to the heat source
4. Where the outside air blows when door is opened/closed
● DO NOT pour water into the wired controller (hereafter called "controller". This product is equipped with electrical
parts. If poured, it will cause a serious electrical shock.
● Prior to the installation work, ensure that foundation is flat, level and sufficiently strong and then fix the unit securely. If
the foundation is not strong enough, it may lead to injuries caused by falling of the product, electrical shock or fire.
● DO NOT install the unit in a place where generation, flowing, staying or leaking of flammable gas is detected.
● DO NOT perform installation work and electrical wiring connection by yourself. Contact your distributor or dealer of
YORK and ask them for installation work and electrical wiring by service person.
● Perform electrical work according to the Installation Manual and all relevant regulation and standards. If the instructions
are not followed, an electrical shock and fire may occur due to insufficient capacity and inadequate performance.
● Use specified cables to connect between indoor unit and controller. Selecting incorrect cables may lead to fire or
electrical shock.
● As for the electrical wiring work and check, turn OFF the main power supply before opening/closing the service cover of
indoor unit. If service cover is opened with main power supply left on, it may result in an electrical shock.
Note: The following list serves check list. Tick the checkbox (
2. Installation Work
2.1 Choosing Place of Installation
Select a suitable place for fixing the controller in agreement
with the customer.
Do not install the controller at following places:
● Reachable to kids
● Where there is direct discharge of air from air conditioner
2.2 Before Installation
The package contains the following components:
[A] Wired Controller (Q'ty: 1, For Operation Control)
[B] Screw ＜M4x16L＞ (Q'ty: 2, For Fixing the Holding Bracket
onto the Wall)
[C] Installation & Maintenance & Operation Manual (Q'ty: 2)
[D] Terminal (Q'ty: 1, For fixing cable)
2.3 Installation Procedures
1) Insert the edge of the slotted screwdriver into the groove at the bottom of the bracket holder. Rotate the
screwdriver to remove the controller from the bracket holder.
Approx. 6mm
2) Attach the controller to the bracket holder and connect the cable as shown:
1. Prepare field-supplied Implanted Switch Box (GB standard 86*86 Box).
2. Lead the cable through the conduit tube inside the wall.
3. Connect to the wired controller through the terminal provided.
3) Attach the wired controller to the bracket holder.
Note: Be careful not to pinch the cable while attaching it.
4) Remove the protection film on the liquid crystal display.
3. Electrical Wiring
ATTENTION：
Ensure to disconnect power at the main source before initiating electrical work. Failure can cause fire,
damage to internal components damage and severe/fatal electrical shock.
Example for Communication Cabling:
Electrical Box
Controller of Indoor Unit
Terminal Board
A B
A B
Twist Pair Cable with Shield Tube: 1P-0.75mm² or more
NOTICE ：
A. Use 0.3 to 0.75mm2 cable for wired connection. The maximum cable length is 30m. If the total cable length exceeds
30m, use twisted pair cable with shield tube (1P - 0.75 mm2). In that case, the maximum total cable length is 500m.
Usage of cable outside this specifications can cause damage from electronic interference (EMI).
□
) after task completion.
More than 50mm
Rear cover
View from the bottom
Groove for attaching
controller
Terminal
M4 Screws
（Field-supplied）
Remove the
protection film
Max.16 Indoor Units
Electrical Box
of Indoor Unit
Terminal Board
A B
M3.5 M3.5
Screws Screws
B. Maintain a distance of at least 30cm between the transmission line (remote control cable and transmission wires) and
power source of the indoor units. If not, the unit can malfunction due to electromagnetic interference (EMI) generated by
incoming power cables from the power source.
C. In systems where multiple indoor units are in synchronized control under a single controller, assign unique refrigerant cycle
numbers and address for indoor units.
Refer to Technical Catalog provided with each indoor unit while connecting the wires between the controller and indoor
D.
units to set the refrigerant cycle number and the indoor unit address.
E.
Ensure that there is no gap between the controller cable and the cable access inlet of the controller box casing. Cover the
gap with vinyl tape sealing if exists. Gap can lead to moisture inside the controller and insect entry, which can cause
degraded performance and/or damage to the unit.
If the wired controller screen stays in initialization mode for a long time (>5 minutes) after power on, power off the system
F.
for 30s and power on again.
4. Checking Procedures
1) Turn ON the power supply for all indoor units.
2) The addressing is automatically performed
approximately after 1-3 minutes and displays
the screen illustrated in the figure.
● * Press and to select the following run times:
30<=>60<=>90<=>120<=>150<=>...<=>600(minute).
● NOTE:
* Louver is in auto swing mode
*The settings are available for all units connected to the
controller.
5) To cancel the Test Run mode:
* Press and hold both and for at least 5 seconds
or press .
5. Input/Output
Setting from Controller
Setting normal screen
1) Press and hold both, and for at least 5
seconds during the normal mode (when the unit is
not being operated).
Controller displays the unit selection screen if more
than two units are connected to the controller.
Otherwise, controller skips the screen and displays
the Input/output setting screen.
4) Press or to choose the option:
-> -> -> ->
5) Press to confirm the option and to select the parameters.
The screen displays the parameter in [minutes] area.
6) Press or to select the parameters:
00->01->02->03->04->05->06->07->08->01
7) Press for confirmation.
8)
Press and hold both and for at least 5 seconds or
press to cancel and to return to normal mode.
• Table A Input and Output Number Display and Connectors
Input/output
Port
Indication
Setting Features
Input 1 CN3 1-2# Remote ON/OFF 1
Input 2 CN3 3-2# Prohibiting Remote Control after Manual Stopping
Output 1 CN7 1-2# Operation
Output 2 CN7 1-3# Alarm
Output 3 CN8 1-2# Thermo-ON for Heating
• Table B Input and Output Settings and Display Codes
Indication Input
Not Set
00
Room thermo(for cooling)
01
Room thermo (for heating)
02
Remote ON/OFF 1
03
04 Remote ON/OFF 2 (Operation)
Remote ON/OFF 2 (Stoppage)
05
06 Forbidding Remote Control after Manual Stoppage
07 Remote Cooling / Heating Change
6. Function Setting
Setting from normal screen
1) Press and hold both, and for at least 5
seconds in the normal mode (when unit is not
operational).
2) Controller displays the unit selection screen if you
have connected more than two units. Otherwise,
it skips this screen and displays the function
setting screen.
5) Press and and select the parameters.
6) Press to confirm the parameter.
7) Press and to select the parameter value.
8) Press to confirm the parameter value.
9) Press and hold both and for at least 5
seconds or press to cancel this mode and
return to normal mode.
3) Press and hold (mode) and (up) simultaneously for at least
5 seconds. The controller displays the test run screen.
4) In the test run screen:
● Top right corner indicates total number of indoor units connected
● The mode and fan icons blink continuously.
● * Press to select the mode : Cool/Heat/ Ventilation /Dry
● * Press to select fan speed.
● * Press to start/stop the test run.
2) Press and to select the unit: FF->01->02...FF,
"FF" is for default, it indicates that you have selected all
indoor units. When you select an unit, the time display area
[hours] and [minutes] corresponds to the system number and
address number of the unit respectively.
3) Press for confirmation and to enter the input/output
option setting screen. Screen displays the option in
[temperature] area and blinks continuously.
Option Description
Input option 1
Input option 2
Output option 1
Output option 2
Output option 3
Factory Setting
Indication
03
06
01
02
06
Output
Not Set
Operation
Alarm
Cooling
Thermo-ON for Cooling
Heating
Thermo-ON for Heating
Not Set
3) Press and to select the unit: FF->01->02...FF,
"FF": displayed by default, indicates that you have
selected all indoor units. When you select an unit, the time
display area [hours] and [minutes] corresponds to the
system number and address number of the unit respectively.
Press for confirmation and go to function paramter
4)
setting screen. The parameter item displays in [temperature]
area and its value displays in [minutes] area.
