Summary of Contents for Gateway GWTN156-2

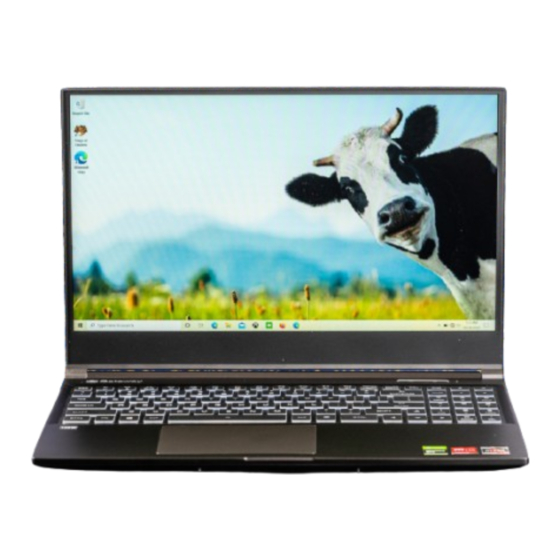

- Page 1 GWTN156-2 User Manual...
- Page 2 For full user manual, please visit www.gatewayusa.com/support. Gateway and the Gateway logo are the registered trademarks of Acer Inc. and are used under license from Acer America Corporation. www.gatewayusa.com | Customer Service: (877) 777-0649...
- Page 3 Notice The information in this user’s manual is protected by copyright laws, all parts of this manual, including the products and software described in it, can not be reproduced, transmitted, transcribed, stored in a retrieval system, nor translated into any language. THE MANUFACTURER OR RESELLER SHALL NOT BE LIABLE FOR ERRORS OR OMISSIONS CONTAINED IN THIS MANUAL AND SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL DAMAGES, WHICH MAY RESULT FROM THE PERFORMANCE OR USE OF THIS MANUAL.
- Page 4 Chapter 1 Preface...
-
Page 5: Regulations Information
1.1 Regulations Information * CE compliance This device is classed as a technical information equipment (ITE) in class B and is intended for use in living room and office. The CE-mark approves the conformity by the EU-guidelines: - EMC Directive 2014/30/EU, - Low Voltage Directive 2014/35/EU(equals A2 : 2013) , - RF Directive 2014/53/EU The unit can be operated at an ambient temperature of max. -
Page 6: Fcc Information
FCC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 7: Rf Exposure Information (Sar)
RF Exposure Information(SAR) This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The exposure standard employs a unit of measurement known as the Specific Absorption Rate, or SAR. -
Page 8: Safety Instructions
1.2 Safety Instructions Do not apply heavy pressure to the computer or subject it to any form of strong impact as this can damage the computer's components or otherwise cause it to malfunction. Never cover or block the air vents including those located at the base of the computer. Never cover your computer or AC adapter with any object. -
Page 9: Conventions For This Manual
1.3 Conventions for this Manual CAUTION: This message contains important information that must be followed for safe operation. NOTE : This message contains information for special situations. 1.3 Conventions for this Manual Version Date Revision 01/2020 Initial release 05/2020 P15 Modify Wireless LAN 05/2020 P16 Add 4cells... - Page 10 Chapter 2 Getting to know the basics...
-
Page 11: Product Specification
2.1 Product Specification This User’s Manual provides technical information of instructions and illustrations on how to operate this notebook for the customer. Please read this manual carefully before using this notebook. PHYSICAL CHARACTERISTIC •Dimension 359.8*243*19.9mm(panel=2.6mm) 359.8*243*20.5mm(panel=3.2mm) 1.9 kg +/- 5% •Support Processor AMD Renoir H series •Support Processor... - Page 12 AUDIO •Audio Codec Realtek ALC274CG / AMP: Realtek ALC1306-CGT *Azalia standard support *D3 mode support *Smart AMP support •Speaker/MIC *Build-in 2 speakers *Speaker : 2W/each *Digitial Microphone support DISPLAY •LCD 15.6" FHD, 16:9,(Narrow) 1920x1080 INPUT •Keyboard Memrane single zone RGB backlight support, 340*109.2*3.6mm •Pointing Device TDA1470 (114.5*70*0.8mm) TP mylar...
- Page 13 Webcam •Infrared capability for facial reconition camera HD webcam with D-MIC IR webcam with D-MIC*2 (Option) Power •AC Adapter Automatics Voltage adjustment between 100 and 240VAC 50/60Hz, 180 Watts (19.5V/9.23A), 3 Pins (GK5NR0O) Automatics Voltage adjustment between 100 and 240VAC 50/60Hz, 120 Watts (19V/6.32A), 3 Pins (GK5NPFO/GK5NP5O) Battery Li- polymer Battery, SW Gas Gauge IC, soft pack,...
-
Page 14: Preparing Your Computer
2.2 Preparing your Computer Connect the AC adapter’s DC output plug to the DC IN jack The display panel can be opened to a wide range of angles for optimal viewing. Press the power button to turn on your notebook computer. -
Page 15: Product Overview
2.3 Product Overview Please become familiar with each component before you operate the computer. Top-Open View NOTE : This message contains information for special situations. - Page 16 Camera A device that allows you to record video or take photographs with your computer. Infrared capability for facial reconition camera (Optional) can be used to identify and authenticate user to unlock notebook, conduct payment and other security functions. Microphone Built-in microphones.
- Page 17 Power Button Press this button to turn the computer's power on or off. Power ON: White Suspend: White, Slow / Smooth, Blinking White (3Sec/Cycle) Power Off: OFF Charging & Battery indicator Charging(Power ON): White flash ( 3 sec/cycle ) Charging(Power Off): White flash ( 3 sec/cycle ) Battery Low (<6%): Orange flash ( 3 sec/cycle ) Charging finish (w/AC ): White ,(w/o AC): Off Keyboard...
-
Page 18: Right Side View
Right Side View... -
Page 19: Left Side View
Left Side View Network Jack This jack lets you connect to a LAN. USB Port Connects an USB device. (such as USB Zip drive, keyboard or mouse) into this jack. Mic In Jack Connects amplified speakers, headphones or microphone into this jack. Audio Out Jack Connects amplified speakers, headphones or microphone into this jack Kensington®... -
Page 20: Bottom Side View
Bottom Side View Top-Open View NOTE : The product’s thermal vent will depend upon the actually shipping product. Speaker Vents The thermal vents are designed to cool the internal components and avoid overheating. - Page 21 RAM / SSD / WLAN Compartment View (Optional) NVMe NVMe PCIE SSD BATTERY SPEAKER SPEAKER NVMe NVMe BATTERY SPEAKER SPEAKER If need to upgrade SATA SSD to PCIE SSD, Please contact technical support and after-sales service . CAUTION: To reduce the possibility of heat-related injuries or of overheating the computer, Do not place the computer directly on your lap or obstruct the computer air vents.
-
Page 22: Front Side View
Front Side View Back Side View Mini Display Port Connected to the screen, or home theater system. HDMI port Connected to the screen, or home theater system USB Port (USB Type C) Connects an USB device (such as USB Zip drive, keyboard or mouse) into this jack. With charging function. -
Page 23: Getting Started
Chapter 3 Getting started... - Page 24 3.1 AC Adapter Please be noted that it is strongly recommended to connect the AC adapter and use the AC power while using this notebook for the first time. When the AC adapter is connected, the battery is being charged immediately.
-
Page 25: Knowing The Keyboard
3.2 Knowing the Keyboard The following defines the colored hot keys on the Keyboard. The colored commands can only be accessed by first pressing and holding the function key while pressing a key with a colored command NOTE : The number of keys available on your keyboard will depend on the country/region in which the keyboard was designed and built. -
Page 26: For Keyboard Users
3.2.1 For keyboard users To activate these functions, press the hot key associated with the desired function as below : Function Keys Keypad Function Description Press this key combination Suspend: (Fn+F1) to enter sleep mode. Press this key combination (Fn+F2) to Windows Lock/On: turn Windows Lock/On... - Page 27 Function Keys Keypad Function Description Keyboard Press this key combination (Fn+F6) to Brightness decrease brightness of Keyboard. down: Keyboard Press this key combination (Fn+F7) to Brightness increase brightness of Keyboard. Press this key combination (Fn+F8) to MUTE: enter MUTE mode. Volume Press this key combination (Fn+F9) to enter Volume down mode.
- Page 28 Function Keys Keypad Function Description Press this key combination (Windows Search logo key+Q) to open the search Charm : charm and search apps. (Optional) Press this key combination (Windows Settings Charm : logo key+I) to open the settings charm. (Optional) Share Press this key combination (Windows Charm :...
-
Page 29: Using The Touchpad / Clickpad
3.3 Using the touchpad / clickpad The touchpad / clickpad is a rectangular electronic panel located just below your keyboard. Click twice left corner will open or close (White light) touchpad functionality.You can use the static-sensitive panel of the touchpad / clickpad and slide it to move the cursor. You can use the buttons below the touchpad as left and right mouse buttons. - Page 30 Chapter 4 BIOS setup...
-
Page 31: About Bios Setup
4.1 About BIOS Setup 4.1.1 When to Use BIOS Setup ? You may need to run the BIOS Setup when: ・ An error message appears on the screen during the system booting up and is requested to run SETUP. ・ You want to change the default settings for customized features. ・You want to reload the default BIOS settings. -
Page 32: Bios Setup Menu
4.2 BIOS Setup Menu Once you enter the BIOS Setup Utility, the Main Menu will appear on the screen. Select the tags to enter the other menus. Main Menu Show system overview about memory size and setting of system time and date. Advanced Menu To select the XD feature enable or disable XD feature only work with Intel platform + Windows. - Page 33 4.2 BIOS Setup Menu System Time This item allows you to set the system time. There is a small internal (CMOS) battery which is designed to maintain your system clock. It is designed to maintain time even when the PC is powered down or in sleep mode. The time format is [hour:minute:second].
