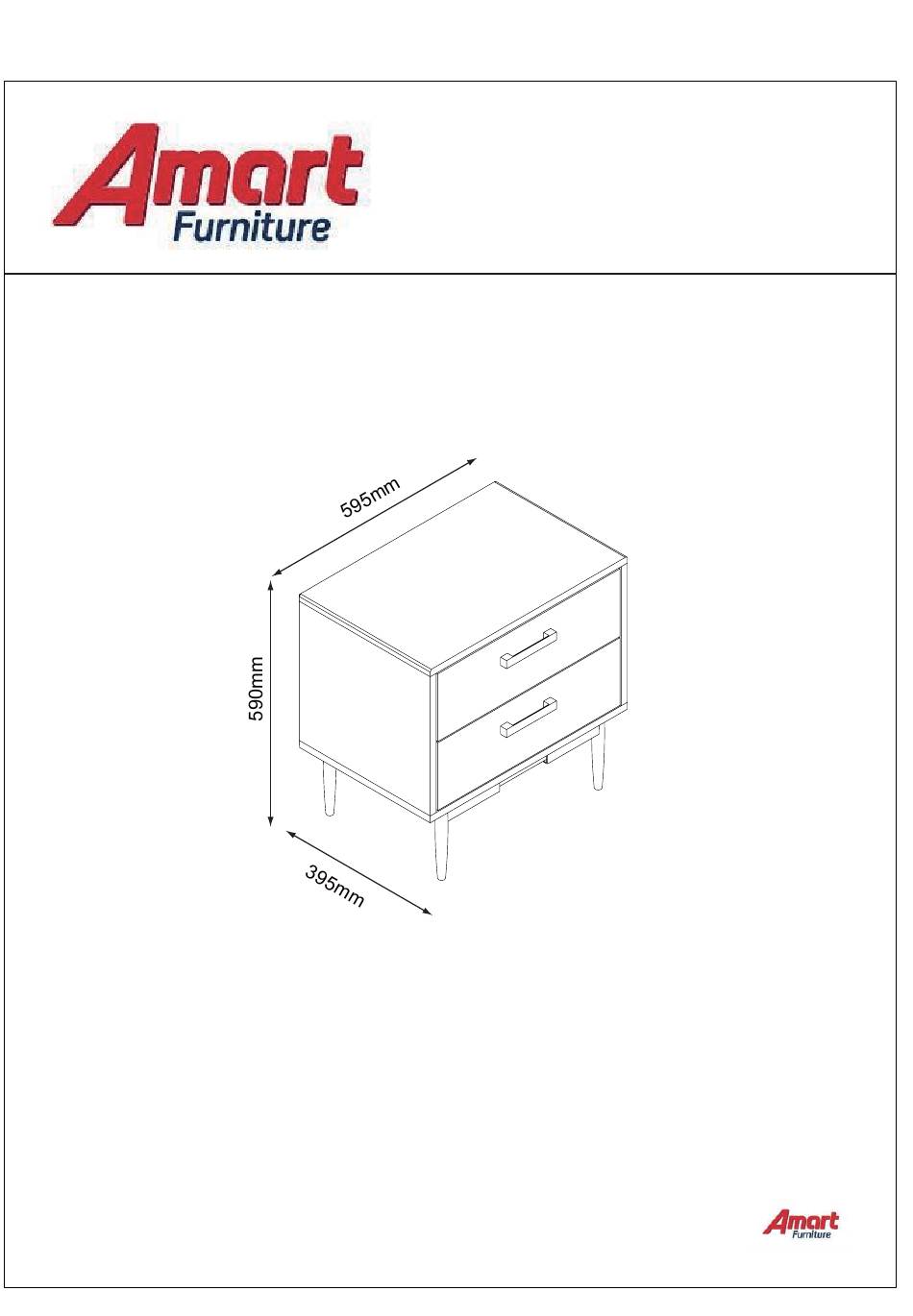

ASSEMBLY INSTRUCTION
ASHA BEDSIDE
ITEM CODE 66829
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture , Customer Service Free call 1800 351 084
Imported by
Amart Furniture
Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture
, Customer Service Free call 1800 351 084
Item Code: 66829
2019-9-17
1-15
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Amart Furniture ASHA 66829
Summary of Contents for Amart Furniture ASHA 66829
- Page 1 ITEM CODE 66829 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture , Customer Service Free call 1800 351 084 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
- Page 2 2019-9-17 Item Code: 66829 2-15...
- Page 3 2019-9-17 3-15 Item Code: 66829...
- Page 4 CHECKLIST Before you start..1.Choose a clean,level,spacious assembly area. Avoid hard surfaces that may damage the product. 2.Check and ensure that you have all required contents for complete assembly. 3.Always read the assembly instructions carefully before beginning assembly. 4.The packaging and contents can be a choking hazard. Please keep out of reach of small children at all times.
- Page 5 CAM LOCK INSTALL METHOD AS FOLLOWS 1.1cm Step 1 Step 2 Step 3 Lock Fix cam nut into the bottom of hole then tighten it. 2019-9-17 Item Code: 66829 5-15...
- Page 6 (MM) 393x364x18 393x364x18 595x395x18 445x39x15 595x395x18 395x590x2.7 330x140x15 330x140x15 499x140x15 507x322x2.7 550x177x15 Item Code: 66829 6-15 2019-9-17...
- Page 7 12xD 2xCL 2xCR STEP 1: Fix runners (CL)&(CR) to panels(1)&(2) using screws(D). STEP 2: Attach panel (3) to panels(1)(2) using dowel(C) and screws(M). Item Code: 66829 2019-9-17 7-15...
- Page 8 STEP 3: Attach panel (4) to the body with dowel(C). 12xG STEP 4: Assemble metal legs (I) & (J) to the body with screws (G) by allen key (E). Firstly locate screw into short side of leg，and locate screws of long side， then tighten all screws.
- Page 9 STEP 5: 5：Fix cam pin(A) to panel(5). STEP 6: Attach panel (6) to the body with cam lock(B) and dowel (C). Item Code: 66829 2019-9-17 9-15...
- Page 10 10xH STEP 5: Attach panel (6) to the body with screws(H). 12xD 2xK 2xDL 2xDR STEP 8:Install drawers as shown in diagram. 1A:Fix cam lock (A) and handle(K) to 2:Join side panels (7)(8) and back panel (11). panel(9) with screws (F). 3A:Put bottom panel (10) into groove 4:Install runner(DR)(DL) to the bottom of drawer of panel(7)(8)and (9).
- Page 11 STEP 9: Assemble drawer to the body. ASSEMBLY COMPLETE. Item Code: 66829 2019-9-17 11-15...
- Page 12 STEP 1: Fix bracket to back panel using screws M3.5*14MM . NOTE are used. Failure to do so may result in personal injury or cause property damage if the product topples over. Please note that the screws are only suitable for plasterboard wall materials, please contact local hardware store for corresponding screws for other wall materials.
- Page 13 STEP 2: Fix bracket onto the wall using screws M4*30MM. Furniture top Wallboard Bracket 13-15...
- Page 14 SAFETY BRACKETS INSTRUCTIONS 1.Attach a bracket to the wallboard with the long screws provided. 2.Attach a bracket to the furniture frame under the top with the short screws provided. 3.Move the furniture into its final position. Thread a strap through the bracket as shown in the illustration, tighten strap until snug.
-
Page 15: Product Care
PRODUCT CARE: To protect your furniture,we suggest the following: *Avoid placing your furniture in direct sunlight. *Do not place furniture directly under windows. *Do not place sharp materials(knife,fork,etc) directly onto your furniture as sharp material may scrape and damage the finish. Do not place material with high temperature directly onto the surface of your furniture.
