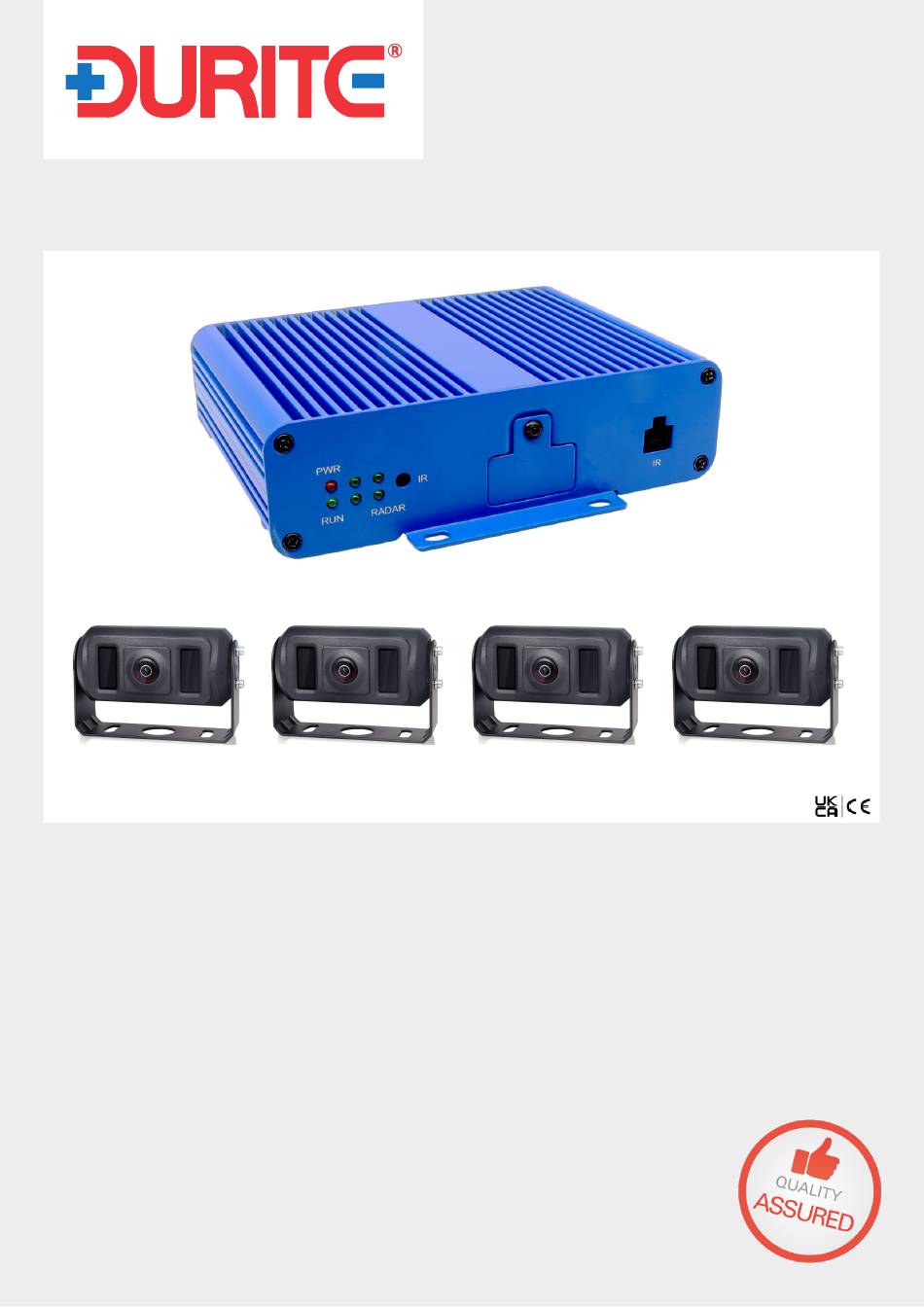

0-870-28 - 1080p FHD 360° System with VRU Detection
Durite 360° system with VRU detection.
- 2D/3D 360° FHD 1080p SYSTEM (no GPS/DVR/WiFi)
- T5 Chipset
- 10-30VDC
-
Cameras: 1.45mm fish eye lens 1/2.9" CMOS, 190° FOV (IP69K)
-
CVBS / AHD output
- E Marked R10. UKCA CE.
THE TRUSTED QUALITY BRAND FOR PROFESSIONALS
TECHNICAL SPECIFICATIONS
Call 01255 555200
Email info@durite.co.uk
Visit www.durite.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 0-870-28 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Durite 0-870-28

  • Page 1 TECHNICAL SPECIFICATIONS Call 01255 555200 Email info@durite.co.uk Visit www.durite.co.uk 0-870-28 - 1080p FHD 360° System with VRU Detection Durite 360° system with VRU detection. - 2D/3D 360° FHD 1080p SYSTEM (no GPS/DVR/WiFi) - T5 Chipset - 10-30VDC Cameras: 1.45mm fish eye lens 1/2.9” CMOS, 190° FOV (IP69K) CVBS / AHD output - E Marked R10.
  • Page 2: Table Of Contents

    1. Precautions......................1 1.1 Storage and Keeping ..................1 1.2 Operating Precautions .................. 1 1.3 Maintenance ....................2 2. Product Features ....................3 2.1 Basic Features ....................3 2.2 Application ....................... 3 2.3 Features ......................4 2.4 Standard Configuration ................. 4 2.5 Trigger Mode Description ................
  • Page 3: Precautions

    1. Precautions 1.1 Storage and Keeping -40~+85℃, and the operating temperature is -20~+70 ℃. The humidity is RH90%. Do not expose the System to excessive heat or cold. The storage temperature of this device is Never use this device near a bathtub, wash basin, kitchen, damp basement, swimming pool or similar places.
  • Page 4: Maintenance

    1.3 Maintenance Remove all the cable connections from the control box before cleaning the device. Use a mild household detergent and clean the unit with a slightly damp, soft cloth. Never use strong solvents such as thinner or benzine, as they might damage the finish of the device.
  • Page 5: Product Features

    2. Product Features 2.1 Basic Features 4pcs 190° FHD 1080P wide-angle fish eye cameras, horizontal view angle>170° inputs. Techniques of dual-core ARM Cotex-A53 and SOC development of built-in high-performance H.264 video encoding/decoding engineer core make it efficient to composite high accuracy seamless images.
  • Page 6: Features

    2.3 Features Panoramic image. Blending seamless stitching. 360° no blind spot. Clear Around-view. Auto switch to reversing image when reverse wire is triggered. Auto switch to left/right image when left/right wire is triggered. Installation guide with pictures. Automatic plane correction. Driving Recording.(optional).
  • Page 7: Trigger Mode Description

    2.5 Trigger Mode Description 1. Trigger Wire Reverse trigger, display mode is dual+back.  Left line trigger, display mode is dual + left.  Right line trigger, display mode is dual + right.  2. Remote trigger Press the left button of remote control, and the display mode is dual+ left. ...
  • Page 8: Specification

    4. Specification 4.1 Main unit box Video parameter Item Parameter Performance Index Input video Max.4CH×1080P@25/1080P@30 Panoramic Display style 2D/3D video High definition Resolution 1080P parameter output refresh rate 25/30 Storage method Recorder Compressed encoding Max. 4CH×1080P H.264 encoding parameter Video stream 4M/2M 4.2 Main unit box Working environment parameter Parameter...
  • Page 9: Operation Instruction

    5. Operation Instruction 5.1 Remote Controller ENTER:Enter main menu or confirm menu selection.  ESC:Exit main menu interface/return to main menu interface.  LEFT, RIGHT:Left,Right /Minus, Plus button. Shift image channel to left/right  view, or operate plus/minus in main menu interface. UP, DOWN:Front/Back button.
  • Page 10: User Interface

    5.2 User Interface 1. Log in Interface Description :Login interface. (factory default is 88888888). :Password :confirm to log in. :reset password. :exit.
  • Page 11 2. Password Reset Description : Enter the current password once, new password twice, click Save button to complete new password setting. :current password. :new password. :confirm password. :save setting. :Exit (cancel changes).
  • Page 12 3. User main interface Description : User Setup:to set up Basic setup、Time(DST)、Display、Network、Radar(sensor) automatic Calibration、 calibration File、 vehicle Type、 surround view 、 out Rigger and parking line. Information:CPU and MCU version info, upgrading and system setup. 3.1 User settings interface Description :all user setting functions.
  • Page 13 Radar:radar/sensor settings. Adas setup:AI function setting. 1) Basic Setup:basic settings interface, as shown below: Region:Video format selection, NTSC、PAL optional.  Display Icon:hide display icons on main interface(except direction arrows).  Monitor Setup:Low speed wake-up switch. When set ON and speed from GPS is lower then the set ...
  • Page 14 Time:Time setting, caution; after modifying the time, you need to press the "Set Time" button to  save the time. GPS Time Synchronization: Switch:reserved.  UTC:reserved.  Daylight Saving Time Setup: Switch:The summer time switch setting, the default is OFF. When it is set to ON, and the current ...
  • Page 15 SD Screen Adjustment: when CVBS output, can adjust screen display portion (Note: need to reset  it if switch between NTSC and PAL) Logo Setup:Change boot logo, select .bmp type pictures.  Blending Region:blending overlapping ON/OFF.  View Cut: Picture clipping. ON by default. When ON is selected, there is a certain crop on the left ...
  • Page 16 of the entire screen. Compatibility Mode:the compatibility mode can be ON、OFF and High.(High is recommended)  Instant Rear View:the quick display mode can be ON/OFF.(Back view in about 3s)  Front Cursor:The front single view cursor switch configuration, the default is OFF. When set to ON, ...
  • Page 17  IP Address :Network IP address settings...
  • Page 18 5) Radar:radar setup interface, as shown below: Description: Category: the category mode can be OFF、 Ultrasonic (sensor)、 Ultransonic-UC (Ultronix  sensor)、24GHz 1T1R (24GHz 1T1R 、77GHz 2T4R is temporarily unavailable) Beeping Output:the beeping output can be 360 buzzer and sensor buzzer. ...
  • Page 19 R1-R4, F1-F4 and B1-B4. Sensor ID:Sensor ID setting, OFF / 1-12 selectable.  Danger:Dangerous distance setting.  Warning:Warning distance setting.  Setup:Save the setting parameters.(Notice: Click setup button to save the update each time after  finished parameters of each sensor). Reset:Reset radar parameters.
  • Page 20 Description: Position:the installation position configuration of radar sensor, user can select Left、Right、Front、  Back. Red:Dangerous distance setting.  Yellow:Warning distance setting.  Green:Safe distance setting.  Save:Save the setting parameters.   :Exit. Description: Position:the installation position configuration of radar sensor, user can select Left、Right、Front、 ...
  • Page 21 Red:Dangerous distance setting.  Yellow:Warning distance setting.  Green:Safe distance setting.  Width:Detect width setting.  Save:Save the setting parameters.   :Exit. (6) Adas Setup:AI function setting 6-1) FCW:forward collision warning Function description: Detect Switch:Front vehicle detection on/off setting, default OFF. ...
  • Page 22 Filter Width:Filter width, filter out targets smaller than the set width. Default 120cm.  Fake Speed:Simulate speed, Fake Speed simulates vehicle speed when GPS is not connected or  GPS has no signal, ( set back Speed > Detect Speed, enable pedestrian detection) ;When the GPS has a signal and the speed is greater than 0, no matter what the value of Fake Speed is, the actual speed is still determined by GPS.
  • Page 23 detection will be turned off. Channel Select: Detection channel selection. Both: left/right/front/rear channel; LR: left/right channel;  FB: front/rear channel. Detect Switch:Detection method, default PDS.  The detection area switch of four corners:default is OFF.  6-3)PederstrainDetect:pedestrian detection Function description: Detect Switch:4 Channel switch setting for pedestrian detection, default OFF.
  • Page 24 appear in the surround view. The default is 6m. Front/BACK/LEFT/RIGHT:When pedestrians are recognized in multiple directions and all are less  than the red alarm distance, it is displayed according to the priority of the front, rear, left and right views, and the default priority.
  • Page 25 3.2 Interface Description: Automatic Calibration:Perform automatic calibration.  Calibration File:calibration images export and calibration results import.  Vehicle Type:Vehicle Type replacement .  Surround View:blending angle and surround view parameter setting .  Out Rigger:OutRigger parameter setting.   Parking Line:Adjust backup lines. 1) Calibration File Setup: calibration images export and calibration results import...
  • Page 26 Description: Note: this interface does not refresh USB resources in real time, user must first connect USB before  entering this interface. Export:export calibration images to USB Drive, including 6channel camera images and XML file.  Import:import the calibrated result to ECU. Make sure that is the correct calibration result . ...
  • Page 27 Description: Blending angle setting:blending angle of 4 corners can be set separately, range is 0 to 90 degree.  Width setting per channel:width value of 4 channels can be set separately,Unit can be inch/cm.  3) Out Rigger:out Rigger setting interface Description:...
  • Page 28 Description: Press button ,left / right/up/down move the backup lines.  Width Scale:Press button ,reduce/increase the width of the backup lines.  Height Scale:Press button ,reduce/increase the height of the backup lines.  3.3 Information :as shown below: Description: Current Version CPU:current CPU version MCU:current MCU version...
  • Page 29 Linux:current Linux version Update: make sure that the right version package is chosen to be updated System Setup :restore factory setting :export configuration file :import configuration file...
