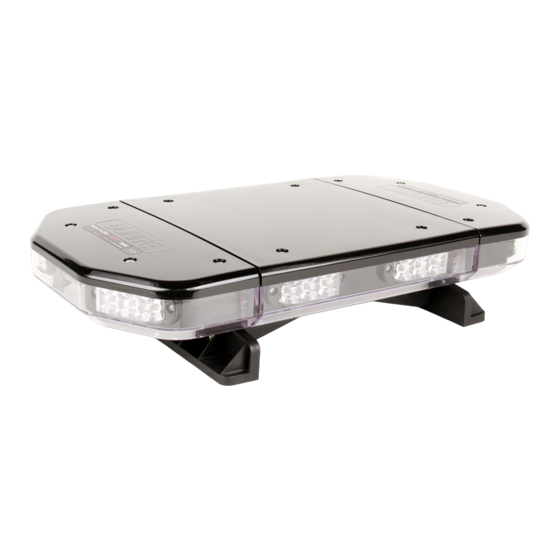

ECE R65 Amber Lightbar 12/24V - 2FT (55cm/21.5")
Part 0-443-05

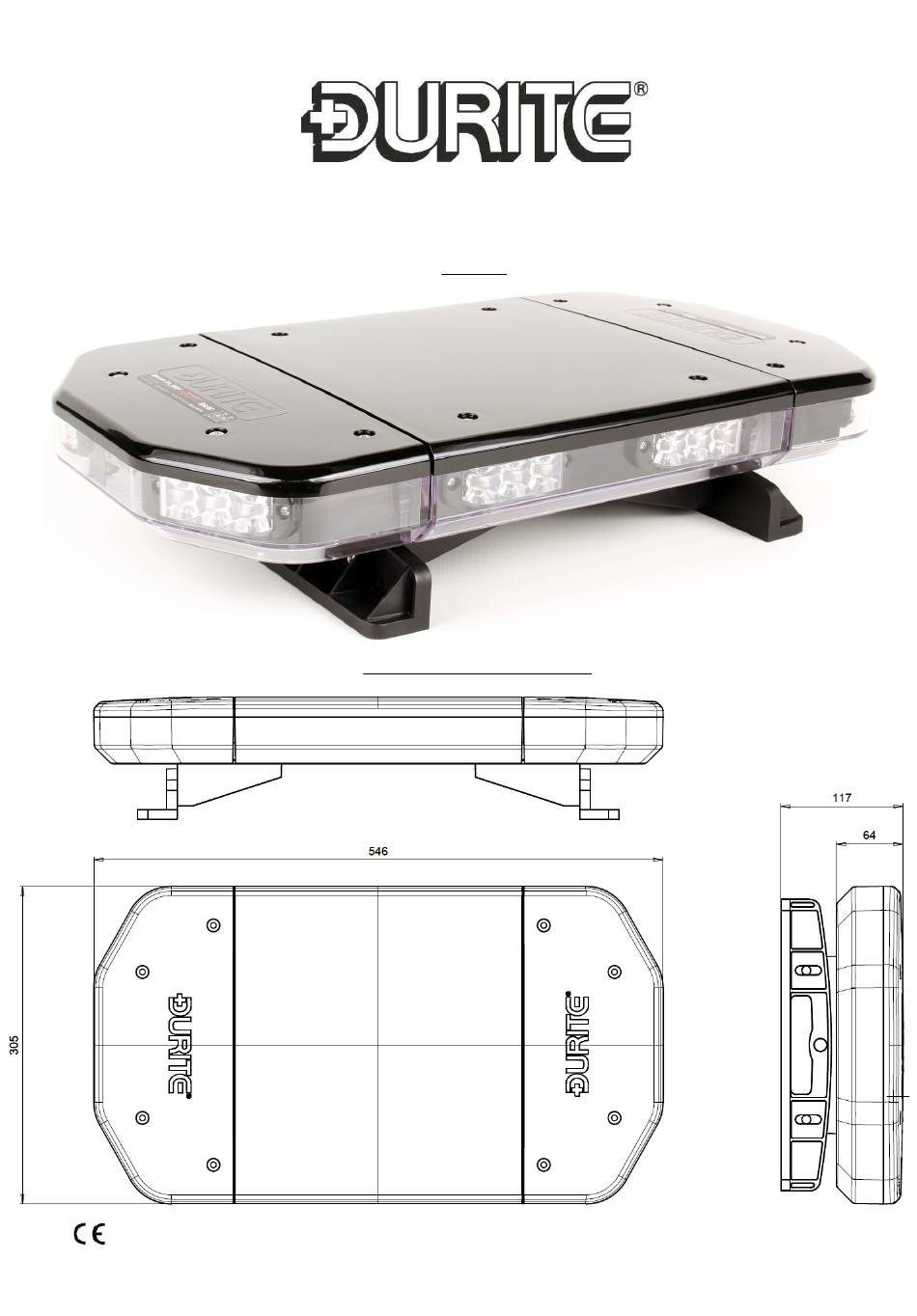

DIMENSIONAL DRAWING
0-443-05-LEAF
www.durite.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECE R65 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Durite ECE R65

  • Page 1 ECE R65 Amber Lightbar 12/24V - 2FT (55cm/21.5”) Part 0-443-05 IMAGE DIMENSIONAL DRAWING 0-443-05-LEAF www.durite.co.uk...
  • Page 2 MOUNTING DURITE lightbars are available with a variety of fixing methods. If the lightbar has a different fixing method other than the standard universal footpack (shown below) please contact your sales representative for further assistance.
  • Page 3 INSTALLATION Quick-test procedure only applies to standard hardwired lightbars. If the lightbar is not a standard build product please refer to Cables page. PATTERN SELECT - MOMENTARY, DIM - REDUCES TO 25% BRIGHTNESS, SYNCRONISATION TO MF PRODUCTS 0-443-05-LEAF www.durite.co.uk...
  • Page 4 To reset all controllers to flash pattern 1, hold brown cable to positive for 2 seconds. To use CAP 168 Flash Pattern hold brown cable to positive until flash pattern changes to single CAP168 Flash Pattern (approx 5-10seconds). To return to normal flash patterns repeat the process. 0-443-05-LEAF www.durite.co.uk...
  • Page 5 SYNCRONISATION Most DURITE products have been pre-programmed to include a synchronised flash rate. Products can be synchronised by connecting their yellow cables. All LEDs can be perma- nently illuminated (cruise light) by connecting the yellow cable to negative (Boost / 3 watt mode only).
  • Page 6 CONDITIONS OF USE 1. The 0-443-05/0-443-11 Lightbar must only be fitted to a vehicle and used in accordance with this data sheet or any other terms and conditions of use as may appear upon DURITE’s website www.durite.co.uk. 2. The use of the Product does not ensure that other road users will observe or react to the emergency warning signal given by the product.
  • Page 7 Number of LED modules......8 (3 x 3W LED’s) Power............72W Total Cable Length..........3 Metres Fixing............Universal Footpack Lens..............4mm Polycarbonate Approval............E Marked: ECE R65 Approved (Class 1) IP Rating............IP54 Ext/ IP67 Int Dimensions..........(L) 305mm x (W) 546mm x (H) 117mm Weight............4.85KG Switch Panel..........Not supplied 0-443-05-LEAF www.durite.co.uk...
