- Page 1 User manual for 0-876-04 User Manual 0-876-04 MDVR Mobile Digital Video Recorder...
- Page 2 User manual for 0-876-04 Guarantee & Warnings 1) Electrical Apparatus Safety All installation and operation should comply with local electrical safety norms. 2) Transportation In the process of transportation, storage and installation, please avoid heavy stress, violent vibration, impact and water splashing.
-
Page 3: Product Characteristics

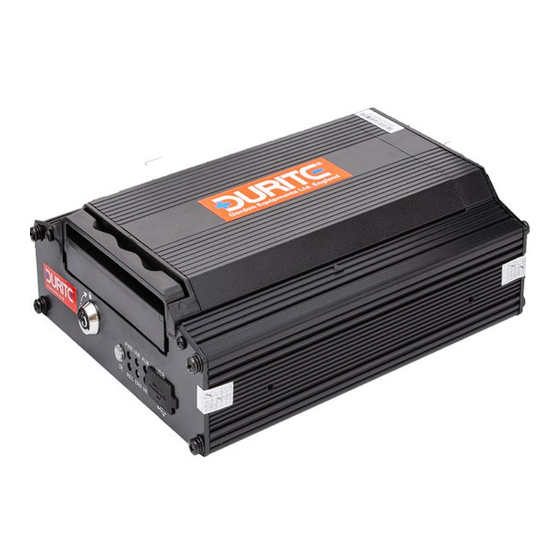

1. Product Characteristics 1.1. Overview Durite 0-876-04 is a functional Mobile Digital Video Recorder specially designed for vehicle video surveillance and remote monitoring. It has a high-speed processor and embedded operating system, combining with the most advanced H.265 video compression / decompression technology, 3G/4G network, GPS positioning technology, as well as WIFI. - Page 4 User manual for 0-876-04 HD1(704x240),CIF(352x240); Digital: 1080P(1920X1080), 720P(1280X720) Image Quality 1-8 levels adjustable (1 is the best) Recording Mode Boot up/Schedule/Alarm Pre-recording 0-60minutes Post-recording 0-30 minutes Playback Channel 1 channel by local playback Playback Search Mode Date/time, channel, event WIFI/3G/4G 802.11b/g/n/ac/EVDO/TD-SCDMA/WCDMA/TDD-L...
-
Page 5: External Interface
User manual for 0-876-04 1.3. System Diagram NOTE: Monitors being used with a MDVR must be connected to their own 10-30VDC+ power supply. Please refer to the monitor manual for the wiring diagram. 1.4. External Interface Dimension (Unit: mm) - Page 6 User manual for 0-876-04 Front Panel Rear Panel...
- Page 7 User manual for 0-876-04 Serial No. Print Description Power DC 8-36V power input Sensor & Serial Interfaces of serial port and sensor A/V IN 1~4 Analog Audio & Video input 1-4 A/V OUT Analog Audio & Video output Interface of PON power supply...
-
Page 8: Sim Card Installation
User manual for 0-876-04 1.6. SIM Card Installation... - Page 9 User manual for 0-876-04 1.7. Definition and Pictures of External Cables Alarm Cable Definition Alarm and Serial Cables A/V OUT Cable...
- Page 10 User manual for 0-876-04 2. FAQ The system can’t start? Usually this problem results from the incorrect power connection. Please follow below steps to check the power connection: Check the input power, whether the power wire is connected correctly, whether the ground wire is connected back to the battery, and whether the fuse on the power wire is in good condition.
