Brake light camera for durite cctv 12 volt fits: mercedes sprinter, vw crafter 2007-2016

Advertisement

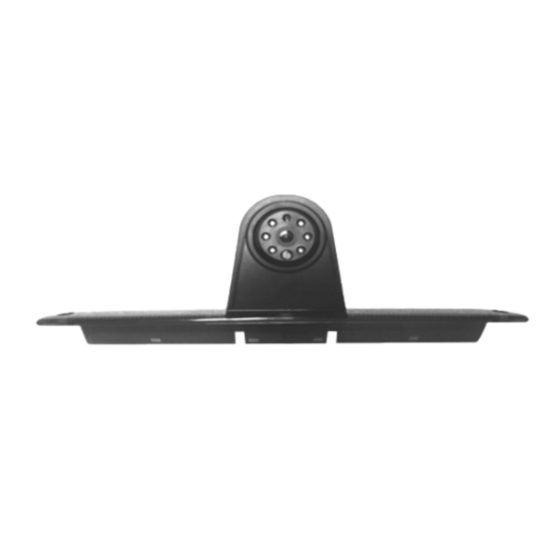

Brake Light Camera for Durite CCTV 12 volt
Part 0-099-10
Fits: Mercedes Sprinter, VW Crafter 2007-2016

WARNINGS

Before using this unit please read these instructions carefully. Take special care to follow
the warn-ings and safety suggestions listed below. Keep these instructions for future refer-
ence.
There are no user-serviceable parts within the unit, refer servicing to qualified service
personnel.

PRECAUTIONS

• Please ensure you are familiar and comply with local traffic and driving regulations.
• Connection - The camera should only be connected to a Durite cctv system.
• Heat - Do not install the camera near heat sources.
• Mounting - Ensure the camera is facing the desired direction before fixing the camera
base. If fixing to isolated return chassis the camera bracket should be isolated from the
vehicle chassis.
• Service - The user should not attempt to service these units beyond that described in these
instruc-tions. All other servicing should be referred to an authorised service technician.

GENERAL

The camera has a CCD image sensor which gives a high quality picture and its solid state
circuitry provides extremely long life. Compact size and single connection make it easy to
install. Automatic gain control (AGC) provides a clear image in both strong sunlight and low
light conditions, if lighting conditions fall below a set level the Infra-red LEDs will illumi-
nate. It is recommended that all camera lead connections are additionally sealed by either
wrapping with a suitable tape or application of heat shrink sleeving. It is recommend to
connect the system and test before fixing to ensure the correct field of view is displayed.

IMAGE VIEWING NORMAL vs. MIRROR

The default image is set to MIRROR Image Mode for reversing.
To change to NORMAL Image please refer to guidelines in your CCTV
Manual in the 'Monitor Control' section.
0-099-10-LEAF
www.durite.co.uk
