TECHNICAL SPECIFICATIONS
Call 01255 555200
Email info@durite.co.uk
Visit www.durite.co.uk
Image for illustration purpose. Actual product might differ slightly.

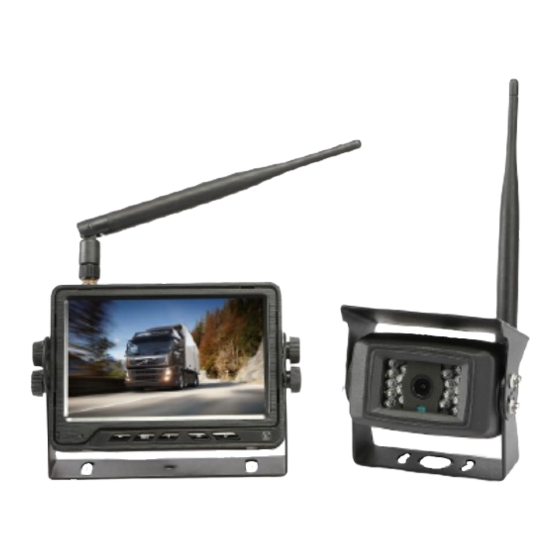

O-775-41 CCTV 5" Digital Wireless System
Durite 2-Channel wireless reversing camera system, includes 5" Colour TFT LCD monitor & 1 rear view CMOS
Camera. Suitable for 12V/24V applications. High resolution monitor and bracket is suitable for most cabins and
ensures robust installation on all truck sizes and industrial vehicles. Colour camera protected to IP68. Supplied with
remote control. 1 additional camera can be used with this kit. E Marked.
THE TRUSTED QUALITY BRAND FOR PROFESSIONALS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Durite O-775-4 CCTV
Summary of Contents for Durite O-775-4 CCTV

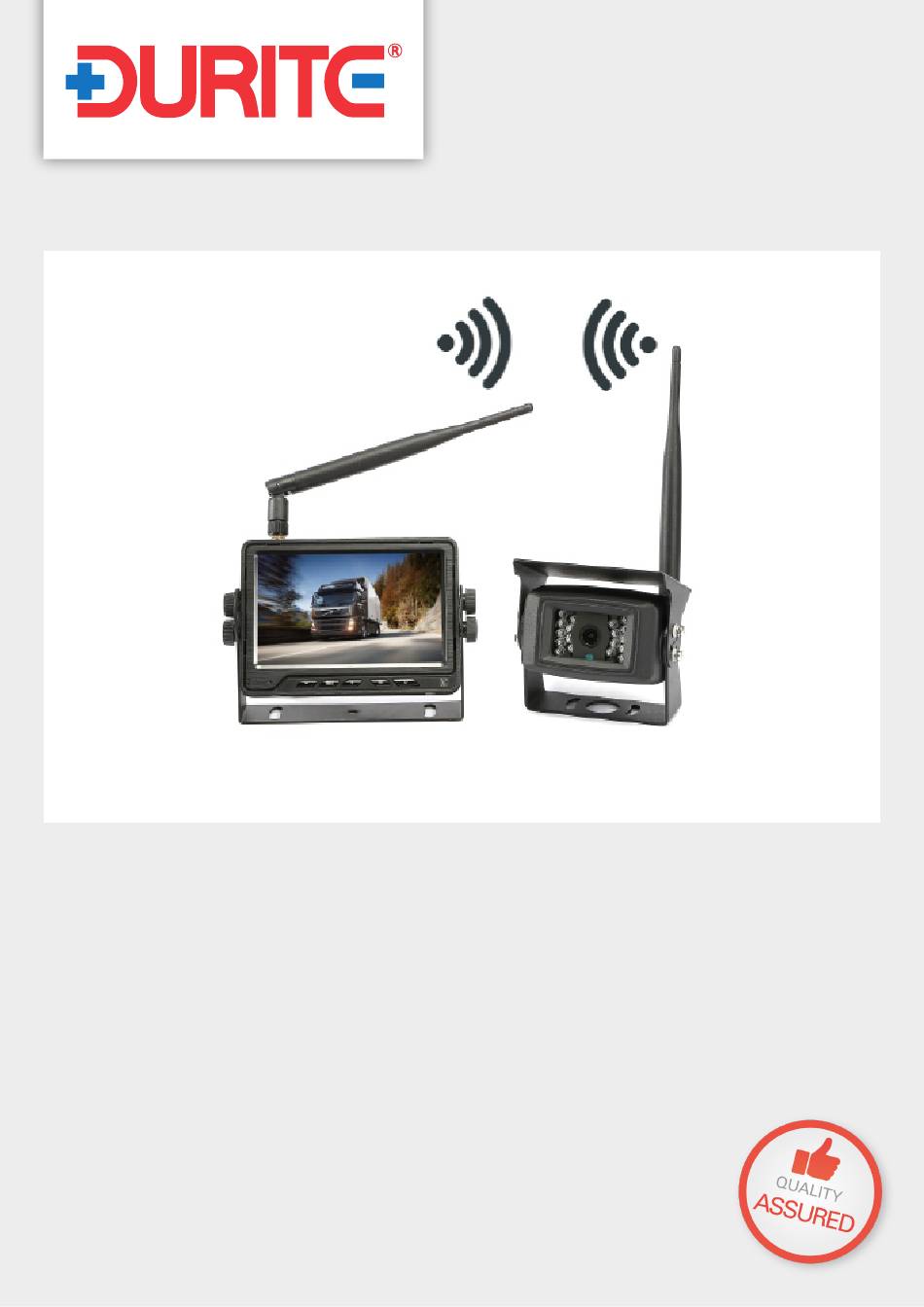

- Page 1 Image for illustration purpose. Actual product might differ slightly. O-775-41 CCTV 5” Digital Wireless System Durite 2-Channel wireless reversing camera system, includes 5” Colour TFT LCD monitor & 1 rear view CMOS Camera. Suitable for 12V/24V applications. High resolution monitor and bracket is suitable for most cabins and ensures robust installation on all truck sizes and industrial vehicles.
- Page 2 WARNINGS Before using this unit please read these instructions carefully. Take special care to follow the warn- ings indicated on the unit itself as well as the safety suggestions listed below. Keep these instruc- tions for future reference. The vehicle safety vision system is designed to be used with, not instead of other viewing aids in your vehicle.
-
Page 3: Wiring Diagram
WIRING DIAGRAM... -
Page 4: Remote Control Diagram
REMOTE CONTROL DIAGRAM INSTALLATION Fix the U Bracket using the screw provided. Insert the monitor into the bracket, adjust the angle to preference and fix in place using the locking screws. The monitor can be adjusted 30° forwards and backwards. Select the desired angle for optimal viewing. - Page 5 MENU Menu can only be accessed under single channel operation. Press M to display the following op- tions and setting: 1. PAIRING 2. PICTURE 3. MIRROR-FILP 4. CAMERA SETUP 5. SYSTEM Press + or - to select PAIRING and then press AV to enter. Auto Pairing: 1.
- Page 6 MENU Press + or - to select PICTURE and then press AV to enter the submenu. Press + or - to select BRIGHTNESS, CONTRAST, HUE OR VOLUME and then press AV to enter the setting. Once the icons turn red they can be adjusted. Press + or - to adjust values up or down. Press M to exit the menu.
-
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS Call 01255 555200 Email info@durite.co.uk Visit www.durite.co.uk TECHNICAL SPECIFICATIONS Type 5” Digital Wireless CCTV System Resolution 800 x RGB x 480 Contrast 500:1 Brightness 450 cd/m2 View Angle U:60/D:70,R/L:70 Aspect Ratio 16:9 Channels Operating Frequency 2400 - 2483.5MHz...
