Important before assembly:
Read these instructions carefully before assembling or using the product.
Please check the contents of the boxes before attempting to assemble this product. The instructions will
have a checklist of parts and fittings.
Assemble the product as close to its intended final location/room as possible.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when lifting.
Please keep small parts out of reach of children.
Always use on a level, even surface.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Further instructions are on the following pages.
Please keep these instructions for future reference.

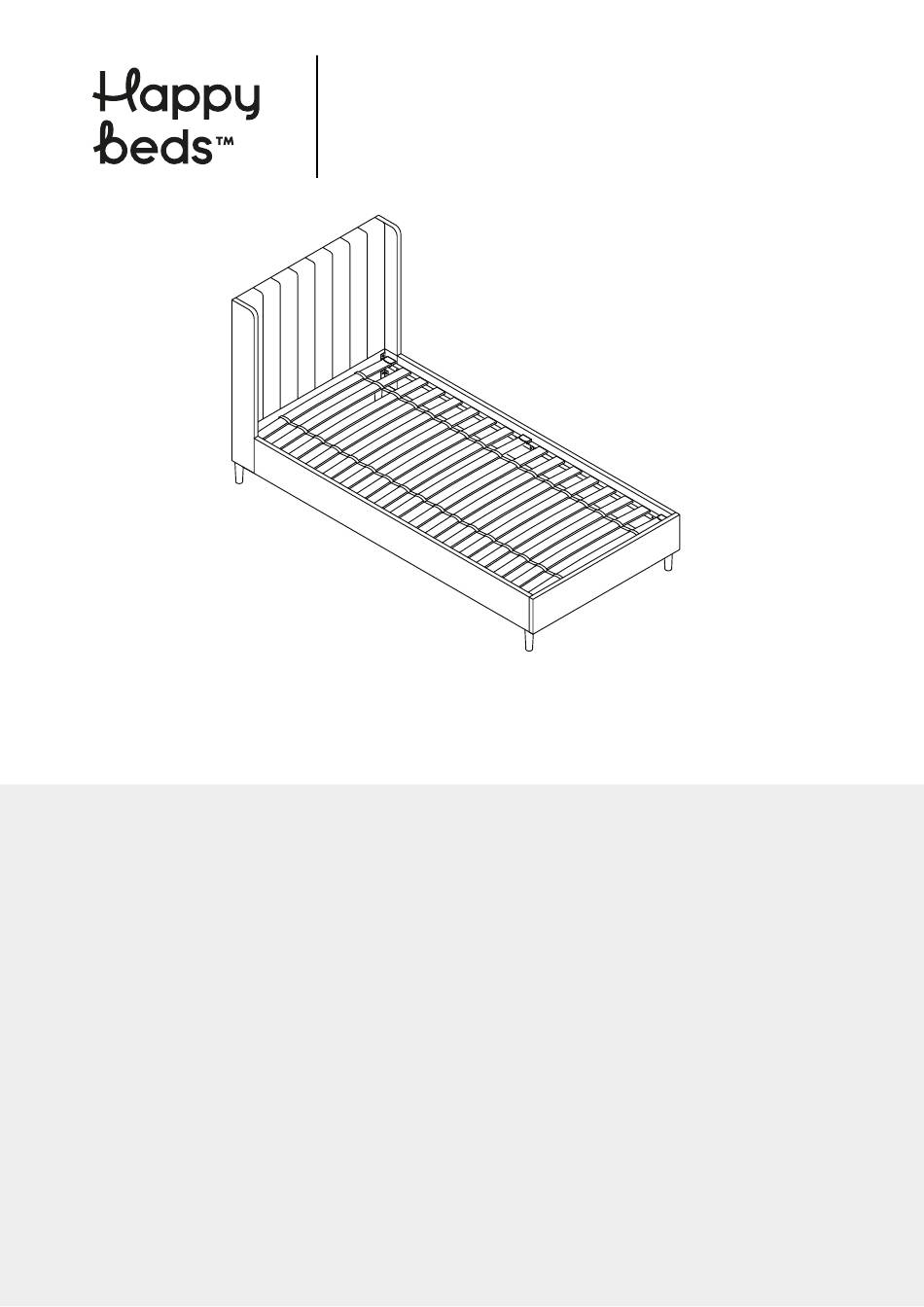

Marlow Velvet Bed - Single
Assembly Instructions
.
www.happybeds.co.uk
Advertisement
Related Manuals for Happy Beds Marlow
Summary of Contents for Happy Beds Marlow
- Page 1 Marlow Velvet Bed - Single Assembly Instructions Important before assembly: Read these instructions carefully before assembling or using the product. Please check the contents of the boxes before attempting to assemble this product. The instructions will have a checklist of parts and fittings.
- Page 2 No Part List No Part List Headboard 1 pc Slat Support Rail 2 pcs Footboard 1 pc Legs 4 pcs 1 pc Wooden Slat Set 1 pc Side Rail - LH Side Rail - RH 1 pc LH Wing 1 pc RH Wing 1 pc Slat Support Rail...
- Page 3 These tools are not necessary, but may help to assemble the product. Do NOT use any power tools as this may damage the frame. (Not metal) This product or some parts of this product will be heavy. Please use an assistant when lifting. Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints.
- Page 4 Step 1: Flat washer for 14 pcs 14 pcs Bolts (M8x45mm) M8 bolts Spring washer for Allen key for 14 pcs 1 pc M8 bolts M8 bolts Metal connection 2 pcs plate & & & Please do not tighten 100% yet. Page 2 of 5...
- Page 5 Step 2: 4 pcs Bolts (M8x45mm) Spring washer for 4 pcs M8 bolts Flat washer for 4 pcs M8 bolts Allen key for 1 pc M8 bolts & Step 3: 2 pcs 16 pcs Bolts (M8x45mm) Bolts (M8x20mm) Spring washer for Allen key for 18 pcs 1 pc...
- Page 6 Step 4: Lock washers 4 pcs & Step 5: Single plastic caps 6 pcs Press down Page 4 of 5...
-
Page 7: Technical Specifications
Technical Specifications Overall Dimensions (LWH mm) 2015 x 980 x 1185 Internal Dimensions (LW mm) 1920 x 920 Distance between slats (mm) Slat Dimension (mm) 925 x 53 x 9 Page 5 of 5... -
Page 8: General Care And Maintenance
Please dispose of all packaging safely. General Care & Maintenance Wipe clean with a slightly damp cloth. Avoid the use of all household cleaners and abrasives. Periodically check all screw & fixings to ensure they are secure. When moving your product, carefully lift into place. Never drag or push the product across the floor as this will cause damage to the joints.
