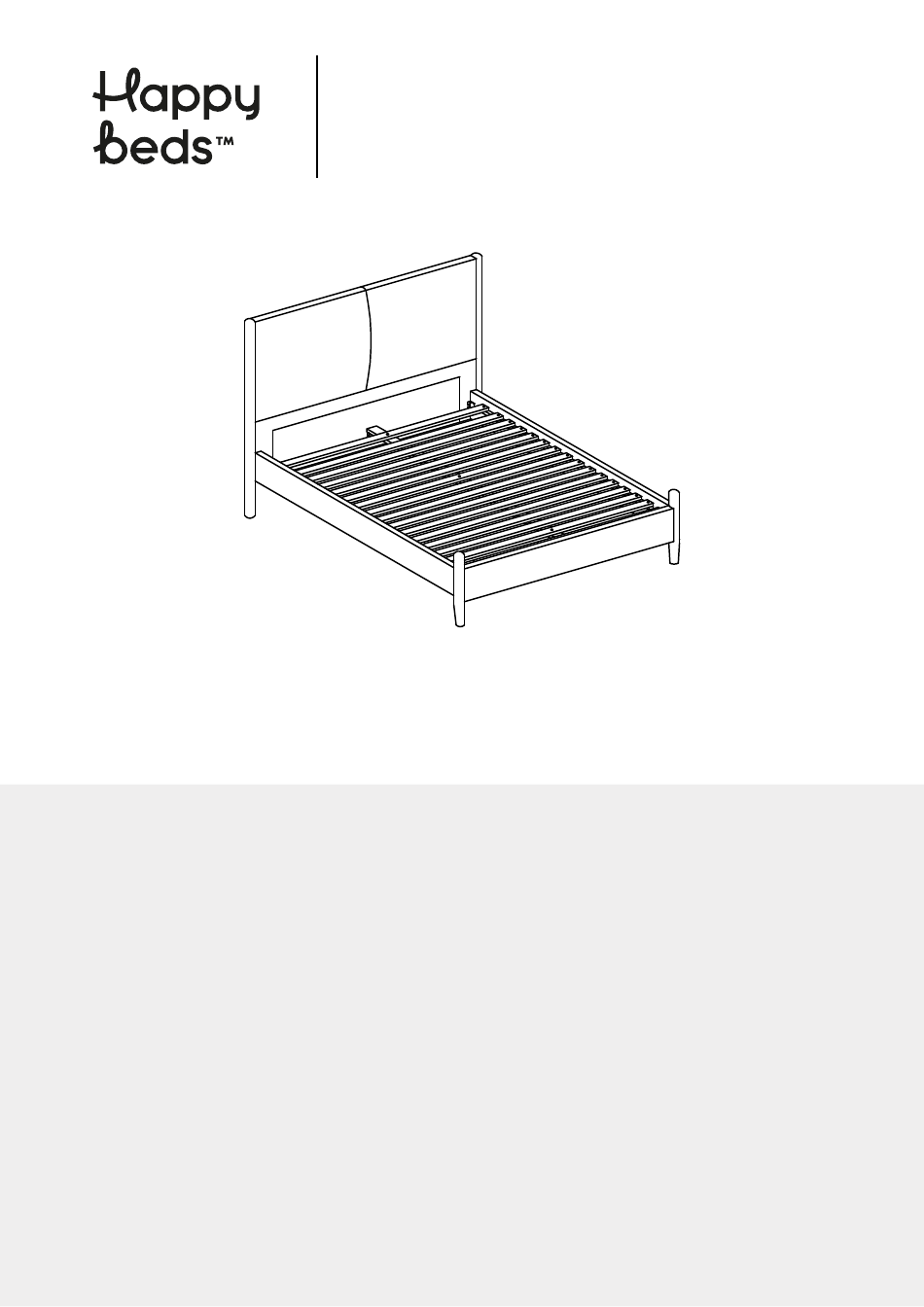

Happy Beds Marley Assembly Instructions Manual

Wooden bed - 4ft6 double
Hide thumbs

Advertisement

Quick Links

Download this manual
Important before assembly:
Read these instructions carefully before assembling or using the product.
Please check the contents of the boxes before attempting to assemble this product. The instructions will
have a checklist of parts and fittings.
Assemble the product as close to its intended final location/room as possible.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when lifting.
Please keep small parts out of reach of children.
Always use on a level, even surface.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Further instructions are on the following pages.
Please keep these instructions for future reference.
Marley Wooden Bed - 4FT6
Double
Assembly Instructions
.
www.happybeds.co.uk

Advertisement

loading
Need help?

Need help?

Do you have a question about the Marley and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Happy Beds Marley

Summary of Contents for Happy Beds Marley

  • Page 1 Marley Wooden Bed - 4FT6 Double Assembly Instructions Important before assembly: Read these instructions carefully before assembling or using the product. Please check the contents of the boxes before attempting to assemble this product. The instructions will have a checklist of parts and fittings.
  • Page 2 These tools are not necessary, but may help to assemble the product. Do NOT use any power tools as this may damage the frame. (Not metal) This product or some parts of this product will be heavy. Please use an assistant when lifting. Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints.
  • Page 3 Assembly Instructions Before you begin... Please check in your desired room of use. Unpack all boxes and lay out each component on the floor. Check your product for any damage that may be immediately obvious. If damage is identified, please contact your retailer. Please read through these instructions thoroughly to ensure you have constructed your bed correctly.
  • Page 4 Box 1 1.Headboard (x1) 4.Headboard Legs (x2) Box 2 2.Footboard (x1) 5. Footboard 7.Support Legs (x2) 8.Slats (x15) Legs (x2) 6.Centre Rail (x1) 3.Siderail (L/R) (x2) 10.Top Slat (x1) 9.Footboard Bracket (x2) Page 3 of 9...
  • Page 5 Hardware All fitting are stored within Box 2 A.M8 x 20 mm JCBB (x12) B.M6 x 30 mm JCBC (x4) C.M6 x 40 mm JCBC (x2) D.M6 x 50 mm JCBC (x6) E.Allen Key M4 x 65 mm (x1) F.Allen Key M5 x 70 mm (x1) G.M3.5 x 16 mm CSK (x2) H.M4 x 32 mm CSK (x37) I.Adjuster (x2)
  • Page 6 Step 1 Unpack all components from the boxes and check you are not missing anything. Please check these against the list on page 3 & 4 Should you identify any missing components,please contact the retailer you purchased the bed from. Page 5 of 9...

  • Page 7: Back View

    Step 2 Unzip the black non-woven fabric to take out the headboard legs. BACK VIEW Step 3 Attach the 2x headboard legs (4) to headboard (1) using 6x M6 x 50mm JCBC (D), 6x M6 Spring Washer (J) and 6x M6 Flat Washer (K) with M4 allen key (E). Tighten the legs. BACK VIEW DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 8 Step 4 Attach the 2x footboard bracket (9) to the footboard (2) using 2x M8 x 20mm JCBB (A), 2x M8 Spring Washer (L) and 2x M8 Flat Washer (M) with M5 allen key (F). Then, install the 2x footboard bracket (9) to 2x footboard legs (5) using 2x M6 x 30mm JCBC (B), 2x M6 Spring Washer (J) and 2x M6 Flat Washer (K) with M4 allen key (E).
  • Page 9 Step 6 Attach the 2x support legs (7) to the centre rail (6) of the bed using 2x M6 x 40mm JCBC (C) with M4 allen key (E) as shown. ATTENTION: Please keep the adjuster around 5 to 8 mm distant away from the floor.
  • Page 10 Step 8 Lay the 15x Slat (8) onto the side rail support wood and the centre rail (6) using 33x M4 x 32mm CSK (H) with screw driver (not included). Step 9 Lay the Top Slat (10) onto the support wood on Footboard (2) using 4x M4 x 32mm CSK (H) with screw driver (not included).

  • Page 11: General Care And Maintenance

    Please dispose of all packaging safely. General Care & Maintenance Wipe clean with a slightly damp cloth. Avoid the use of all household cleaners and abrasives. Periodically check all screw & fixings to ensure they are secure. When moving your product, carefully lift into place. Never drag or push the product across the floor as this will cause damage to the joints.
