Bosch SmartphoneGrip BSP3200 Manual

Introduction

About Warnings

This manual contains many DANGER, WARNING, and CAUTION indicators concerning the consequences of failure to use, assemble, maintain, store, inspect and dispose of a Bosch-equipped eBike in a safe manner.

•
  The combination of the safety alert symbol and the word DANGER indicates a hazardous situation that, if not avoided, will result in death or serious injury.
•
  The combination of the safety alert symbol and the word WARNING indicates a hazardous situation that, if not avoided, could result in death or serious injury.
•
  The combination of the safety alert symbol and the word CAUTION indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

Using your Manual

In addition to the functions outlined here, changes to software relating to troubleshooting and functional modifications may be introduced at any time.

Graphics
The bicycle shown in this manual may differ slightly from your bicycle, but will be similar enough to help you understand our instructions.
RIGHT-HAND and LEFT-HAND sides are determined by facing in the direction the bicycle will travel when going forward. When you see a broken line (------), the item referred to is hidden from view.

Operating your Bosch Drive System

Intended Use

The Bosch SmartphoneGrip is designed to hold and charge a smartphone on the handlebars of a Bosch eBike system.
In addition to the functions outlined here, changes to software relating to troubleshooting and functional modifications may be introduced at any time. The SmartphoneGrip is suitable for cycling on reinforced paths without jumps and with few ledges (< 15 cm) at average speeds of between 9.32 and 15.53 mph, for example on asphalt roads, country paths, paths reinforced with gravel or sand, and reinforced woodland paths.
If used incorrectly, there is a danger that the smartphone may detach from the holder, fall down and therefore become damaged. There is also a considerable risk of an accident if the smartphone falls out.

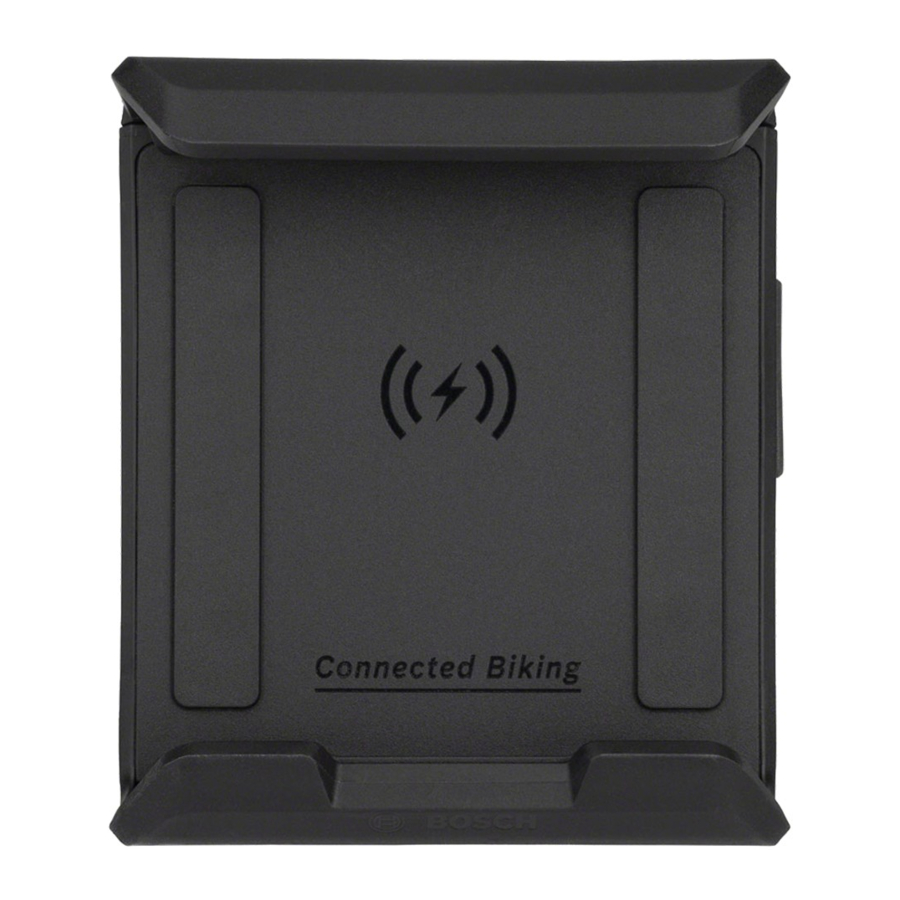

SmartphoneGrip Product Features

All illustrations of bike parts except for the drive unit, SmartphoneGrip including operating unit, speed sensor and the corresponding holders are schematic and may differ on your eBike.

1. Front retraining bracket, movable
2. Rear retaining bracket, fixed
3. USB port with USB cap
4. Release mechanism
5. SmartphoneGrip mount
6. Snap-in hook
7. Socket contacts
8. SmartphoneGrip contacts
9. Status LED
10. Inductive charging coil
11. Display mount fastening screw
12. Removal blocker
13. Keypad lock
14. Hex key^a)
15. Smartphone^a)
16. Adapter tray

1. Not included in the scope of delivery

Technical Data

Assembly

SmartphoneGrip Assembly
Press and hold the release mechanism (4) to position the SmartphoneGrip. Place the upper edge of the SmartphoneGrip next to the snap-in hook (6) of the display holder (5) ➊. Pull the SmartphoneGrip towards you and push the SmartphoneGrip onto the display holder ➋. Let go of the release mechanism (4).
Press the release mechanism (4) while pulling it towards you ➊ to remove the SmartphoneGrip. Lift off the SmartphoneGrip and release the release mechanism (4) ➋.

Attaching the Removal Blocker

Insert the locking plate (12) into the adapter shell (16) from below until you hear the locking plate (12) click into place.
Together with the keypad lock (13), this prevents the SmartphoneGrip from being quickly and easily removed.
Note: The locking plate (12) is not an anti-theft device.
To remove the removal blocker (12), loosen the two fastening screws (11).

Smartphone Assembly

The SmartphoneGrip can hold smartphones in the following sizes:

The specified dimensions include any phone cases. Smartphones with folio and carrying cases must not be used.
The total weight must not exceed 0.608 lbs.
Insert your smartphone (15) with the long side of the phone positioned at the center against the movable retaining bracket (1). Press the smartphone (15) against the movable retaining bracket (1) with both hands ➊ and place your smartphone (15) in the SmartphoneGrip ➋.

• Be careful not to pinch your fingers between the movable retaining bracket and the SmartphoneGrip when inserting your smartphone.

Once you have inserted your smartphone, check that the smartphone cannot come into contact with any hard parts on the bike even in case of vibrations, as this could cause lasting damage to the smartphone.

Keypad Lock Assembly

The keypad lock (13) supplied, together with the removal blocker (12), prevents the SmartphoneGrip from being quickly and easily removed by blocking the release mechanism (4).
To insert the keypad lock (13), slide the keypad lock (13) into the provided opening ➊ and carefully screw it into place with a hex key (1.5 mm) (14) ➋.

Note: The keypad lock is not an anti-theft device. The keypad lock prevents the SmartphoneGrip from being quickly removed from the holder. The keypad lock does not affect the smartphone in any way.
Note: Never leave your smartphone unattended in the SmartphoneGrip!
To remove the keypad lock (13), unscrew the securing screw with a hex key (1.5 mm) (14) and remove the keypad lock (13).

Operation

Start-up

Put the smartphone in the SmartphoneGrip.
Load the eBike Flow app to show your ride data.
Depending on the operating system of the smartphone, the eBike Flow app can be downloaded free of charge from the Apple App Store or Google Play Store.

Scan the code with your smartphone to download the eBike Flow app.

Charging the Smartphone

While the smartphone is in the SmartphoneGrip, it can be charged at the same time as displaying riding data. If your smartphone has an inductive charging function, you can charge the smartphone without needing a cable.

Inductive Charging
The charging process starts automatically when you place a smartphone with an inductive charging function in the SmartphoneGrip. The status LED (9) lights up yellow. When the smartphone is fully charged, the status LED (9) will light up green permanently.
The charging voltage is switched off when you remove the smartphone from the holder.

Charging via USB
If your smartphone does not have an inductive charging function, you can charge your smartphone via the USB port (3). To do so, open the USB cap and connect a separate USB cable (not included in the scope of delivery) to the Micro-A/B USB port.
Pay attention to the type of plug required for your smartphone when purchasing the USB cable.

Status Indicators

The status LED (9) indicates the following statuses with different colors and lighting patterns.

The following alarm states are detected and will lead to the inductive charging process being interrupted:

• Detection of foreign objects, e.g. coins, keys and other metallic objects
• Temperature alarm
  If the SmartphoneGrip is outside of the operating temperature range, the status LED (9) will light up red and the charging process is interrupted. The charging process will resume as soon as the SmartphoneGrip is back within the operating temperature range.
• Overvoltage alarm at voltages above 6 V
• Undervoltage alarm at voltages below 4.2 V

Maintenance and servicing

Maintenance and cleaning

Use a soft cloth dampened only with water for cleaning. Do not use cleaning products of any kind.

• Only have repairs performed by a certified bicycle dealer.

Do not clean any of the components with pressurized water.

Transport

• If you transport your eBike attached to the outside of your car, e.g. on a bike rack, remove the SmartphoneGrip and the eBike battery to avoid damaging them.

After-sales service and advice on using products

If you have any questions about the eBike system and its components, contact an authorized bicycle dealer. For contact details of authorized bike dealerships, please visit www.bosch-ebike.com.

General Warnings

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in death or serious injury.
Save all safety warnings and instructions for future reference.
The term battery pack used in these operating instructions refers to all original Bosch eBike battery packs.

• Read ALL accompanying manuals before riding the bike for the first time. Your Bosch Drive System comes with additional manuals and documents provided by the manufacturer of the bicycle and other components. Failure to read and understand safety information can result in death or serious injury.

• This manual contains important safety, performance and service information. Read it before you take the first ride on your new bicycle, and keep it for reference. The manual can also be found online at www.bosch-ebike.com.
• This manual is intended to be read together with the separate user manual provided with your bicycle. Be sure to read all provided documents including labels on the product before your first ride.
• Take responsibility for your own SAFETY. If you have any questions or do not understand something, consult with your dealer or the bicycle or component manufacturer.
• Some eBike accessories may present a choking hazard to small children. Keep these accessories away from children.

• The Bosch Drive System adds weight to your bicycle which you may not be used to lift. Avoid injury, use proper lifting techniques.

Safety Instructions

Read all the safety information and instructions. Failure to observe the safety information and follow instructions may result in electric shock, fire and/or serious injury.
Save all safety warnings and instructions for future reference.

• Read and observe the safety warnings and instructions in all operating instructions of the eBike system and your eBike.
• Do not allow your attention to be diverted from surrounding traffic when using Bosch eBike components and always ride with both hands on the handlebars. Always observe the applicable legal provisions in your country for the permitted use of your bicycle on public streets. In particular, note that it is prohibited to pick up or hold your smartphone in your hand while cycling on public streets.
• Set the display brightness such that you can adequately see important information like speed or warning symbols. An incorrectly set display brightness can result in dangerous situations.
• The contact surfaces of the display holder may become very hot (> 140°F). Allow the contact surfaces to adjust to the ambient temperature before you touch them. This is particularly important when using a SmartphoneGrip.
• Consult a doctor before using fitness app programs. Fitness apps may cause people to overexert themselves physically.
• Always observe local restrictions for using electronic devices.
• Avoid using the device in close proximity to your body over an extended period of time.
• Do not stand your bicycle upside down on its saddle and handlebars if the SmartphoneGrip or its holder protrude from the handlebars. This may irreparably damage the SmartphoneGrip or the holder.
• Do not use the SmartphoneGrip as a handle. Lifting the eBike up by the SmartphoneGrip can cause irreparable damage to the SmartphoneGrip.
• Do not open the SmartphoneGrip. Opening the SmartphoneGrip can result in irreparable damage and void your warranty.
•
  Using the SmartphoneGrip with Bluetooth® and/or Wi-Fi can interfere with the operation of other devices and systems, including airplanes and medical devices (e.g. pacemakers, hearing aids). Similarly, the possibility that this may cause damage to humans and animals in the immediate vicinity cannot be completely excluded. Do not use the SmartphoneGrip with Bluetooth® in the vicinity of medical devices, service stations, chemical plants, blasting areas or other areas where there is a risk of explosion. Do not use the SmartphoneGrip with Bluetooth® in airplanes. Avoid using the device in close proximity to your body over an extended period of time.
• Do not enter information or make selections while riding. Interacting with the display unit while riding can lead to accidents causing serious injury or death. You must observe road and traffic conditions, and comply with traffic laws at all times.
• Using your mobile device while operating an eBike may be distracting. Distracted driving is a serious safety concern and can lead to accidents causing serious injury or death. In order to prevent distracted driving, most devices come equipped with a "Do Not Disturb" mode. The "Do Not Disturb" mode should be used while operating an eBike. Please consult your device-specific instructions for more information. You, as the eBike operator, are fully responsible for ensuring that you pay attention to road conditions and comply with traffic laws at all times.
• Please note that certain State or local laws may require that class III eBikes must be equipped with a functioning speedometer that displays speed in miles per hour. Riders must be aware of any and all applicable rules and regulations related to the operation or use of class III eBikes in any applicable jurisdictions before operating or otherwise using this product.
• Choose the USB charging cable length appropriately. USB charging cable length must not be long enough to catch in handlebar or front wheel. This is important to prevent personal injury.

Robert Bosch GmbH
72757 Reutlingen
Germany
www.bosch-ebike.com
