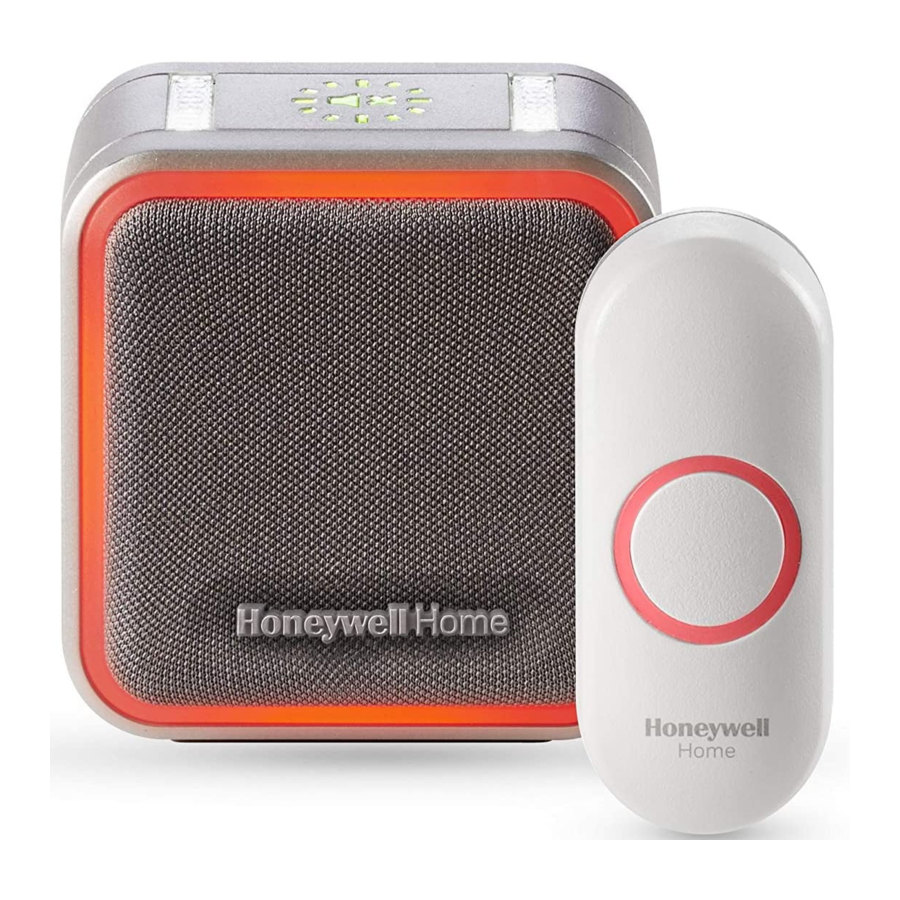

Honeywell 5 Series, RDWL515P2000 Manual

Preparation

In the box you will find

To install you will need

The push button supplied with this kit is pre-programmed to operate with the doorbell.

If it is not, see "Connect a Push Button".

Overview

Just follow these simple steps:

1. Install the push button battery and plug in the doorbell.
2. Set up the doorbell and your preferences.
3. Install the push button.

Indoor use only. Do not expose to liquid, vapor, or rain.

Power-up

1. Choose an outlet location that is not near a heat source, where the doorbell will be easy to see and hear, and plug in the doorbell.
2. Open the push button battery cover and install the CR2032 battery.


Setup and Operation

Press the push button to test whether it is paired with the doorbell. The doorbell will light up and ring. If it does not, see "Connect a Push Button".

Change the Light Pattern

Press the Sunlight button to change the lights that flash when the doorbell rings.

Press the Sunlight button

Change the Tune

Press the Music button to change the doorbell tune.

Every time you press the Music button, the tune will change.

Stop pressing the Music button when you hear the tune you want:

Ding Dong
Westminster
Piano
Fantasy
Soft Alert
Smart Sax
Glocken
Clock-ding-dong
Contemporary

Change the Halo Light Color

Press the push button.

Within 12 seconds, press the Sunlight button.
Every time you press the Sunlight button, the halo light will change colors. Stop pressing the Sunlight button when you see the color you want:
Light Blue
Green
White
Purple
Red
Yellow
Dark Blue

Adjust the Volume

Press the Volume Up or Volume Down buttons to adjust the volume doorbell.

Mute the Doorbell

Press the Mute button to silence the of the Doorbell.

Set the Mute

You can also mute the doorbell for specific amounts of time.

Press the Mute button...

	Mute button shows	Doorbell is mute		Mute button shows	Doorbell is mute
1 time		doorbell is mute	4 times		9 hours
2 times		3 hours	5 times		12 hours
3 times		6 hours	6 times		no longer mute

Install Push Button

1. Mount the push button bracket in the desired location
   Use the screws

   –OR–
   Use the adhesive backing. If using the adhesive backing, clean the surface first.

2. Snap the push button onto the mounting bracket.


Note: If you need to remove the push button, use a small screwdriver to release the tab.

Accessories

You can connect up to 4 accessories to your doorbell, including other push buttons, window or door opening sensors, and motion sensors.

If you try to connect more accessories than the max number, the doorbell will sound two beeps.

Connect a Motion Sensor

1. Press and hold the Setting button on the doorbell for three seconds. The halo light will circle.
2. Within 20 seconds of pressing the Setting button, wave or make some other kind of motion in front of the motion sensor.


Connect a Push Button

Follow these steps to change the ring and halo light color for an existing doorbell, too.

1. Press and hold the Setting button on the doorbell for three seconds. The halo light will circle.
2. Press the push button.

3. Within 12 seconds of pressing the push button, press the Music button to select the ring for that push button.
4. Within 12 seconds of pressing the doorbell, press the Sunlight button to select a halo light color for that push button.


Night-light

Your doorbell can also be used as a night-light.

1. Plug the doorbell into a wall outlet.

2. Press and hold the Night-light button to select the halo color.
3. Release the Night-light button when you see the color you want.


Secret Knock

You can set up a Secret Knock that makes a different ring and halo light color for each push button. The Secret Knock is triggered by pressing the push button quickly 3 times.

1. Press the push button 3 times quickly.
2. Within 12 seconds of pressing the push button, press the Music button to select the ring for the Secret Knock.
3. Within 12 seconds of pressing the push button, press the Sunlight button to select a halo light color for the Secret Knock.

Maintenance

Your doorbell and push button require no maintenance except to periodically change the battery.

If using the correct battery, its life should be approximately:

• Up to 2 years for the push button; replace with CR2032 lithium battery

Low Battery Notification

When the push button batteries are low, two beep sounds are heard after the normal tune.

Reset

This process removes all pairings, including the push button that came with this doorbell:

1. Unplug the doorbell.
2. Press and hold the Setting button, and plug the doorbell back in at the same time.
3. The halo light will circle, and the doorbell is returned to its factory default settings.

Specifications

Precautions and warnings

Before operating, make sure that the product components have not been damaged, have not been exposed to water or high temperatures.

Troubleshooting

For help please visit honeywellhome.com or call 1-800-633-3991.

1-year limited warranty
Resideo warrants this product, excluding battery, to be free from defects in workmanship or materials, under normal use and service, for a period of one (1) year from the date of first purchase by the original purchaser. If at any time during the warranty period the product is determined to be defective due to workmanship or materials, Resideo shall repair or replace it (at Resideo's option).

This warranty gives you specific legal rights, and you may have other rights which vary from state to state. If you have any questions concerning this warranty, please write Resideo Customer Care, 1985 Douglas Dr, Golden Valley, MN 55422 or call 1-800-633-3991.
