Please visit our website for the most current instructions, assembly tips, report damage,
TM
or request parts. www.walkeredison.com
Walker Edison
®
Copyright
Item # : W58OWN2D
Assembly Instructions
2019 by Walker Edison Furniture Co., LLC. All rights reserved.
©
Revised 24/06/2019 (E)
P.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the W58OWN2D and is the answer not in the manual?

Questions and answers

Jordan Thompson
February 7, 2025

I’m not understanding how step 7 works. I’m not sure where I’m screwing in the plastic wedge.

Summary of Contents for Walker Edison W58OWN2D

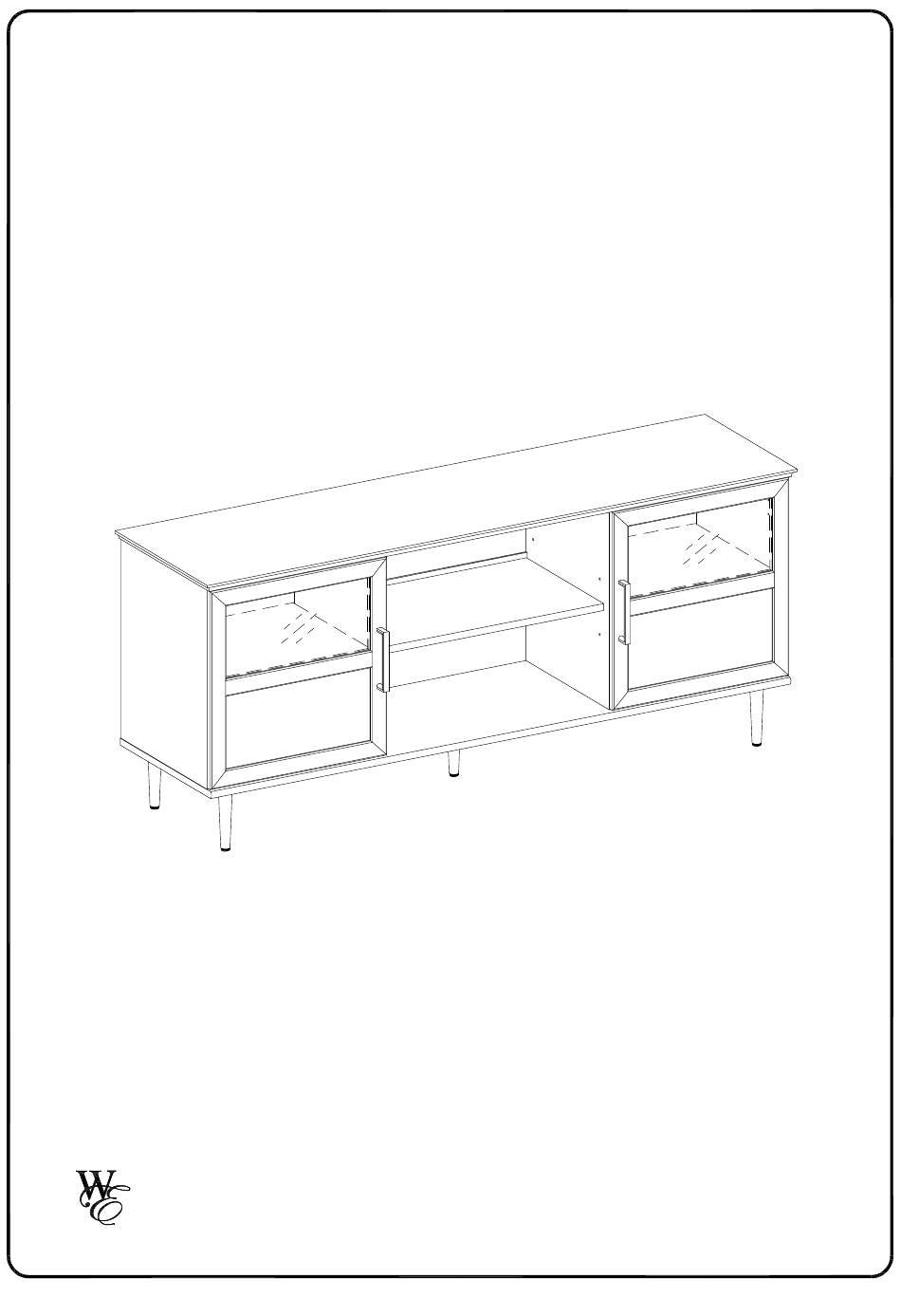

  • Page 1 Item # : W58OWN2D Assembly Instructions Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com Walker Edison Revised 24/06/2019 (E) ® Copyright 2019 by Walker Edison Furniture Co., LLC. All rights reserved. ©...
  • Page 5 Using cam bolt (B) secure part (1) with Philip head screwdriver as per diagram.
  • Page 6 Insert wooden dowel (A) into parts (3,4,5,6) as per diagram.
  • Page 7 Using screw (E) secure part (2) to parts (3,4,5,6) with hex key (F) as per diagram.
  • Page 8 Using bolt (G) secure part (13) to part (2) with hex key (F) as per diagram.
  • Page 9 Put parts (7,8,9,10) into parts (2,3,4,5,6) as per diagram.
  • Page 10 Using cam lock (C) secure part (1) into parts (3,4,5,6) with Philips head screwdriver as per diagram.
  • Page 11 Using screw (N) secure plastic wedge (P) with Philips head screwdriver as per diagram.
  • Page 12 Place sticker (D) cover the holes as per diagram.
  • Page 13 Insert shelf support pin (H) into parts (3,4,5,6) ,then put parts (11,12) into parts (3,4,5,6) as per diagram.
  • Page 14 Using screw (K) secure Europe hinge (J) to parts (14,15) ,then using bolt (M) secure knob (L) to parts (14,15) with Philips head screwdriver as per diagram.
  • Page 15 Using screw (K) secure Europe hinge (J) to part (3) with Philips head screwdriver as per diagram.
  • Page 16 Using screw (K) secure Europe hinge (J) to part (5) with Philips head screwdriver as per diagram.
