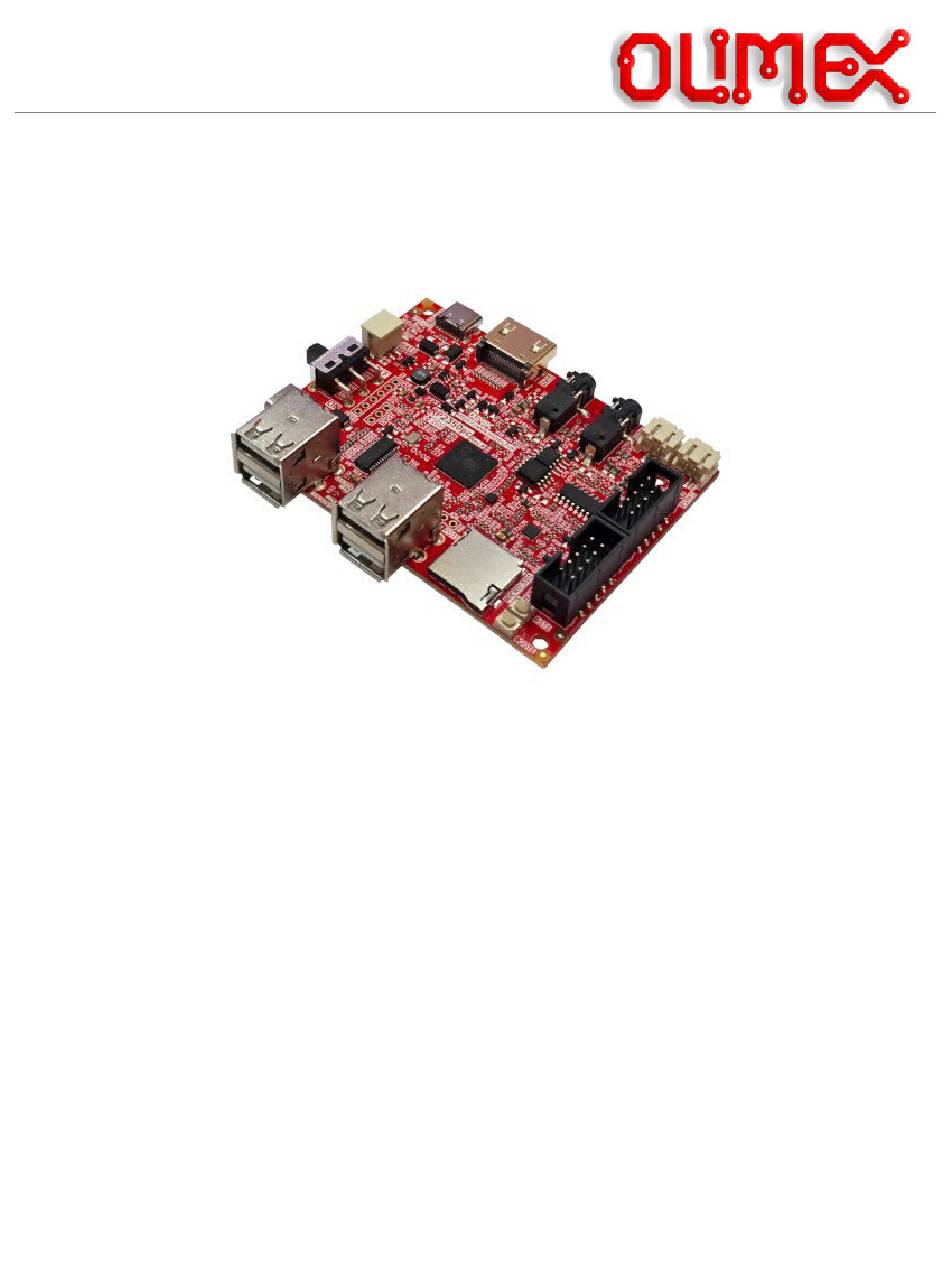

- Page 1 RP2350pc User Manual olimex.com Rev.1.0 June 2025...
-
Page 2: Table Of Contents
Table of Contents What is RP2350pc............................3 Order codes for RP2350pc and accessories:..................5 HARDWARE.............................6 RP2350pc layout:..........................7 UEXT connector:...........................8 RP2350pc UEXT connectors:.......................9 SD-card interface:..........................10 USB-C programming connector:......................11 RP2350pc schematics:.........................12 SOFTWARE:............................13 Programming RP2350pc........................14 Revision History............................15... -
Page 3: What Is Rp2350Pc
What is RP2350pc RP2350pc is complete all in one computer based on RP2350 Dual core Cortex-M33 + Dual core Hazard3 RISC-V processor from the Raspberry Pi foundation. The features of RP2350pc are: • RP2350B SOC with easy to load new firmware via drag and drop virtual drive •... - Page 4 RP2350pc is Open Source Hardware, all CAD files and firmware and available, so people can study and modify. Important notice: If RP2350pc is not mounted in box be careful to not place it on metal surface, nor drop metal objects on top of the PCB! This will lead to damage.
-
Page 5: Order Codes For Rp2350Pc And Accessories
Order codes for RP2350pc and accessories: RP2 350 pc RP2350 all in one computer with 4 USB hosts and HDMI display USB-KEYBOARD-PS2 Keyboard which is compatible with RP2350pc USB-GAMEPAD USB Gamepad USB-WIRELESS-GAMEPAD USB Wireless Gamepad USB-CABLE-AM-USB3-C High speed, High current cable for power supply and programming... -
Page 6: Hardware
HARDWARE... -
Page 7: Rp2350Pc Layout
RP2350pc layout: Power USB-C Left Speaker HDMI Audio Line In Audio Headphones Right Speaker LiPo battery UEXT1 ON-OFF UEXT2 USB-C programming Boot button USB 3/4 USB 1/2 SD card... -
Page 8: Uext Connector
UEXT connector can be in different shapes. The original UEXT connector is 0.1” 2.54mm step boxed plastic connector. All signals are with 3.3V levels. Olimex has developed number of MODULES with this connector. There are temperature, humidity, pressure, magnetic field, light sensors. Modules with LCDs, LED matrix, Relays, Bluetooth, Zigbee,... -
Page 9: Rp2350Pc Uext Connectors
RP2350pc UEXT connectors:... -
Page 10: Sd-Card Interface
SD-card interface:... -
Page 11: Usb-C Programming Connector
USB-C programming connector: It automatically disables the USB-HUB just press the boot button insert USB-C cable and the RP2350 go in bootloader mode and make disk. -
Page 12: Rp2350Pc Schematics
RP2350pc schematics: RP2350pc latest schematic is on GitHub... -
Page 13: Software
SOFTWARE: RP2350pc can be programmed with RaspberryPi C-SDK or MicroPython SDK. For the retro computing fans the Reload emulator written by Veselin Sladkov will support RP2350pc soon and will emulate Apple ][, Apple][e, Oric Atmos, Pravetz 82, Pravetz 8D and all games from Total Replay 5.2 are supported. -
Page 14: Programming Rp2350Pc
Programming RP2350pc The RP2350 firmware is UF2 file. You will be able to get pre-build firmware of reload emulator on olimex’s ftp when available. To program the .uf2 files you need USB-A to USB-C cable like USB-CABLE-AM-USB3-C. 1. Disconnect the power supply from USB-PWR1 connector and connect it to USB-PGM1 connector. -
Page 15: Revision History
Revision History Revision 1.0 June 2025...
