Summary of Contents for Violectric HPA V101

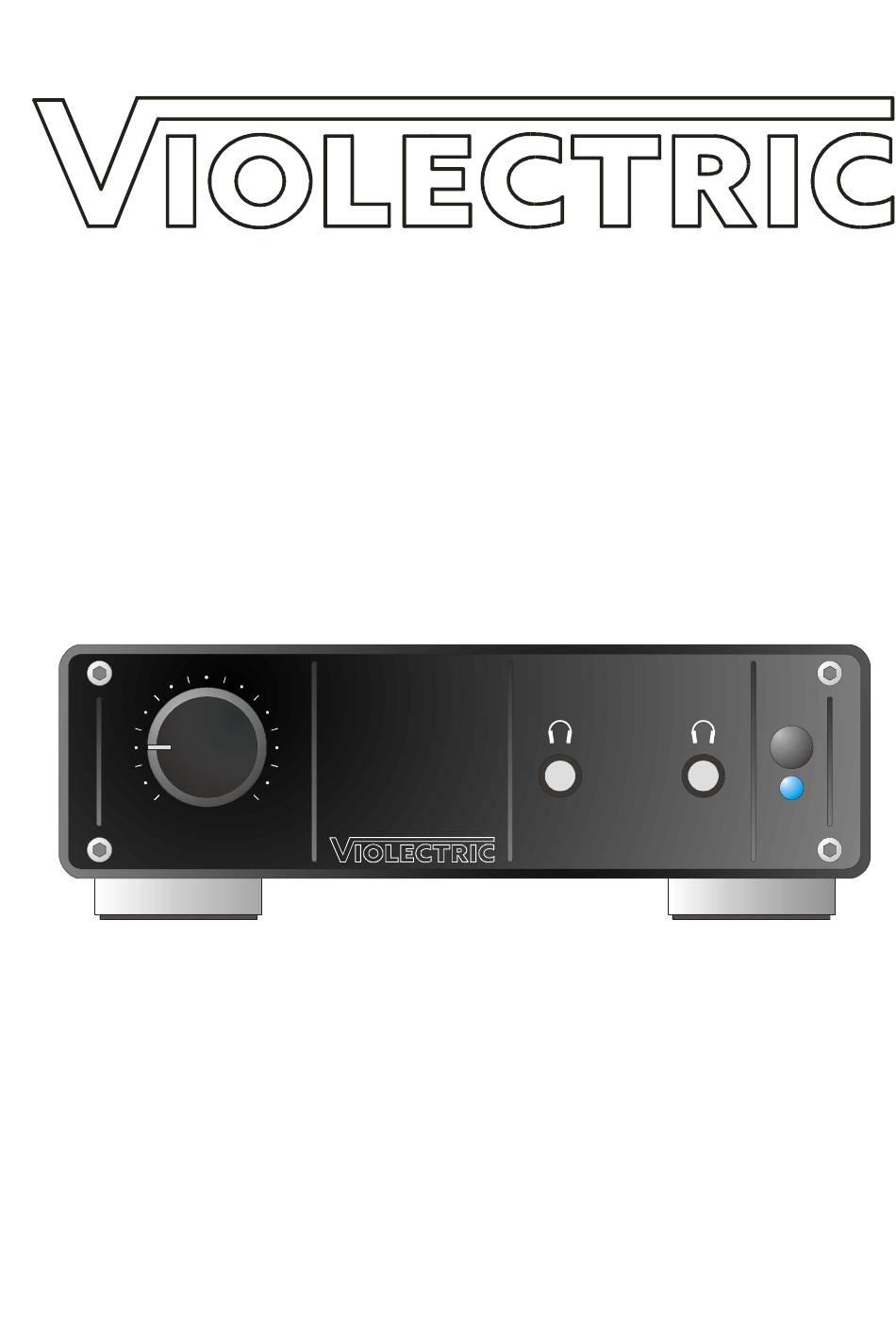

- Page 1 HEADPHONE AMPLIFIER Violectric HPA V101 POWER SUPERIOR VOLUME HEADPHONE AMPLIFIER V101 USER´s MANUAL...
- Page 2 User´s Manual HPA V101, October 2024, F. Reim...
-
Page 3: Table Of Contents
Headphone Outputs Protective Measures About PRE-GAIN Things to Know Disposal Dismantling, Internal Settings Technical Data CAUTION !! THE HIGH OUTPUT LEVELS ACHIEVABLE WITH THIS UNIT MAY DAMAGE YOUR HEARING OR THE HEADPHONES User´s Manual HPA V101, October 2024, F. Reim... -
Page 4: About
People electronic GmbH or contractors in the company's vicinity. Lake People - and by association put high emphasis on domestic manufacturing. As well, all component suppliers are chosen in order to achieve the main part of added value inland. User´s Manual HPA V101, October 2024, F. Reim... - Page 5 LAKE PEOPLE electronic GmbH Max Stromeyer Str. 116 D-78467 Konstanz Tel: +49 (0) 7531 73678 Web: www.lake-people.de Mail: info@lake-people.de www.violectric.de www.violectric.com www.lake-people.de www.lake-people.com User´s Manual HPA V101, October 2024, F. Reim...
-
Page 6: Safety Instructions
WHITE PROTECTIVE EARTH GREEN+YELLOW GREEN U.K. Mains Plug Warning: A moulded mains plug that has been cut off from the cord is unsafe. Discard the mains plug at a suitable disposal facility. User´s Manual HPA V101, October 2024, F. Reim... - Page 7 User´s Manual HPA V101, October 2024, F. Reim...
-
Page 8: The Earth / Grounding Concept
Of course full electrical protection is granted as the case is always connected to ground/earth potential ! See more on page 23. Ex works the GENERAL GROND LIFT JUMPER is set to LIFT position. User´s Manual HPA V101, October 2024, F. Reim... - Page 9 General GROUND-LIFT jumper. Please note that with jumpers not in the ex-works position EMC emission might occur, for which the user is responsible only ! Connection / Connectors for Analog Signals User´s Manual HPA V101, October 2024, F. Reim...
-
Page 10: General
10 W Rugged Aluminum case, black anodized massive Aluminum front panel With its compact dimensions, the VIOLECTRIC HPA V101 ensures optimum flexibility combined with high output power. During design, high emphasis was put on operational safety even when the unit is operated inappropriately. -
Page 11: Operation: Case, Power Supply, Inputs
THE CASE of VIOLECTRIC HPA V101 is made of 3-4 mm Aluminum and a thick aluminum front panel. This choice of material ensures high mechanical stability and resistance whilst maintaining a high optical and haptic quality. -
Page 12: Operation: Volume Control, Amplifiers
PIN 2 (+) PHASE PIN 3 (-) PHASE For unbalanced signals, two RCA connectors are provided. With the “INPUT SELECT” switch on the back panel either the unbalanced or balanced inputs are activated. User´s Manual HPA V101, October 2024, F. Reim... -
Page 13: Power Switch
Overall gain is set to +8 dB to enable the unit to drive high-Z headphones at sufficient volume. HEADPHONES OUTPUTS The VIOLECTRIC HPA V101 offers two stereo headphone outputs, each equipped with a standard 1/4" phone jack. 1/4” Phone Jack:... -
Page 14: Protective Measures
PROTECTIVE MEASURES: To ensure error-free operation and not to harm your valuable headphones in a comprehensive way your VIOLECTRIC HPA V101 is equipped with some protective circuits: During powering on there is a five second delay to protect your headphones from possibly unwholesome noises. After the time the headphone outputs are switched to the amp. -
Page 15: About Pre-Gain
A single amp of HPA V101 has a gain of +8 dB (factor 2,5). By this measure the amps will produce an extremely low self- generated noise which can hardly been heard even with highest sensitive in-ear-monitors (IEM). On the other hand, the amps of HPA V101 with very powerful transformers and with their high operating voltage are able to drive low efficiency or high impedance headphone to the full with ease. - Page 16 The "VOLUME" control should be set to minimum. Left and right channel settings should be the same unless you want to settle the amp for different hearing abilities. User´s Manual HPA V101, October 2024, F. Reim...
-
Page 17: Things To Know
HD25. There is also the fact that headphones with high impedance usually require much higher voltage to achieve high loudness. Thus, the amplifier must be designed with high internal supply voltages. User´s Manual HPA V101, October 2024, F. Reim... - Page 18 (error-) current will be induced when it swings back to its initial position. This current must be suppressed as far as possible, which is effected best if the amplifier's output User´s Manual HPA V101, October 2024, F. Reim...
- Page 19 VIOLECTRIC HPA V101 you will benefit from more than doubled output voltage swing capability. Why does PRE-GAIN make sense? Two extreme examples (with the VIOLECTRIC HPA V101 with +8 dB gain = factor 2,5, volume control set to full): 1st example: The (pre-) amplifier provides 8 V output voltage, whereas the headphone requires only 4 V for 100 dB sound pressure level.
- Page 20 Noble or Panasonic don't offer these anymore. A current sample of top-of-the-line pots is the RK27 by ALPS, which is used inside VIOLECTRIC HPA V101. Why we are making our amps in such a way.
- Page 21 The relay breaks the connection between amplifier and headphone for some seconds after power-on and thus protects the latter until electrical conditions have stabilized. User´s Manual HPA V101, October 2024, F. Reim...
-
Page 22: Disposal
INTERNAL SETTINGS Please note: The following chapters refer to internal settings of the HPA V101. To alter these settings, a TORX screwdriver T10 or 2,5 mm Allen Key is required. The more, you should by all means PULL THE MAINS CORD !!! after which all settings can be performed without any hazard. - Page 23 ADJUSTMENTS HPA V101 User´s Manual HPA V101, October 2024, F. Reim...
-
Page 24: Technical Data
Mains Supply Voltage: 230 V AC / 115 VAC max. 10 VA Case, Front, Back: Aluminium Dimensions (Case with front and back): 168 x 47 x 125 mm (W x H x D) User´s Manual HPA V101, October 2024, F. Reim...
