Nowy Styl MONTANA ST02 R15G KONTAKT Manual

Advertisement

Quick Links

ST02 R15G KONTAKT

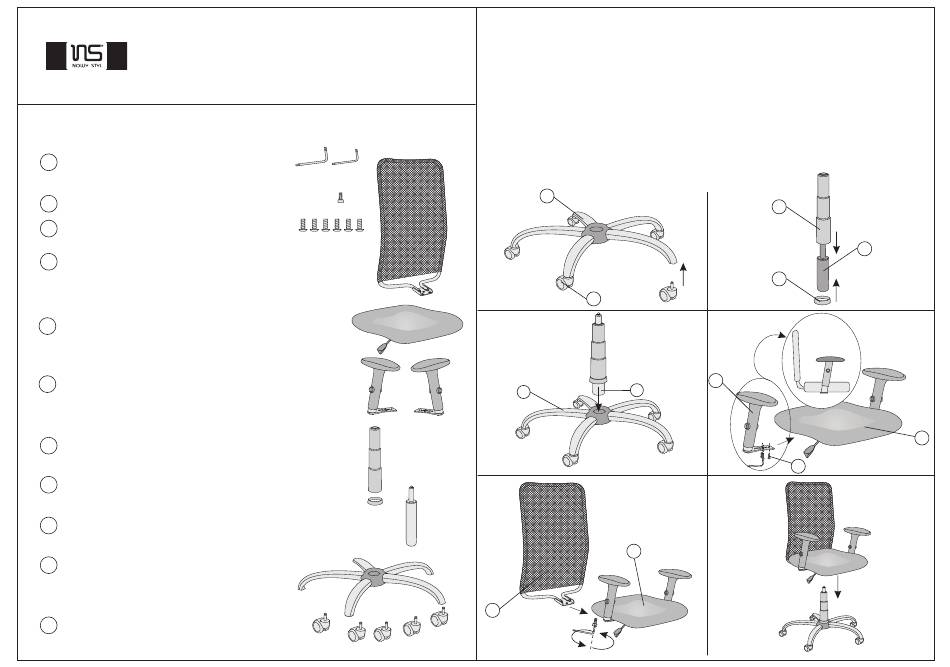

Before assembling, check to see if all parts are enclosed!
11 2 allen keys
10 1 screw M8x20
9 6 screws M6x20
8 1 back with slider
7 1 seat with seat base
6 2 arms
5 1 gas lift cover
4 1 collar
3 1 gas lift
2 1 base
1 5 castors
GBM411
MONTANA
ASSEMBLY
1)
Insert castors into base.
2) Pull gas lift cover over the gas lift. Insert cover collar into gas lift
(from botton).
3) Insert the gas lift into base.
4) Fit arms to seat with screw M6x20.
5) Slip fully backrest with back connection into the clamping ring of
the seat base. Use the allen key S6 to fix the back connection to
the seat base by screwing in the M8x20 bolt (see drawing).
6) Firmly locate the tapered end of the gas lift into locating hole in
the seat.
2
1
1
3
3
2
5
7
8
5
2
3
4
4
6
9
6
7
