Transom Kit
(S)
#10-24 x 3/8" Flat Head Screw
(T)
#8-18 x 3/4" Pan Head Screw
(U)
#8-18 x 1/2" Pan Head Screw
(V)
#10-24 x 1/2" Flat Head Screw
(W)
#10-24 x 3/4" Flat Head Screw
Special - Transom (Double Glazed)
Strike Side
R
U
C
S
O
A
CUSTOMER SERVICE PHONE: 1-800-426-8562
Glass Panes
J
V
B
M
V
Cap, Ctr, Chnl
P
119-1465
Hinge Side
F
W
Setting Block, Kit
Q
119-1472
H
K
L
T
U
E
V
N
Part No. 121-2837
D
1.1
Advertisement
Related Manuals for Haworth TRIVATI
Summary of Contents for Haworth TRIVATI

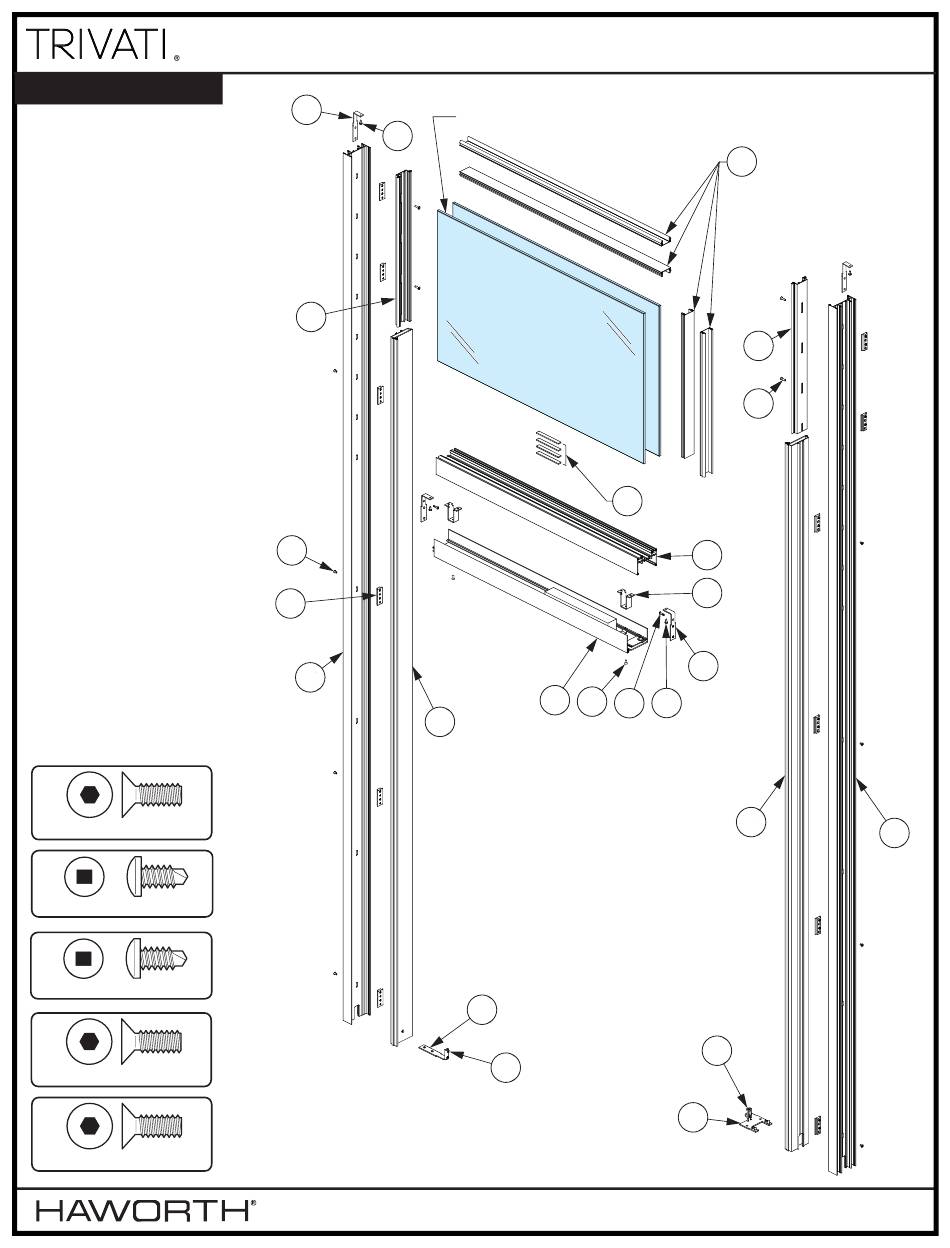

- Page 1 Special - Transom (Double Glazed) Transom Kit Strike Side Glass Panes Cap, Ctr, Chnl 119-1465 Hinge Side Setting Block, Kit 119-1472 #10-24 x 3/8" Flat Head Screw #8-18 x 3/4" Pan Head Screw #8-18 x 1/2" Pan Head Screw #10-24 x 1/2" Flat Head Screw #10-24 x 3/4"...
- Page 2 Installation Steps Strike Side - Outer Jamb measurement NOTE: Compress carpet and measure. BOTTOM IMPORTANT! DO NOT CUT BOTTOM OF CHANNEL! Part No. 121-2837 CUSTOMER SERVICE PHONE: 1-800-426-8562...
- Page 3 Installation Steps Hinge Side - Outer Jamb measurement BOTTOM IMPORTANT! DO NOT CUT BOTTOM OF CHANNEL! Part No. 121-2837 CUSTOMER SERVICE PHONE: 1-800-426-8562...
- Page 4 Installation Steps Strike Side - Inner Jamb measurement Glass Slab Framed Door Type Door Type For a Framed Door, X = Y+ 32.5mm (1.28”) For a Glass Slab Door, X = Y+34.5mm (1.36”) BOTTOM IMPORTANT! DO NOT CUT BOTTOM OF CHANNEL! Part No.
- Page 5 Installation Steps Hinge Side - Inner Jamb measurement BOTTOM IMPORTANT! DO NOT CUT BOTTOM OF CHANNEL! Part No. 121-2837 CUSTOMER SERVICE PHONE: 1-800-426-8562...
- Page 6 Installation Steps Strike Side - Jamb Assembly shown. Repeat for Hinge side #10-24 x 3/8" Flat Head Screw Part No. 121-2837 CUSTOMER SERVICE PHONE: 1-800-426-8562...
- Page 7 Installation Steps Strike Side - Jamb Assembly shown. Repeat for Hinge side X = Y - 50mm (2”) IMPORTANT! CUT BOTH ENDS (IF REQUIRED) TO ENSURE SLOT PATTERN ALIGNS Part No. 121-2837 CUSTOMER SERVICE PHONE: 1-800-426-8562...
- Page 8 Installation Steps Strike Side - Jamb Assembly shown. Repeat for Hinge side IMPORTANT! ENSURE ALL GLASS GASKETS/PADS AND DOOR STOP SEALS ARE IN PLACE IN THE CORRECT SLOTS AS PER THE LAYOUT REQUIREMENTS #10-24 x 3/4" Flat Head Screw Part No. 121-2837 CUSTOMER SERVICE PHONE: 1-800-426-8562...
- Page 9 Determine which Jamb assembly to install first based on existing Glass location Door Opening w/ Door Opening w/ No Glass Pane Installed One Glass Pane Installed IMPORTANT! Remove one Glass pane to continue the installation of the Transom frame Door Opening w/ Door Opening w/ One Glass Pane Installed Two Glass Panes installed...
- Page 10 Installation Steps IMPORTANT! All proceding steps are based on the scenario where one (1) Glass Pane is currently installed as described on the previous page. #8-18 x 1/2" Pan Head Screw #10-24 x 1/2" Flat Head Screw Part No. 121-2837 1.10 CUSTOMER SERVICE PHONE: 1-800-426-8562...
- Page 11 Installation Steps Transom Rail - Assembly IMPORTANT! ENSURE ALL GLASS GASKETS/PADS ARE IN PLACE IN THE CORRECT SLOTS AS PER THE LAYOUT REQUIREMENTS 60mm (2-23/64”) Part No. 121-2837 1.11 CUSTOMER SERVICE PHONE: 1-800-426-8562...
- Page 12 Installation Steps Opposite Jamb IMPORTANT! ENSURE DOOR STOP SEAL IS IN PLACE IN THE CORRECT SLOT AS PER THE LAYOUT REQUIREMENTS Unscrew and separate the outer and inner jambs Part No. 121-2837 1.12 CUSTOMER SERVICE PHONE: 1-800-426-8562...
- Page 13 Installation Steps Opposite Jamb & Transom Rail assembly O” #8-18 x 1/2" Pan Head Screw Part No. 121-2837 1.13 CUSTOMER SERVICE PHONE: 1-800-426-8562...
- Page 14 Installation Steps Caps Important! Read Section 12 of the Installation Manual regarding Caps prior to completing this step. Part No. 121-2837 1.14 CUSTOMER SERVICE PHONE: 1-800-426-8562...
- Page 15 Installation Steps Glass Panes Important! Read Section 11 of the Installation Manual regarding Glass prior to completing this step. Part No. 121-2837 1.15 CUSTOMER SERVICE PHONE: 1-800-426-8562...
- Page 16 Installation Steps Opposite Outer Jamb - Assembly IMPORTANT! ENSURE ALL GLASS GASKETS/PADS AND DOOR STOP SEALS ARE IN PLACE IN THE CORRECT SLOTS AS PER THE LAYOUT REQUIREMENTS #10-24 x 3/4" Flat Head Screw Part No. 121-2837 1.16 CUSTOMER SERVICE PHONE: 1-800-426-8562...
- Page 17 Installation Steps #10-24 x 3/8" Flat Head Screw #8-18 x 3/4" Pan Head Screw Repeat for each Block (O) #8-18 x 1/2" Pan Head Screw #10-24 x 1/2" Flat Head Screw Part No. 121-2837 1.17 CUSTOMER SERVICE PHONE: 1-800-426-8562...
- Page 18 Installation Steps Door Header - Assembly #10-24 x 1/2" Flat Head Screw Transom assembly is complete. Review the specific door type installation instruction before proceeding to install the door. Framed Glass Slab Door Type Door Type Part No. 121-2837 1.18 CUSTOMER SERVICE PHONE: 1-800-426-8562...
