Summary of Contents for Pride Mobility Jazzy Carbon Ultra-Lite

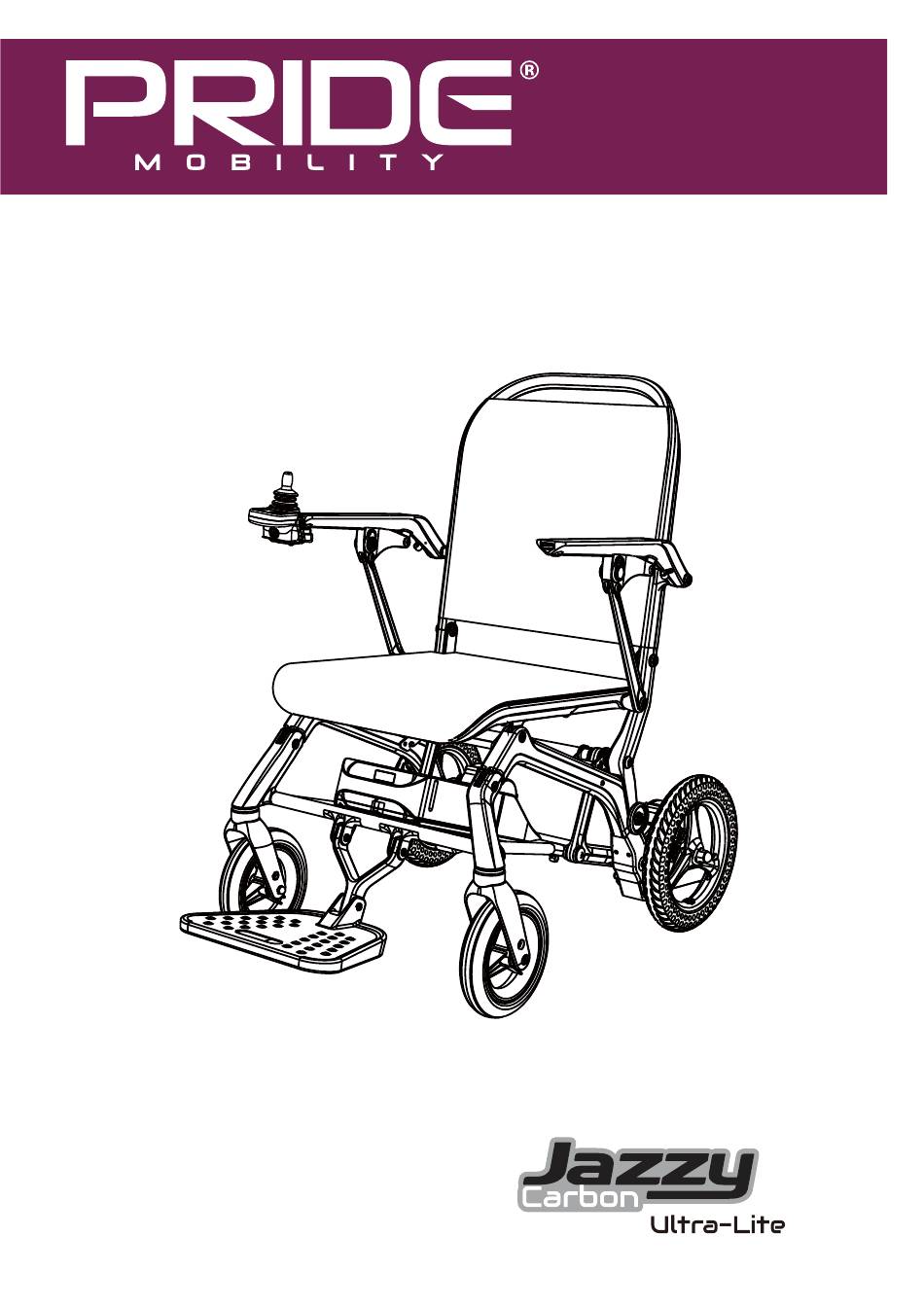

  • Page 1 Owner’s Manual...

  • Page 2: Intended Use

    Safety Guidelines WARNING! An authorized Pride Provider or a qualified technician must perform the initial setup of this power chair and must perform all of the procedures in this manual. The symbols below are used throughout this owner’s manual and on the power chair to identify warnings and important information.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. LETTER TO USERS ..............2. ATTENTION ................3. PRODUCT DESCRIPTION ..........4. INSTALLATION & ADJUSTMENT ........9-15 5. OPERATING INSTRUCTIONS .......... 16-17 6. BATTERY AND CHARGER ..........18-24 7. DAILY CHECKS & MAINTENANCE ........8. WARRANTY ..............26-27 9.

  • Page 4: Letter To Users

    1. LETTER TO USERS This product is designed and produced by Kunshan Hi-Fortune Health Products Co., Ltd on behalf of Pride Mobility Products. This Owner's Manual is part of the product specifications; please ensure it accompanies every product sold and it is read thoroughly and understood before operating or driving the powerchair.

  • Page 5: Attention

    2.ATTENTION 2.1 UNPACKING INSPECTION Please use the Parts List provided to check whether any parts or components are damaged or missing. If there is any damage or missing parts, contact your dealer or distributor immediately. ■ Powerchair 1 ■ Cushion 1 set ■...

  • Page 6: Safety Instructions

    2.ATTENTION 2.3 SAFETY INSTRUCTIONS Read this Owner's Manual carefully before using your powerchair and make sure that you understand the use and operating details of all the various components. they are present. WARNING: Do not drive on roads with heavy traffic or roads that are muddy, gravelly, bumpy, narrow, covered with snow of ice, canal towpaths not guarded by any fence or hedge barrier.

  • Page 7: Remarks On Electromagnetic Compatibility (Emc)

    2 ATTENTION 2.4 REMARKS ON ELECTROMAGNETIC COMPATIBILITY (EMC) We wish to point out that sources of electromagnetic waves (e.g. cell phones) are liable to create interference. The electronics of the power chair itself could affect other electric appliances as well. To reduce the effect of electromagnetic sources of interference, please read the following warnings: WARNING: The power chair might disturb the operation of devices in its environment that emit electromagnetic field.

  • Page 8: Product Description

    3 PRODUCT DESCRIPTION 3.1 PRODUCT FEATURES (HP200) 3.1.1 This product consists of frame, wheels, seat, armrest, lithium battery, motor and controller with a a lightweight and compact design. The whole wheelchair can be folded by one button and it can be easily carried or rolled after folding.
  • Page 9 3 PRODUCT DESCRIPTION 3.3 CIRCUIT DIAGRAM Control box The right motor The left motor MOTOR MOTOR RIGHT LEFT BATTERY Battery pack Joystick...
  • Page 10 3 PRODUCT DESCRIPTION 3.4 TECHNICAL PARAMETERS Technical models HP200 Frame Carbon fibre Weight (W/T Battery) 14.5KG Max. load 125kg Motor (Rated output power) 24V 170W 24V 20Ah/10.4Ah Li-ion battery Battery (optional) 29.4v 2A Microphone head, AC PLUG Charger medium gauge Front wheel 8"...

  • Page 11: Installation And Adjustment

    4.INSTALLATION & ADJUSTMENT 4.1 CONTROLLER INSTALLATION/REMOVAL Upper bracket Insert the upper bracket of the joystick into Joystick the fixed tube of the armrest as shown in the diagram then tighten it with the knob. Operate oppositely if operated with left hand.
  • Page 12 4.INSTALLATION & ADJUSTMENT 4.3 BATTERY BOX INSTALLATION, REMOVAL OR REPLACEMENT 4.3.1 Installation: Push the battery box forward along the U-shaped fixing strip and align it with U-shaped the front terminal until it clicks in place. fixing strip Battery U-shaped fixing strip Completed Installation Diagram 4.3.2 Removal or replacement: Remove the battery box by pressing the battery lock handle...
  • Page 13 4.INSTALLATION & ADJUSTMENT 4.4 SEAT BELT REMOVAL AND INSTALLATION 1. Hold the buckle on the seat belt and press together to unbuckle the seat belt. 2. Align the buckle with the insert, press down until you hear the "click" sound. ①...
  • Page 14 4.INSTALLATION & ADJUSTMENT 4.6 UNFOLDING THE POWERCHAIR 4.6.1 Hold the backrest frame with your left Footrest hand and open the footrest with your right hand as shown in the right diagram. Backrest frame 4.6.2 Before opening the powerchair, place the whole vehicle flat; ①...
  • Page 15 4.INSTALLATION & ADJUSTMENT 4.6.3 When the backrest frame is opened, the Hook wheelchair is fully opened when you hear the "click" sound and the hook snaps in place. Backrest Seat frame 4.6.4 The wheelchair is fully opened.

  • Page 16: Folding The Wheelchair

    4.INSTALLATION & ADJUSTMENT 4.7 FOLDING THE WHEELCHAIR Hook Backrest frame Attention: Please remove the cushion, so that the wheelchair can be easily folded. 4.7.1 Step down the foldable lock handle with your right foot, and at the same time, hold the backrest frame with your right hand and push it forward until the hooks on both sides of the wheelchair are released as shown in the right...
  • Page 17 4. INSTALLATION & ADJUSTMENT 4.7.4 Once folded, flip the footrest inward again and put it together as shown in the right diagram. Footrest 4.8 STANDING THE FOLDED WHEELCHAIR After the wheelchair is folded, it can be stored vertically to save storage space. WARNING 1.

  • Page 18: Operating Instructions

    5. OPERATING INSTRUCTIONS 5. OPERATION – DRIVING THE POWERCHAIR 5.1 JOYSTICK 1. Low Speed Button 5. Horn Button 2. On/off Button High Speed Button 3. Battery Gauge 7. Joystick lever 4. Speed Indicator LOW SPEED BUTTON: Press to slow the speed. 2.
  • Page 19 5. OPERATING INSTRUCTIONS 5.2 BEFOR SITTING ON YOUR POWERCHAIR ● Make sure the battery box switch is in the ‘On’ position. ● Make sure the Freewheel levers are in the ‘Lock’ position (see 4.2 Manual Freewheel lever). ● Make sure that the battery is fully charged. ●...

  • Page 20: Battery And Charger

    6. BATTERY AND CHARGER 6.1 GENERAL INFORMATON & INSTRUCTIONS ON CHARGING Your power chair uses one long-lasting Lithium-Ion battery. This battery is sealed and maintenance-free. Since it is sealed, there is no need to check the electrolyte (fluid) level. Lithium-Ion batteries are designed to handle a longer and deeper discharge.
  • Page 21 6. BATTERY AND CHARGER NOTE: The Jazzy ®Carbon Ultra-Lite battery can be NOTE: The Jazzy ® Ultralight battery can be charged with the battery box either installed on charged with the battery box either installed on or removed from the power base. or removed from the power base.
  • Page 22 6. BATTERY AND CHARGER WARNING:Turn on the switch on the battery box prior to charging. ● Put the charger plug into the outlet point. ● Do not switch on the battery charger until all the plugs are in position. ● Turn off the mains power to the charger before removing the charger plug from charging outlet.
  • Page 23 6. BATTERY AND CHARGER WARNING! Risk of short circuit and electric shock if the battery charger has been damaged. Never use the charger if it has been dropped or damaged. WARNING! Risk of electric shock and damage to the batteries-Never attempt to recharge the batteries by attaching cables directly to the battery terminals.
  • Page 24 6. BATTERY AND CHARGER FREQUENTLY ASKED QUESTIONS (FAQs) How does the charger work? The battery charger takes the standard electrical outlet voltage (alternating current) and converts it to 24V DC (direct current). The battery uses a direct current to run your power chair. When the battery voltage is low, the charger works harder to charge the battery.
  • Page 25 6. BATTERY AND CHARGER Infrequent Use If you use your power chair infrequently (once a week or less), you should charge the battery at least once per week for 12 to 14 hours. NOTE: Keep your battery fully charged and avoid deeply discharging your battery. Refer to the manual supplied with the battery charger for charging instructions.
  • Page 26 6. BATTERY AND CHARGER If you do not plan on using your power chair for an extended period, fully charge the battery prior to storage. Flip the battery switch to the off or “0” position, disconnect the battery, and store the power chair in a warm, dry environment.

  • Page 27: Daily Checks & Maintenance

    7. DAILY CHECKS & MAINTENANCE Protect your power chair by having it checked regularly. We strongly advise you to have your powerchair checked at least once a year by a qualified dealer, who will only use the correct spare parts. This periodic inspection will ensure you that the powerchair will function safely for years.

  • Page 28: Warranty

    8 WARRANTY WARRANTY POLICY: LIMITED WARRANTY. IMPORTANT NOTICE-TO ENSURE THIS WARRANTY IS VALIDATED IT HAS TO BE COMPLETED AND RETURNED TO DEALER WITHIN 14 DAYS OF PURCHASE 8.1 ONE-YEAR LIMITED WARRANTY: For one (1) year from the date of delivery, we will replace at our discretion to the original purchaser, free of charge, any part or electronic component found upon examination by an authorized representative of Manufacturer to be faulty.

  • Page 29: Maintenance Records

    8 WARRANTY 8.5 NOTICES TO CONSUMER There are no other express warranties. To the extent permitted by law, any implied warranty (including a warranty of merchantability or fitness for a particular purpose) is limited to: 1. One (1) year from the day of purchase. 2..

  • Page 30: Basic Troubleshooting

    9 BASIC TROUBLESHOOTING 9.1 FLASH CODE TROUBLE SHOOTING Fault Codes If a system trip occurs, you can find out what has happened by counting the number of flashes on the Joystick Module BDI. Below is a list of self-help actions. Try to use this list before you contact your service agent. Go to the number in the list which matches the number of flashes on the BDI and follow the instructions.

  • Page 31: Transportation And Storage

    10 TRANSPORTATION AND STORAGE 10.1 TRANSPORTATION AND STORAGE a）Ambient temperature range：-25℃—50℃ / -13°F—122°F； b) Relative humidity：≤80% c) Atmospheric pressure range: 86kPa～106kPa; d) Can be transported in general transportation. 10.2 OPERATION a）Ambient temperature range：-5℃—40℃ / 23°F-104°F； b) Relative humidity：≤85% c) Atmospheric pressure range: 86kPa～106kPa;...
  • Page 32 Manufacturer information: Kunshan Hi-Fortune Health Products Co., Ltd No.625 Juxiang Road zhangpu town , Kunshan City Jiangsu Province, China TEL:+86 512 55195100. FAX: +86 512 55199300 www.hi-fortune.net Date: 2024-03-15 Version: V.01...
  • Page 33 Switzerland Pride Corporate and subsidiary locations: (Authorised CH Representative) SODIMED SA 401 York Avenue Chemin Praz Devant 12 Duryea, PA 18642 1032 Romanel-sur-Lausanne www.pridemobility.com Italy Canada Via del Progresso-ang. Via del Lavoro 5096 South Service Road Loc. Prato della Corte Beamsville,Ontario L3J 1V4 00065 Fiano Romano (RM) www.pridemobility.ca...
