Orno TOGI AC OR-DB-MP-166 Quick Start Manual

Orno TOGI AC OR-DB-MP-166 Quick Start Manual

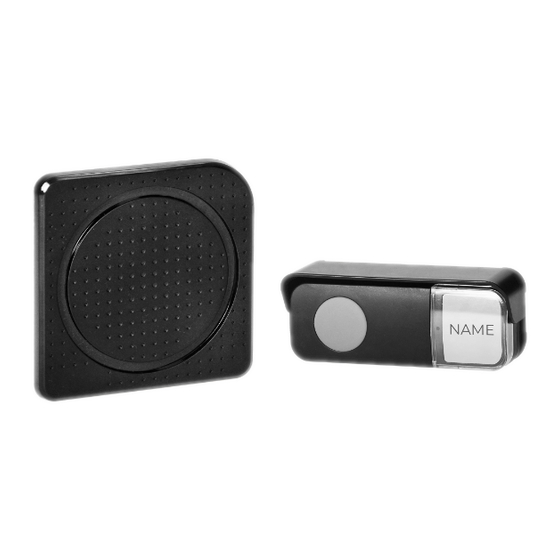

Wireless doorbell

Advertisement

Quick Links

Model: OR-DB-MP-166
ORNO-LOGISTIC Sp. z o.o.
ul. Rolników 437
44-141 Gliwice, POLAND
tel. (+48) 32 43 43 110
(PL) WSKAZÓWKI DOTYCZĄCE BEZPIECZNEGO UŻYTKOWANIA!
Przed rozpoczęciem korzystania z urządzenia, należy zapoznać się z niniejszą instrukcją obsługi oraz zachować ją na przyszłość. Dokonanie samodzielnych napraw
i modyfikacji skutkuje utratą gwarancji. Producent nie odpowiada za uszkodzenia mogące wyniknąć z nieprawidłowego montażu i eksploatacji urządzenia. Z uwagi
na fakt, że dane techniczne podlegają ciągłym modyfikacjom, Producent zastrzega sobie prawo do dokonywania zmian dotyczących charakterystyki wyrobu oraz
wprowadzania innych rozwiązań konstrukcyjnych nie pogarszających parametrów i walorów użytkowych produktu. Najnowsza wersja instrukcji do pobrania na
stronie support.orno.pl. Wszelkie prawa do tłumaczenia/interpretowania oraz prawa autorskie niniejszej instrukcji są zastrzeżone.
1. Nie używaj urządzenia niezgodnie z jego przeznaczeniem.
2. Nie zanurzaj urządzenia w wodzie i innych płynach.
3. Czyść suchą szmatką po wyłączeniu z sieci 230V.
4. Nie przykrywaj urządzenia podczas pracy.
5. Nie obsługuj urządzenia, gdy uszkodzona jest obudowa.
6. Nie rozkręcaj urządzenia i nie dokonuj samodzielnych napraw.
INSTRUKCJE BEZPIECZEŃSTWA DOTYCZĄCE BATERII:
Przy instalacji nowej baterii pamiętaj o jej biegunowości +/-.
Stosuj baterie takiego samego typu, jakie są rekomendowane do stosowania w tym urządzeniu.
Nie mieszaj baterii zużytych z nowymi, baterii o różnym składzie lub innych producentów w celu zapobiegania potencjalnym nieszczelnościom.
Nie wyrzucaj zużytej baterii do śmietnika, lecz do specjalnych pojemników na zużyte baterie.
Aby uzyskać porady na temat recyklingu, proszę skontaktować się z lokalnym organem.
Nie ładuj baterii nieprzeznaczonej do ładowania (niebędącej akumulatorem).
Nie zwieraj zacisków zasilających.
Nigdy nie podgrzewaj, nie odkształcaj baterii ani nie wystawiaj jej na bezpośrednie działanie źródeł ciepła, takich jak nadmierne nasłonecznienie, grzejnik, ogień.
Niebezpieczeństwo wybuchu! Bateria nie może być demontowana, wrzucana do ognia lub zwierana.
Wyjmij baterię z urządzenia, gdy nie używasz go przez dłuższy czas, aby uniknąć uszkodzenia ze względu na możliwe wycieki.
Trzymaj baterie poza zasięgiem dzieci.
Wyczerpaną baterię należy bezzwłocznie wyjąć z urządzenia.
Rozładowana bateria może wyciekać, powodując uszkodzenia urządzenia.
W razie kontaktu rąk z kwasem z baterii, opłucz ręce pod bieżącą wodą.
W przypadku dostania się do oczu, skontaktuj się z lekarzem. Kwas zawarty w baterii może powodować podrażnienie lub oparzenie.
Połknięcie baterii może być śmiertelne! Trzymaj baterię z dala od dzieci i zwierząt
(EN) DIRECTIONS FOR SAFTY USE!
Before using the device, read this manual and keep it for future reference. Making repairs and modifications by yourself will result in the loss of warranty. The
manufacturer is not liable for damage that may result from incorrect installation and operation of the device. Due to the fact that the technical data are subject
to continuous modifications, the Manufacturer reserves the right to amend the characteristics of the product and introduce other design solutions that do not
impair the parameters and usefulness of the product. The current version of manual can be downloaded from the website support.orno.pl. All rights to
translation/interpretation and copyrights in this manual are reserved.
1. Do not use the device against its intended use.
2. Do not immerse the device in water or other liquids.
3. Clean with a dry cloth after switching off 230V.
4. Do not cover the device during operation.
5. Do not operate the device when the housing is damaged.
6. Do not disassemble the device and do not repair it yourself.
BATTERY PRECAUTIONS:
Check the correct polarity +/- when installing the batteries.
Use the battery type recommended for this product.
Do not install new batteries with the used ones, batteries which vary in chemical composition or batteries which vary in manufacturer or brand, to prevent
battery acid leaks.
Do not discard spent batteries with household waste, discard to special battery collection containers.
Consult your local authorities to learn more about recycling options.
Do not recharge non-rechargeable batteries.
Do not short-circuit the battery terminals.
Never deform the batteries or expose them to direct heat sources, such as direct sunlight, radiators or fire.
Explosion hazard! Do not disassemble, short-circuit or discard the batteries in fire.
Remove the battery from the product before prolonged storage to prevent potential damage from battery acid leaks.
Keep batteries out of the reach of children.
Immediately remove the battery from the product when spent.
Discharged batteries may leak and damage the product.
If you touch battery acid with your hands, rinse them under running water.
In case of eye contact with battery acid, seek medical attention. The battery acid may cause irritation or chemical burns.
Swallowing a battery can be fatal! Keep the batteries away from children and pets. If you swallow a battery, immediately seek medical attention.
(DE) ANWEISUNGEN ZUR SICHEREN VERWENDUNG!
Machen Sie sich mit dem Inhalt der Bedienungsanleitung vertraut, bevor sie mit der Nutzung der Anlage beginnen. Die Durchführung eigenmächtiger Reparaturen
und Modifikationen hat den Verlust der Garantie zur Folge. Der Hersteller haftet für Beschädigungen nicht, die sich aus der nicht fachgerechten Montage oder
Einsatz der Anlage ergeben. Da technische Daten ständigen Modifikationen unterliegen, behält sich der Hersteller das Recht vor, Änderungen bezüglich
Erzeugnischarakteristik und anderer Konstruktionsänderungen vorzunehmen, die Parameter und Nutzwerte des Produkts nicht beeinträchtigen. Die neuste
Version der Bedienungsanleitung ist verfügbar zum Download unter support.orno.pl. Alle Rechte auf Übersetzung/Auslegung sowie Urheberrechte dieser
Bedienungsanleitung sind vorbehalten.
1. Verwenden Sie das Gerät nicht für den vorgesehenen Zweck.
2. Tauchen Sie das Gerät nicht in Wasser oder andere Flüssigkeiten.
3. Reinigen Sie das Gerät nach dem Abschalten von 230V mit einem trockenen Tuch.
4. Decken Sie das Gerät während des Betriebs nicht ab.
5. Betreiben Sie das Gerät nicht, wenn das Gehäuse beschädigt ist.
6. Zerlegen Sie das Gerät nicht und reparieren Sie es nicht selbst.
(PL) Dzwonek bezprzewodowy sieciowy TOGI AC
(EN) TOGI AC Wireless doorbell
(DE) Kabellose Türklingel TOGI AC
(FR) TOGI AC Sonnette sans fil
(RU) TOGI AC Беспроводной дверной звонок

Advertisement

loading
Need help?

Need help?

Do you have a question about the TOGI AC OR-DB-MP-166 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Orno TOGI AC OR-DB-MP-166

  • Page 1 Manufacturer reserves the right to amend the characteristics of the product and introduce other design solutions that do not impair the parameters and usefulness of the product. The current version of manual can be downloaded from the website support.orno.pl. All rights to translation/interpretation and copyrights in this manual are reserved.
  • Page 2 оставляет за собой право вносить изменения в описание изделия и вносить прочие конструкционные изменения, не влияющие отрицательно на параметры и эксплуатационные качества изделия. Последняя версия инструкции доступна для скачивания на сайте support.orno.pl. Все права на перевод/интерпретацию и авторские права настоящей инструкции защищены.
  • Page 3 Déclaration de conformité simplifiée La société Orno-Logistic Sp. z o.o. déclare que le type d’appareil radio: La sonnette sans fil OR-DB-MP-166 est conforme à la directive 2014/53/EU. Le texte intégral de la déclaration de conformité de l’UE est disponible à l’adresse internet suivante : www. orno.pl Упрощенная...
  • Page 4 BUDOWA URZĄDZENIA/ PARTS OF THE PRODUCT/ TEILE DES PRODUKTS/ CONSTRUCTION DE L'APPAREIL/ КОНСТРУКЦИЯ УСТРОЙСТВА Nadajnik Transmitter Sender Émetteur Передатчик 1. Przycisk dzwonka 1. Doorbell button 1. Türklingel-Taste 1. Bouton de sonnette 1. Кнопка дверного 2. Daszek ochronny 2. Protection cover 2.
  • Page 5: Description And Use

    OBSŁUGA 1. Za pomocą śrubokręta (brak w zestawie) podważ i otwórz tylną obudowę w przycisku dzwonkowym i usuń zabezpieczenie baterii. 2. Przykręć lub przyklej tył przycisku do podłoża. 3. Włóż odbiornik do gniazda sieciowego 230V~/50Hz 4. Wybór dźwięku dzwonka oraz głośność ustaw przyciskiem znajdującym się z tyłu odbiornika poprzez krótkie naciśnięcie i puszczenie przycisków.
  • Page 6 TECHNICAL DATA Receiver (chime) power supply: 230V~/50Hz Transmitter (button) power supply: 1x 3V CR2032 (included) Transmission: By radio Frequency: 433.92 MHz Maximum transmitter (button) power: <10mW Current consumption of the receiver (chime): <1W Open field coverage: Max. 200m Volume level: 70-90 dB (4 levels) Number of ringtones: Transmitter (button) protection level:...
  • Page 7: Description Et Utilisation

    Abmessungen des Senders (Taste): 89 x 36 x 29 mm Gewicht des Empfängers (Klingel): 0,074kg Gewicht des Senders (Taste): 0,038kg TOGI AC Sonnette sans fil Mode d'emploi DESCRIPTION ET UTILISATION Une sonnette simple à installer, idéale pour les portes de maisons, d'appartements, de magasins, etc. ou comme dispositif d'appel pour les personnes âgées.
  • Page 8: Технические Характеристики

    TOGI AC Беспроводной дверной звонок Руководство пользователя ОПИСАНИЕ И ПРИМЕНЕНИЕ Простой в установке дверной звонок, идеально подходит для дверей в домах, квартирах, магазинах и т.д. или в качестве пейджингового устройства для пожилых людей. Степень защиты IP56 позволяет устанавливать кнопку на открытом воздухе и...
