- Page 1 Operating and installation instructions Doorphone set Salem OR-DOM-SL-923, OR DOM-SL-924 instruction manual STOP! ARE NOT SUBJECT TO REPAIR UNDER WARRANTY...
-
Page 2: Table Of Contents
Additional information about ORNO products is available at www.orno.pl. Orno-Logistic Sp. z o.o. holds no responsibility for the results of non-compliance with the provisions of the present Manual Orno-Logistic Sp. z o.o. reserves the right to make changes to the Manual - the latest version of the Manual can be downloaded from www.orno.pl Any translation/ interpretation rights and copyright in relation to this Manual are reserved. -
Page 3: Characteristics Of The Set

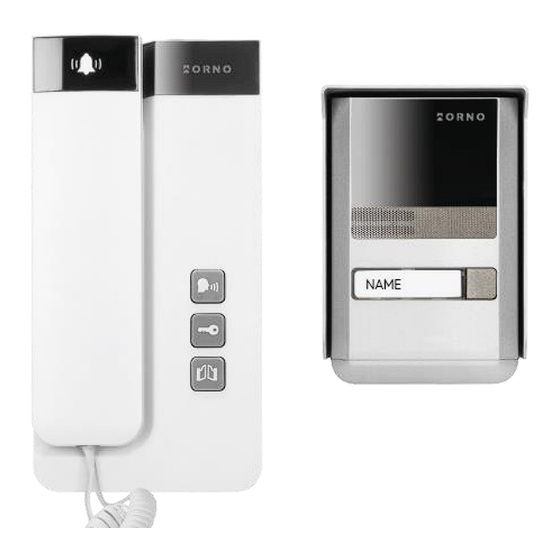

2. CHARACTERISTICS OF THE SET The doorphone set is designed for installation in 1-family buildings (OR-DOM-SL-923) or 2-family buildings (OR-DOM-SL-924). Functions: - remote conversation between outdoor and indoor units; - the doorphone uses a new BUS communication protocol; - 2-wire installation; - direct control of the electric door strike;... -
Page 4: Set Construction
4. SET CONSTRUCTION fig. 1 Construction of the indoor unit INDOOR UNIT 1. Loudspeaker 2. Microphone 3. Intercom button 4. Wicket opening 5. Gate opening 6. Volume adjustment 7. JP1, JP2 jumpers 8. Wiring and power supply terminals 9. Mounting holes fig. -
Page 5: Installation
5. INSTALLATION The proper placement of the outdoor unit determines the comfort of working with the device. It is recommended to test the device before making the mounting holes. For this purpose, the outdoor unit and the indoor unit should not be placed in the same room, as feedback (a piercing squeal) may occur. -
Page 6: Wiring Diagrams
6. WIRING DIAGRAMS Do not make any connections if the device is connected to the 230V/50Hz power network! Failure to follow this recommendation may result in damage to the device. To avoid interference, do not place "low-voltage" wires in the same conduit as high-power wires. Connecting the indoor unit to the outdoor unit Connect the L+ and L- terminals of the indoor unit to the L+ and L- terminals on the outdoor unit. - Page 7 fig. 6 Connection diagram for two indoor units with an outdoor unit, electric strike, and gate control system (applicable to the OR-DOM-SL-924 set) The set does not include an additional indoor unit, electric door strike, and automatic gate control!
- Page 8 The single-family set can be expanded with up to 3 additional indoor units - OR-DOM-SG-923UD. When expanding the set with additional indoor units, no additional power supplies are needed. One power supply is sufficient for the entire system, but it must be installed closest to the first indoor unit. fig.
- Page 9 The two-family set can be expanded with up to 3 additional indoor units - OR-DOM-SG-923UD. The intercom function is available only within a single family. When expanding the set with additional indoor units, no additional power supplies are needed. One power supply is sufficient for the entire system, but it must be installed closest to the first indoor unit. fig.
-
Page 10: Set Operation
Dirt should be cleaned with a soft, slightly damp cloth using mild cleaning agents designed for plastics. Do not use cleaning agents based on solvents, gasoline, etc., or products containing abrasive substances ORNO-LOGISTIC Sp. z o.o. ul. Rolników 437, 44-141 Gliwice, Poland tel. (+48) 32 43 43 110, www.orno.pl NIP: 6351831853, REGON: 243244254...
