LEGRAND 0 661 00 Quick Start Manual

CONTROL DEVICE ADDRESSABLE EL
0 661 00

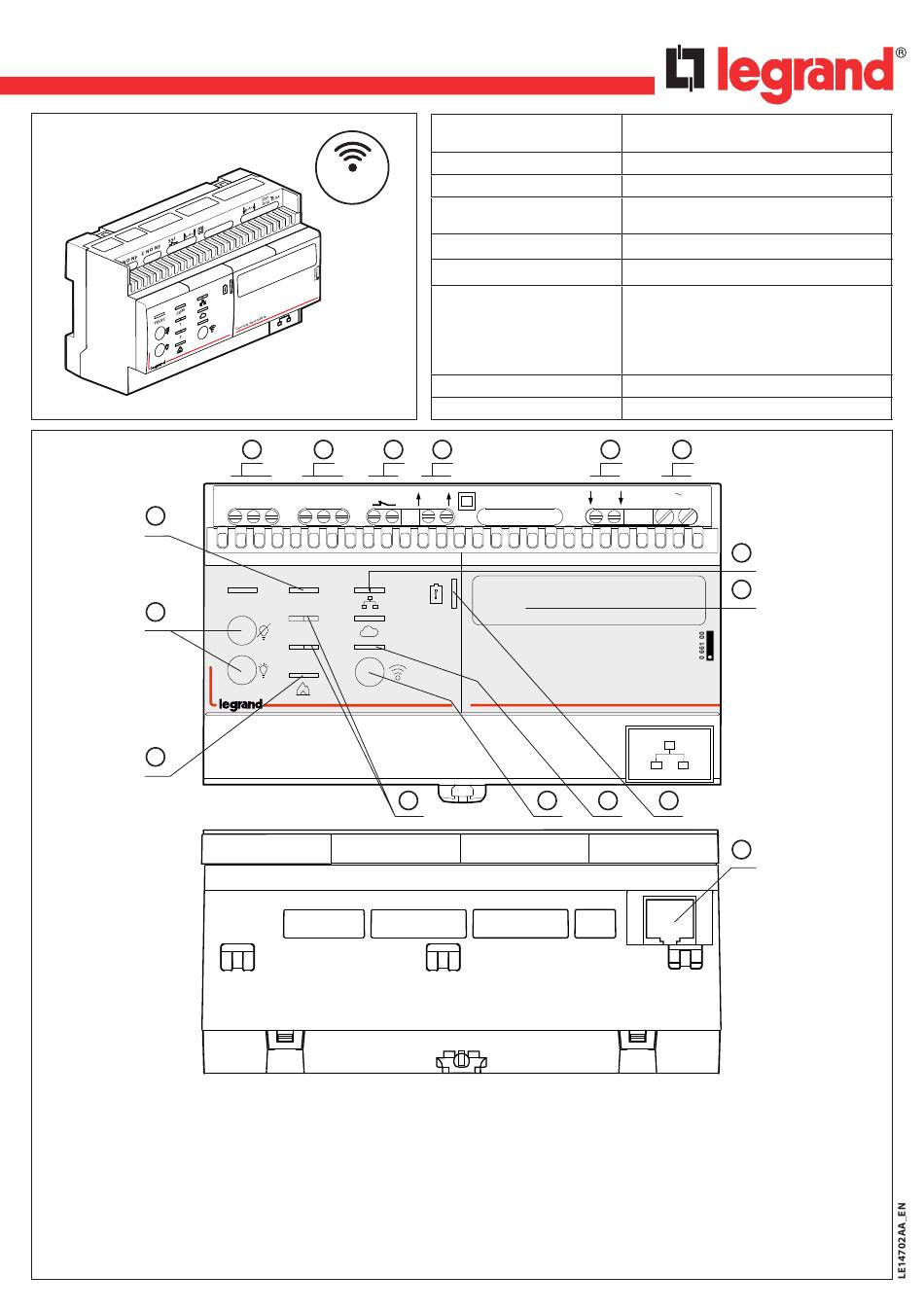

Description
7
9
11
• 1
- Fault relay 1 connection terminals (1A continuous, 10A for 10ms)
• 2
- Fault relay 2 connection terminals (1A continuous, 10A for 10ms)
• 3
- Input for dry contact for fail-safe fire alarm (N.C.) (SELV)
• 4
- Output terminals for BUS addressable communication (SELV)
• 5
- Input terminals for external remote control connection (SELV)
ref. 0 039 00 ou 0 625 20
• 6
- 230V~ Power supply terminals
• 7
- BUS presence indicator
• 8
- IP network presence indicator
Wi-Fi
1 2 3
SSI
C NO NF C NO NF
TELEC COM
1
2
Made in France
Power supply
Battery
Power consumption
Dimensions
Installation
Case insulation
Wiring
Recommended cable size
(for each terminal)
Operating temperature
Wi-Fi
4
B-A+
Centrale adressable
12 13
• 9
- Standby and turn-on keys for no main power or
forced switch-on for present main power
• 10
- Unit MAC address
• 11
- Fire alarm activation indicator
(if the alarm contact is connected to the terminals no.3)
• 12
- Fault relay 1 and 2 activation indicators
• 13
- Activate/Deactivate Wi-Fi access point
• 14
- Non functioning indicator
• 15
- Battery charge indicator
• 16
- RJ 45 connector for IP network
3
230 V ~ 50 Hz
Tightening torque 0.6 Nm
LiFePO4 3.2 V / 0.6 Ah
40 mA
W 141.5 mm x H 87.1 mm
8 modules
In a secure rail-mounted enclosure 2
O
Class II IP 20
Sector 2 terminals 1 x 2.5 mm
2 remote control terminals, 1x1.5 mm²
2 addressable BUS terminals, 1x1.5 mm²
2 x 3 Fault relay outputs, 1x1.5 mm² terminals
RJ45 connector for IP network
+ 10 °C to + 40 °C
802.11b/g/n Wi-Fi 4 2.4 Ghz
5 6
230V
B-A+
50 Hz 40 mA
8
10
14 15
16
2
