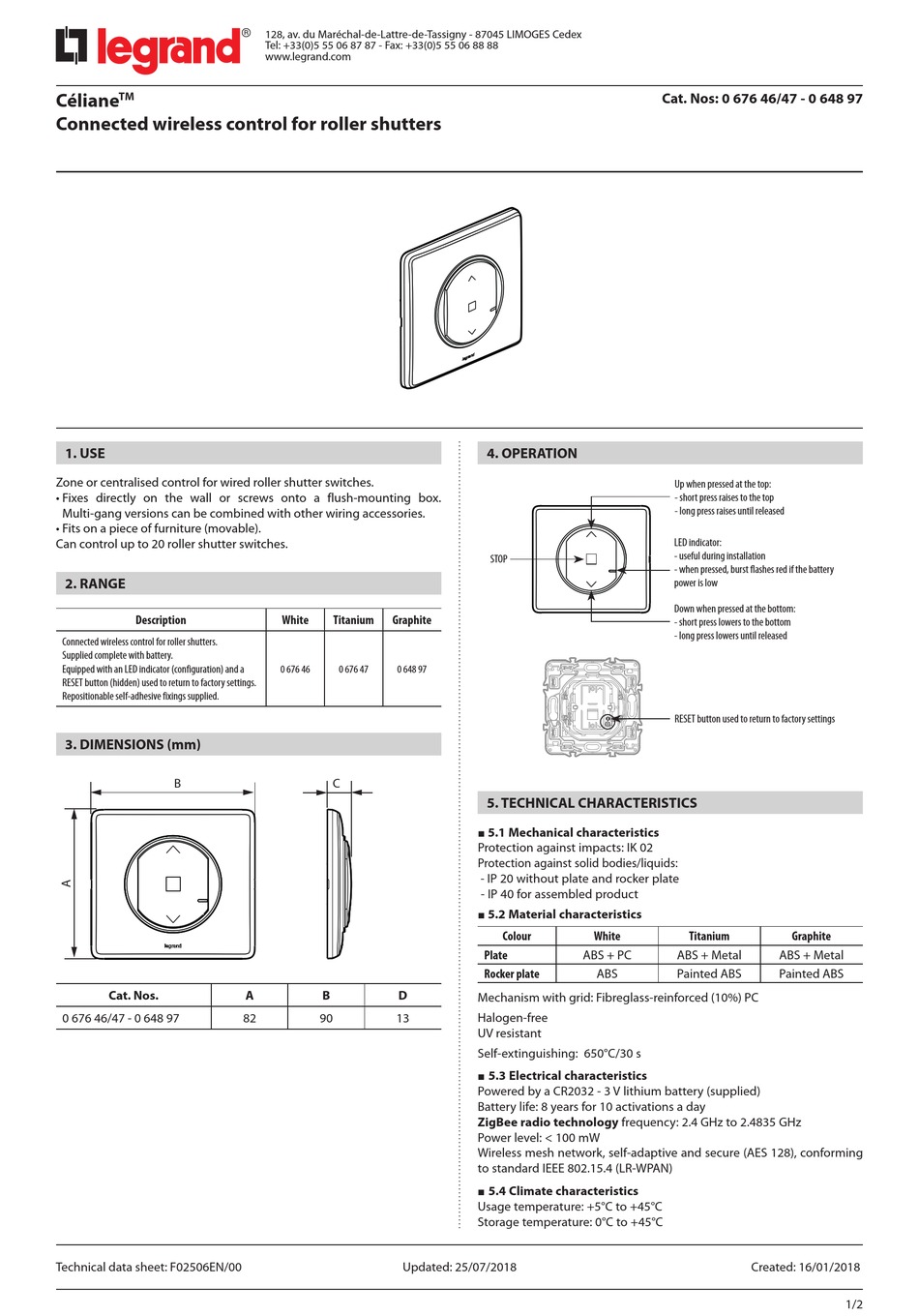

LEGRAND 0 676 46 Instructions

Céliane
TM
Connected wireless control for roller shutters

1. USE

Zone or centralised control for wired roller shutter switches.
• Fixes directly on the wall or screws onto a flush-mounting box.
Multi-gang versions can be combined with other wiring accessories.
• Fits on a piece of furniture (movable).
Can control up to 20 roller shutter switches.

2. RANGE

Description

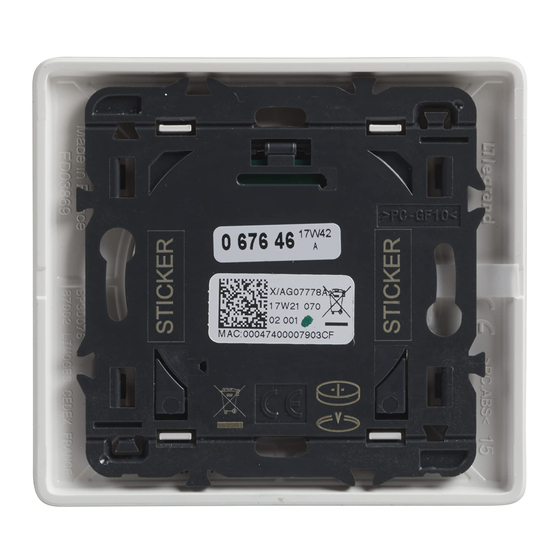

Connected wireless control for roller shutters.
Supplied complete with battery.
Equipped with an LED indicator (configuration) and a
RESET button (hidden) used to return to factory settings.
Repositionable self-adhesive fixings supplied.

3. DIMENSIONS (mm)

B
Cat. Nos.
0 676 46/47 - 0 648 97
Technical data sheet: F02506EN/00
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel: +33(0)5 55 06 87 87 - Fax: +33(0)5 55 06 88 88
www.legrand.com
White Titanium Graphite
0 676 46 0 676 47 0 648 97
C
A B D
82 90 13
Updated: 25/07/2018

4. OPERATION

STOP

5. TECHNICAL CHARACTERISTICS

 5.1 Mechanical characteristics
Protection against impacts: IK 02
Protection against solid bodies/liquids:
- IP 20 without plate and rocker plate
- IP 40 for assembled product
 5.2 Material characteristics
Colour White
Plate ABS + PC
Rocker plate ABS
Mechanism with grid: Fibreglass-reinforced (10%) PC
Halogen-free
UV resistant
Self-extinguishing: 650°C/30 s
 5.3 Electrical characteristics
Powered by a CR2032 - 3 V lithium battery (supplied)
Battery life: 8 years for 10 activations a day
ZigBee radio technology frequency: 2.4 GHz to 2.4835 GHz
Power level: < 100 mW
Wireless mesh network, self-adaptive and secure (AES 128), conforming
to standard IEEE 802.15.4 (LR-WPAN)
 5.4 Climate characteristics
Usage temperature: +5°C to +45°C
Storage temperature: 0°C to +45°C
Cat. Nos: 0 676 46/47 - 0 648 97
Up when pressed at the top:
- short press raises to the top
- long press raises until released
LED indicator:
- useful during installation
- when pressed, burst flashes red if the battery
power is low
Down when pressed at the bottom:
- short press lowers to the bottom
- long press lowers until released
RESET button used to return to factory settings
Titanium Graphite
ABS + Metal ABS + Metal
Painted ABS Painted ABS
