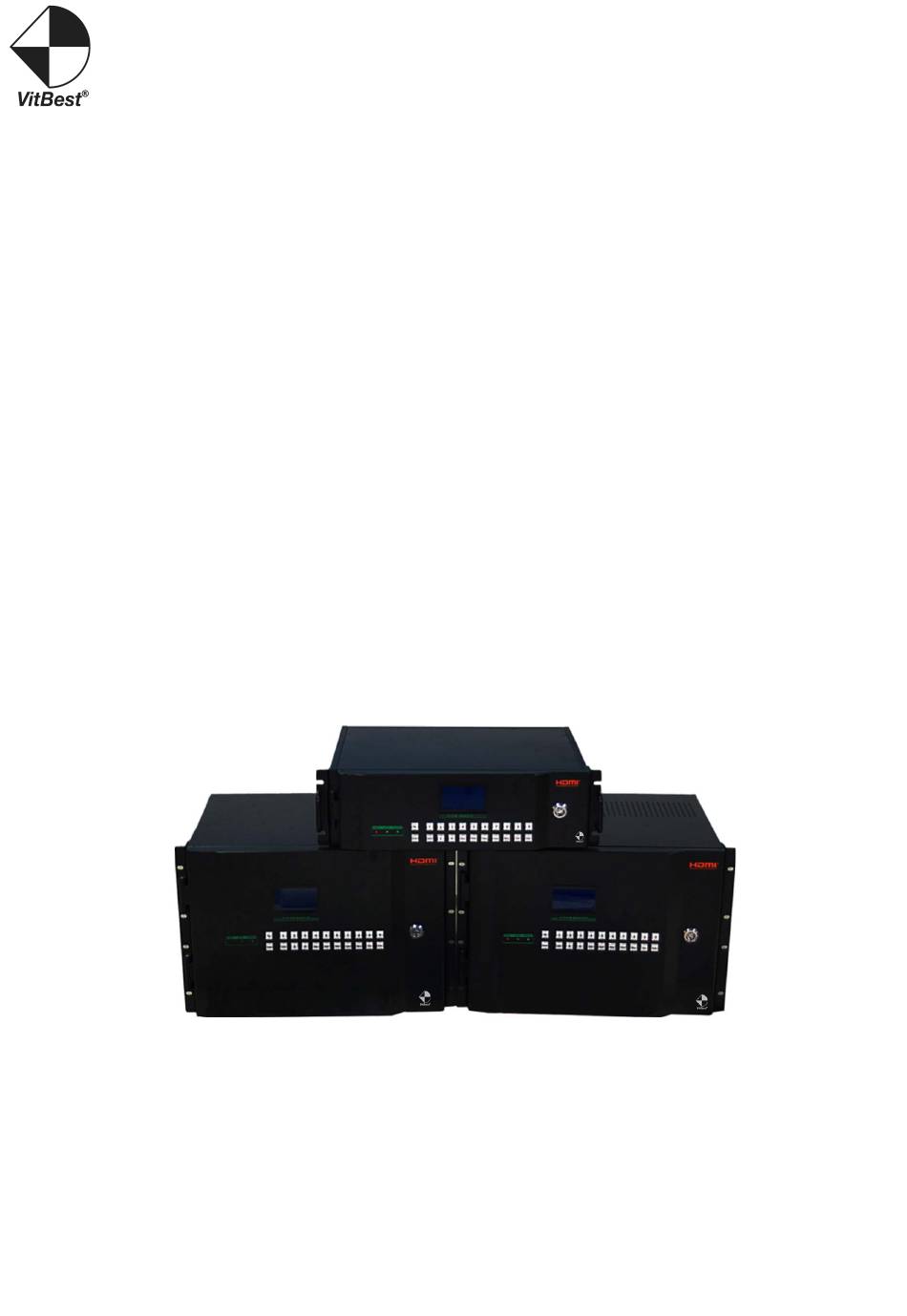

- Page 1 MM2 Series MM2-0808/MM2-1616/ MM2-3232 8x8, 16x16, 32x32 Multi Format Matrix Switcher User Manual...
-
Page 2: Table Of Contents
Content Introduction ....................3 Package Contents ................... 3 Features ......................3 Panel Description .................... 4 Keyboard Description ..................5 Signal Switching Example ................6 Switch Signal ....................7 Mute Output Port .................... 7 Check the Status of Output ................8 Save and Recall .................... - Page 3 Command Table .................... 31 I/O Card ....................... 35 HDBaseT I/O Card ..................35 DVI I/O Card ....................36 HDMI I/O Card ....................37 HDBaseT Input Card with Ethernet Port ............38 HDMI Input Card with Looping Output .............. 38 Fiber Optic I/O Card for DVI ................39 3DSDI Input Card ..................
-
Page 4: Introduction
Introduction HD Modular Matrix system is a flexible integrated solution for signal transmission, switching and distribution in meeting room. Modular design allow Matrix to be customized for each application from 4*4 to 32*32. Its high bandwidth backplane ensures full compatibility with the highest resolution signals currently in use, while also providing a future-ready upgrade path for formats with... -
Page 5: Panel Description
Panel Description 1. Front Panel 1. LCD Display; 2. Power Led; Active Led; Network Led 3. Panel Lock; 4. Keyboard. 2. Rear Panel 1. Fan Module; 2. Cardcage; 3. Power; 4. RS232, LAN, FW update USB. -
Page 6: Keyboard Description
Keyboard Description As image below, furthermore 0-9 of 10 key caps are designed for disassembly, based on the need to replace the base map. & I/O channel selection keys, used to set the I/O channel, call the status or save the selected number Move the highlighted area UP to select the option Move the highlighted area Down to select the option Signal toggle selection key... -
Page 7: Signal Switching Example
Signal Switching Example 1. Switch signal 1. Switch signal from one input to all output ports Press <Input Port NO.>+<All> in the front panel, as image below, switching signal from 8 to all output ports. Press <8>+<All>, it will be done. If success, LCD monitor will display “Switch OK! 008 To All”. -
Page 8: Mute Output Port
2. Mute output port 1. Mute all output ports Press <Cancel>+<All> in the front panel, as image below, it will close all output port. 2. Mute several output ports Press <Cancel>+<1>+<&>+<2>+<End>+<Enter> in the front panel, as image below, it will close output NO.1&NO.2. &... -
Page 9: Save And Recall
4. Save and Recall 1. Save current ports status Press <Save>+<4> in the front panel, as image below, Save the I/O configuration into a memory preset, save all I/O status into NO.4 memory cell. “0-9” ten presets in all. - - + 2. -
Page 10: Advanced Setting
Advanced Setting 1. Function Menu... - Page 11 Enter the menu, use <Up> and <Down> to select the corresponding options, the selected option will highlight, then press <Enter>, as image below.
-
Page 12: Edid Management
2. EDID Management 1. Update EDID Press <Menu>, enter the menu management, choose “1.EDID Setting” “1.EDIDUpdate” “1.External EDID” means route EDID of sink device connecting output port to source device connection input port. For example, update EDID from output <1> to input <1>, <2>, <3>, please press keys as image below. - Page 13 3. Save EDID from sink device Press<Menu>, choose “1.EDID Setting” “2.EDID Manage” “1.Save EDID”, type in <output port> + <memory cell>, save output port <3>EDID into memory <1>, please do as follows<3> + <Switch> + <1> + <End> + <Enter>, as image below. .
-
Page 14: Rs232 Setup
3. RS232 Setup RS232 parameters include Baud Rate, Data Bits, Stop bit, Parity, and you can change the parameters, press <Menu> choose “RS232 Setting”, use <Up> or <Down> to select, then press <Enter> to enter into change parameters. If the parameters set OK, please press <Enter>... -
Page 15: Keypad Light Setup
6. Keypad Light Setup Press <Menu>, choose “5.Keypad Light’, use <Up> or <Down> to select turn on or turn off the Keypad light. ) 4 23 ) 4 2 3 7. LCD Backlight Setup Any operation in the keypad, the backlight will turn on. Press <Menu>, choose “6.LCD Backlight”, use <Up>... -
Page 16: Pc Control Software
PC Control Software “Matrix Series” is PC control software for HD Modular Matrix Switcher, it support RS232 and LAN control. 1. RS232 Setting Set matrix main RS232 Baud Rate to 115200, Data to 8, Stop to 1, Parity to None by the front panel. Connect Matrix to PC by RS232 cable and run Matrix Control Software. -
Page 17: Lan Control Setting
2. LAN Control Setting Connect Matrix to PC. Set PC IP address to 192.168.1.xxx. Run Matrix Control software and select Lan link, select IP address and click link. Note: Initial IP address of Matrix is 192.168.1.114 or 192.168.1.115 3.How to modify Matrix IP address There is a LAN convert to RS232 model inside matrix. - Page 18 2. C2000 Configuration system, click “Config C2000 Plus”. 3. Take care of the red area as picture below: a. IP Address Setting, Mask, and Gateway could be change as you need; b. Workstyle must be TCP Client and C2000 Port is 8000; c.
- Page 19 4. Make sure Com Parameter is the same as Matrix Main RS232 Setting. Otherwise it will fail to control by LAN for C2000 is convert LAN to RS232 and transfer to matrix. 5. Click Config to save the change.
-
Page 20: Software Introduction
6. Do not forget to Apply Configuration when finish configuration. 4. Software Introduction Base on the steps, you will succeed to link matrix by RS232 or LAN, you could see the home page as below: Software version is on the top left corner, you can change the background by clicking the right button, and the three dots on the bottom separately direct to ‘User Configure Page’, ‘Function Page’, ‘System Configure Page’... -
Page 21: User Configure Page
5. User Configure Page 1. Home Page Introduction Page of defining device name of input and output Page of switching preset for quick switch function Page of switching scene save for scene recall function... - Page 22 Export current channel name to a DB file Export current preset to a DB file Page of setting control command for HDBaseT RS232 control pass through 2. Channel Name You can define the input and output in this page.
- Page 23 3. Switch Preset You can define switching for quick switch function. 4. Save Scene You can store the current display status for scene recall function.
- Page 24 5. RS232 Switch Set a. Set HDBaseT input channel 13, RS232 Baud Rate:38400, Data:8, Parity: None, Stop:1, RX:ON(Device RS232 Feedback). b. Baud Rate Setup Command “>B384008N1ONIN13<cr>” will be sent out to matrix when click save button. c. Define HDBaseT input port 13 RS232 device is a Sony Camera and the turn on and turn off command.
-
Page 25: Function Page
6. Function Page 1. Home Page Introduction Page of HDBaseT RS232 pass through function Page of video switching function Page of EDID copy function Page of scene recall switching function Page of fast switching function... - Page 26 2. RS232 Switch Input card 4(port 13,14,15,16) is HDBaseT card and port 13 has been define as Sony Camera and Turn on/off command before at the define page. HEX CODE:3E 43 53 49 4E 31 33 54 58 30 34 30 30 21 0D 0D will send to matrix and “30 30 21 0D”...
- Page 27 b. You can choose one channel input to all output by click the corresponding square on the input coordinate axis(the image below means input 13 to all output channels). c. Green block will disappear when click it and mean mute this output.
- Page 28 4. Video Switch(Console Style) Channel name and port icon will be shown at this page, you can view all the cards include Null or only the online cards at the System Config Page. 5. EDID Switch You can copy EDID in this page.
- Page 29 6. Scene Switch Recall the switching which save in Scene Switch page. 7. Quick Switch Executing switching which be defined in Quick Switch configure page.
-
Page 30: System Configure Page
7. System Configure Page The seamless Card option will only show when there is seamless card in work. 1. System Config Show Channel Icon: Icon of input and output port could be show at channel definition and switching function. Switch Style: input and output channel name and port icon could be show at console switch style. - Page 31 2. Seamless Card You can set resolution and for each seamless output card in this page.
-
Page 32: Command Table
Command Table... -
Page 37: I/O Card
I/O Card 1. HDBaseT I/O Card Mode: Input-MC2-IN-HDBT-70 / MC2-IN-HDBT-100 Output- MC2-OUT-HDBT-70 / MC2-OUT-HDBT-100... -
Page 38: Dvi I/O Card
2. DVI I/O Card Mode: Input-MC2-IN-DVI Output-MC2-OUT-DVI Output-MC2-OUT-DVI-S... -
Page 39: Hdmi I/O Card
3. HDMI I/O Card Mode: Input-MC2-IN-HDMI Output-MC2-OUT-HDMI... -
Page 40: Hdbaset Input Card With Ethernet Port
4. HDBaseT Input Card with Ethernet Port Mode: Input-MC2-HDBT-100-HDBT2E 5. HDMI Input Card with Looping Output Mode: Input-MC2-IN-HDMI2... -
Page 41: Fiber Optic I/O Card For Dvi
6. Fiber Optic I/O Card for DVI Mode: Input-MC2-IN-Optic-D Output-MC2-OUT-Optic-D 7. 3GSDI Input Card Mode: Input-MC2-IN-3GSDI... -
Page 42: Analog Input Card
8. Analog Input Card Mode: Input-MC2-IN-VGA Input-MC2-IN-2V1Y1C V=VGA, Y=YUV, C=CVBS Cable for VGA&Audio Cable for YPbPr&Audio Cable for CVBS&Audio... -
Page 43: Sdi&Hdmi Multi-Input Card
9. SDI&HDMI Multi-input Card Mode: Input-MC2-IN-2S2H 10. Analog&HDMI Input Card Mode: Input-MC2-IN-2V2H... -
Page 44: Firmware Update
Firmware Update Current FW Version is V2.2.6 but also offer an easy update way for future application. 1. Driver Installation: Open DRIVER Folder, run "CH341PAR.exe", click " ". -
Page 45: Fw Update For Cardcage
2. If Pop up " " dialog box, indicate that the drive has been successfully installed. 2. FW Update for Cardcage... - Page 46 1. Connect PC and Matrix USB port by USB cable and switch to System as picture 2. Run Update Tools.exe 3. If the Program Info dialog box indicate "Device open successfully", then you can download your FLASH or EEPROM. 4. Load Flash:...
- Page 47 5. Load EEPROM:...
- Page 48 6. You must click “Reset” button when you have finished loading your Flash and EEPROM. Note: do not forget to run System Reset on the front panel when finish FW update. 89 7 7 9 9 You can find the FW info with different Cardcage in the chart below.
-
Page 49: Fw Update For I/O Card
3. FW Update for I/O Card 1. Connect PC and Matrix USB port by USB cable; Move card from cardcage and connect cards and Matrix by 6 pins update cable; switch to I/O as picture 6 Pin Update Cable You will get 3 Updating cables with the Matrix, it’s used for connecting FW UPDATE port of Matrix to I/O card. - Page 50 M8-B I/O card’s connecting port is in different place as different Mode, 5 types in all, please see as below This type is applied to Input-HDBT, Output-HDBT, Connect M64-B Connect M8-B This type is applied to Input-DVI, Output-DVI. Connect M64-A This type is applied to Input-DVI-S. Connect M64-A...
- Page 51 This type is applied to Input-HDMI, Output-HDMI, Input-HDMI2. Connect M64-A This type is applied to Input-2S2H, Input-2V2H,Input-OPTIC-D, Output-OPTIC-D Connect M64-A You can find the corresponding cable with different I/O card in the chart below.
-
Page 52: Safety Information
2. Run Update Tools.exe and operate as Cardcage FW update. Safety Information To reduce the risk of electric shock, do not expose this product to rain or moisture Do not modify the wall plug. Doing so will void the warranty and safety features If the wall plug does not fit into your local power socket, hire and electrician to replace your obsolete socket. -
Page 53: Warranty
This equipment should be install near the socket outlet and the device should be easily accessible in the case it requires disconnection Warranty Warranty time is two year and from the date of original shipment. This warranty shall be void if a serial number has been removed from the product.
