Brief Introduction
M-0404SE HDMI matrix with 12V power adapter for multiple
HDMI sources to multiple display devices by different routing.
With high reliability,low power consumption,high bandwidth
(support HDMI 1.4) features, M-0404SE can achieve up to 4x4
size.
User can control the matrix operation by panel buttons,PC
serial port.
User Control

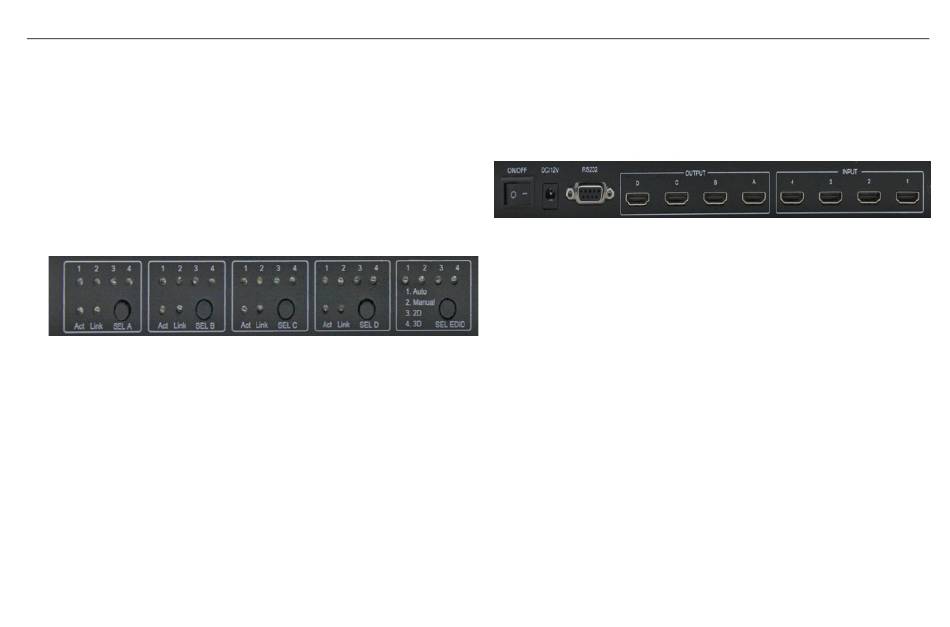

1. Front Panel
SEL A:Select the input source for HDMI output A
SEL B:Select the input source for HDMI output B
SEL C:Select the input source for HDMI output C
SEL D:Select the input source for HDMI output D
1,2,3,4 :Shows the input source which is selected
Act : Shows if the corresponding input signal
is active
Link : Shows if the sink device is connected
SEL EDID:EDID option
Auto：Auto parse EDID；
Manual：User can configure the EDID with PC Tool
2D：EDID option_2D
3D：EDID option_3D
IR：For Remoter control (optional)
2. Back Panel
INPUT： HDMI input 1,2,3,4 which connected to source devices
OUTPUT：HDMI output A,B,C,D connected to sink devices
RS232：PC tool interface
ONOFF：Power on/off switching
DC/12V:12V adapter input
PC tool user guide-RS232
The PC tool can control the matrix via COM port,and there
will be two parts of operation guide,which consists of the
connection operation of COM port and the control operation of
matrix.
Instruction of connection via COM port:
1）Connect the PC and M-0404SE matrix with RS232
cable,and please make sure that the driver of RS232 is
working well.
