MM5-0808C/1616C/3232C

Modular Matrix Switcher of MM5 Series

User Manual

Ver. 1.4

Table of Contents

Need help?

Do you have a question about the MM5 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for VitBest MM5 Series

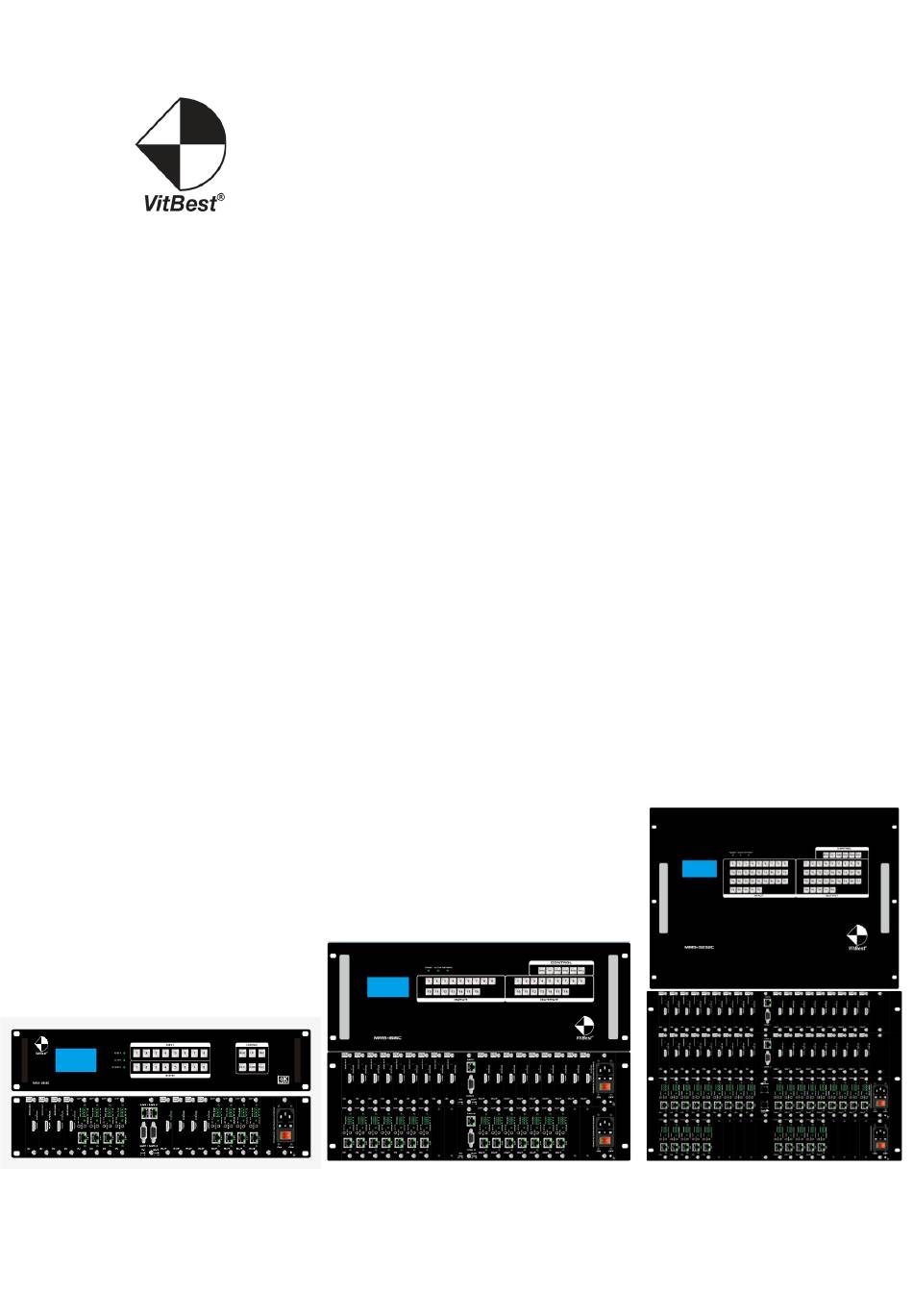

Page 1 MM5-0808C/1616C/3232C Modular Matrix Switcher of MM5 Series User Manual Ver. 1.4...
Page 2 To protect the device and operating personnel from electrostatic discharge, you need to check and ensure that the device is grounding well before the device is powered on. Please observe the following when you install, use, maintain this equipment. Attention the equipment needs good earth grounded Ø...
Page 3: Table Of Contents
Contents 1. Product Introduction ...................... 4 2. Product Features ......................4 3. Technical Datasheet ......................5 4. Packing Datials ....................... 5 5. Panel diagram ........................ 5 6. Product Connection Diagram ................... 7 7. Product Operation and Instruction .................. 7 7.1 Front Panel Switching Operation ................7 7.1.1 Switch ......................
Page 4: Product Introduction
1. Product Introduction The VitBest’s MM5 series modular matrix switcher has 3 models: MM5-0808C/1616C/3232C. All the signal input and output cards using 1-card 1-port, wide range selections of the input and output cards, it provides users the most flexible configuration ability to meet with the real applications.
Page 5: Technical Datasheet
3. Technical Datasheet Model MM5-0808C MM5-1616C MM5-3232C Description 8x8 modular chassis 16x16 modular chassis 32x32 modular chassis Input Card 1 Channel 1 Card, support HDMI, DVI, 3GSDI, VGA, YPBPR, CVBS, HDBaseT, Fiber Optic Output Card 1 Channel 1 Card, support HDMI, DVI, 3GSDI, VGA, YPBPR, CVBS, HDBaseT, Fiber Optic Protocol HDMI1.4a/ HDMI2.0, DVI1.0, compatible with HDCP and EDID function Color Space...
Page 6: Panel Diagram
5. Panel Diagram Front Panel Name Description Operation information real-time Display ① LCD Screen light up after power on, it will light off after power off ② POWER Flashing while using the buttons/ WEB switching successfully ③ ACTIVE Flashing while using the WEB control operation ④...
Page 7: Equipment Connection Diagram
HDMI port HDMI input card ④ Input slots Supports DVI/HDMI/SDI/VGA/CVBS/YPbPr/FIBER/HDBaseT input ⑤ LAN Ports Dual LAN ports for WEB/TCP/IP control ⑥ RS232 Ports Dual RS232 ports for 3 parties control ⑦ HDMI port HDMI output card ⑧ Output slot Supports DVI/HDMI/SDI/VGA/CVBS/YPbPr/FIBER/HDBaseT output ⑨...
Page 8: Switch
blue light. Users also can press the UP button to realize 1 to ALL switching; If need to cancel switching, can press the UP button again to cancel. Users also can press Ø the DOWN button to cancel all outputs. 7.1.2 Scene Operation The system can save 40 scenes, after switching successfully in the SWITCH interface, Ø...
Page 9: Scene
The left side of the long string is input area: MM5-0808C has 8 buttons, MM5-1616C has 16 buttons, MM5-3232C has 32 buttons. The right side is output area, the buttons are the same with input area. And there’re 5 buttons: The 1 for 1 to all, 2 for 1 off to all, 3 for 1 to 1, 4...
Page 10 There’re 40 scenes in the middle, can view the current switching status from left side, the right side are the Save, Load, Back buttons. (All scenes can be named in Caption interface) If want to save the current switching status as the scene: Select the wanted scenes number(1~24), then click Save to save.
Page 11 number 1 and click rename. And rename 192.168.1.88 as 2. Check as following interface: Also can click IP address to control at this interface:...
Page 12 7.2.6 Setup Set up interface: System Reboot: for modifying the matrix configuration(IP address, Login password) Ethernet: for changing IP address accordingly Administrator: For changing the Login user name and password Multifunction Buttons: For controlling the surrounding equipment...
Page 13: Scene
7.2.7 More: Upgrading: Click Upgrade can realize new software upgrading 7.3 Central Control Commands RS232 cable with straight-through connection(USB-RS232 can be used directly to control) Communication protocol: Baud rate: 115200 Data bit: 8 Stop bit: 1 Check bit: None Commands Explanation Function description Switch Input Y to all the outputs...
Page 14 1, 2, 3, 4 are the input/ output number, it depends on the controlling matrix. Such as it’s a Ø 8x8, then the effective range is 1~8, if beyond this range will be treated as error commands. Commands controlling examples: Ø...
Page 15 Detail for : UDP&TCP Client and RS232 to control the Modular Matrix Switcher The modular matrix switcher series can support the UDP&TCP&Serial/COM port control, please see the steps in as below: UDP: Users will need to make sure the control PC and the matrix switch are in the same network. The port number is 4000 We recommend 2 software(TCP-UDP-RS232 Helper and hercules_3-2-8) The default IP address of the matrix switcher LAN1: 192.168.0.80, LAN2: 192.168.1.80...
Page 16 TCP Client The port number is 5000 We recommend 2 software(TCP-UDP-RS232 Helper and hercules_3-2-8). The default IP address of the matrix switcher LAN1: 192.168.0.80, LAN2: 192.168.1.80...
Page 17 Serial/COM port control We recommend 2 software(TCP-UDP-RS232 Helper and hercules_3-2-8). The default baud rates for the matrix switcher COM1: 115200 , COM2: 115200 Data bit: 8bit Check Parity: NONE Stop Bits: 1 bit Users will need to check and ensure use the available COM ports on the PC through the Device manager on the PC:...
Page 18 After found the available COM port number, user can use the RS232 control software to control the matrix switcher by sending the RS232 codes:...
Page 19: Control Commands
Control commands: Baud Rate 1/ COM 1 115200 Baud Rate 2/ COM 2 115200 Data bits Stop Bits Check Bits NONE TCP/IP Port: 5000 UDP Port 4000 Function description ASCII Input 1 to All 9 Outputs 1All. 31414c4c2e Input 2 to All 9 Outputs 2All.
Page 20 Input 1 to Output 1 1X1. 3158312e Input 1 to Output 2 1X2. 3158322e Input 1 to Output 3 1X3. 3158332e Input 1 to Output 4 1X4. 3158342e Input 1 to Output 5 1X5. 3158352e Input 1 to Output 6 1X6.
Page 21 Input 5 to Output 3 5X3. 3558332e Input 5 to Output 4 5X4. 3558342e Input 5 to Output 5 5X5. 3558352e Input 5 to Output 6 5X6. 3558362e Input 5 to Output 7 5X7. 3558372e Input 5 to Output 8 5X8. 3558382e Input 5 to Output 9 5X9.
Page 22: Trouble Shooting And Attention
Input 9 to Output 5 9X5. 3958352e Input 9 to Output 6 9X6. 3958362e Input 9 to Output 7 9X7. 3958372e Input 9 to Output 8 9X8. 3958382e Input 9 to Output 9 9X9. 3958392e 8. Trouble Shooting and Attention No signal on the display? Make sure all the power code are well connected;...
Page 23 Attachment A: Input and output cards for MM5-0808C/1616C/3232C Note: All the above cards can work with MM5-0808C/1616C/3232C, BUT we suggest to use only 1080P, 4K60 or 4K30 pass-through cards on one chassis instead of mixing use 1080P and 4K60 or 4K30 cards together.
Page 27: Attachment B: Dip Switches
Attachment B: DIP Switches Operation Instruction 4K60 seamless switching cards: 1080P seamless switching cards:...
