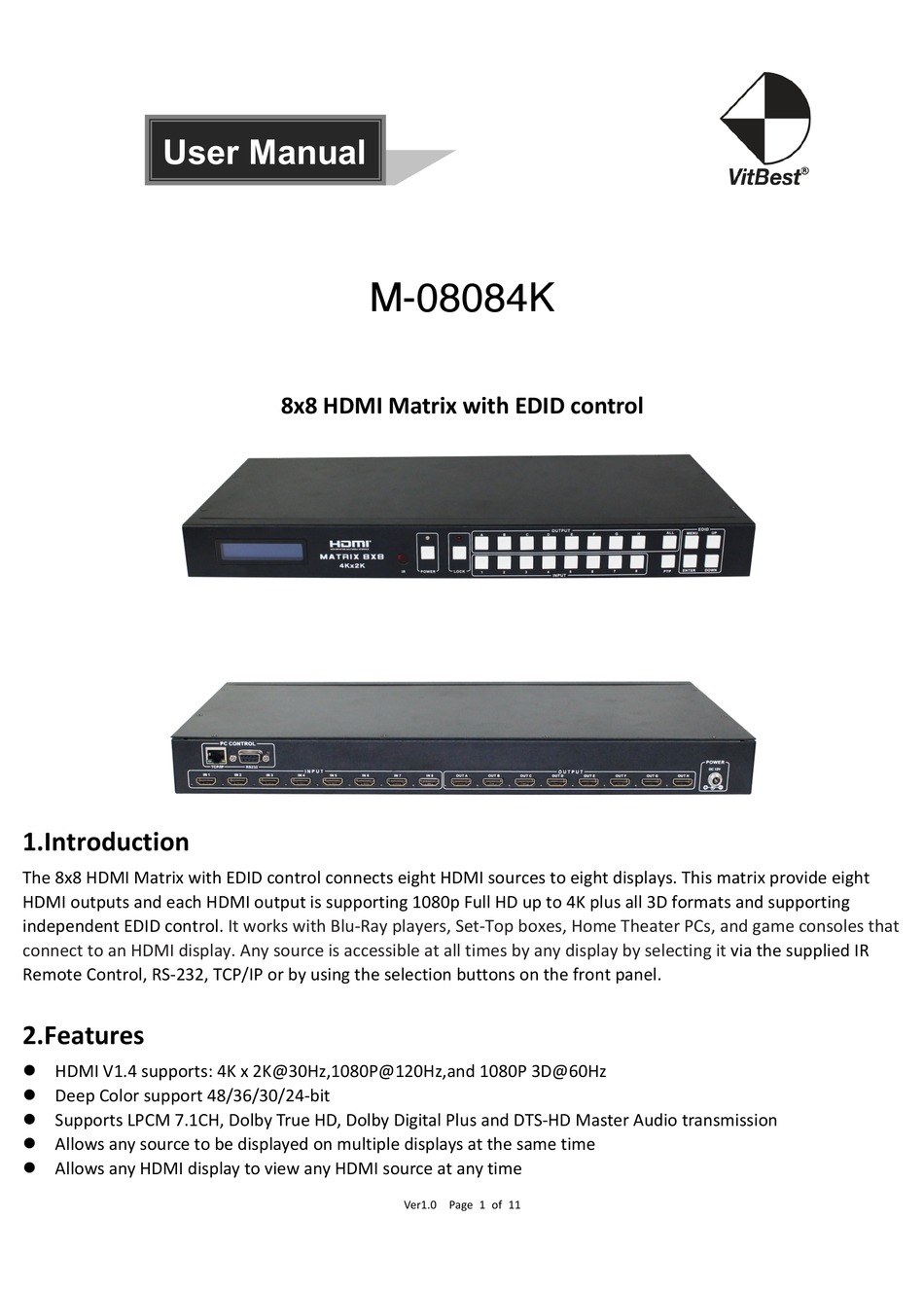

User Manual
M-08084K

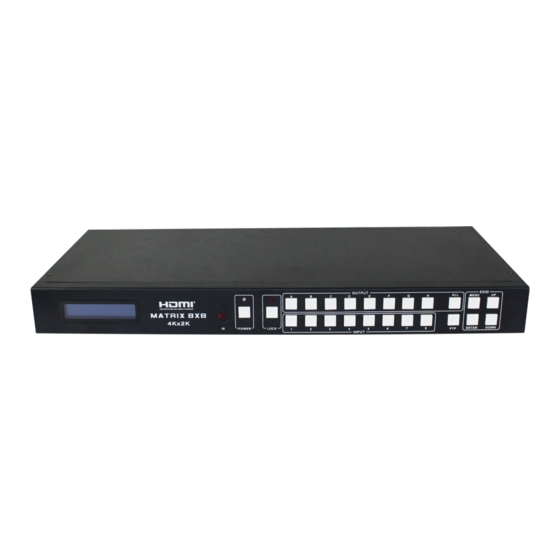

8x8 HDMI Matrix with EDID control
1.Introduction
The 8x8 HDMI Matrix with EDID control connects eight HDMI sources to eight displays. This matrix provide eight
HDMI outputs and each HDMI output is supporting 1080p Full HD up to 4K plus all 3D formats and supporting
independent EDID control.
It works with Blu-Ray players, Set-Top boxes, Home Theater PCs, and game consoles that
connect to an HDMI display. Any source is accessible at all times by any display by selecting it
via the supplied IR
Remote Control, RS-232, TCP/IP or by using the selection buttons on the front panel.
2.Features
l HDMI V1.4 supports: 4K x 2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz
l Deep Color support 48/36/30/24-bit
l Supports LPCM 7.1CH, Dolby True HD, Dolby Digital Plus and DTS-HD Master Audio transmission
l Allows any source to be displayed on multiple displays at the same time
l Allows any HDMI display to view any HDMI source at any time
Ver1.0 Page 1 of 11
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VitBest M-08084K
Summary of Contents for VitBest M-08084K
- Page 1 User Manual M-08084K 8x8 HDMI Matrix with EDID control 1.Introduction The 8x8 HDMI Matrix with EDID control connects eight HDMI sources to eight displays. This matrix provide eight HDMI outputs and each HDMI output is supporting 1080p Full HD up to 4K plus all 3D formats and supporting independent EDID control.
-
Page 2: Package Contents
l 8-input ports support independent EDID l Supports RS-232, remote control, on-panel control and TCP/IP Control l Front-panel LCD display for status feedback 3.Package Contents 8x8 HDMI Matrix--------------------------------------------------------------1pc 12V/3A DC power adapter--------------------------------------------------1pc Operation Manual------------------------------------------------------------1pc HDMI Matrix IR Remote-----------------------------------------------------1pc Mounting ears-----------------------------------------------------------------2pc RS232 cable--------------------------------------------------------------------1pc 4.Specifications Video Bandwidth... - Page 3 1. LCD display ： Show the status of input-output selection, EDID info and so on. 2. IR receiver window ： Receive the IR from the remote control of 8x8. 3. POWER ： Press this button to power the device on/off. The LED will illuminate green when the power is on, red when it is in 'Standby' mode.
- Page 4 UP button：Press to change segment's value. Press to change segment's value. Down button： ※Note: The EDID mode table 1. #1 submenu：EDID mode table Number EDID Description 1080i, 2CH AUDIO 1080i, DOLBY/DTS 5.1 1080i, HD AUDIO 1080p, 2CH AUDIO 1080p, DOLBY/DTS 5.1 1080p, HD AUDIO 3D,1080p, 2CH AUDIO 3D, 1080p,DOLBY/DTS 5.1...
-
Page 5: Rear Panel
EDID. What is it and what is it used for? Under normal circumstances, a source device (digital and analog) will require information about a connected device/display to assess what resolutions and features are available. The source can then cater its output to send only resolutions and features that are compatible with the attached device/display. -
Page 6: Remote Control
1. PC CONTROL ： Show the status of input-output selection, EDID info and so on. TCP/IP: This port is the link for TCP/IP controls, connect to an active Ethernet link with an RJ45 terminated cable. RS232: Connect to a PC or control system with D-Sub 9-pin cable for the transmission of RS-232 commands. 2. - Page 7 Power on /Standby ： Press this button for power on the matrix or set it to standby mode. 1. Input port selection area ： Press these buttons to select input 1-8. Press forward/backward button will cycle from input 1-8. 2. Output port selection area ： Press these buttons to select output A-H, including ALL.
- Page 8 Select RS232 COM or TCP mode ‚ Select RS232 COM port ƒ Click to connect or disconnect PC and Matrix „ Select Matrix IP … Connet to Matrix IP † Search Matrix IP ‡ Configure Matrix IP and MAC ˆ...
- Page 9 Select auto or static IP ‚ Rewrite the Matrix IP ƒ Rewrite the Matrix MAC u “EDID control” page Set EDID mode for select Input port or All Input ports, click “Set” button to complete action ‚ Select EDID ƒ...
- Page 10 LED which display Input number for respective Output ‚ Click to select Input port for respective Output port ƒ Click to select previous or next Input port for respective Output port “FW upgrade” page Ver1.0 Page 10 of 11...
- Page 11 Click to open FW file(file extension is “.fw”) ‚ Display the FW file path ƒ Displaying the progress of the software upgrade „ Click to upgrade the Matrix software … Display the message of the software upgrade † Clear the message of the software upgrade 8.
