Summary of Contents for VitBest MM3-0808

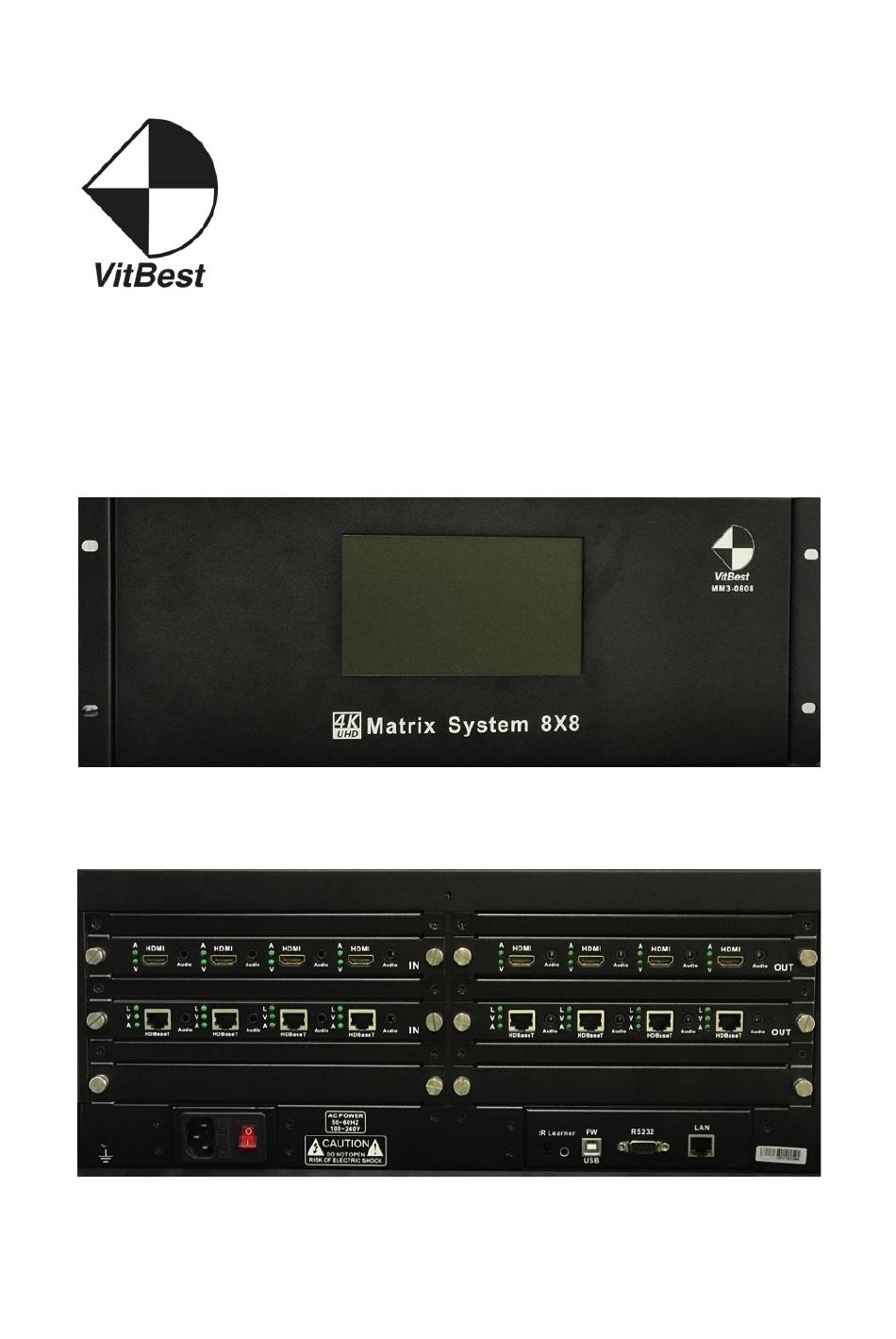

  • Page 1 VitBest MM3-0808/MM3-1616 Multi Format Matrix Switcher...
  • Page 2 User Manual...
  • Page 3: Package Contents

    Introduction MM3 is the new 4K series modular matrix from VitBest. It’s available in 8x8, 16x16, 36x36 and 72x72 matrix card based frame and offer a full multimedia input and output cards such as the HDMI/ HDBT/ VGA/ SDI/ Fiber and mix video format versions. The MM3 matrix also offers audio breakaway function to able to switch audio to any output without following the video. It providing crystal clear clarity at its best but also to manage and control the external devices with the unique control card. The entire input and output cards support hot plug, allowing full service ability while the unit power on. The system could be control with the front 7” LCD touch screen, RS232 or LAN. There is web server build in with the unit to provide easy management for the EDID, HDCP and port status monitor.
  • Page 4: Front Panel Description

    Front 7” LCD touch screen. Front Panel Description NO. Name Description 7” LCD touch screen, for ease control and Display configuration Signal input For install input cards Signal output For install output cards Ground connection Ground connection with M4 screw Power connection IEC AC 250V 10A Control For install control card IR learner IR receiver for learning Type B USB Space Reservation, not enable RS-232、TCP/IP Connect port Control connection System size 482.6mm(L)×396.0mm(W)×133.5mm(H) 8 KG(IO cards not inculded) System weight...
  • Page 5 Capacitive Touch Panel Button Function Select the Video Switcher function Select the Audio Switcher function Select the EDID Switcher function View Ports Information Select audio follow video when switching One input switch to all output Save current channels status Recall the stored status Mute output channel System seating menu...
  • Page 6: Signal Switching

    Select input channel Select output channel Signal Switching Switch one input to all output channels Select ‘Video Switcher’ on touch panel, select one input channel and press all. Then the bottom right corner of all output channels will show the input channel. Picture below shows how to switch one input to all output channels.
  • Page 7 Switch one input to any output channel Press one input channel, then press one output channel the signal input channel will switch to the output channel. Picture below shows how to switch one input to any output. Press one input and press multi output channels the signal will switch to the output channel. Show as below. In all case above when switching succeed the output channel’s bottom right will show the input channel label. Mute output channel MM3 matrix switcher allow mute all output channels and individual output channel. Select the Mute button and select all output channel, the bottom right of all channel will show Mute.
  • Page 8: Save And Recall

    Notice: MM3-0808 supports 16 channels audio switching. MM3-1616 supports 32 channels audio switching. Save and Recall Press ‘Save’ and select the number of the store unit to save current I/O configuration and MM3 matrix supports save 10 I/O configuration. Showed as picture below. (Video, audio store unit is separate, select ‘Video Switcher ’ and press ‘Save’ to save video configuration. Same step to save audio.) Press ‘Recall’ and select the number or the store unit to recall the present. When click ‘Video&Audio’ and recall video configuration, the internal audio will fallow video. The external audio will no change.
  • Page 9: Port Information

    Port Information View port information is a main advantage of MM3 matrix switcher. It will show all information of the port for user easily troubleshoots. Label: Name: input output port name, every channel name can rename on web sever. HDCP: Authorized means HDCP Authorized, switcher requires HDCP comply signal, the output also will comply HDCP. Unauthorized means HDCP unauthorized, HDCP signal will not send out signal, like Blue ray play. For Mac the signal can comply and not comply HDCP, in the mode the signal will not comply HDCP.
  • Page 10: Edid Management

    Input signal: input signal type, for example like HDMI, DVI. Color space: Color space of the signal, like RGB, YUV. Color depth: color depth, 8 bits, 12 bits, or 16 bits. Resolution: resolution and FPS of the signal. Rs232: HDBaseT card RS232 baud rate, data bits, stop bits, parity bits and RX. 11520-8-1-N-O, baud 11520, 8 bits data, 1 stop bit, no parity bit and RX on. EDID Management Every output channel will automatic update display EDID to the input port. If user want to use another EDID form the screen, the EDID can be switch manually from input port to output port. Click ‘EDID Switcher’ and select the output port (the EDID want to switch). Then click the input ports, the EDID will update successful. If EDID from output need to switch to all input, click the output channel and click all.
  • Page 12: Internet Setting

    MM3 matrix switcher can save 8 EDID data, and also can recall the saved EDID. In EDID switcher, click output channel then click save and select the store unit. Recall EDID, in EDID switcher click input channel then click recall, select the store unit, the EDID be recalled.
  • Page 13: Software Version

    RS232 Setting In the system menu can select RS232 Setting and change baud rate, data bits stop bits, parity bits and Rx on/off. Software Version In system menu select ‘Software Version’ can view main board, input card, and output card system version. Buzzer and LCD Setting In system menu select ‘Buzzer&LCD’, buzzer can be on or off and LCD calibration can be reset. RS232 Command Table MutliVideo Plus matrix switcher can control by RS232 and the factory setting is baud rate 115200bps, 8 data bits, 1 stop bit and no parity bit...
  • Page 14 Command String Example Video Route Command >Cxtoz<cr> send:>C1to2,3,4,5<cr> X=1-16,Z=1-16 response:<C1to2,3,4,5<cr> For mare than one port number use a comma to Route Input 1 to output 2, 3, 4 and 5. separate. Audio Route Command >TXtoZ X=1A-16A or 1B-16B send:>T1Ato2B,3A,4B,5A<cr> Z=1A-16A or 1B-16B response:<...
  • Page 15 >RSOUTYTXnns<CR> Y=1-16, for more than HDBaseT Serial Transmit one port use a space to send:>RSOUT1 2 3 16TX05Hello<CR> Output Command separate. response:<RSOUT1 2 3 16TX05Hello<CR> nn=00-99,byte count for System sends ‘Hello’ in ASII to input port 1, 2, 3, 16 string and send to HDBaseT receiver.
  • Page 16 Query HDBaseT Input #RXINx<CR> send:#RXIN1 2<CR> Port Channel x=1-16, for more than one response: Command port space Query HDBaseT input port1,2 Rx channel. separate. Query HDBaseT Output #RXOUTx<CR> send:#RXOUT1 2<CR> Port Channel x=1-16, for more than one response: Command port space Query HDBaseT out port1,2 Rx channel.
  • Page 17: Web Management

    send:#Tcp Protocol<CR> Query System TCP Port #Tcp Protocol<CR> response:<Tcp Protocol:Server<CR> Mode Command send:>HsIP:192.168.2.200<CR> Client Target >HsIP: x<CR> response:<HsIP:192.168.2.200<CR> Address x=IP address send:#HsIP<CR> Query Client Target IP #HsIP<CR> response:<HsIP:192.168.2.200<CR> Address send: System Network >Net:x/y/z<CR> Configuration x=IP address >Net:192.168.2.175/255.255.255.0/192.168.2.1<CR> response: y=mask z=gateway <Net:192.168.2.175/255.255.255.0/192.168.2.1<CR>...
  • Page 18: Port Management

    Port Management Click Port Management, in this page user can switch video, audio, edit some sample setting, view port information, save present and recall present. 1. Video switcher: output ports are in row input ports are in column, click the green bar the input labeled in column switch to output labeled in row. The green bar changed to blue, means switching is succeed. Click the input label, there is a menu, and click to all, that input will switch to all output.
  • Page 19 2. Click ‘Audio&Video’, the internal audio of the input will also switch to output channel. 3. Click input put or output port and click ‘Edit’, can edit and view some information as picture below. ① Rename input output ports. ② Edit input output ports’ HDCP authorized or unauthorized. ③ Output signal select, AUTO, DVI or HDMI. ④ View +5V cable detection, HDCP, signal type, color space, color depth and resolution. 4. Present save and recall, click ‘present’, select the present number and click save, the present should be saved. Click ‘present’ select the present number, which has saved, the present will be recalled.
  • Page 20 Port Information View input and output information for easily troubleshoot. Port Name: show port name Interface: connect type Hot Plug: detect cable connection HDCP State: detect signal HDCP state HDCP Unauthorized: click it means this port will not support HDCP signal Resolution: the resolution and FPS of the video...
  • Page 21 Color Space: Current signal color space HDBT Link: Check HDBT connection HDBT Mode: Long Reach, MVPI-4-HDBT2 at 1080P and 8 bits color depth support 130m long distant transmission. But it wont support 4K or 1080P in 12 bits color depth. Cat Cable Length: detect current cable length 10% error and if cable less than 20m system cannot detect. HDBT Channel State: current cable 4 pair cable connection, PASS or FAIL. For the output port ‘HDCP Unauthorized’ change to ‘HDCP Option. Click it the matrix will add HDCP in the output signal. EDID Management 1. Source EDID means EDID saved in output port. 2. Monitor EDID means EDID read by input port. 3. System EDID means matrix saved the best EDID. EDID Switching and save 1. Select input channel, output channel or system EDID, then click Switch. When ‘Switched OK’ shows up the EDID switching is succeed.
  • Page 22: Control Management

    2. EDID save, select input channel and system EDID, then click save. The EDID saved in system EDID. Control Management HDBT cards support IR and RS232 control. Add a button and edit the button, use it to control RS232 or IR. The button also can be deleted.
  • Page 23: System Menu

    System Menu Network, RS232, Firmware information and Password set or view.
  • Page 24 I/O Card HDBT MVPI-4-HDBT1/MVPI-4-HDBT2 MVPO-4-HDBT1/MVP0-4-HDBT2 Description Status Always off — No HDBT connected Link LDE Always on — HDBT connected Always off — No video signal input or output Video LED Always on — Video signal input or output Always off — No audio signal input or output Audio (external) Always on —...
  • Page 25 Always off — No audio signal input or output Audio (external) Always on — audio signal input or output...
