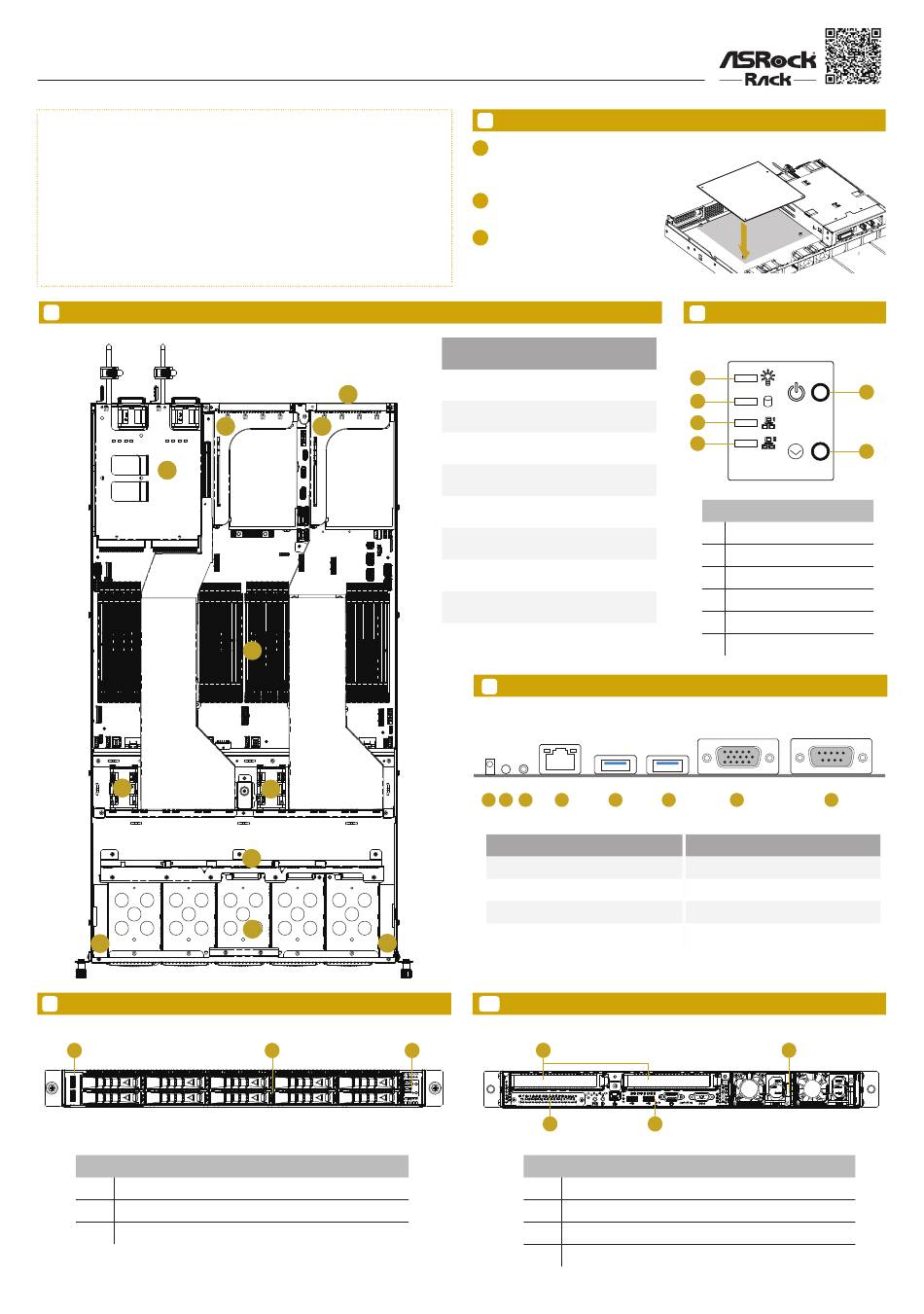

ASROCK Rack 1U10E-MILAN2 Quick Installation Manual

*15G065243000AR*
P/N: 15G065243000AR V1.0
Quick Installation Guide
1U10E-MILAN2
The User's Manual is available for download from the ASRock Rack's official website at http://
www.asrockrack.com.
Take note of the following precautions before installing the components or change any settings.
1. Unplug the power cord from the wall socket before touching any components.
2. To avoid damaging the components due to static electricity, NEVER place the components
directly on the carpet or the like. Also remember to use a grounded wrist strap or touch a safety
grounded object before installation.
3. Hold components by the edges and do not touch the ICs.
4. Whenever uninstalling any components, place them on a grounded anti-static pad or in the bag
that comes with the components.
5. When placing screws into the screw holes to secure any components to the barebone, please
do not over-tighten the screws! Doing so may damage both components and barebone.
2 Top View
3
5
8
5 Front Panel
1
No. Description
1 2 Type-A (USB3.2 Gen1)
2 10 hot-swap 2.5" NVMe (PCIe4.0 x4) drive bays
3 Control Panel Buttons and LED Indicators
1
2 2
4
5
6
7
9
2
1 Replace Server Board
Carefully unplug all cables and release
1
thumbscrews on the ser ver board to
remove them from the barebone.
Align the replaced server board with the
2
mounting holes
A f f i x t he screws clock w ise into t he
3
mounting holes in all of the corners of
the server board.
Do not over-tighten the screws
No. Description
1 1 OCP NIC 3.0 (PCIe4.0 x16)
2 2 FHHL PCIe4.0 x16
3 1+1 CRPS 1600W
4 Server Boards (ROME2D32LM3)
5 8 PWM hot-swap 40 x 56 mm fans
6 Back Panel Board (BPB)
7 10 hot-swap 2.5" NVMe (PCIe4.0 x4) drive bays
8 USB Board
9 Front Panel Board (FPB)
I/O Panel
4
1 2 3 4
No. Description
1 System Fault LED (SYS_FAULT_LED1)
2 Power Switch (PWR_BTN1)
3 UID Switch (UID1)
4 LAN RJ-45 Port (IPMI_LAN)
6 Rear Panel
3 1
3
No. Description
1 2 FHHL PCIe4.0 x16
2 1+1 CRPS 1600W
3 1 OCP NIC 3.0 (PCIe4.0 x16)
4 I/O Shield (depends on the specification of the server board)
www.asrockrack.com
Control Panel
3
2 1
2
3
4
No. Description
1 Power LED
2 Hard Drive Status LED
3 LAN1 Activity LED
4 LAN2 Activity LED
5 Power Button
6 System Reset Button
5 6 7
No. Description
5 USB 3.2 Gen1 Port (USB3_1)
6 USB 3.2 Gen1 Port (USB3_2)
7 VGA Port (VGA1)
8 Serial Port (COM1)
2
4
1U10E-MILAN2
5
6
8
