ASROCK Rack 2U4G-C621WS Quick Installation Manual

*15G065124000AK*
P/N: 15G065124000AK V1.0
Quick Installation Guide
2U4G-C621WS
Cable List
A GPU Power Cable (Red & Orange / L=800mm ; Blue & Green / L=500mm)
B PMBus Cable (L=390mm)
C Power ATX Cable (8PIN) (L=350mm)
D Power ATX Cable (24 PIN TO 24 PIN ) (L=150mm)
E SWB Power Cable (SWB CABLE 2*6P(3.0)PWR; L=400mm)
F HDD Power Cable (HDD PWR 2*4P TO 2*6P; L=800mm)
G MINISAS HD to OcuLink (S/T) Cable (L=710mm)
H SLIMLINE Cables (L=800mm / 500mm)
I USB Cable (25P 2.54HSG TO 2.0HSG) (L=1.25M)
J Front Control Cable (2*10P(2.0)TO 2*10P+2*5P(2.54))
K SATA 6G Cable (L=820mm)
L MNG Cable (L=960mm)
M SGPIO Cable (L=615mm)

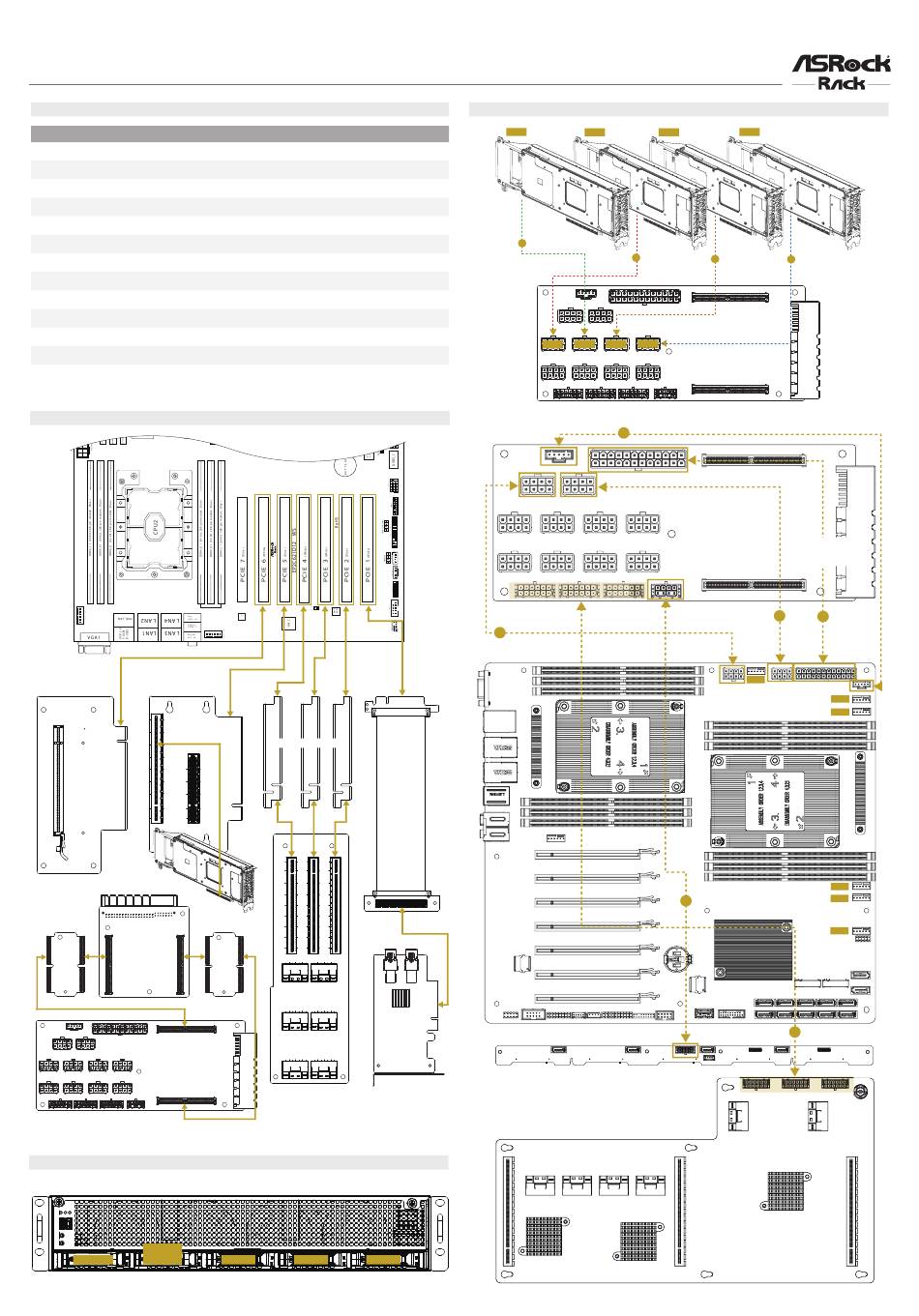

Board Connection
Riser Board (RB2U4G_16)
Riser Board (2U4G_RB)
Power Distribution Board (PDB_U)
Power Distribution Board (PDB_B) Power Distribution Board (PDB_B)
Power Distribution Board (PDB)
System Front View (HDD Slots)
NVME1 /
NVME0 HDD1
Item
Motherboard (MB)
Goldfinger to Goldfinger Cards (G2G_PCB)
GPU4
FPC for x8 PCIE Card
PE-SSD-RT PCIE Card
PCIE to SLIMLINE Board (2U4F_P2SL)
HDD2 HDD3 HDD4
Power Cable Connection
GPU4 GPU3
GPU Power Cable
A
(Green / L=500mm)
GPU Power Cable
A
(Red / L=800mm)
GPU1
GPU3 GPU4 GPU2
Power Distribution Board (2U4G_PDB)
PMBus Cable (L=390mm)
Power Distribution Board (2U4G_PDB)
B
Power ATX Cable
(8PIN) (L=350mm)
C
Motherbaord (MB)
HDD Backplane Board (BPB)
Switch Board (2U4G_SWB)
GPU1
GPU2
GPU Power Cable GPU Power Cable
A A
(Orange / L=800mm) (Blue / L=500mm)
Power ATX Cable
(24 PIN TO 24 PIN )
(L=150mm)
C
Power ATX Cable D
(8PIN) (L=350mm)
FAN6
FAN5
FAN4
FAN3
HDD Power Cable
FAN2
F
(HDD PWR 2*4P TO 2*6P; L=800mm)
FAN1
SWB Power Cable
E
(SWB CABLE 2*6P(3.0)
PWR; L=400mm)
