Ambassador MARINE S00-1108-UP Installation Instructions

I
NSTALLATION
Thank you for choosing Ambassador Marine.
Your new Ambassador Marine faucet, sprayer, shower or
accessory will give you years of trouble-free performance.
Please read these instructions carefully before installing your
new item. If you have any additional questions about the
installation of this product, please feel free to contact one of
our friendly customer service representatives at 800.270.4262.
1
2
3
5
7
I
NSTRUCTIONS

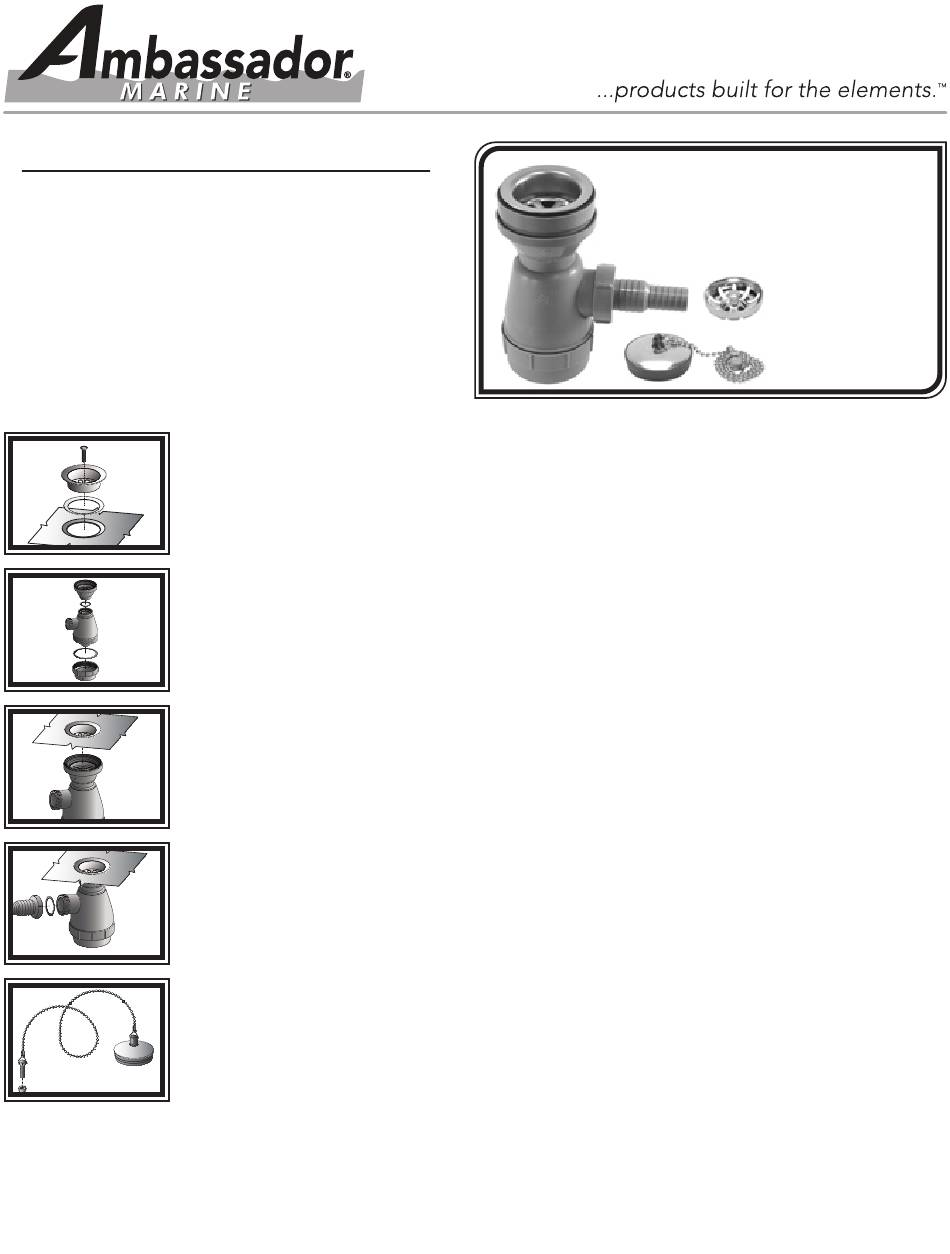

1) Set the flange with the foam gasket and screw in the drain hole in the sink. NOTE: The foam
gasket is supplied for your convenience, however, we recommend using plumber's putty (not
included) instead of the foam gasket. Do not use both the foam gasket and plumber's putty.
2) Ensure the trap cup and the drain body are tightly screwed onto the trap body with the
rubber gaskets inside the connections.
3) From under the sink, line up the drain body and the raiser with the thick rubber gasket inside
with the flange and screw.
4) From above the sink, tighten the screw into the metal nut inside the drain body. Make sure
the side port of the trap body is pointed in the desired direction for connecting the waste line,
before securing.
5) Securely screw the hose barb onto the side port of the trap body, ensuring the rubber gasket
is properly seating inside the head of the hose barb. Slide 3/4" or 1" ID hose all the way onto the
hose barb. Secure hose with a stainless steel hose clamp (not included).
6) Remove the protective sticker from the polished surface of the stopper.
7) OPTIONAL- Drill a 3/16" hole in the counter-top or other surface and secure the stopper
screw using the stopper nut, where desired. If you choose not to secure the stopper screw, you
may remove the stopper chain (and stopper screw) from the stopper. Spread the ends of the
stopper triangle connector and remove it from the stopper.
S00-1108-UP
S00-1108-UP-R
2" Drain
Trap Drain Kit w/Strainer
3 / " & 1" Hose Barb
4
Ultra-Mirror
(OEM)
(Retail)
