Ambassador MARINE S01-0508-CP Installation Instructions

I
NSTALLATION
Thank you for choosing Ambassador Marine.
Your new Ambassador Marine faucet, sprayer, shower or
accessory will give you years of trouble-free performance.
Please read these instructions carefully before installing your
new item. If you have any additional questions about the
installation of this product, please feel free to contact one of
our friendly customer service representatives at 800.270.4262.
1
2
3
4
5
I
NSTRUCTIONS

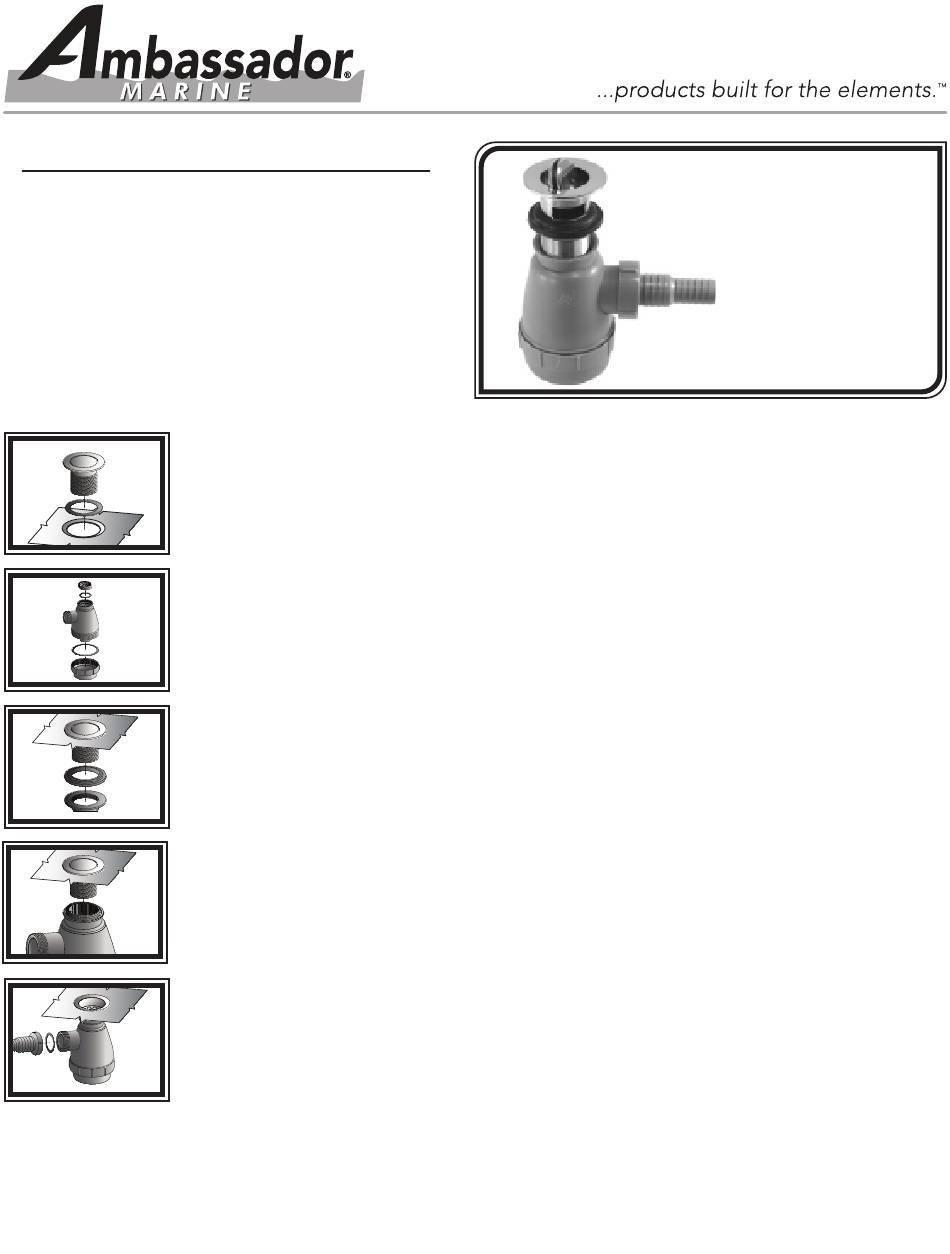

1) Set the flip body assembly with the thin gasket in the drain hole in the sink. NOTE: The thin
gasket is supplied for your convenience, however, we recommend using plumber's putty (not
included) instead of the gasket. Do not use both the gasket and plumber's putty.
2) Ensure the trap cup and the adapter are tightly screwed onto the trap body with the rubber
gaskets inside the connections.
3) From under the sink, slide the thick rubber gasket up onto the threaded flip body assembly.
Screw the lock nut onto the flip body assembly, but do not tighten completely.
4) Screw the trap body with the adapter installed onto the threaded flip body securely. Make
sure the side port of the trap body is pointed in the desired direction for connecting the waste
line, rotate complete assembly if needed. Tighten lock nut.
5) Securely screw the hose barb onto the side port of the trap body, ensuring the rubber gasket
is properly seating inside the head of the hose barb. Slide 3/4" or 1" ID hose all the way onto the
hose barb. Secure hose with a stainless steel hose clamp (not included).
