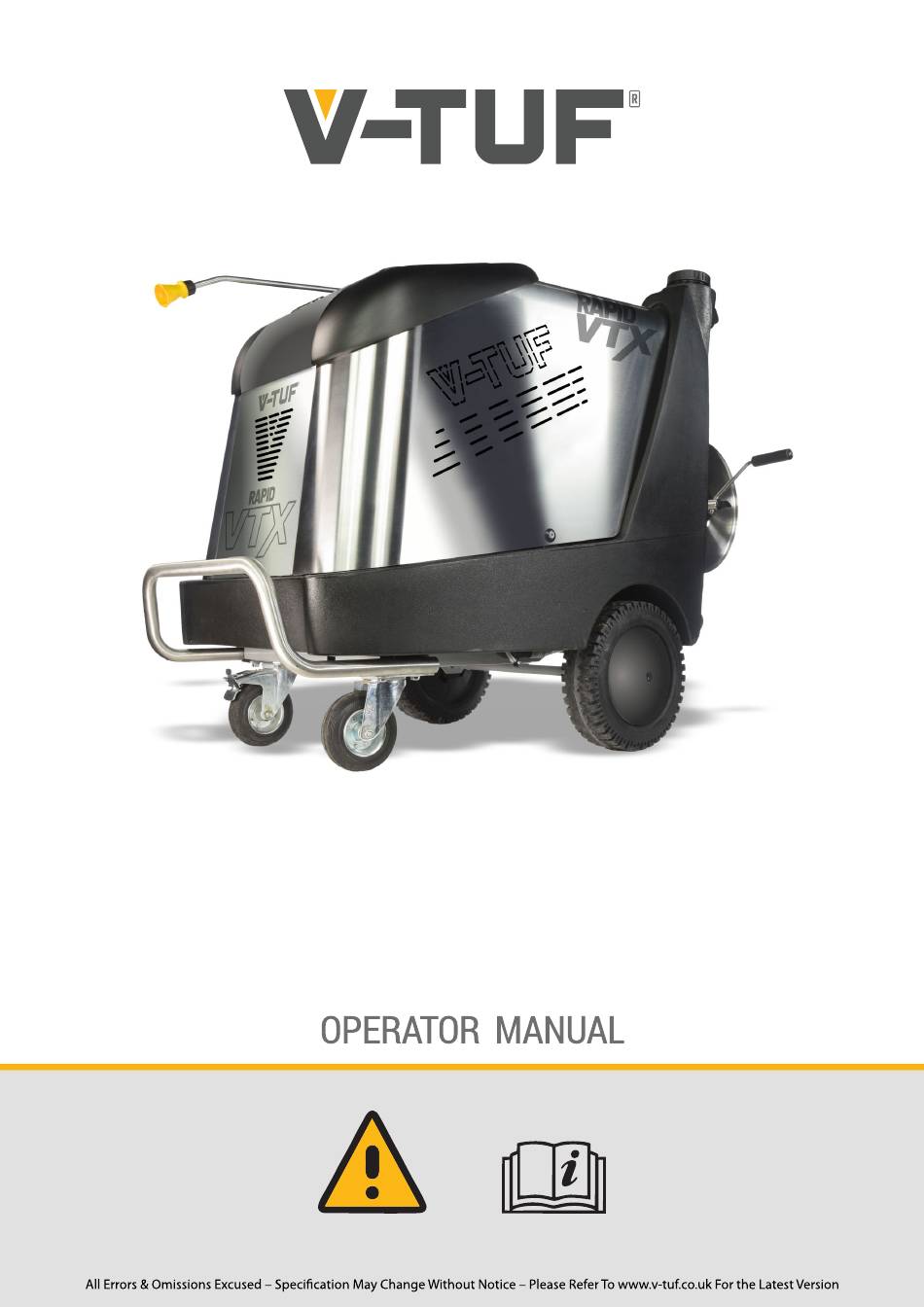

V-TUF RAPIDVTX240 Operator's Manual

Professional hot water high pressure cleaners

Advertisement

RAPIDVTX
PROFESSIONAL HOT WATER HIGH
PRESSURE CLEANERS
Please read this manual before using the RapidVTX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAPIDVTX240 and is the answer not in the manual?

Questions and answers

Summary of Contents for V-TUF RAPIDVTX240

  • Page 1 RAPIDVTX PROFESSIONAL HOT WATER HIGH PRESSURE CLEANERS Please read this manual before using the RapidVTX...
  • Page 2 RAPIDVTX • ACDS2: Advanced Control with Delayed Stop, ready for connection to diagnostic reader • Triplex plunger pump with three ceramic pistons and brass head • 1450 rpm motor • AISI 430 cover • Motor/pump coupling protection with special lubricant retention system •...
  • Page 3: Supplied Accessories

    SUPPLIED ACCESSORIES N° MOD. COD. SPRAYEX60XR 01AC532 Spray gun (in M22 swivel/out quick connection) 01AC554 Stainless steel lance l=82 cm (in quick connection out 1/4"F) 140/10 I50276 Nozzle 1/4”M 25035 160/15 I50216 Nozzle 1/4”M 2505 200/15 I50202 Nozzle 1/4”M 2504 220/16 I50284 Nozzle 1/4”M 25045...
  • Page 4 WEIGHTS AND DIMENSIONS MACHINE PACKAGING Gross (mm) (mm) (mm) (kg) (mm) (mm) (mm) (kg) RAPIDVTX240 1.050 1.120 RAPIDVTX240HR 1.050 1.120 RAPIDVTX415 1.050 1.120 1.050 1.120 RAPIDVTX415HR MODEL RAPIDVTX240 RAPIDVTX240HR RAPIDVTX415 RAPIDVTX415HR max. pressure 140 14 - 2.030 140 14 - 2.030 140 14 - 2.030...
  • Page 5 SOFT OPERATING PRESSURE MAIN TEMP CHEM POWER CONTROL CONTROL A. MAIN SWITCH B. BOILER THERMOSTAT C. DETERGENT ADJUSTMENT TAP D. WATER PRESSURE GAUGE E. LED WARNING LAMP 1 F. LED WARNING LAMP 2...
  • Page 6 IMPORTANT Before using the high pressure washer, carefully read all of the instructions and follow them scrupulously. The manufacturer cannot be held responsible for damage to persons and/or property caused by improper use of the equipment. This instruction manual is an integral part of the equipment and must therefore be stored carefully and passed on with the unit in the event of a change of ownership.
  • Page 7: Use Of The Manual

    1 USE OF THE MANUAL Circular, framed with a diagonal cross 1.1 USE OF THE MANUAL through This manual was prepared by the manufacturer as an integral part of These indicate prescriptions concerning Prohibition Signs the machine's equipment. The manual for this high -pressure washer actions that must be avoided .
  • Page 8 machine is to be run only by authorised operators who have read this 3.5 PROTECTION GRADES OF THE MACHINE (IP) manual and who have been trained in its operation. Degree of protection against solid foreign bodies (protected against dust) WARNING Degree of protection against water (protected against Operators or users shall be responsible for any accidents jets of water)
  • Page 9: Transport And Installation

    enabled, it will impose a 2 second delay between the gun opening shipping, the spanner has been inserted in the bag containing the and motor start for work operations. technical documents. Functions (b), (c), (d), (e) and (h) can be deactivated if necessary for 1 machine special cleaner applications: contact a customer technical service 1 high pressure hose with M22 fittings...
  • Page 10 “no water” signal (both LEDs flash blue). Check the data plate on the machine. Make sure that the Rotate the SW switch from ON to OFF and wait 5 seconds to reset machine’s required power supply voltage and frequency the error. correspond to what is supplied by the mains.
  • Page 11: Routine Maintenance

    If you are working with hot water, rotate the SWT switch to the OFF position. LED 1 LED 2 Fault Continue working with cold water for a few minutes to allow the boiler to cool down properly Low water: indicates insufficient water supply. The Close the water supply tap Continue working to completely empty the machine’s water tank Manual reset: by turning it OFF (4 seconds) and...
  • Page 12: Periodic Maintenance Table

    8.1 SAFETY STANDARDS FOR ROUTINE MAINTENANCE It is the Customer's responsibility to verify that only Routine maintenance comprises a series of simple operations to be original spare parts, which are the only parts that will not carried out at regular intervals and in accordance with the compromise machine safety, are used for repairs.
  • Page 13 DEFECT POSSIBLE CAUSE(S) CORRECTIVE ACTION(S) The machine Power supply interrupted or insufficient Check the properties does not start Contact a service centre Circuit breakers tripped. Motor does not Insufficient voltage Check the line properties start but makes noise Insufficient Nozzle fouled or deformed Clean or replace pressure Valve fouled or worn...
  • Page 14: Wiring Diagram

    WIRING DIAGRAM - 230V, 1 , 50Hz WIRING DIAGRAM - EVD FUEL OIL SOLENOID VALVE FAN MOTOR PUMP MOTOR EVa ANTI-LIMESCALE SOLENOID VALVE MOTOR THERMAL SWITCH IGNITION TRANSFORMER PHOTO-TRANSISTOR FUSE LSd FUEL OIL LEVEL GAUGE ELECTRONIC BOARD LSa ANTI-LIMESCALE LEVEL GAUGE PSo OUTPUT PRESSURE SWITCH MAIN SWITCH SWT SW-THERMOSTAT...
  • Page 15 WIRING DIAGRAM - 230/400V, 3 , 50Hz WIRING DIAGRAM - EVD FUEL OIL SOLENOID VALVE FAN MOTOR PUMP MOTOR EVa ANTI-LIMESCALE SOLENOID VALVE MOTOR THERMAL SWITCH IGNITION TRANSFORMER PHOTO-TRANSISTOR FUSE LSd FUEL OIL LEVEL GAUGE ELECTRONIC BOARD LSa ANTI-LIMESCALE LEVEL GAUGE PSo OUTPUT PRESSURE SWITCH MAIN SWITCH SWT SW-THERMOSTAT...

This manual is also suitable for:

Rapidvtx240hrRapidvtx415Rapidvtx415hr
