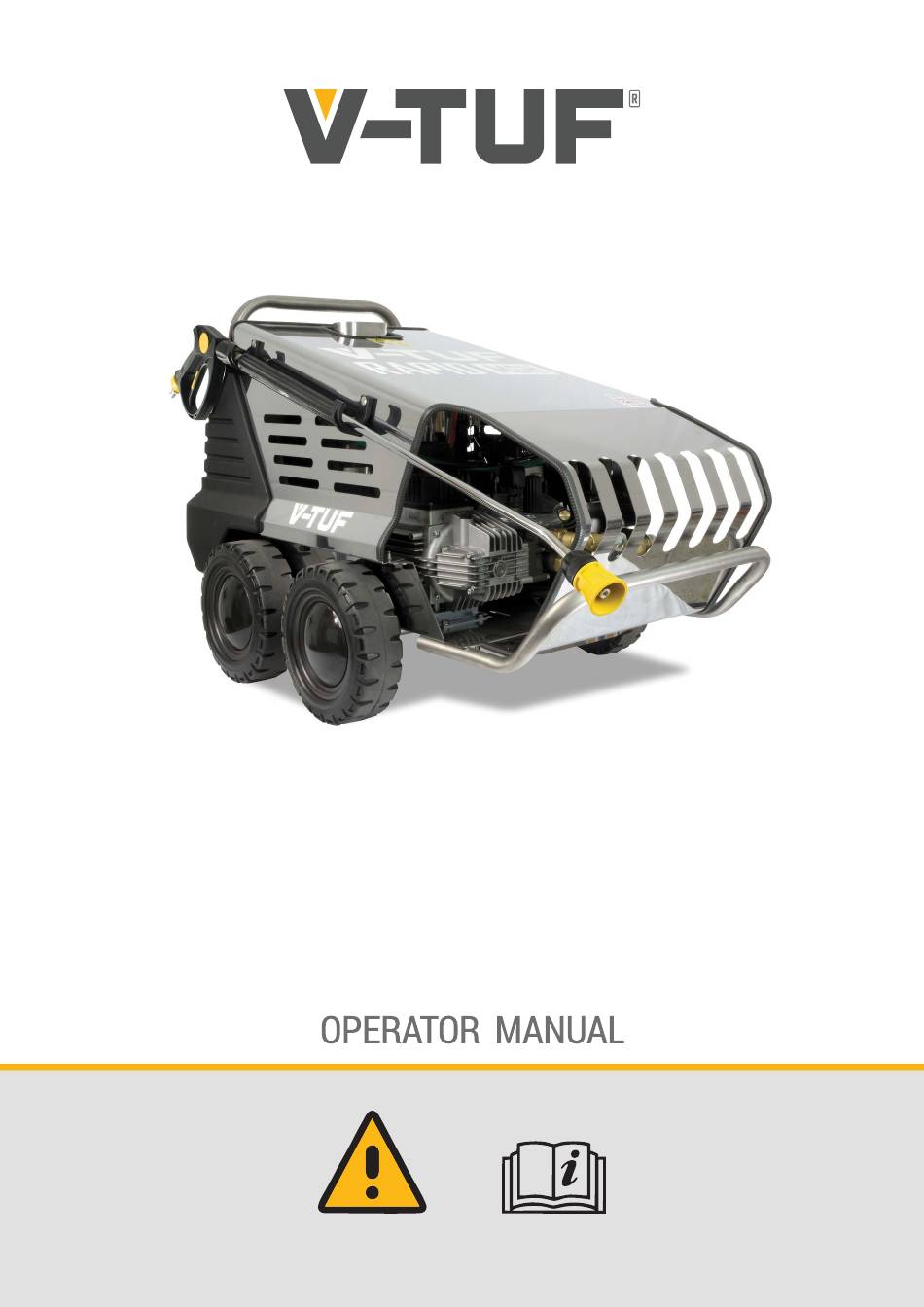

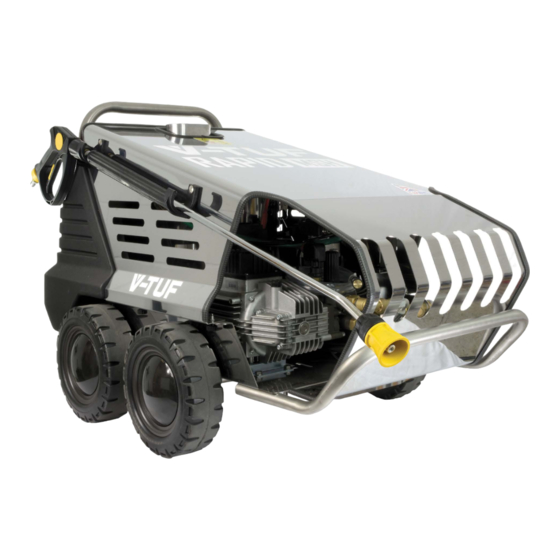

- Page 1 RAPID MSH ELECTRIC INDUSTRIAL MOBILE STAINLESS STEEL HOT WATER PRESURE WASHER Please read this manual before using the RAPID MSH...
-
Page 2: Table Of Contents
CONTENTS Contents Page Important Safety Instructions General Points & Information Safety Norms & Usage Technical Data Identi cation Data Installation Cold & Hot Water Use Important Advice Transport / Lifting / Storing Regulation of Start Electrodes Troubleshooting 16-18 Electric Diagrams Functionality Frame Parts Diagram &... -
Page 3: Important Safety Instructions
High pressure cleaners must not be used by children or untrained personnel. High pressure hoses, fittings and couplings are important for the safety of the appliance. Use only hoses, fittings and couplings recommended by the V-TUF. Always wear suitable eye, face and body protection. -
Page 4: General Points & Information
V-TUF, quoting type of machine, matriculation number and the year of manufacture. Trial before shipment The machine has been tested at the manufacturer’s factory by a V-TUF technician to check that all of the components are functioning correctly according to the machine’s specifications. - Page 5 Personal identifying data An exact description of the model, serial number and installed accessories will aid a quick and efficient response on the part of the manufacturer or help centre. Always provide the type, model of machine and its serial number each time you contact the help centre. To help you remember, we suggest that you place the relevant machine details in the panel below: Model Serial N°...
-
Page 6: Safety Norms & Usage
SECURITY NORMS FOUR SYMBOLS TO REMEMBER General danger Ranger of severe damage to the machine Danger to people Safeguarding the environment Your machine is supplied with electronic apparatus, the use of which requires the observation of the following safety criteria. When using the machine outdoors, do not use when it is raining Do not attempt any kind of maintenance whilst the plug is connected to any sort of power supply. - Page 7 Do not place your hands ahead of the lance; high pressure nozzles can be extremely dangerous when used inappropriately. If the machine should be used in service stations, supply stations or other potentially dangerous locations, please ensure that the appropriate safety procedures are observed.
- Page 8 ERRONEOUS USE By erroneous use, we mean the use of our machine without respect for the guidelines contained in the instruction and maintenance manual. Lack of respect for these guidelines can represent a risk of injury to both the operator and those persons nearby as well as a risk of serious damage to the machine itself.
-
Page 9: Technical Data
• Simple Adjustable Temperature Control & Switch. • Double Pass Heat Exchanger Guarantees Hotter Water with Less Fuel Usage. • Fully Protected Electrics from Water Ingress. Now Has V-TUF Super Series Pump Comes complete with Quick Release 10m Hose & Lance & Vario Nozzle Kit. -
Page 10: Identi Cation Data
– you can simply top up and go. IDENTIFICATION DATA The position of the identification data of the machine 1) Identification of the machine according to EU directives. 2) Pump model. 1 YEAR WARRANTY REGISTER YOUR MACHINE ONLINE www.v-tuf.com/register-your-v-tuf-product 2020021808 SERIAL XXXXX MODEL: NUMBER: ATTENTION: Check that your RAPID-MSH high pressure washer has been provided with these identification details, if they have not been provided please inform your local dealer immediately. -
Page 11: Installation
Fuel filler Fuel filter Pressure Water inlet Adjustment Water filter Water outlet Attach the lance to the high-pressure hose (1) and the other end to the output connection (Water outlet). Fit the sheath (B) in order to protect the hydraulic connection and to avoid the risk of scalding by contact. The high pressure pump is supplied already full of lubricating oil. -
Page 12: Cold & Hot Water Use
HOT WATER USE Check that the diesel tank is full (1); if it is not, refill it using exclusively automotive diesel. Repeat points 1 and 2 as per cold water use. Check that the thermostat (tr) is positioned at 0°C, start the boiler by means of the appropriate switch (br) which will cause the relevant light to illuminate (b), wait for 30 seconds so that the diesel pump can refill, turn the knob of the thermostat (tr) to the required temperature (upon reaching the desired temperature, the burner will cut off automatically to then restart upon any lowering of temperature. -
Page 13: Important Advice
ATTENTION During operation of the machine, it is obligatory to use the appropriate personal safety equipment. During operation, please pay close attention to the information quoted on the chemical product labels regarding safety and the proper percentages to be used when diluting chemicals. Fill the detergent tank (5) with the product you intend to use for your work and insert the detergent hose suction. -
Page 14: Transport / Lifting / Storing
LUBRICATION OF THE PUMP For the models 100.12 and 150.15 we recommend: PL500 Lube – OIL CAPACITY 0.42 kg You should change the oil after the first 50 hours of use, and after each subsequent 500 hours of operation. TRANSPORT – LIFTING – SHIFTING ATTENTION: Whenever the machine needs to be transported, it should be securely fixed with straps, cables or other suitable equipment in order to avoid accidental movement which could cause damage to people... -
Page 15: Regulation Of Start Electrodes
STORAGE Park the machine on a flat surface. If the machine is not going to be used for an extended period of time, empty the water circuits and the fuel tank then cover the machine and store it in a place protected from atmospheric extremes. -
Page 16: Troubleshooting
Troubleshooting The pump turns but does not The pump is sucking in air. Check that the piping is watertight. reach the required pressure Run the pump connected to the water supply but without the high- pressure hose connected until you get a strong water stream, then switch off machine and reconnect. - Page 17 The boiler is producing Presence of water in the fuel Empty the fuel tank, and refill with excessive amounts of fumes tank. clean fuel. The fuel pump pressure is not Restore the correct pressure, correct turning the appropriate screw in order to reach approximately 10 Bar.
- Page 18 Water discharge from Worn out gaskets. Replace the gaskets. the pump head. Worn out pistons. Replace the pistons. OR piston plug is worn out. Replace the OR piston plug. Oil discharge from between Worn out oil seals. Replace the oil seals. the pump body and the pump head.
-
Page 19: Electric Diagrams
HYDRAULIC DIAGRAM Water Tap T.a. Water Suction Tube F = Filter Detergent Filter T.a.d. Detergent Suction Tube Water Pump t.m. Delivery Tube Boiler t.a.p. High Pressure Water Outlet Tube Lanc ELECTRIC WIRING DIAGRAM... -
Page 20: Functionality
Functionality: The high pressure water cleaner has an input for an On/Off switch for the machine, a switch to select between hot or cold water operation, a “diesel pressure switch” input to manage the lack of diesel, and an input for the water temperature thermostat and 2 inputs for the pressure switches PTP and PDV. Pump head pressure switch –... -
Page 21: Frame Parts Diagram & Parts List
FRAME ASSEMBLY PARTS DIAGRAM & LIST Item Code Description 5210000 CHASSIS 5116010 ELECTRIC BOX WHEEL10HP HEAVY DUTY WHEEL 5116011 STAINLESS STEEL COVER 4000085 LANCE HOLDER COV01-PROT-1M EDGING FOR STEEL COVERS (per metre) - COV01-PROT-1M VTRP4100010 FUEL TANK VTRP4100011 FUEL LID/CAP VTPS003 THUMB SCREW FOR RAPID COVER 1300200... -
Page 22: Boiler Parts Diagram & Parts List
BOILER PARTS DIAGRAM BOILER PARTS LIST Item Code Description D5.0321 IGNITION CABLE (each) 1000521 M4 x 8 SCREW D6.030 ELECTRODE 1000740 M4 NUT 1000230 1/8MF EXTENSION 3000040 ELECTRODE HOLDER 1000220 FUEL INJECTOR HOLDER T6.1.3580H FUEL INJECTOR 3000030 UPPER TOP COVER 3000050 DEFLECTOR 4000280... - Page 23 1000050 LEVER 1000080 RIVETS 3125030 LOWER TOP COVER 6200105 + 6125010 BOILER HOSE VT3000065 COIL 3100060 STAINLESS STEEL RING 1000285 MVG8 QUICK COUPLING 1000281 MVG06 QUICK CONNECTOR 1000619 ½” WASHER 1000211 3/8” /1/2” BSP ADAPTOR 1000200 ½” T ADAPTOR 19.5110 THERMOSTAT 1000790 ½”...
- Page 24 1000055 HOSE CLAMP P13.10101 FILTER 1000218 1/8M 6/4 1500 FITTING 4000135 8x12 HOSE 2.5mt D5.032 POWER IGNITION TRANSFORMER 1000546 5x50 TC SCREW 1000655 M5 LARGE WASHER 1000513 6x20 SCREW A3.0114F 1/4"Ø RUBBER FUEL/WATER HOSE BLACK (Per metre) E3.600 FUEL FILTER 4110060 DIESEL LABEL...
-
Page 25: Electric Box Parts List
ELECTRIC BOX PARTS LIST ITEM CODE DESCRIPTION 6000002 THERMOSTAT 4600021 GASKET 4600022 O-RING 4000083 SPACER 5400065 BRACKET 2000446 TERMINALS 4100044 PLUG WIRE THERMOSTAT 24V ON/OFF SWITCH 2000070/24 2000124 TRANSPARENT TERMINAL... -
Page 26: Accessories Parts Diagram & Parts List
TG350SKTQMSQ V-TUF tufGUN350 SWIVEL GUN WITH EXTENSION MSQ MALE INLET x M22F OPF093SS KTQ - QR 1000mm STAINLESS STEEL LANCE WITH BEND x V-TUF NEW HEAVY DUTY CHEMICAL ROSE VTK23810UVYK-HD 10m HIGH PRESSURE HOSE 5 & 6 T4.008N V-TUF HYPERJET (CHEMICAL ROSE)-... -
Page 27: Pump & Motor Parts Diagram & Parts List
Item Code Description 1349282 TSS pump assembly 1344850 Head 1349055 Valve 1344770 Spacer 1465720 O-ring 1344800 Plug 1345150 Screw 1344790 Fork 620301 Plug 850850 Screw 1340260 Filter... - Page 28 1461470 Fitting 3/4” G (F) O-ring Ø 1460430 Shutter 2901070 Spring 1080091 800560 O-ring Ø 8,73x1,78 Injector 2901060 O-ring Ø 14x1,78 740290 Fitting M22x1,5 -3/8” G (M-M) 2840400 Plug 1344890 O-ring Ø 4,7x 2560870 Hose tail Ø 8 1982520 480480 O-ring Ø...
- Page 29 O-ring Ø 3,69x1,78 1120680 O-ring Ø 7,66x1,78 600180 2022040 Spring 2021630 2021650 Washer 1260820 O-ring Ø 1,78x1,78 1344830 Fitting 2022201 Fork 2029752 TSS box assembly A marked 2460180 O-ring Ø 15 770260 O-ring Ø 23,52x1,78 Piston guide 1344750 Water seal Ø 15 1260440 Ring support Ø...
- Page 30 1342740 Piston Ø 15 1341020 Washer 850670 Screw TCEI M6x35 42566 Valve kit 2623 Piston kit Ø 15 1876 Oil seal kit 42567 Water seal kit Ø 15 42568 Gasket kit...
-
Page 31: Notes
NOTES...
