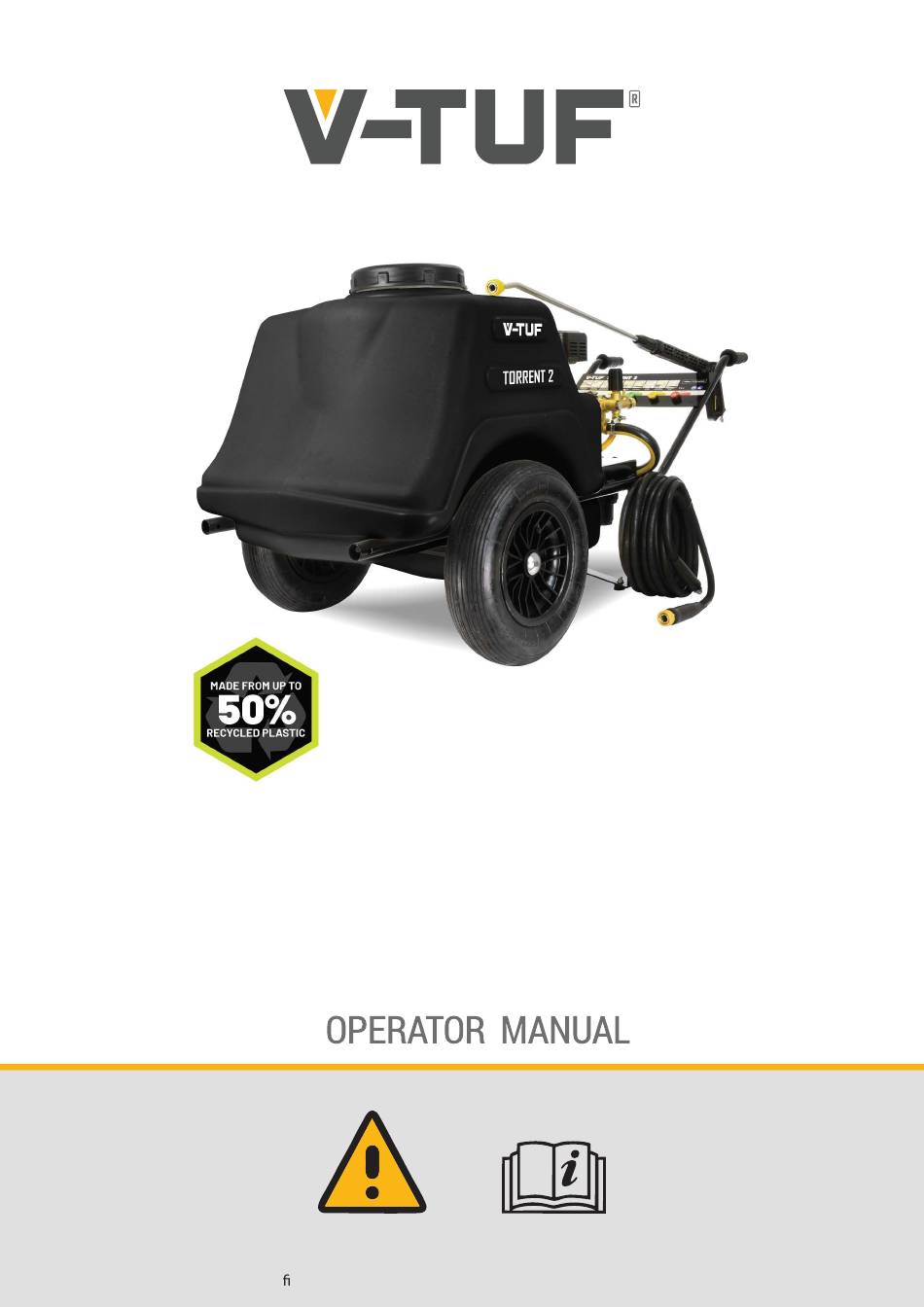

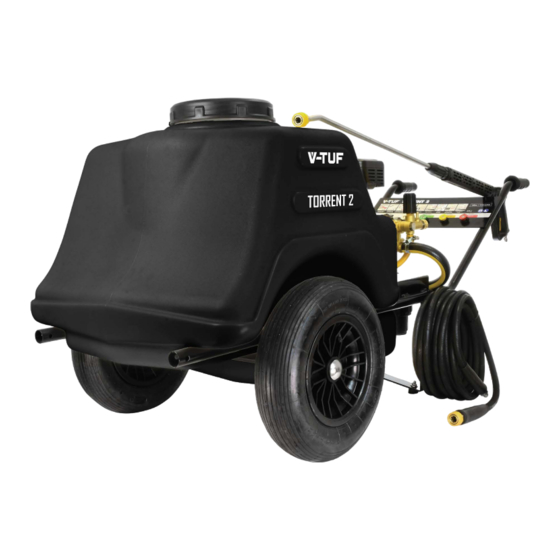

- Page 1 Torrent2D5 INDUSTRIAL MOBILE BOWSER PETROL COLD WATER PRESURE WASHER Please read this manual before using the Torrent2D5 All Errors & Omissions Excused – Speci cation May Change Without Notice – Please Refer To www.v-tuf.co.uk For the Latest Version...
-
Page 2: Table Of Contents
CONTENTS Contents Page Important safety Instructions 3 -6 Safety Features & Security Norms Technical Data Use the of Jet Washer 12-13 14-15 Transport & Lifting 15 Cleaning Applications Troubleshooting 17-19 Accessories & Part List Spare couplings & seals High pressure hose Extension kits Vehicle ramps TORRENT-2 Exploded View 24-25... -
Page 3: Important Safety Instructions
High pressure cleaners must not be used by children or untrained personnel. High pressure hoses, fittings and couplings are important for the safety of the appliance. Use only hoses, fittings and couplings recommended by V-TUF. Always wear suitable eye, face and body protection. - Page 4 V-TUF, quoting type of machine, matriculation number and the year of manufacture. Trial before shipment The machine has been tested at the manufacturer’s factory by a V-TUF technician to check that all of the components are functioning correctly according to the machine’s specifications. Guarantee Terms...
- Page 5 Delivery The transport will be carried out by qualified companies, in respect to regulations in force and legislation relative to weight and length. The merchandise travels under the full responsibility of the transporter and the user; in the event of an accident, or late delivery, the manufacturer accepts no liability.
-
Page 6: Safety Features & Security Norms
Prior to use, please carefully read the instructions, paying particular attention to "IMPORTANT RECOMMENDATIONS", "SECURITY NORMS" and "PRECAUTIONS". It is forbidden to remove or tamper with the protective parts of the machine. It is forbidden to use inflammable, explosive or toxic substances. It is obligatory to use appropriate protective equipment. - Page 7 When using the machine outdoors, do not use when it is raining Do not attempt any kind of maintenance whilst the plug is connected to any sort of power supply. Take care not to spray the machine with the water jet as this could lead to short-circuit Should you need to use an extension lead with the power supply, make sure that the connection between the extension lead and the power lead is secure and stable and conforms to standard safety norms.
- Page 8 It is strongly forbidden to carry out any operation with the machine if you are not wearing the appropriate safety equipment (protective glasses, gloves, overalls etc) as per established safety norms. During winter, and in the event of frost, it is advisable to use anti-freeze or to empty out the water from the internal circuits by closing the tap from the water supply and activating the machine until all of the water is expelled.
- Page 9 PRECAUTIONS Before activating the high pressure cleaner, make certain that the water supply is correct (min. 1 Bar – Max 8 Bar); dry use can provoke serious damage to the machine’s waterproofing systems. To safeguard the security of the operator and of the machine, avoid making modifications to the machine without the written consent of the manufacturer.
-
Page 10: Technical Data
TECHNICAL DATA: TORRENT2D5 PRESSURE (PSI) 2500 MAX PRESSURE (BAR) FLOW(L/MIN) 13.2 PUMP TYPE V-TUF SUPER SERIES XHDH300SS UNLOADER SEPARATE HEAVY DUTY UNLOADER INLET FILTER THERMAL PROTECTION VALVE OIL SIGHTGLASS CHEMICAL INJECTION ENGINE BRAND YANMAR DISPLACEMENT(CC) 213 (4.8HP) STARTING SYSTEM RECOIL STARTER... - Page 11 IDENTIFICATION DATA The position of the identification data of the machine 1) Identification of the machine according to EU directives. ATTENTION: Check that your TORRENT 2 high pressure washer has been provided with these identification details, if they have not been provided please inform your local dealer immediately. Machines which have not been provided with these details MUST NOT BE USED, and should be considered anonymous and potentially dangerous.
-
Page 12: Use The Of Jet Washer
USE WITH CHEMICAL PRODUCTS With the machine shut down, act the device (adjustable head) placed on the lance end to obtain the suction and the distribution of the product; pull the gun trigger to obtain the detergent distribution and start the work. ATTENTION During operation of the machine, it is obligatory to use the appropriate personal safety equipment. - Page 13 LUBRICATION OF THE PUMP For the models 200.15 we recommend: V-TUF Pressure Lube PL100 – OIL CAPACITY 1.2 litres For the models 100.12 we recommend: V-TUF Pressure Lube PL100 – OIL CAPACITY 0.42 kg You should change the oil after the first 50 hours of use, and after each subsequent 500 hours of...
-
Page 14: Transport & Lifting
TRANSPORT – LIFTING – SHIFTING ATTENTION: Whenever the machine needs to be transported, it should be securely fixed with straps, cables or other suitable equipment in order to avoid accidental movement which could cause damage to people or property as well as to the machine itself. ATTENTION: Should the machine need to be lifted, it should be hooked or coupled by means of strips, or suitable lifting equipment which will safeguard the machine’s integrity. - Page 15 STORAGE Park the machine on a flat surface. If the machine is not going to be used for an extended period of time, empty the water circuits and the fuel tank then cover the machine and store it in a place protected from atmospheric extremes.
-
Page 16: Cleaning Applications
Cleaning Applications MARKET SECTOR APPLICATIONS Automotive Cleaning Services, such as car washes, and vehicle cleaning in yards like courier’s fleet of trucks and vans. Public Sector Cleaning outside of hotels and other public eating areas, including car parks, and entrance steps to buildings. Construction Industry Cleaning the outside of buildings, concrete &... -
Page 17: Troubleshooting
Troubleshooting PROBLEMS CAUSES SOLUTIONS The pump turns but does not The pump is sucking in air. Check that the piping is watertight reach the required pressure Worn out valves Replace the valves Worn out valve seat Replace the valve seat Worn out or inadequate water nozzle Replace the water nozzle Worn out gaskets... - Page 18 Presence of water in the pump Worn out oil seal. Replace the oil seal. High percentage of humidity on the Change the oil twice as often as is air. normally prescribed. Gaskets are completely worn out. Replace the gaskets. Excessive noise Air is being sucked in.
- Page 19 Oil discharge from between the Worn out oil seals. Replace the oil seals. pump body and the pump head. Excessive vibrations. Worn out or dirty valves. Replace the valves. The engine does not start. There is no fuel in the tank. Ensure the fuel tank has the correct fuel.
-
Page 20: Accessories & Part List
ACCESSORIES PARTS & LIST ITEM CODE DESCRIPTION TG350SEXTMSQ V-TUF tufGUN350 SWIVEL GUN WITH EXTENSION MSQ MALE INLET x M22F H4.000 500mm LANCE (M22M ~ QUICK RELEASE) B14.5050 QUICK RELEASE JET NOZZLES 0, 15, 25, 40 Degree VTK23810UVYK-HD 10m HIGH PRESSURE QR HOSE... -
Page 21: Spare Couplings & Seals
Spare couplings & seals: V-TUF 276 BAR 4000 PSI MSQ DURAKLIX MSQ DURAKLIX H.P 100oC 05 RED HD TURBO H.P. QR FEMALE QR MALE PLUG 3/8"F NOZZLE x SSQM COUPLING 3/8"F - - B14.9191 - T3.2605SSQ HEAVY DUTY - B14.9190HD MSQ &... -
Page 22: High Pressure Hose Extension Kits
High pressure hose Extension kits: TROLLEY MANUAL WIND V-TUF HOSE REEL with 50M 400 BAR HIGH PRESSURE HOSE - MSQ FITTINGS - V5.1453TR-KIT1 MANUAL WIND SR1 PORTABLE HOSE REEL SUPER SERIES MSQM with 30m 400BAR HOSE xMSQF - V5.132SSC- KIT1MSQ... -
Page 23: Vehicle Ramps
Vehicle ramps: The ideal foldable light weight ramp with a maximum combined load capacity of 600kg (300kg per ramp) For loading wheeled equipment onto vehicles. FOLDING V-TUF RAMP SET - V-RAMP... -
Page 24: Torrent-2 Exploded View
HOSE CLAMP 12 - 22mm (HOSE +- Ø 1/2") BF1201 1/2" 10 BAR WASHFLEX PRO WATER SUPPLY HOSE (per metre) - BF1201 BR3401 HOSE 20BAR - 3/4 V-TUF HEAVY DUTY WASHFLEX WATER HOSE (Per metre) - BR3401 M8FWBZP M8 BZP FLAT WASHER M8NYNUT... - Page 25 Code Description VTDA212 METAL HANDLE WITHOUT GRIPS FOR TORRENT 2 or FRAME 4 VTDA213 HANDLE GRIPS FOR TORRENT 2 or FRAME 4 VTDA214 BOTTOM TANK SCREW FITTING KIT FOR TORRENT 2 or FRAME 4 13/14/15 BOTTOM TANK SCREW FITTING & ELBOW KIT FOR TORRENT 2 or FRAME 4 VTDA215 16/17/18/19 M8 x 50 BZP BOLT...
-
Page 26: Pump Parts View
Super Series Pump XHDH300SS 13.2 litres/min 200 bar VTP KIT 134 XHDH300SS VTP KIT 7 VTP KIT 138 VTP KIT 2 XHDH300SS 200 Bar | 13.2 L/min | 1450 rpm LUBRICATION OF THE PUMP We recommend: VTUF PL100 – OIL CAPACITY 0.42 kg You should change the oil after the rst 50 hours of use, and after each subsequent 500 hours of operation. - Page 27 NOTES...
