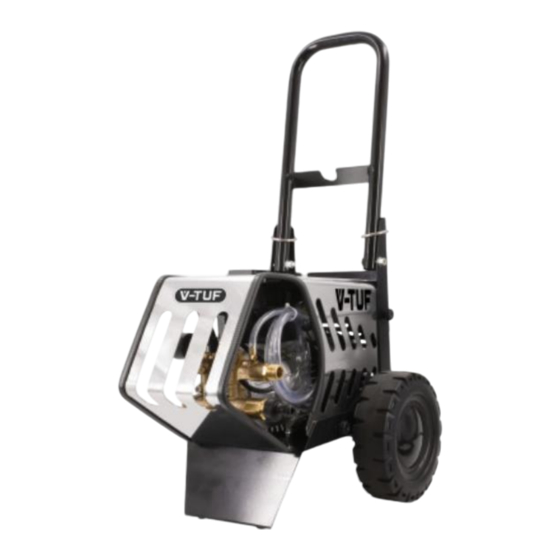

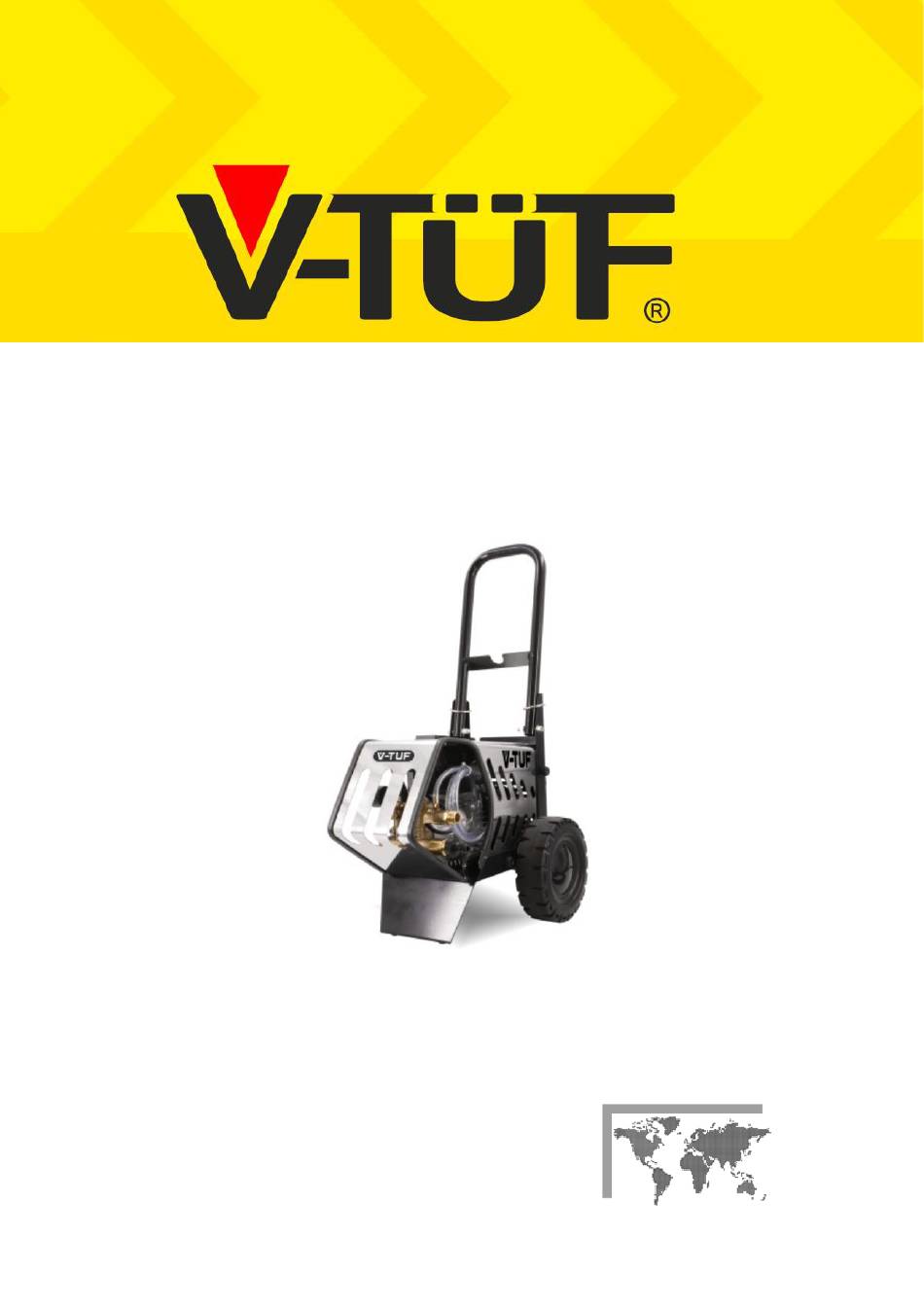

- Page 1 RAPID MSC 240 MEDIUM DUTY ELECTRIC PRESSURE WASHER Product Code: RAPIDMSE240V COLD WATER PRESURE WASHER OPERATORS MANUAL 240 Volt English Operators Manual © V-TUF...
-
Page 2: Table Of Contents
Contents Page No Description / Contents Important safety Instructions Safety Features Precautions Technical Data Identification Data 12-13 Use the of machine Transport & Lifting Cleaning Applications 18 – 20 Troubleshooting Accessories & Part List Notes... -
Page 3: Important Safety Instructions
High pressure cleaners must not be used by children or untrained personnel. High pressure hoses, fittings and couplings are important for the safety of the appliance. Use only hoses, fittings and couplings recommended by V-TUF. Always wear suitable eye, face and body protection. - Page 4 V-TUF, quoting type of machine, matriculation number and the year of manufacture. Trial before shipment The machine has been tested at the manufacturer’s factory by a V-TUF technician to check that all of the components are functioning correctly according to the machine’s specifications. Guarantee Terms...
- Page 5 Checks Upon receipt of the goods, check the condition that they are in. Should they appear damaged, avoid any type of installation and immediately advise the transporter and the supplier. To ascertain the condition of the parcel, proceed to unpack the goods and check that the delivery is complete (check the correspondence with the delivery note), ascertain whether the machine has arrived in generally good condition, free of breakages or dents.
- Page 6 Prior to use, please carefully read the instructions, paying particular attention to "IMPORTANT RECOMMENDATIONS", "SECURITY NORMS" and "PRECAUTIONS". 1. Always turn the machine of at the main on – off switch when not in use. 2. Always start the machine with the trigger open and the water connected. 3.
- Page 7 SECURITY NORMS FOUR SYMBOLS TO REMEMBER General danger Ranger of severe damage to the machine Danger to people Safeguarding the environment Your machine is supplied with electronic apparatus, the use of which requires the observation of the following safety criteria. When using the machine outdoors, do not use when it is raining Take great care not to damage the electrical power supply lead, in case in spite of taking precautions the cable is damaged do not attempt a precarious repair.
- Page 8 Do not use the machine if any of its components are defective. Do not use the machine if there are people in your way. Do not direct the water flow near sources of electricity. Do not place your hands ahead of the lance; high pressure nozzles can be extremely dangerous when used inappropriately.
- Page 9 Erroneous use, therefore, can constitute: unsecured connections (including those of accessories supplied as optional extras), not using original spare parts, repairs undertaken by unauthorised or unqualified personnel, use of the machine for purposes it was not designed for (see improper use), lack of proper maintenance and use of the electrical power supply cable or the high pressure tube to drag or haul the machine around.
-
Page 10: Technical Data
TECHNICAL DATA: Industrial Specification ~ V-TUF RAPIDMSC 240 • WHY BUY? • POWERFULL 130BAR MAX CLEANING PERFORMANCE • SELF-PRIMING PUMP ALLOWS FOR SUCTION FROM SEPARATE IBC OR BARREL • THE ROBUST ROLL CAGE DESIGN FOR EXCELLENT PROTECTION & PORTABILITY •... -
Page 11: Identification Data
MODEL: VTUF RAPID MSC 240 ATTENTION: Check that your V-TUF high pressure washer has been provided with these identification details, if they have not been provided please inform your local dealer immediately. Machines which have not been provided with these details MUST NOT BE USED, and should be considered anonymous and potentially dangerous. - Page 12 USE WITH CHEMICAL PRODUCTS With the machine shut down, act the device (adjustable head) placed on the lance end to obtain the suction and the distribution of the product; pull the gun trigger to obtain the detergent distribution and start the work. 12 | P a g e...
- Page 13 High Pressure spray Chemical spray ATTENTION During operation of the machine, it is obligatory to use the appropriate personal safety equipment. During operation, please pay close attention to the information quoted on the chemical product labels regarding safety and the proper percentages to be used when diluting chemicals. Fill the detergent tank (5) with the product you intend to use for your work and insert the detergent hose suction.
- Page 14 LUBRICATION OF THE PUMP For the models SE130 we recommend: V-TUF Pressure Lube PL500 – OIL CAPACITY 0.5 litres You should change the oil after the first 50 hours of use, and after each subsequent 500 hours of operation.
-
Page 15: Transport & Lifting
TRANSPORT – LIFTING – SHIFTING ATTENTION: Whenever the machine needs to be transported, it should be securely fixed with straps, cables or other suitable equipment in order to avoid accidental movement which could cause damage to people or property as well as to the machine itself. ATTENTION: Should the machine need to be lifted, it should be hooked or coupled by means of strips, or suitable lifting equipment which will safeguard the machine’s integrity. - Page 16 STORAGE Park the machine on a flat surface. If the machine is not going to be used for an extended period of time, empty the water circuits and the fuel tank then cover the machine and store it in a place protected from atmospheric extremes.
-
Page 17: Cleaning Applications
Cleaning Applications MARKET SECTOR APPLICATIONS Automotive Cleaning Services, such as car washes, and vehicle cleaning in yards like courier’s fleet of trucks and vans. Public Sector Cleaning outside of hotels and other public eating areas, including car parks, and entrance steps to buildings. Construction Industry Cleaning the outside of buildings, concrete &... -
Page 18: Troubleshooting
Troubleshooting PROBLEMS CAUSES SOLUTIONS The pump turns but does not The pump is sucking in air. Check that the piping is watertight reach the required pressure Worn out valves Replace the valves Worn out valve seat Replace the valve seat Worn out or inadequate water nozzle Replace the water nozzle Worn out gaskets... - Page 19 Pressure in order on gauge, loss Worn out water nozzle. Replace the nozzle of pressure Crust deposits in the circuit Check and clean; we advise contacting one of our technicians. Presence of water in the pump Worn out oil seal. Replace the oil seal.
- Page 20 Worn out pistons. Replace the pistons. OR piston plug is worn out. Replace the OR piston plug. Oil discharge from between the Worn out oil seals. Replace the oil seals. pump body and the pump head. Excessive vibrations. Worn out or dirty valves. Replace the valves.
- Page 21 ACCESSORIES PARTS & LIST ITEM CODE DESCRIPTION B14.1114 M22M x 3/8M ADAPTOR T1.0607 280 BAR TRIGGER AND ½” LANCE T2.070/B14.11011 700mm LANCE & M22M x 1/4F ADAPTOR 5 & 6 H4.007 ADJUSTABLE VARIO NOZZLE HOLDER T25.04OJ HIGH PRESSURE JET NOZZLE WFK151610KKYK 10m HIGH PRESSURE HOSE 21 |...
- Page 22 Notes: 22 | P a g e...
- Page 23 For more details contact us: UK Head Office: +44 (0) 1522 787978 V-TÜF Unit 5, Chris Sharp Building Till Bridge Lane Scampton, Lincoln LN1 2SX United Kingdom E-mail: enquiries@v-tuf.com Web: www.v-tuf.com Follow us: 23 | P a g e...
