AURA
USER AND CLEANING MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AURA 100 and is the answer not in the manual?

Questions and answers

Related Manuals for tediselmedical AURA 100

Summary of Contents for tediselmedical AURA 100

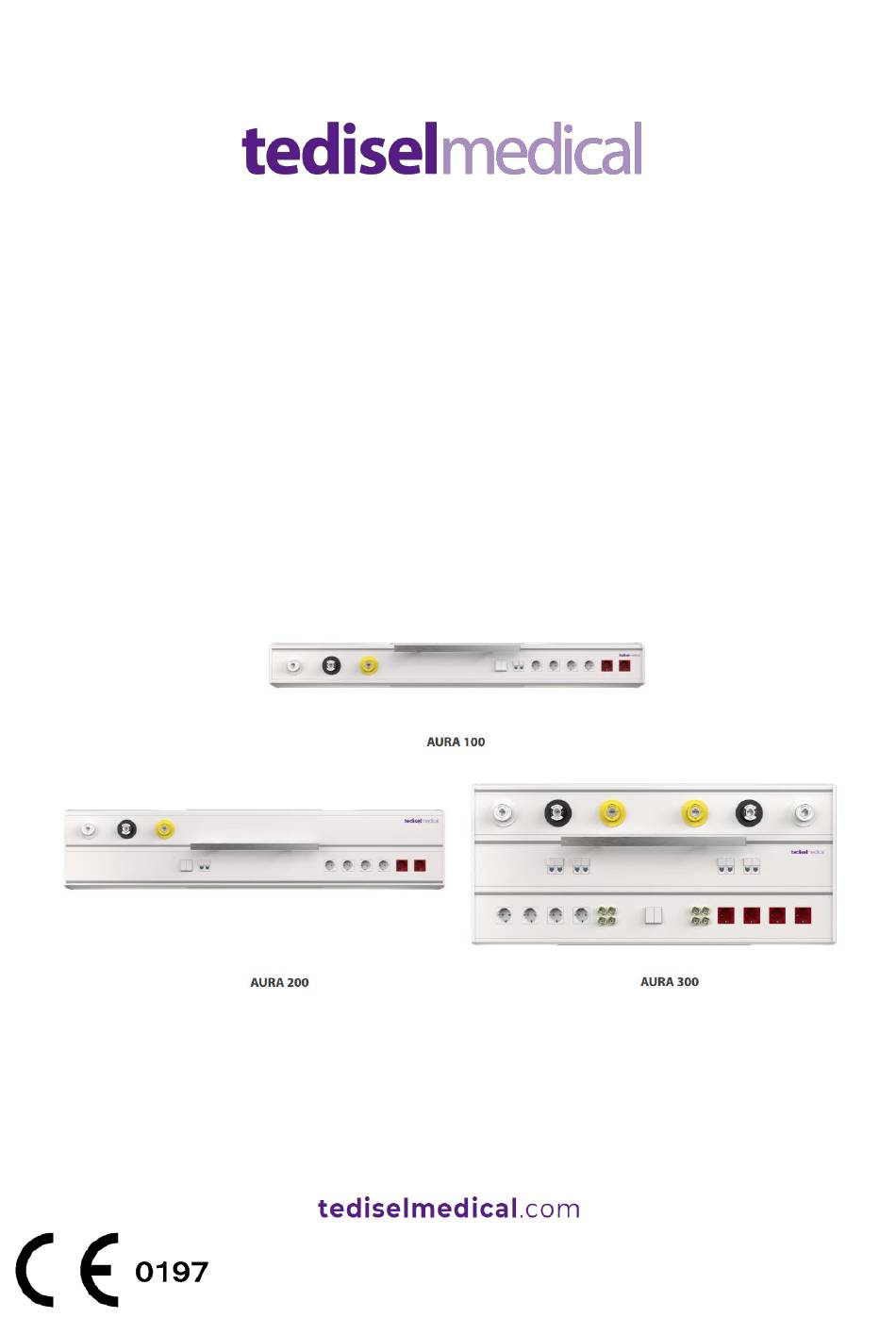

  • Page 1 AURA USER AND CLEANING MANUAL...

  • Page 2: Table Of Contents

    Operating conditions ....................10 5.3. Service life ........................ 10 5.4. Product description ....................11 General characteristics. Aura 100 ............... 11 General characteristics. Aura 200 ............... 13 General characteristics. Aura 300 ............... 15 Other features and configurations ..............17 Intended use........................19 6.1.
  • Page 3 Cleaning ..........................21 Waste management ......................22 User information on warnings ..................22 10.1. Lighting problems ....................22 10.2. Power supply problems ................... 22 10.3. Problems with the supply of medical gases............. 22 Incident warning information ..................22 Regulations ........................23 12.1.

  • Page 4: Manufacturer

    Address: C/ Sant Lluc, 69-81. 08918 - Badalona (Barcelona) SPAIN Tel. +34 933 992 058 Fax +34 933 984 547 tedisel@tedisel.com www.tediselmedical.com 2. Security information Important notes in these operating instructions are marked with graphic symbols and signal words. 2.1 Injury risk warnings Signal words such as DANGER, WARNING or CAUTION describe the degree of risk of injury.

  • Page 5: Warnings Of Risk Of Damage

    2.2 Warnings of risk of damage The signal word WARNING describes the degree of risk of material damage. The triangular symbol visually emphasises the degree of danger. Damage to surfaces: warns of damage to surfaces due to unsuitable cleaning agents and disinfectants. Refers to a potential hazard which, if not avoided, may cause NOTICE damage to the equipment.

  • Page 6: Fire Hazard

    Compressed oxygen presents an explosion hazard: - Make sure that oxygen and gas outlets are free of oil, greasy materials and lubricants! - Do not use cleaning agents containing oil, grease or lubricants. 2.5.2 Fire hazard DANGER: Escaping oxygen is combustible. - Open fire, red-hot objects and open light are not allowed when working with oxygen! - Don't smoke! Oxygen becomes explosive when it comes into contact with oils, greases and lubricants.

  • Page 7: Danger Of Electric Shock

    Signal cables (network, audio, video, etc.) must be electrically isolated from equipment and building connection ends to prevent contact with currents that can cause serious injury or death. To ensure the BASIC SAFETY and ESSENTIAL PERFORMANCE, the following conditions are expected during the intended use: - the electrical outlets work properly - the light modules work properly...
  • Page 8 Protective earth (ground) Connection point for neutral conductor Nurse call button Direct lighting Indirect lighting Operating instructions Health Product Waste electrical equipment CE symbol Product code Unique identification code Serial number INF-001-EN 8 of 26...
  • Page 9 Manufacturer Date of manufacture Reference to the instruction manual Damage to surfaces Fire hazard Danger of explosion Dangerous tension Notice NOTICE Risk of finger entrapment Warning WARNING Caution CAUTION INF-001-EN 9 of 26...

  • Page 10: Product Data

    DANGER Danger 5. Product data This manual refers to the AURA model. This model is part of the SICA family. 5.1. Storage conditions The individual packaging of this type of product consists of a bubble wrap on the inside and a cardboard box on the outside.

  • Page 11: Product Description

    Maximum weight on rail: 25Kg/m Maximum torque over one metre of rail: 50 Nm There are 3 possible versions of the Aura model: Aura 100, Aura 200 and Aura 300. Cables and accessories may be provided by the facility. WARMING: The use of external cables or accessories not provided by Tedisel may negatively affect EMC performance.
  • Page 12 Fig. 2 Sections with additional curved profile of Aura 100 These options are given depending on how the equipment is to be mounted, so the first one corresponds to surface mounting (Aura 100 SS) and the next two correspond to semi-flush mounting (Aura 100 WS).

  • Page 13: General Characteristics. Aura 200

    1. Gas intakes 2. LED strip for direct or reading light 3. LED strip for indirect or ambient lighting 4. Nurse call 5. Double switch for lighting actuation 6. Double RJ45 socket 7. Electrical outlets for power supply of equipment 8.
  • Page 14 Options with additional curved profile: Fig. 5 Sections with additional curved profile Aura 200 These options are given depending on how the equipment is to be mounted, so the first one corresponds to surface mounting (Aura 200 SS) and the next two correspond to semi-flush mounting (Aura 200 WS).

  • Page 15: General Characteristics. Aura 300

    1. Gas intakes 2. LED strip for direct or reading light 3. LED strip for indirect or ambient lighting 4. Nurse call 5. Double switch for lighting actuation 6. Double RJ45 socket 7. Electrical outlets for power supply of equipment 8.
  • Page 16 Options with additional curved profile: Fig. 8 Sections with additional curved profile Aura 300 These options are given depending on how the equipment is to be mounted, so the first one corresponds to surface mounting (Aura 300 SS) and the next two correspond to semi-flush mounting (Aura 300 WS).

  • Page 17: Other Features And Configurations

    1. Gas intakes 2. LED strip for direct or reading light 3. LED strip for indirect or ambient lighting 4. Nurse call 5. Double switch for lighting actuation 6. Double RJ45 socket 7. Electrical outlets for power supply of equipment 8.
  • Page 18 Possibility of gluing vinyl on the front covers. Possibility of gluing phenolic boards from 0.5 to 1 mm thick. The designs or motifs of the vinyl and phenolic panels are subject to the specifications of each project. Possibility of digital printing on the front covers. 5.

  • Page 19: Intended Use

    USB 2.0/3.0/3.1 sockets can be installed. Possibility of installing USB chargers for charging mobile devices and tablets. 12. Future forecasts and/or enlargements Possibility of installing blind covers to provide for elements and their future expansion. 13. Wakefulness pilots Possibility of installing a 1W LED signalling lamp. 14.

  • Page 20: Incorrect Use

    The maximum load capacity of the technical rails, as specified in section 5.4 maximum load of the technical rail on the BHU, must not be exceeded. See section 5.4 of this manual. 7. Use of equipment The specifications of each of the functional elements of the equipment must be taken into account when using the equipment.

  • Page 21: Environment. Environmental Conditions

    7.2. Environment. Environmental conditions Ensure that the ambient conditions are within the prescribed range for proper operation of the equipment • See section 5.2 of this manual. 7.3. Training The personnel performing the installation must be properly trained and qualified by the customer. The equipment must only be USED by authorised personnel.

  • Page 22: Waste Management

    9. Waste management Applies WEE2012/19 and RoHS directive 2011/65/EU, amendment 2015/863/EU. The equipment has electrical and electronic components, so it cannot be disposed of as organic waste, but as electrical/electronic waste. 10. User information on warnings Under no circumstances should the user remove any part of the equipment enclosure to carry out checks.

  • Page 23: Reference Standards

    12. Regulations 12.1. Team ranking According to the new MDD regulation 93/42/EEC on medical devices, this product family is classified Class IIb, by Annex II, excluding section 4, regulation 11. Protection level IP20 according to IEC 60529 Equipment intended for continuous operation. 12.2.
  • Page 24 fluctuations/transients with industrial areas and hospitals (CISPR 11 class A). If it is according to the standard used in a residential ENVIRONMENT (for which CISPR IEC 61000-3-3 11 class B is normally required) this equipment might not offer adequate protection to radio-frequency communication services.
  • Page 25 level. with an uninterruptible power supply or a battery. Short interruptions 100% for 5 s The quality of the supply of the supply voltage voltage should be typical for a according to the Remark: commercial or hospital standard UN is the AC mains environment.
  • Page 26 Transmitter power rating Safety distance depending on emission frequency Environment/Guidelines 150 kHz to 80 80 MHz up to 800 MHz up to 800 MHz 2.5 GHz D = 1,2 P D = 1,2 P D = 2, 3 P 0,01 0,12 0,12 0,23...
