Venus GX (VGX) manual
In many ways the Venus GX (VGX) and the Color Control GX (CCGX) are the same device. They
share a lot of hardware, and they run on identical software - our 'Venus OS' - therefore firmware
numbering is the same; and new version releases always apply to both devices at the same time.
Venus GX/CCGX comparison table
Use the Venus GX / CCGX comparison table in
differences between the two devices at-a-glance.
(This manual refers to the latest firmware version. A device connected to the internet will perform
new-version updates automatically. Check the latest firmware version here.)
1. What's in the Box?

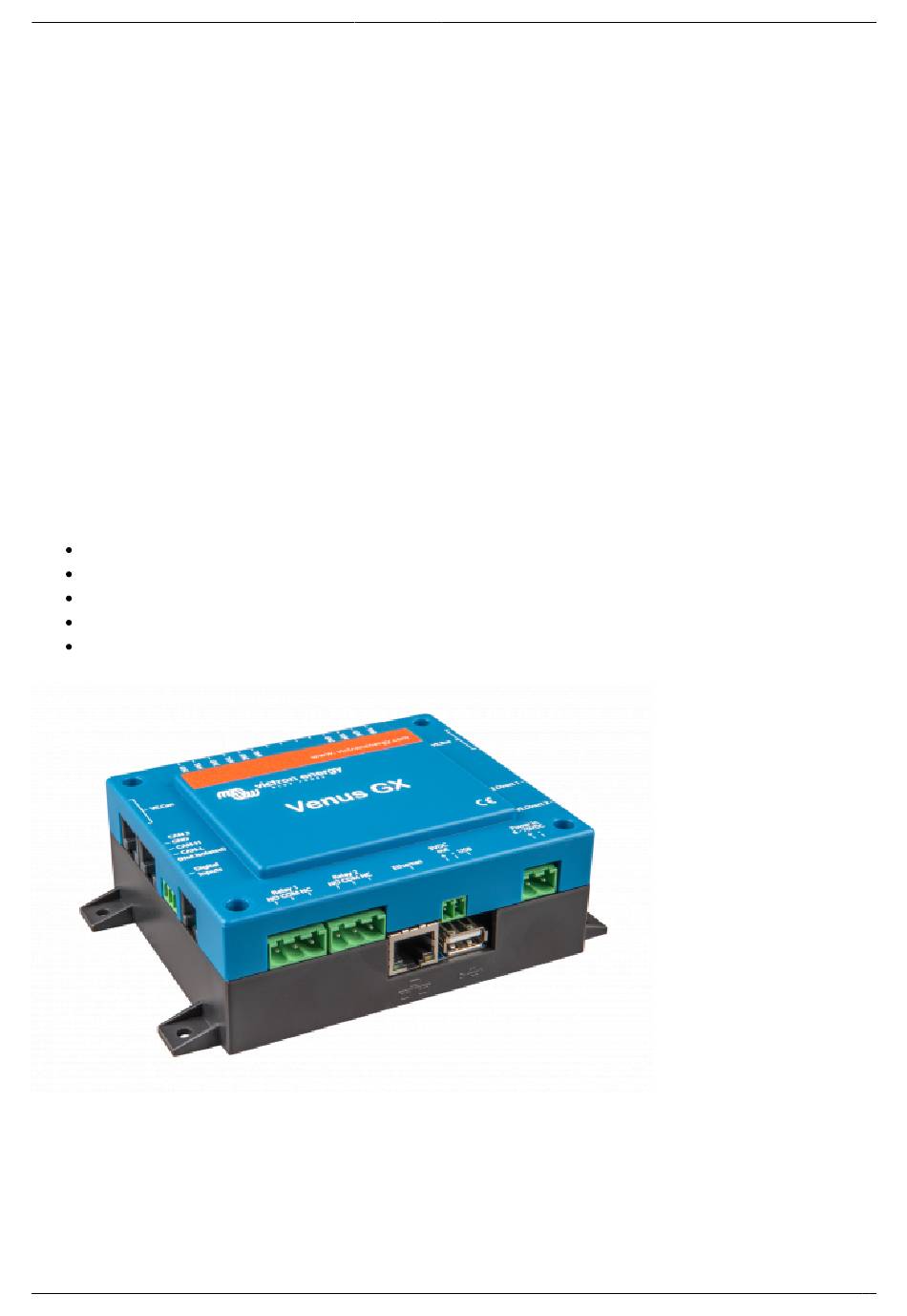

Venus GX (VGX)
VE.Can terminator (2 pcs).
Power cable with inline fuse and M8 terminal eyes for battery- or DC busbar-attachment.
Terminal Blocks for all the connectors on each side.
Label showing wifi key and product details.
Victron Energy - https://www.victronenergy.com/live/
1/11
Paragraph 4. below
Venus GX (VGX) manual
below to see the similarities and
