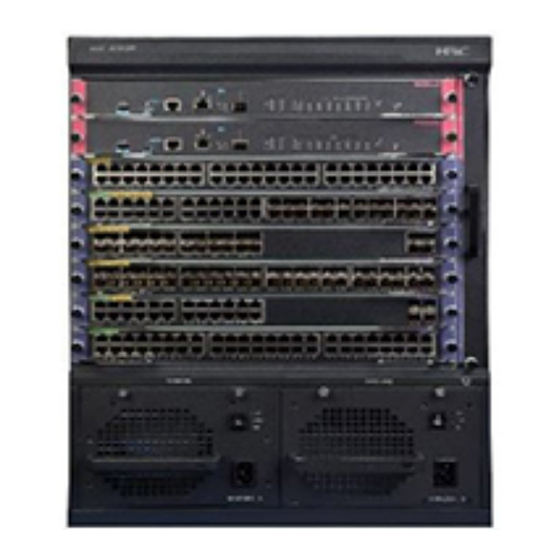

Page 1 H3C S7500E Series Ethernet Switches Installation Manual Hangzhou H3C Technologies Co., Ltd. http://www.h3c.com Manual Version: T2-080406-20080725-C-1.04...
Page 2 Copyright © 2007-2008, Hangzhou H3C Technologies Co., Ltd. All Rights Reserved No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Hangzhou H3C Technologies Co., Ltd. Trademarks H3C, , Aolynk, Care, , TOP G,...
Page 3: About This Manual
About This Manual Organization H3C S7500E Series Ethernet Switches Installation Manual is organized as follows: Chapter Contents Introduces the H3C S7500E Series Ethernet 1 Product Overview Switches in terms of chassis, SRPUs, LPUs, power supply, and fan tray. Specifies the installation requirements of the H3C 2 Installation Preparations S7500E Series Ethernet Switches and presents installation precautions.
Page 4 Conventions The manual uses the following conventions: I. Command conventions Convention Description Boldface The keywords of a command line are in Boldface. italic Command arguments are in italic. Items (keywords or arguments) in square brackets [ ] are optional. Alternative items are grouped in braces and separated by { x | y | ...
Page 5 III. Symbols Convention Description Means reader be extremely careful. Improper operation Warning may cause bodily injury. Means reader be careful. Improper operation may cause Caution data loss or damage to equipment. Note Means a complementary description. Related Documentation In addition to this manual, each H3C S7500E Series Ethernet Switches documentation set includes the following: Manual Description...
Page 6 Environmental Protection This product has been designed to comply with the requirements on environmental protection. For the proper storage, use and disposal of this product, national laws and regulations must be observed.
Page 7: Table Of Contents
Installation Manual H3C S7500E Series Ethernet Switches Table of Contents Table of Contents Chapter 1 Product Overview ......................1-1 1.1 Introduction ........................1-1 1.2 Physical Description of the S7500E Series ............... 1-1 1.2.1 Chassis and Slots ....................1-1 1.2.2 Backplane........................ 1-9 1.2.3 Power Supply System .....................
Page 8 Installation Manual H3C S7500E Series Ethernet Switches Table of Contents 1.5.1 Purchasing a Switch....................1-74 1.5.2 Purchasing SRPUs ....................1-76 1.5.3 Purchasing LPUs....................1-76 1.5.4 Purchasing Optical Modules ................. 1-77 1.5.5 Purchasing Air Filters .................... 1-77 1.5.6 Purchasing Fan Trays ................... 1-78...
Page 9: Chapter 1 Product Overview
Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Chapter 1 Product Overview 1.1 Introduction The S7500E Series Ethernet Switches (hereinafter referred to as the S7500E series) are high performance, cost-effective Layer-3 switches with a large capacity. The S7500E series are designed to operate at the core layer of small- and medium-sized networks, the convergence layer of large enterprise networks, and the convergence and access layers of metropolitan area networks (MANs).
Page 10 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Model Dimensions (H × W × D) S7506E-V 930 × 436 × 420 mm (36.61 × 17.17 × 16.54 in.) Note: The backplane, switching & routing processing unit (SRPU), power modules, and fan tray are all required parts of the S7500E series.
Page 11 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview The two power modules, which sit in the upper part of the chassis provide 1+1 redundancy backup. See callout (1) in Figure 1-1. You can select either AC power supply or DC power supply.
Page 12 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview (1) Power modules (2) SRPUs (in slot 0) (3) Fan tray (4) LPUs (in slot 1 and slot 2) (5) Jack for ESD-preventive wrist strap Figure 1-3 Front panel of the S7503E-S All modules of the S7503E-S are hot swappable.
Page 13 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview There are two DC power input (PoE power supply input) terminals and two COM ports (monitor ports) on the rear panel of the chassis. III. S7503E Figure 1-5 shows the front panel of the S7503E. (1) Fan tray (2) Jack for ESD-preventive wrist strap (3) Power modules...
Page 14 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview (1) Fan tray (2) Jack for ESD-preventive wrist strap (3) Power module (4) LPUs (in slot 2 to slot 7) (5) SRPUs (in slot 0 and slot 1) Figure 1-6 Front panel of the S7506E All the modules of the S7506E are hot swappable.
Page 15 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview (1) Fan tray (2) Jack for ESD-preventive wrist strap (3) Power module (4) LPUs (in slot 0 to slot 4 and slot 7 to slot 11) (5) SRPUs (in slot 5 and slot 6) Figure 1-7 Front panel of the S7510E All the modules of the S7510E are hot swappable.
Page 16 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview VI. S7506E-V Figure 1-8 shows the front panel of the S7506E-V. (1) Fan tray (2) LPUs (in slot 2 to slot 7) (3) Jack for ESD-preventive wrist strap (4) Power module (5) Air filter (6) SRPUs (in slot 0 and slot 1) Figure 1-8 Front panel of the S7506E-V...
Page 17: Backplane
Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview active-standby switchover. Different LPUs are inserted in the other six slots (see callout (2) in Figure 1-8). The fan tray is installed above the SRPUs and LPUs (see callout (1) in Figure 1-8) and the air flows up from the bottom.
Page 18 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Table 1-4 Features of power modules Feature Description Support input under-voltage protection, output Protection functions over-voltage protection, short-circuit protection, over-current protection, and overheat protection 1+1 hot backup support Support 1 + 1 hot backup and current sharing Support hot swap with the power switch turned off Hot swap support while the device is in operation...
Page 19 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Chassis (right) S7503E- S7506E- S7510 S7502E S7503E S7506E Power module (below) PSR2800-AC Note: Y1 means that the power module directly fits the chassis. Y2 means that you need to insert a power module adapter into the chassis and then inserting the power module into the power module adapter.
Page 20 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Note: The PSR320-A uses a 10-A AC power cable. II. PSR320-D (1) Grounding screws (2) RTN terminal (+) of DC input (3) Negative terminal (–) of DC input (–48 V to –60 V) (4) Power switch (5) Power LED (6) Power module handle...
Page 21 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Above the power switch is the power LED. If the power LED is green, the power supply operates normally. If the LED is red, the power supply is abnormal. Table 1-8 Technical specifications of the PSR650-A power module Item Specifications...
Page 22 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview V. PSR1400-A (1) Captive screws (2) Power switch (3) Power LEDs (4) AC power socket (5) Power cable retainer (6) Power module handle Figure 1-13 PSR1400-A power module On the right of the switch are the input LED, output LED, and fan LED. For their colors and descriptions, refer to section 7.2.3 “Troubleshooting PSR1400-A.”...
Page 23 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview VI. PSR1400-D (1) Captive screws (2) COM port for monitoring PoE (3) Power LEDs (4) Negative terminal (–) of DC input (–48 V to –60 V) (5) RTN terminal (+) of DC input (6) Power module handle (7) System power switch (8) PoE power switch...
Page 24 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Table 1-11 Technical specifications of the PSR1400-D DC power module Item Specifications Rated voltage range –48 VDC to –60 VDC Maximum system output power 1400 W Maximum PoE output power 6720 W Dimensions (H ×...
Page 25 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Caution: Keep the PoE power switch in the off position unless the device needs to offer PoE supply and is equipped with appropriate PoE-capable cards. On the right of the panel are the input LED, output LED, fan LED, PoE input LED, and PoE output LED.
Page 26: Fan Tray
Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview When the system power consumption of a switch (S7503E, S7506E, S7506E-V, or S7510E) is less than the maximum output power of a 1U power module, you can first insert the PWR-SPA power module adapters into the switch, and then insert 1U power modules into the power module adapters.
Page 27: Air Filter
Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Model Power consumption (W) S7510E fan tray S7506E-V fan tray 1.2.5 Air Filter Over a long period of time, dust may block the air filter at the air intake vent of the S7500E series.
Page 28: Lsq1Mpua0 Srpu
Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Chassis (right) S7503E S7506E S7502E S7503E S7506E S7510E Engine (below) LSQ1SRP12GB0 (Salience VI-GE) Note: The S7500E series, except the S7503E-S, are a dual-SRPU system. The SRPUs in a chassis must be of the same type. 1.3.2 LSQ1MPUA0 SRPU I.
Page 29 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview III. Panel and LEDs Figure 1-18 shows the front panel of the LSQ1MPUA0. (1) CF card interface and CFS LED (2) Console port (3) 10/100Base-TX Ethernet port for management and LEDs (4) Power and fan tray status LEDs (5) LPU status LEDs (6) ACTIVE LED of LSQ1MPUA0...
Page 30 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Item Specifications Transmission distance 15 m (49.21 ft.) It can be connected to an ASCII terminal. It can be connected to a serial port of a local Functions or remote (through a pair of modems) PC running terminal emulation program.
Page 31 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Table 1-20 Description of the power status LEDs Description ON: The power module works normally. OFF: The power module is faulty or out of position. ON: The power module is faulty, or there is no power input to the power module, or the power switch is turned off.
Page 32: Dedicated S7503E-S Srpu-Lsq1Cgp24Tsc0
Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview VI. RESET button A reset button is provided on the LSQ1MPUA0 for you to reset the card when necessary. 1.3.3 Dedicated S7503E-S SRPU-LSQ1CGP24TSC0 I. Applicable model S7503E-S II. Technical specifications Table 1-23 Technical specifications of the LSQ1CGP24TSC0 Item Specifications...
Page 33 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview IV. On-board interfaces Optical Ethernet ports and Combo ports The LSQ1CGP24TSC0 provides twenty-four 1000Base-X-SFP/100Base-FX-SFP ports and eight 10/100/1000Base-T GE ports. The eight GE ports and eight of the SFP ports can form eight Combo ports, each comprising a GE port and an SFP port.
Page 34 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Note: In a Combo port, only one of the 1000Base-X-SFP/100Base-FX-SFP port and the 10/100/1000Base-T GE port can be used at a time. Each Ethernet port has a green LED. Table 1-26 describes the LEDs. Table 1-26 Description of the LED of each Ethernet port Description OFF: No link is present.
Page 35 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Table 1-28 Specifications of the 10/100Base-TX Ethernet port for management Item Specifications Connector type RJ-45 Number of connectors Interface speed 10/100 Mbps, half/full duplex Connecting cable and maximum Category-5 twisted pair, with a maximum transmission distance transmission distance of 100 m (328.08 ft.) Used for switch software upgrade and...
Page 36: Salience Vi-10Ge Srpu-Lsq1Srp2Xb0
Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Table 1-31 Description of the fan status LEDs Description ON: The fans operate normally. OFF: The fans are faulty or out of position. ON: The fans are faulty or out of position. FAIL OFF: The fans operate normally.
Page 37 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview II. Technical specifications Table 1-33 Technical specifications of the LSQ1SRP2XB0 Item Specifications MIPS64, 600 MHz Boot ROM 512 KB Flash memory 64 MB DDR SDRAM 512 MB Dimensions (H × W × D) 45 ×...
Page 38 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Table 1-34 Description of the CFS LED Status Description No CF card is in position. The CF card is in position. 10GBase-R-XFP Ethernet ports Table 1-35 Specifications of the 10GBase-R-XFP Ethernet ports Item Specifications Connector type...
Page 39 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Item Specifications It can be connected to an ASCII terminal. It can be connected to a serial port of a local Functions or remote (through a pair of modems) PC running terminal emulation program.
Page 40 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Table 1-40 Description of the power status LEDs Description ON: The power modules operate normally. OFF: The power module is faulty or out of position. ON: At least one power module is faulty or switched off. FAIL OFF: The power modules are operational or out of position.
Page 41: Salience Vi Srpu-Lsq1Srpb0
Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview VI. RESET button A reset button is provided on the LSQ1SRP2XB0 for you to reset the card when necessary. 1.3.5 Salience VI SRPU-LSQ1SRPB0 I. Applicable models S7503E S7506E S7510E S7506E-V II.
Page 42 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview IV. On-board interfaces CF card slot The CF card slot can accommodate a standard CF card (Type I or Type II), where you can store host software and logs, and thus upgrade software conveniently. The CF card is hot swappable.
Page 43 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Table 1-46 Specifications of the 10/100Base-TX Ethernet port Item Specifications Connector type RJ-45 Number of interfaces Interface speed 10/100 Mbps, half/full duplex Connecting cable and maximum Category-5 twisted pair, with a maximum transmission distance transmission distance of 100 m (328.08 ft.) Used for switch software upgrade and network...
Page 44: Salience Vi-Turbo Srpu-Lsq1Srp1Cb0
Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Table 1-49 Description of the fan status LEDs Description ON: The fans operate normally. OFF: The fans are faulty or out of position. ON: The fans are faulty or out of position. FAIL OFF: The fans operate normally.
Page 45 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview II. Technical specifications Table 1-51 Technical specifications of LSQ1SRP1CB0 Item Specifications MIPS64, 600 MHz Boot ROM 512 KB Flash memory 64 MB DDR SDRAM 512 MB Card physical 45.1 × 377 × 355 mm (1.77 × 14.84 × 13.98 in.) dimensions (H x W x D) One CF card slot One console port, used for local or remote...
Page 46 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Table 1-52 Description of the CFS LED Status Description No CF card is in position. The CF card is in position. Console port Using an RJ-45 connector, the console port can be connected through a regular asynchronous serial cable directly to a computer for system debugging, configuration, maintenance, management, and host software loading, or to a modem for remote system debugging, configuration, maintenance and management.
Page 47 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Item Specifications Used for switch software upgrade and network Function management Table 1-55 describes the status LEDs of the 10/100Base-TX management Ethernet port. Table 1-55 Description of the status LEDs of the 10/100Base-TX Ethernet port Description OFF: No link is present.
Page 48: Salience Vi-Lite Srpu-Lsq1Mpub0
Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Table 1-57 Description of the fan status LEDs Description ON: The fans operate normally. OFF: The fans are faulty or out of position. ON: The fans are faulty or out of position. FAIL OFF: The fans operate normally.
Page 49 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview II. Technial specifications Table 1-59 Technical specifications of the LSQ1MPUB0 Item Specifications MIPS64, 600 MHz Boot ROM 512 KB Flash memory 64 MB DDR SDRAM 512 MB Dimensions (H x W x D) 45 ×...
Page 50 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Table 1-60 Specifications of the console port Item Specifications Connector type RJ-45 Number of connectors Interface standard Asynchronous EIA/TIA-232 Baud rate 115,200 bps (defaulting to 9,600 bps) Transmission distance 15 m (49.21 ft.) It can be connected to an ASCII terminal.
Page 51 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview V. System LEDs System status LEDs The LEDs on the card panel indicate the statuses of the power modules, fans, LPUs seated in the twelve slots, and LSQ1MPUB0 itself. Power status LEDs PWR: The power status LEDs show the status of the power modules.
Page 52: Salience Vi-Plus Srpu-Lsq1Srpd0
Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Note: If the RUN LED flashes at a high frequency, the card is in the startup process, but is not yet operational. At system startup, the ALM LED will be ON for a while, but it does not mean that the card is faulty.
Page 53 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview III. Panel and LEDs Figure 1-24 shows the front panel of the LSQ1SRPD0. (1) CF card slot and CF card status LED (2) Console port (3) 10/100Base-TX management Ethernet port and (4)Power module and fan status LEDs LEDs (5) LPU status LEDs...
Page 54 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Table 1-68 Specifications of the 10/100Base-TX management Ethernet port Item Specifications Connector type RJ-45 Number of interfaces Interface speed 10/100 Mbps, half/full duplex Cable medium and maximum Category-5 twisted pair, with a maximum transmission distance transmission distance of 100 m (328.08 ft.) Used for switch software upgrade and network...
Page 55: Salience Vi-Ge Srpu-Lsq1Srp12Gb0
Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Table 1-71 Description of the fan status LEDs Description ON: The fans operate normally. OFF: The fans are faulty or out of position. ON: The fans are faulty or out of position. FAIL OFF: The fans operate normally.
Page 56 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview II. Technial specifications Table 1-73 Technical specifications of the LSQ1SR12GB0 Item Specifications Dual CPUs: MIPS64, 600 MHz MIPS64, 400 MHz Boot ROM 512 KB Flash memory 64 MB DDR SDRAM 512 MB Dimensions (H x W x D) 45 ×...
Page 57 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Table 1-74 Description of the CFS LED Status Description No CF card is in position. The CF card is in position. GE/FE SFP ports Table 1-75 presents the specifications of the GE/FE ports. Table 1-75 Specifications of the GE/FE SFP ports Item Specifications...
Page 58 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Table 1-77 Specifications of the console port Item Specifications Connector type RJ-45 Number of connectors Interface standard Asynchronous EIA/TIA-232 Baud rate 115,200 bps (defaulting to 9,600 bps) Transmission distance 15 m (49.21 ft.) It can be connected to an ASCII terminal.
Page 59 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview V. System LEDs System status LEDs The LEDs on the card panel indicate the statuses of the power modules, fans, LPUs seated in the twelve slots, and LSQ1SR12GB0 itself. Power status LEDs PWR: The power status LEDs show the status of the power modules.
Page 60: Lpus
Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Note: If the RUN LED flashes at a high frequency, the card is in the startup process, but is not yet operational. At system startup, the ALM LED will be ON for a while, but it does not mean that the card is faulty.
Page 61: Lsq1Fv48Sa0
Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview II. Panel and LEDs Figure 1-26 LSQ1FP48SA0 panel Each 100M Ethernet optical port has a green LED. Table 1-84 describes the LED. Table 1-84 Description of the LED of each port on the LSQ1FP48SA0 panel Description OFF: No link is present.
Page 62: Lsq1Gp12Ea0
Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview II. Panel and LEDs Figure 1-27 LSQ1FV48SA0 panel Each 10/100M auto-sensing Ethernet electrical port has a green LED. Table 1-86 describes the LED. Table 1-86 Description of the LED of each port on the LSQ1FV48SA0 panel Description OFF: No link is present.
Page 63: Lsq1Gp12Sc0
Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview II. Panel and LEDs Figure 1-28 LSQ1GP12EA0 panel Each 1000Base-X-SFP Ethernet port has a green LED. Table 1-88 describes the LED. Table 1-88 Description of the LED of each port on the LSQ1GP12EA0 panel Description OFF: No link is present.
Page 64: Lsq1Gp24Sc0
Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview II. Panel and LEDs Figure 1-29 LSQ1GP12SC0 panel Each 1000Base-X-SFP/100Base-FX-SFP Ethernet port has a green LED. Table 1-90 describes the LED. Table 1-90 Description of the LED of each port on the LSQ1GP12SC0 panel Description OFF: No link is present.
Page 65: Lsq1Gp48Sc0
Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Item Specifications IEEE 802.3-2005 IEEE 802.1D-2004 Standards IEEE 802.1Q-2003 IEEE802.1X-2004 II. Panel and LEDs Figure 1-30 LSQ1GP24SC0 panel Each 1000Base-X-SFP/100Base-FX-SFP Ethernet port has a green LED. Table 1-92 describes the LED. Table 1-92 Description of the LED of each port on the LSQ1GP24SC0 panel Description OFF: No link is present.
Page 66: Lsq1Gt24Sc0
Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Item Specifications Gigabit SFP module 100 Mbps SFP module Pluggable module type Refer to “Appendix A List of Pluggable Modules.” IEEE 802.3-2005 IEEE 802.1D-2004 Standard IEEE 802.1Q-2003 IEEE802.1X-2004 II. Panel and LEDs Figure 1-31 LSQ1GP48SC0 panel Each 1000Base-X-SFP/100Base-FX-SFP Ethernet port has a green LED.
Page 67: Lsq1Gv48Sa0
Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Item Specifications Number of ports 10/100/1000 Mbps, half/full duplex Interface speed MDI/MDI-X auto-sensing Cable medium and maximum Category-5 twisted pair cables, with a maximum transmission distance transmission distance of 100 m (328.08 ft.) IEEE 802.3-2005 IEEE 802.1D-2004 Standards...
Page 68: Lsq1Gv48Sc0
Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Item Specifications Power consumption 60 W to 80 W Connector type RJ-45 Number of ports 10/100/1000 Mbps, half/full duplex Interface speed MDI/MDI-X auto-sensing Cable medium and maximum Category-5 twisted pair cables, with a maximum transmission distance transmission distance of 100 m (328.08 ft.) IEEE 802.3-2005...
Page 69: Lsq1P24Xgsc0
Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Item Specifications DDR SDRAM 512 MB Dimensions (H x W x D) 40 × 377 × 355 mm (1.57 × 14.84 × 13.98 in.) Power consumption 60 W to 90 W Connector type RJ-45 Number of ports...
Page 70 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Table 1-101 Technical specifications of the LSQ1P24XGSC0 Item Specifications MIPS64, 400 MHz Boot ROM 512 KB DDR SDRAM 512 MB Dimensions (H x W x D) 40 × 377 × 355 mm (1.57 × 14.84 × 13.98 in.) Power consumption 40 W to 55 W Connector type...
Page 71: Lsq1T24Xgsc0
Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Table 1-103 Description of the LEDs of the 10GBase-R-XFP Ethernet port Description OFF: No link is present. LINK ON: A link is present. OFF: No data is being transmitted or received. Blinking: Data is being transmitted or received.
Page 72: Lsq1Tgx1Ea0
Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview II. Panel and LEDs Figure 1-36 LSQ1T24XGSC0 panel Each auto-sensing 10/100/1000Base-T Ethernet port has a green LED. Table 1-105 describes the LED. Table 1-105 Description of the LED of the auto-sensing 10/100/1000Base-T Ethernet port Description OFF: No link is present.
Page 73: Lsq1Tgx2Sc0
Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Item Specifications Number of ports Interface speed 10 Gbps 10G XFP module Pluggable module type Refer to “Appendix A List of Pluggable Modules.” IEEE 802.3-2005 IEEE 802.1D-2004 Standards IEEE 802.1Q-2003 IEEE802.1X-2004 II.
Page 74: Lsq1Gp24Tsc0
Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Item Specifications Power consumption 30 W to 40 W Connector type Number of ports Interface speed 10 Gbps 10G XFP module Pluggable module type Refer to “Appendix A List of Pluggable Modules.” IEEE 802.3-2005 IEEE 802.1D-2004 Standards...
Page 75 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Table 1-111 Technical specifications of the LSQ1GP24TSC0 Item Specifications MIPS64, 400 MHz Boot ROM 512 KB DDR SDRAM 512 MB Dimensions (H x W x D) 40 × 377 × 355 mm (1.57 × 14.84 × 13.98 in.) Power consumption 25 W to 45 W Connector type...
Page 76: Lsq1Gv40Psc0
Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview 1000Base-X-SFP/100Base-FX-SFP 10/100/1000Base-T GE port Ethernet port number number Note: In a Combo port, only one of the 1000Base-X-SFP/100Base-FX-SFP port and the 10/100/1000Base-T GE port can be used at a time. II.
Page 77: Lsq1Pt4Psc0
Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Item Specifications Power consumption 41 W to 95 W Connector type RJ-45 Number of ports 40 RJ-45 + 8 SFP Electrical GE port: 10/100/1000 Mbps Interface speed Gigabit SFP port: 100/1000 Mbps Gigabit SFP module 100 Mbps SFP module Pluggable module type...
Page 78 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Table 1-116 Technical specifications of the LSQ1PT4PSC0 Item Specifications MIPS64, 400 MHz Boot ROM 512 KB DDR SDRAM 512 MB Dimensions (H x W x D) 40 × 377 × 355 mm (1.57 × 14.84 × 13.98 in.) Power consumption 33 W to 40 W Pluggable modules for EPON interfaces: SC...
Page 79: Lsq1Pt8Psc0
Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview EPON port LED status Description status An ONU is registered. Likewise, each 1000Base-X-SFP/100Base-FX-SFP Ethernet port has a green LED. Table 1-118 describes the LED of each 1000Base-X-SFP/100Base-FX-SFP Ethernet port. Table 1-118 Description of the LED of each 1000Base-X-SFP/100Base-FX-SFP Ethernet port Description...
Page 80 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Item Specifications Pluggable modules for EPON interfaces Gigabit SFP module Pluggable module type 100 Mbps SFP module Refer to “Appendix A List of Pluggable Modules.” IEEE 802.3-2005 IEEE 802.1D-2004 Standards IEEE 802.1Q-2003 IEEE802.1X-2004...
Page 81: Lsq1Pt16Psc0
Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview 1.4.18 LSQ1PT16PSC0 I. Introduction The LSQ1PT16PSC0 provides sixteen EPON ports and eight 1000Base-X-SFP/ 100Base-FX-SFP Ethernet ports. Table 1-122 Technical specifications of the LSQ1PT16PSC0 Item Specifications MIPS64, 400 MHz Boot ROM 512 KB DDR SDRAM 512 MB...
Page 82: Ordering Information For The S7500E Series
Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Table 1-123 Description of the EPON port status and the LED status of the LSQ1PT16PSC0 LED status EPON port status Description Down No SFP module is installed. An SFP module is installed but no ONU is registered.
Page 83 Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview II. Switch model Table 1-125 List of the S7500E series models Description Quantity Remarks S7502E switch Optional S7503E-S switch Optional S7503E switch Optional S7506E switch Optional S7510E switch Optional S7506E-V switch Optional III.
Page 84: Purchasing Srpus
Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview 1.5.2 Purchasing SRPUs Table 1-127 List of SRPUs for the S7500E series Type Quantity Remarks Required LSQ1MPUA0 1 to 2 For S7502E only Required LSQ1CGP24TSC0 For S7503E-S only Salience VI-10GE 1 to 2 Required Salience VI...
Page 85: Purchasing Optical Modules
Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview Type Quantity Remarks Determined by the number of LPU slots LSQ1P24XGSC0 Optional provided by the chassis Determined by the number of LPU slots in LSQ1T24XGSC0 Optional the chassis Determined by the number of LPU slots in LSQ1TGX1EA0 Optional the chassis...
Page 86: Purchasing Fan Trays
Installation Manual H3C S7500E Series Ethernet Switches Chapter 1 Product Overview 1.5.6 Purchasing Fan Trays Table 1-130 List of fan trays for the S7500E series Description Quantity Remarks H3C S7502E fan tray 0 to 1 Optional H3C S7503E-S fan tray 0 to 1 Optional H3C S7503E fan tray...
Page 87 Installation Manual H3C S7500E Series Ethernet Switches Tables of Contents Table of Contents Chapter 2 Installation Preparations..................... 2-1 2.1 Safety Instructions ......................2-1 2.1.1 General Instructions ....................2-1 2.1.2 Electrical Safety....................... 2-1 2.1.3 Handling Safety ....................... 2-1 2.1.4 Anti-static Safety ..................... 2-2 2.1.5 Laser Safety ......................
Page 88: Chapter 2 Installation Preparations
Installation Manual H3C S7500E Series Ethernet Switches Chapter 2 Installation Preparations Chapter 2 Installation Preparations 2.1 Safety Instructions To avoid damage to human body and devices, please read the following safety recommendations carefully before installing the S7500E series. The recommendations do not cover every possible hazardous condition.
Page 89: Anti-Static Safety
Installation Manual H3C S7500E Series Ethernet Switches Chapter 2 Installation Preparations Caution: Hold the handles on both sides of the chassis, instead of power handles or the vent of the chassis when moving the switch. Since the power handle or the vent is not designed to bear the weight of the entire chassis, the switch may get damaged or even your body may get hurt if you hold these parts to move the switch.
Page 90: Laser Safety
Installation Manual H3C S7500E Series Ethernet Switches Chapter 2 Installation Preparations 2.1.5 Laser Safety Some LPUs of the S7500E series have optical interfaces. In operating status, it is prohibited to stare into the open optical interface because the laser being transmitted through the optical fiber will produces a small beam of light, it has very high power density and is invisible to human eyes, when a beam of light enters the eye, retina may be burned.
Page 91: Cleanness Requirements
Installation Manual H3C S7500E Series Ethernet Switches Chapter 2 Installation Preparations 2.2.2 Cleanness Requirements Dust is a big harm for the normal operation of the switch. The indoor dust accumulated on the chassis can cause electrostatic adsorption, resulting in the poor contact of the connector or metal contact point.
Page 92: Grounding Requirements
Installation Manual H3C S7500E Series Ethernet Switches Chapter 2 Installation Preparations Keep the switch far away from the radio launcher, radar launcher, and high-frequency devices working in high currents. If necessary, adopt electromagnetic shield. 2.2.4 Grounding Requirements A good grounding system is the basis for a switch to work stably and reliably and the important guarantee of lightning protection, anti-interference and ESD.
Page 93: Installation Tools
Installation Manual H3C S7500E Series Ethernet Switches Chapter 2 Installation Preparations 2.4 Installation Tools Table 2-4 Required installation tools list Type Name Tools Measure and Long tape, ruler (of 1 meter), gradienter, marking lineation tools pen, powder marker and pencil A percussion drill, several auxiliary drill bits, a Drills vacuum cleaner...
Page 94 Installation Manual H3C S7500E Series Ethernet Switches Tables of Contents Table of Contents Chapter 3 Hardware Installation ....................3-1 3.1 Confirming Installation Preparations.................. 3-1 3.2 Installation Flowchart ......................3-1 3.3 Mounting a Switch to the Designated Position ..............3-2 3.3.1 Mounting a Switch into a Cabinet................3-2 3.3.2 Mounting a Switch on a Workbench................
Page 95: Chapter 3 Hardware Installation
Installation Manual H3C S7500E Series Ethernet Switches Chapter 3 Hardware Installation Chapter 3 Hardware Installation Note: The S7500E series are designed for indoor application. 3.1 Confirming Installation Preparations Make sure that you have read Chapter 2 carefully All requirements introduced in Chapter 2 are satisfied. 3.2 Installation Flowchart Start Start...
Page 96: Mounting A Switch To The Designated Position
Installation Manual H3C S7500E Series Ethernet Switches Chapter 3 Hardware Installation 3.3 Mounting a Switch to the Designated Position 3.3.1 Mounting a Switch into a Cabinet After purchasing an S7500E Ethernet switch, you can mount the switch into an H3C N68 cabinet or a standard 19”...
Page 97: Mounting A Switch On A Workbench
Installation Manual H3C S7500E Series Ethernet Switches Chapter 3 Hardware Installation Mount weight-bearing guide rails on the N68 cabinet based on the installation position of the switch. (Two types of weight-bearing guide rails are available. One is small guide rails and applicable to the S7502E and S7503E-S. The other is large guide rails and applicable to the S7500E series other than the S7502E and S7503E-S.) Mount the cable rack and mounting ears on the switch.
Page 98 Installation Manual H3C S7500E Series Ethernet Switches Chapter 3 Hardware Installation Note: The S7500E series provide dual grounding screws in compliance with the NEBS standard to deliver high reliability. Generally, the cabinet has a grounding strip. The grounding cable of the switch can be connected to the grounding strip of the cabinet.
Page 99 Installation Manual H3C S7500E Series Ethernet Switches Chapter 3 Hardware Installation Ethernet Switch Grounding screw Power input Protection g rounding cable Ground Angle steel Figure 3-4 Connect the protection grounding cable to the grounding body nearby If there is no grounding strip and no grounding body can be buried, the AC-powered Ethernet switch can be grounded through the PE wire of the AC power supply.
Page 100: Installing Switch Modules
Installation Manual H3C S7500E Series Ethernet Switches Chapter 3 Hardware Installation Ethernet Switch AC/DC power box - 48V strip - 48V RTN strip DC power input PGND strip Grounding screw Ground Figure 3-6 Ground a DC-powered Ethernet switch through the RTN wire of a power cabinet 3.5 Installing Switch Modules For the procedure for installing cards, power modules, and fan tray, refer to Chapter 5...
Page 101 Installation Manual H3C S7500E Series Ethernet Switches Chapter 3 Hardware Installation Figure 3-8 Connect the AC power cable for the PSR320-A (II) To connect the AC power cable for the PSR320-A, proceed as follows: Plug one end of the AC power cable into the socket on the switch and lock the cable with the power cable retainer.
Page 102: Connecting The Dc Power Cables
Installation Manual H3C S7500E Series Ethernet Switches Chapter 3 Hardware Installation Plug the other end into the AC power socket strip, which is connected to the AC power supply in the equipment room. IV. PSR2800-ACV power module There are two AC power inputs on the PSR2800-ACV power module, one for system power and the other for PoE power.
Page 103 Installation Manual H3C S7500E Series Ethernet Switches Chapter 3 Hardware Installation Loosen the fastening screw on the wiring terminal with a Phillips screwdriver. Connect the end of the blue DC power cable marked with – to the negative terminal (–) on the power module and fasten the screw. Connect the end of the black DC power cable marked with + to the RTN (+) terminal on the power module and fasten the screw.
Page 104: Connecting Poe Power Cables
Installation Manual H3C S7500E Series Ethernet Switches Chapter 3 Hardware Installation Loosen the fastening screws on the protection cover with a Phillips screwdriver and remove the protection cover. There are two flat washers, one spring washer, and one fastening nut M6 from inside to outside on each wiring terminal. Loosen the fastening nut on four wiring terminals with a socket wrench M6 and remove the fastening nut, spring washer and one flat washer in turn.
Page 105 Installation Manual H3C S7500E Series Ethernet Switches Chapter 3 Hardware Installation Note: When you use PSR1400-D modules to provide PoE supply to attached devices and there are more than three PoE-capable LPUs in the switch, you are recommended to use 0AWG cables with a cross section area of 50 mm to ensure the steady and safe operation of the switch.
Page 106: Connecting Interface Cables
Installation Manual H3C S7500E Series Ethernet Switches Chapter 3 Hardware Installation Remove the protection cover from the terminals which are used to connect the external PoE power supply. Use a socket wrench M5 to loosen the fastening nut on the input terminal of the switch, and a socket wrench M8 to loosen the fastening nut on the output terminal of the external PoE power supply.
Page 107: Connecting The Aux Cable (Optional)
Installation Manual H3C S7500E Series Ethernet Switches Chapter 3 Hardware Installation Table 3-1 Console cable pinouts Pin (RJ-45) Signal Pin (DB-9) Signal II. Connecting the console cable Take the following steps to connect the console cable, when configuring the switch on the terminal.
Page 108: Connecting The Com Cable
Installation Manual H3C S7500E Series Ethernet Switches Chapter 3 Hardware Installation 3.7.3 Connecting the COM Cable I. Introduction When connected to an external PoE power supply, the S7500E series can monitor the running status of the external PoE power supply through the COM port. The COM ports (one RS-485 port and one RS-232 port) of the S7502E and the S7503E-S are located on the rear panel of the chassis.
Page 109 Installation Manual H3C S7500E Series Ethernet Switches Chapter 3 Hardware Installation Figure 3-15 RJ-45 connector Table 3-2 RJ-45 MDI interface pinouts 10Base-T/100Base-TX 1000Base-T Signal Function Signal Function Send data BIDA+ Bi-directional data cable A+ Send data BIDA- Bi-directional data cable A- Receive data BIDB+ Bi-directional data cable B+...
Page 110: Connecting Fibers
Installation Manual H3C S7500E Series Ethernet Switches Chapter 3 Hardware Installation 10Base-T/100Base-TX 1000Base-T Signal Function Signal Function Reserved — BIDD- Bi-directional data cable D- Send data BIDA- Bi-directional data cable A- Reserved — BIDC+ Bi-directional data cable C+ Reserved — BIDC- Bi-directional data cable C- Note:...
Page 111: Cabling
Installation Manual H3C S7500E Series Ethernet Switches Chapter 3 Hardware Installation Figure 3-17 LC connector II. Connecting fibers Remove the protective cap from the connector of the fiber and clean the surface of the fiber. Remove the protective cap from the optical interface of the switch, and plug one end of the fiber into this interface.
Page 112: General Cabling Requirements
Installation Manual H3C S7500E Series Ethernet Switches Chapter 3 Hardware Installation equipment room (whether the signal cable of the room is accessed from the cabling rack on the top of the chassis or the cabling rack under the floor.) Collect all the transit data signal cable connectors and locate them on the floor of the chassis (instead of any places outside the chassis for fear of unexpected damage).
Page 113: Precautions For Cable Binding
Installation Manual H3C S7500E Series Ethernet Switches Chapter 3 Hardware Installation 3.9.2 Precautions for Cable Binding Bind the cables straight in the cabinet. No twisting or bending. Figure 3-18 Cable binding example I The radius of the curve at which a cable is bent should be at least twice the cable’s diameter.
Page 114 Installation Manual H3C S7500E Series Ethernet Switches Chapter 3 Hardware Installation Figure 3-19 Cable binding example II Before bending the cables, bind them first. Mind that no tie binds the bended part of any cables, for fear of cable core breaking due to excessive stress. See the following figure.
Page 115 Installation Manual H3C S7500E Series Ethernet Switches Chapter 3 Hardware Installation (1) (2) (3) (4) (1) Flat washer (2) Flat washer (3) Spring washer (4) Fastening nut Figure 3-21 Cable fixing example Fix the terminal of harder power cables to free the terminal and the cable from stress;...
Page 116: Checking The Installation
Installation Manual H3C S7500E Series Ethernet Switches Chapter 3 Hardware Installation 3.10 Checking the Installation Caution: Confirm that you have turned off the power before check; otherwise, improper connection will hurt people or the component of the switch. After installing the switch, please check if the items listed in the following table are normal.
Page 117 Installation Manual H3C S7500E Series Ethernet Switches Table of Contents Table of Contents Chapter 4 System Commissioning ....................4-1 4.1 Configuration Environment Setup..................4-1 4.1.1 Setting up Networking Environment................ 4-1 4.1.2 Connecting the Console Cable ................4-1 4.1.3 Setting Terminal Parameters .................. 4-1 4.2 Power-On Startup ......................
Page 118: Setting Terminal Parameters
Installation Manual H3C S7500E Series Ethernet Switches Chapter 4 System Commissioning Chapter 4 System Commissioning 4.1 Configuration Environment Setup 4.1.1 Setting up Networking Environment A terminal (a PC in this example) is connected to the console port of the switch with a console cable.
Page 119 Installation Manual H3C S7500E Series Ethernet Switches Chapter 4 System Commissioning Start PC and run the terminal emulator (such as Terminal on Windows3.1, and the HyperTerminal on Windows95/Windows98/Windows 2000/Windows NT/Windows ME/Windows XP). Set the parameters for Windows XP HyperTerminal as follows: Bits per second: 9600 Data bits: 8.
Page 120 Installation Manual H3C S7500E Series Ethernet Switches Chapter 4 System Commissioning Figure 4-3 Set serial port for HyperTerminal connection After selecting serial ports, click OK. The following interface will pop up for setting serial port parameters. Set bits per second to 9600, data bits to 8, parity to none, stop bits to 1 and flow control to none.
Page 121 Installation Manual H3C S7500E Series Ethernet Switches Chapter 4 System Commissioning After setting serial port parameters, click OK. Then the system will enter the HyperTerminal dialogue box as shown in the following figure. Figure 4-5 HyperTerminal interface In the above dialogue box, select Properties and enter the window. Click the Settings tab to set the attributes (see the following figure).
Page 122: Power-On Startup
Installation Manual H3C S7500E Series Ethernet Switches Chapter 4 System Commissioning Figure 4-6 Set terminal emulation in the property setting window 4.2 Power-On Startup 4.2.1 Check before Power-On Before powering on an Ethernet Switch, check if: The switch has been mounted steadily. All the cards have been correctly installed.
Page 123: Check After Power-On (Recommended)
Installation Manual H3C S7500E Series Ethernet Switches Chapter 4 System Commissioning Caution: Before powering on the switch, make sure where the power switch of the equipment room is located, so that you will be able to power off when meeting accidence. 4.2.2 Power-On Turn on the power supply of the switch.
Page 124 Installation Manual H3C S7500E Series Ethernet Switches Chapter 4 System Commissioning BUS Clock Speed : 66Mhz BOOT_FLASH type : M29W040B Flash Size : 64MB Memory Size : 512MB Main board slot 0 self testing......SDRAM Data lines selftest.........OK! SDRAM Address lines selftest......OK! SDRAM fast selftest........OK! CPLD selftest..........OK! FPGA selftest..........OK!
Page 125 Installation Manual H3C S7500E Series Ethernet Switches Chapter 4 System Commissioning Note: H3C S7500E series switches provide a variety of command views. For the specific descriptions on the configuration commands and command line interfaces, refer to Operation Manual and Command Manual of the H3C S7500E Series Ethernet Switches.
Page 126 Installation Manual H3C S7500E Series Ethernet Switches Table of Contents Table of Contents Chapter 5 Hardware Maintenance....................5-1 5.1 Required Tools........................5-1 5.2 Removing and Installing a Power Module ................. 5-1 5.2.1 Removing and Installing a Power Module............... 5-2 5.3 Removing and Installing Cards..................5-3 5.3.1 Removing a Card ....................
Page 127: Chapter 5 Hardware Maintenance
Installation Manual H3C S7500E Series Ethernet Switches Chapter 5 Hardware Maintenance Chapter 5 Hardware Maintenance Caution: The power modules of the S7500E series are hot-swappable. When installing or replacing an in-service power module, pay attention to operations and electrical safety. Do not touch any naked wire, terminal or any part of the product labeled with a dangerous voltage to avoid injury.
Page 128: Removing And Installing A Power Module
Installation Manual H3C S7500E Series Ethernet Switches Chapter 5 Hardware Maintenance 5.2.1 Removing and Installing a Power Module I. Removing a power module Figure 5-1 Remove a power module Follow these steps to install a power module: Wear an ESD-preventive wrist strap and loosen the captive screws on the power ①...
Page 129: Removing And Installing Cards
Installation Manual H3C S7500E Series Ethernet Switches Chapter 5 Hardware Maintenance II. Installing a power module Install a power module in the opposite order you remove it: Put on an ESD-preventive wrist strap and take a new power module out of its package.
Page 130: Removing A Card
Installation Manual H3C S7500E Series Ethernet Switches Chapter 5 Hardware Maintenance 5.3.1 Removing a Card Figure 5-2 Remove a card Follow these steps to remove a card: Wear an ESD-preventive wrist strap and loosen the captive screws on the card ①...
Page 131: Installing A Card
Installation Manual H3C S7500E Series Ethernet Switches Chapter 5 Hardware Maintenance 5.3.2 Installing a Card Install a card in the opposite way you remove it: Wear an ESD-preventive wrist strap and loosen the captive screws on the blank panel on the slot, where the card should be inserted. Hold the card by the front panel with one hand and hold the card bottom with the other hand (do not touch its circuit).
Page 132: For The S7506E-V
Installation Manual H3C S7500E Series Ethernet Switches Chapter 5 Hardware Maintenance 5.4.1 For the S7506E-V I. Removing the fan tray Figure 5-3 Removing the fan tray of the S7506E-V Follow these steps to remove the fan tray of the S7506E-V: Wear an ESD-preventive wrist strap and loosen the captive screws on the fan tray ①...
Page 133: For The Other Models
Installation Manual H3C S7500E Series Ethernet Switches Chapter 5 Hardware Maintenance Tighten the captive screws with a screwdriver. Push the handle into the groove. 5.4.2 For the Other Models I. Removing the fan tray Figure 5-4 Remove the fan tray of the other models Follow these steps to remove the fan tray of other models: Wear an ESD-preventive wrist strap and loosen the captive screws on the fan tray with a screwdriver (see callout ①...
Page 134: Installing Cabling Racks On The S7506E-V
Installation Manual H3C S7500E Series Ethernet Switches Chapter 5 Hardware Maintenance be installed in the lower part of the chassis. However, they are installed in the same way. The mounting ears of the S7500E series are installed in the same way. 5.5.1 Installing Cabling Racks on the S7506E-V (1) Upward cabling rack (2) Downward cabling rack...
Page 135 Installation Manual H3C S7500E Series Ethernet Switches Chapter 5 Hardware Maintenance （1）（2） (1) Left mounting ear (2) Cabling rack Figure 5-6 Install the cabling rack onto the left mounting ear II. Installing the mounting ears and cabling rack onto the chassis (1) Mounting ear and cabling rack (2) Mounting ear Figure 5-7 Install the mounting ears and cabling rack...
Page 136: Installing And Removing Air Filters (Optional)
Installation Manual H3C S7500E Series Ethernet Switches Chapter 5 Hardware Maintenance 5.6 Installing and Removing Air Filters (Optional) 5.6.1 Installing and Removing Air Filters onto/from the S7506E-V Figure 5-8 Install a rear air filter on the S7506E-V Figure 5-9 Install a front air filter on the S7506E-V I.
Page 137: Installing And Removing An Air Filter Onto/From The Other Models
Installation Manual H3C S7500E Series Ethernet Switches Chapter 5 Hardware Maintenance Remove the air filters from the chassis. 5.6.2 Installing and Removing an Air Filter onto/from the Other Models Figure 5-10 Install an air filter (on the S7503E) I. Installing an air filter Follow these steps to install an air filter on the chassis: ①...
Page 138: Installing And Removing A Cf Card
Installation Manual H3C S7500E Series Ethernet Switches Chapter 5 Hardware Maintenance 5.7 Installing and Removing a CF Card 5.7.1 CF Card Slot and CFS LED (1) CFS LED (2) CF card (3) CF card eject button Figure 5-11 CF card slot and CFS LED 5.7.2 Install a CF Card Figure 5-12 Install a CF card Follow these steps to install a CF card:...
Page 139 Installation Manual H3C S7500E Series Ethernet Switches Chapter 5 Hardware Maintenance Note: If you want to use the CF card after you execute the umount command, you can execute the mount command in user view to mount the CF card again. For detailed descriptions about the mount and umount commands, refer to the file system management commands in S7500E Series Ethernet Switches Command Manual.
Page 140 Installation Manual H3C S7500E Series Ethernet Switches Table of Contents Table of Contents Chapter 6 Software Maintenance....................6-1 6.1 Software Maintenance Overview ..................6-1 6.2 Upgrading Through the Boot Menu ................... 6-1 6.2.1 BOOT Menu ......................6-2 6.2.2 Downloading Through the Management/Upgrade Ethernet Port Using TFTP ....6-3 6.2.3 Downloading Through the Management/Upgrade Ethernet Port Using FTP ..
Page 141: Chapter 6 Software Maintenance
Installation Manual H3C S7500E Series Ethernet Switches Chapter 6 Software Maintenance Chapter 6 Software Maintenance 6.1 Software Maintenance Overview Software maintenance of a switch means to upgrade the switch host software and Boot ROM through the host software package, which contains the host software and the Boot ROM program, and is with the extension name of .app (S7500E.app for example).
Page 142: Boot Menu
Installation Manual H3C S7500E Series Ethernet Switches Chapter 6 Software Maintenance of the SRPUs through the boot menu, refer to section 6.2.6 “Updating Boot ROM Through a File on the Flash” on page 6-15. 6.2.1 BOOT Menu Upon power-on, the switch will run the Boot ROM program first. The following information will be displayed on the terminal: Starting..
Page 143: Downloading Through The Management/Upgrade Ethernet Port Using Tftp
Installation Manual H3C S7500E Series Ethernet Switches Chapter 6 Software Maintenance Press Ctrl+B. The system prompts you to input the Boot ROM password: Password : Note: To enter the boot menu, press Ctrl+B within 5 seconds after “Press Ctrl+B to enter Boot Menu...”...
Page 144 Installation Manual H3C S7500E Series Ethernet Switches Chapter 6 Software Maintenance II. Downloading the host software package Connect the switch to the PC that stores the file to be downloaded through the management/upgrade Ethernet port (the IP address of the PC is required). Connect the switch to a PC through the console port (the two PCs can be the same one).
Page 145: Downloading Through The Management/Upgrade Ethernet Port Using Ftp
Installation Manual H3C S7500E Series Ethernet Switches Chapter 6 Software Maintenance Attaching network interf Prepare for loading...OK! Loading..........................................................................................................................................done! Free flash Space : 65932288 bytes Writing flash......................................................................................................done! 1.
Page 146 Installation Manual H3C S7500E Series Ethernet Switches Chapter 6 Software Maintenance In the following example, the switch functions as an FTP client. II. Loading the host software package Connect the switch to the PC that stores the file to be downloaded through the management/upgrade Ethernet port.
Page 147 Installation Manual H3C S7500E Series Ethernet Switches Chapter 6 Software Maintenance Type Y and press Enter. The system starts program downloading and upon its completion automatically starts to write the program to the Flash. The system displays the following information upon the completion of the downloading process: Attached TCP/IP interface to sbe1.
Page 148: Downloading Through The Console Port Using Xmodem
Installation Manual H3C S7500E Series Ethernet Switches Chapter 6 Software Maintenance 6.2.4 Downloading Through the Console Port Using XMODEM I. Introduction to XMODEM The XMODEM protocol is a file transfer protocol widely used due to its simplicity and good performance. XMODEM transfers files through the console port, supporting data packets of 128 bytes and 1 KB.
Page 149 Installation Manual H3C S7500E Series Ethernet Switches Chapter 6 Software Maintenance 3. Set XMODEM protocol parameter 0. Return to boot menu Enter your choice(0-4): 3 Load File name :update.app Enter the file name to enter the download baud rate menu: Please select your download baudrate: 1.
Page 150 Installation Manual H3C S7500E Series Ethernet Switches Chapter 6 Software Maintenance Figure 6-1 Properties dialog box 6-10...
Page 151 Installation Manual H3C S7500E Series Ethernet Switches Chapter 6 Software Maintenance Figure 6-2 Console port configuration dialog box Click Connect to re-establish a connection with the switch and press Enter to download the program. The terminal displays the following information: Now please start transfer file with XMODEM protocol.
Page 152 Installation Manual H3C S7500E Series Ethernet Switches Chapter 6 Software Maintenance Click Send. The system displays the following interface. Figure 6-4 File sending interface After the downloading is completed, the system displays the following information: Loading ...CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC.done! Free flash Space : 65932288 bytes Writing flash..............
Page 153: Setting The Main And Backup Host Software Through The Boot Menu
Installation Manual H3C S7500E Series Ethernet Switches Chapter 6 Software Maintenance To complete the host software upgrade, you need to set the main/backup attribute of the host software. For details, refer to 6.2.5 “Setting the Main and Backup Host Software Through the Boot Menu” on page 6-13. If you need to upgrade the Boot ROM on the SRPUs through the boot menu, refer to section 6.2.6 “Updating Boot ROM Through a File on the Flash”...
Page 154 Installation Manual H3C S7500E Series Ethernet Switches Chapter 6 Software Maintenance Flash Free Space : 21444608 bytes The current application file is :SWITCH000.app The backup application file is : SWITCH100.app The system displays all files on the Flash, wherein the file number with an asterisk (*) is the main boot file and the one with a hyphen (-) is the backup boot file.
Page 155: Updating Boot Rom Through A File On The Flash
Installation Manual H3C S7500E Series Ethernet Switches Chapter 6 Software Maintenance Note: If you do not specify the backup boot file but the main boot file only, the system boots with the main boot file. If the main boot file has an error, the system randomly chooses an application file for booting.
Page 156 Installation Manual H3C S7500E Series Ethernet Switches Chapter 6 Software Maintenance The backup boot file has not been selected. Please input the file number:0 Enter file number 0 to select to upgrade the Boot ROM program through the host software package. The system prompts you whether to upgrade the Boot ROM program through the host software package.
Page 157: Upgrading Through Command Lines
Installation Manual H3C S7500E Series Ethernet Switches Chapter 6 Software Maintenance 6.3 Upgrading Through Command Lines If your terminal is connected to the switch over a network, you can upgrade the Boot ROM program and host software through command lines. 6.3.1 Upgrading Using FTP Run the FTP Server on the local PC (assume its IP address is 10.10.110.1).
Page 158: Upgrading Using Tftp
Installation Manual H3C S7500E Series Ethernet Switches Chapter 6 Software Maintenance Bootrom update succeeded. Set the main and backup boot files. Set the main boot file. <H3C>boot-loader file flash:/ SWITCH002.app slot 0 main This command will set boot file of the specified board, Continue? [Y/N]:y The specified file will be used as a main boot file at the next time! Set the backup boot file.
Page 159 Installation Manual H3C S7500E Series Ethernet Switches Chapter 6 Software Maintenance The host software package for upgrade is S7502E002.app. The host software package the system currently runs is S7502E001.app. Slot 0 is for the active SRPU. Slot 1 is for the standby SRPU. Slot 3 is for an LPU.
Page 160 Installation Manual H3C S7500E Series Ethernet Switches Chapter 6 Software Maintenance Start accessing bootflash chip... Board has finished to load file in Frame 0 Slot 3. Bootrom update succeeded. Upgrade the Boot ROM program on the active SRPU. <H3C> bootrom update file flash:/ S7502E002.app slot 0 This command will update bootrom file on the specified board(s), Continue? [Y/N]:y Now updating bootrom, please wait...
Page 161: Upgrading Through The Boot Menu
Installation Manual H3C S7500E Series Ethernet Switches Chapter 6 Software Maintenance This command will set boot file of the specified board, Continue? [Y/N]:y The specified file will be used as a backup boot file at the next time! Note: The host software package on the active SRPU can be used to upgrade Boot ROM on both the active SRPU and the LPU.
Page 162: Handling Upgrade Failure
Installation Manual H3C S7500E Series Ethernet Switches Chapter 6 Software Maintenance After the system is rebooted, upgrade the Boot ROM program on the LPU through command lines. For the command lines, refer to section 6.4.1 I. 2)”Upgrade the Boot ROM program.” on page 6-18. Caution: The software of the SRPUs and LPUs must be consistent so that the S7500E series can work normally.
Page 163 Installation Manual H3C S7500E Series Ethernet Switches Table of Contents Table of Contents Chapter 7 Troubleshooting ......................7-1 7.1 Troubleshooting the Configuration System ............... 7-1 7.1.1 No Display on the Terminal..................7-1 7.1.2 Illegible Characters on the Terminal ............... 7-2 7.2 Troubleshooting Power Modules ..................
Page 164: Chapter 7 Troubleshooting
Installation Manual H3C S7500E Series Ethernet Switches Chapter 7 Troubleshooting Chapter 7 Troubleshooting Although the S7500E series have passed the comprehensive and strict test before delivery, faults may occur due to improper installation. This chapter describes how to handle faults caused by improper installation. On the SRPU of the S7500E series, you can find the status LEDs of LPUs, power modules, and fans.
Page 165: Illegible Characters On The Terminal
Installation Manual H3C S7500E Series Ethernet Switches Chapter 7 Troubleshooting –Flow control: None –Terminal emulation mode: VT100 Something is wrong with the console cable. 7.1.2 Illegible Characters on the Terminal If the configuration terminal displays illegible characters, configuration of parameters on the terminal might be incorrect.
Page 166: Troubleshooting Psr1400-D
Installation Manual H3C S7500E Series Ethernet Switches Chapter 7 Troubleshooting Table 7-1 Description of LEDs on the PSR1400-A Case Color Status INPUT Green The power input is normal. The power module is connected but the OUTPUT No power is output. power switch is turned off.
Page 167 Installation Manual H3C S7500E Series Ethernet Switches Chapter 7 Troubleshooting Table 7-2 Description of LEDs on the PSR1400-D Case Color Status INPUT The power input is normal. The power module is OUTPUT No power is output. connected but the SYSTEM power switch is A fan does not rotate.
Page 168: Troubleshooting Psr2800-Acv
Installation Manual H3C S7500E Series Ethernet Switches Chapter 7 Troubleshooting 7.2.5 Troubleshooting PSR2800-ACV On the right of the PSR2800-ACV power module panel are the input LED, output LED, fan LED, PoE input LED, and PoE output LED. Compared with the PSR1400-A power module, the PSR2800-ACV power module has two power inputs: one for system power input and the other for PoE power input.
Page 169 Installation Manual H3C S7500E Series Ethernet Switches Table of Contents Table of Contents Appendix A List of Pluggable Modules..................A-1 A.1 10G XFP Modules ......................A-1 A.2 Gigabit SFP Modules ......................A-1 A.3 100 Mbps SFP Modules ....................A-2 A.4 Pluggable Modules for EPON Interfaces ................A-3...
Page 170: Appendix A List Of Pluggable Modules
Installation Manual H3C S7500E Series Ethernet Switches Appendix A List of Pluggable Modules Appendix A List of Pluggable Modules A.1 10G XFP Modules Table A-1 Specifications of 10G XFP modules Maximum Central Connector Cable Type transmission wavelength type specifications distance 50/125µm 300 m (0.186 XFP-SX-MM850...
Page 171: 100 Mbps Sfp Modules
Installation Manual H3C S7500E Series Ethernet Switches Appendix A List of Pluggable Modules Maximum Central Connect Cable transmission Type wavelength or type specifications distance 1490 nm SFP-GE-LX-S 9/125µm single 10 km (6.21 (receive)/1310 M1310-BIDI mode fiber miles) nm (transmit) 1490 nm SFP-GE-LX-S 9/125µm single 10 km (6.21...
Page 172: Pluggable Modules For Epon Interfaces
Installation Manual H3C S7500E Series Ethernet Switches Appendix A List of Pluggable Modules Maximum Central Connect Cable transmission Type wavelength or type specifications distance 1550 nm SFP-FE-LX-S 9/125µm single 15 km (9.32 (receive)/1310 M1310-BIDI mode fiber miles) nm (transmit) 1550 nm SFP-FE-LX-S 9/125µm single 15 km (9.32...
Page 173 Installation Manual H3C S7500E Series Ethernet Switches Table of Contents Table of Contents Chapter B AC Power Cables Used in Different Countries or Regions........B-1 B.1 10A AC Power Cables Used in Different Countries or Regions........B-1 B.2 16A AC Power Cables Used in Different Countries or Regions........B-6...
Page 174 Installation Manual Chapter B AC Power Cables Used in Different H3C S7500E Series Ethernet Switches Countries or Regions Chapter B AC Power Cables Used in Different Countries or Regions B.1 10A AC Power Cables Used in Different Countries or Regions Table B-1 10A AC power cables used in different countries or regions Countries or regions where the...
Page 175 Installation Manual Chapter B AC Power Cables Used in Different H3C S7500E Series Ethernet Switches Countries or Regions Countries or regions where the Countries or type of power Other countries or Conne regions Code cables conforms regions using this ctor seldom using (Length) to local safety...
Page 176 Installation Manual Chapter B AC Power Cables Used in Different H3C S7500E Series Ethernet Switches Countries or Regions Countries or regions where the Countries or type of power Other countries or Conne regions Code cables conforms regions using this ctor seldom using (Length) to local safety...
Page 177 Installation Manual Chapter B AC Power Cables Used in Different H3C S7500E Series Ethernet Switches Countries or Regions Countries or regions where the Countries or type of power Other countries or Conne regions Code cables conforms regions using this ctor seldom using (Length) to local safety...
Page 178 Installation Manual Chapter B AC Power Cables Used in Different H3C S7500E Series Ethernet Switches Countries or Regions Countries or regions where the Countries or type of power Other countries or Conne regions Code cables conforms regions using this ctor seldom using (Length) to local safety...
Page 179 Installation Manual Chapter B AC Power Cables Used in Different H3C S7500E Series Ethernet Switches Countries or Regions B.2 16A AC Power Cables Used in Different Countries or Regions Table B-2 16A AC power cables used in different countries or regions Countries or regions where Countries or...
Page 180 Installation Manual Chapter B AC Power Cables Used in Different H3C S7500E Series Ethernet Switches Countries or Regions Countries or regions where Countries or the type of power Other countries or regions Connec Code cables conforms regions using this seldom using tor type (Length) to local safety...
Page 181 Installation Manual Chapter B AC Power Cables Used in Different H3C S7500E Series Ethernet Switches Countries or Regions Countries or regions where Countries or the type of power Other countries or regions Connec Code cables conforms regions using this seldom using tor type (Length) to local safety...
Page 182 Installation Manual Chapter B AC Power Cables Used in Different H3C S7500E Series Ethernet Switches Countries or Regions Countries or regions where Countries or the type of power Other countries or regions Connec Code cables conforms regions using this seldom using tor type (Length) to local safety...
Page 183 Installation Manual H3C S7500E Series Ethernet Switches Table of Contents Table of Contents Chapter C Compliance and safety manual .................C-1 C.1 Regulatory compliance statement..................C-1 C.1.1 European Community CE Certification DoC ............C-1 C.2 Regulatory Compliance Information..................C-2 C.2.1 Regulatory compliance standards ................C-2 C.2.2 European Directives compliance ................C-2 C.2.3 USA regulatory compliance ..................C-2 C.2.4 Canada regulatory compliance................C-3...
Page 184: Chapter C Compliance And Safety Manual
Installation Manual H3C S7500E Series Ethernet Switches Chapter C Compliance and safety manual Chapter C Compliance and safety manual C.1 Regulatory compliance statement C.1.1 European Community CE Certification DoC Figure C-1 European Community CE Certification DoC...
Page 185: Regulatory Compliance Information
Installation Manual H3C S7500E Series Ethernet Switches Chapter C Compliance and safety manual C.2 Regulatory Compliance Information C.2.1 Regulatory compliance standards Table C-1 Regulatory compliance standards Discipline Standards FCC Part 15 (CFR 47) CLASS A ICES-003 CLASS A VCCI CLASS A CISPR22 CLASS A EN 55022 CLASS A AS/NZS CISPR22 CLASS A...
Page 186: Canada Regulatory Compliance
Installation Manual H3C S7500E Series Ethernet Switches Chapter C Compliance and safety manual This device must accept any interference received, including interference that may cause undesired operation. If the customer modifies the equipment without the authorization of H3C, which directly or indirectly contribute to the equipment incompliance with FCC requirements for Class A digital devices, H3C is not liable for such interference problem and the expenses incurred therefrom shall be covered by the customers.
Page 187: Cispr 22 Compliance
Installation Manual H3C S7500E Series Ethernet Switches Chapter C Compliance and safety manual C.2.6 CISPR 22 compliance H3C S7500E series (including H3C S7502E, H3C S7503E, H3C S7503E-S, H3C S7506E. H3C S7506E-V and H3C S7510E) complies with the requirements of CISPR 22 for Class A Information Technology Equipment (ITE) Warning: If this equipment is used in a domestic environment, radio disturbance may arise.
Page 188 Installation Manual H3C S7500E Series Ethernet Switches Chapter C Compliance and safety manual Anmerkung: Lesen Sie bitte alle Arbeitsanweisungen und Sicherheitvorschriften sorgfältig durch, bevor Sie mit dem Arbeiten beginnen. Nur durch Beachtung dieser Hinweise lässt sich das Unfallrisiko minimieren. Die in anderen Handbüchern aufgeführten Symbole Anmerkung, Achtung, Warnung und Gefahr beinhalten nicht alle zu beachtenden Sicherheitvorschriften.
Page 189 Installation Manual H3C S7500E Series Ethernet Switches Chapter C Compliance and safety manual 以下表格中的安全标识，是用来提示读者在进行设备安装和维护时的安全预防要求。 Table C-2 Safety symbol and description Sicherheitssymbole und Beschreibung 安全标识和描述 Safety Symbol Description Symbole Erläuterung 安全标识描述 Generic alarm symbol: To suggest a general safety concern Alarm: Hinweis auf ein generelles Sicherheitsproblem 一般注意标识：用于一般安全提示...
Page 190 Installation Manual H3C S7500E Series Ethernet Switches Chapter C Compliance and safety manual Do not block ventilation openings while the system is on, and keep at least 5 cm distance from ventilation openings and walls or other things which may block the openings Sorgen Sie dafür, dass die Öffnungen der Ventilation zu keinem Zeitpunkt verschlossen, verstopft oder anderweitig blockiert sind.
Page 191: Electricity Safety Elektrische Sicherheit 用电安全
Installation Manual H3C S7500E Series Ethernet Switches Chapter C Compliance and safety manual 该产品需要使用建筑物安装来提供短路保护，要求保险丝或者短路保护器不小于 120 VAC, 15A U.S. (240 VAC, 10A international),或者 80Vdc, 238A. For AC supplied model: The plug-socket combination must be accessible at all times because it serves as the main disconnecting device. Mit Wechselstrom betriebenes Modell: Der Netzstecker muss jederzeit leicht zugänglich sein.
Page 192 Installation Manual H3C S7500E Series Ethernet Switches Chapter C Compliance and safety manual Gefahr: Die Hochspannungsleitungen stellen für die Arbeit der Ausrüstung erforderliche Energie zur Verfügung. Direkter oder indirekter Kontakt (z. B. durch feuchte Gegenstände) mit Hochspannung und Wechselstromversorgung kann zu tödlichen Unfällen führen.
Page 193 Installation Manual H3C S7500E Series Ethernet Switches Chapter C Compliance and safety manual Warning: Non-standard and improper high voltage operations may result in fire and electric shock. Therefore, AC cable bridging and wiring through a certain area must follow the local rules and regulations.
Page 194 Installation Manual H3C S7500E Series Ethernet Switches Chapter C Compliance and safety manual 说明：禁止安装和移动带电的线缆。因为导电体和带电的线缆，即使短暂接触，也会引起电火花或电弧，从而导致失火或是伤害眼睛。 Before the power cable is installed or removed, the power switch must be turned off. Das System muss stets abgeschaltet werden, bevor die Zuleitung angebracht oder entfernt wird.
Page 195 Installation Manual H3C S7500E Series Ethernet Switches Chapter C Compliance and safety manual Note: For H3C S7502E, H3C S7503E-S,: For DC power supplied equipment, please use 4 mm or 10 AWG minimum power supply cord. For POE input: please use 10 mm or 6 AWG minimum power supply cord For AC power supplied equipment, please use 1.25 mm or 16 AWG minimum power...
Page 196 Installation Manual H3C S7500E Series Ethernet Switches Chapter C Compliance and safety manual 说明：对于 H3C S7502E, H3C S7503E-S,: DC 电源设备，请使用 4 mm 或 10 AWG 电缆； POE 输入, 请使用 10 mm 或 6AWG 电缆； AC 电源设备，请使用 1.25mm 或 16AWG 电缆；对于...
Page 197: Fuse Sicherung保险丝
Installation Manual H3C S7500E Series Ethernet Switches Chapter C Compliance and safety manual C.3.3 Fuse Sicherung 保险丝 Warning: For the safety of continuous operation, please replace the fuse with that of the same type and rating, if necessary. Warnung: Ersetzen Sie die Sicherung bei Bedarf immer nur mit einem Sicherungstyp, der die gleichen technischen Daten besitzt.
Page 198 Installation Manual H3C S7500E Series Ethernet Switches Chapter C Compliance and safety manual 警告：在安装和维护设备的光纤接口时，请不要把眼睛靠近或是直视这些光接口。 C-15...

This manual is also suitable for:

S7500e 384gbps adv fabric S7500e fabric, 2x10geS7502e management moduleS7502e S7503e-s S7503e ... Show all

H3C S7500-LSQM1SRPB0-SALIENCE VI FRU PRE REL Installation Manual

Table of Contents

Chapter 2 Installation Preparations

Chapter 3 Hardware Installation

Chapter 4 System Commissioning

Chapter 5 Hardware Maintenance

Chapter 6 Software Maintenance

Chapter 7 Troubleshooting

Appendix A List of Pluggable Modules

Chapter C Compliance and Safety Manual

Quick Links

Chapters

Troubleshooting

Need help?

Questions and answers

Related Manuals for H3C S7500-LSQM1SRPB0-SALIENCE VI FRU PRE REL

Summary of Contents for H3C S7500-LSQM1SRPB0-SALIENCE VI FRU PRE REL

This manual is also suitable for:

Table of Contents
