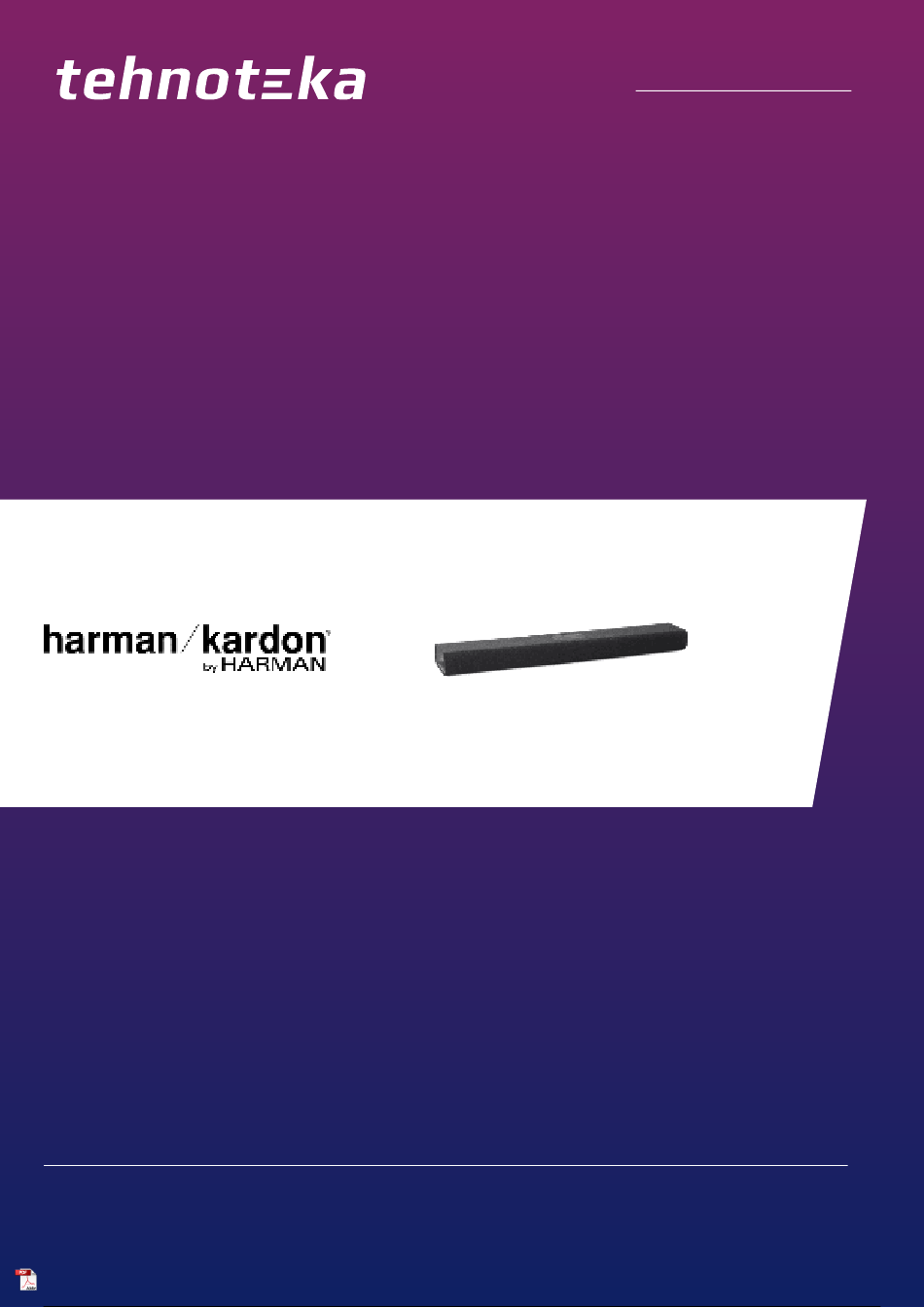

https://tehnoteka.rs
Uputstvo za upotrebu (EN)
HARMAN KARDON soundbar zvučnik Citation 700 crni
Tehnoteka je online destinacija za upoređivanje cena i karakteristika bele tehnike,
potrošačke elektronike i IT uređaja kod trgovinskih lanaca i internet prodavnica u Srbiji.
Naša stranica vam omogućava da istražite najnovije informacije, detaljne karakteristike
i konkurentne cene proizvoda.
Posetite nas i uživajte u ekskluzivnom iskustvu pametne kupovine klikom na link:
https://tehnoteka.rs/p/harman-kardon-soundbar-zvucnik-citation-700-crni-akcija-cena/

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the harman/kardon CITATION MULTIBEAM 700 and is the answer not in the manual?

Questions and answers

Related Manuals for Harman harman/kardon CITATION MULTIBEAM 700

Summary of Contents for Harman harman/kardon CITATION MULTIBEAM 700

  • Page 1 Uputstvo za upotrebu (EN) HARMAN KARDON soundbar zvučnik Citation 700 crni Tehnoteka je online destinacija za upoređivanje cena i karakteristika bele tehnike, potrošačke elektronike i IT uređaja kod trgovinskih lanaca i internet prodavnica u Srbiji. Naša stranica vam omogućava da istražite najnovije informacije, detaljne karakteristike i konkurentne cene proizvoda.
  • Page 2 CITATION MULTIBEAM 700 OWNER’S MANUAL...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Verify Line Voltage Before Use The CITATION MULTIBEAM 700 (soundbar) has been designed for use with 100-240 volt, 50/60 Hz AC current. Connection to a line voltage other than that for which your product is intended can create a safety and fire hazard and may damage the unit. If you have any questions about the voltage requirements for your specific model or about the line voltage in your area, contact your selling dealer before plugging the unit in to a wall...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..........2 INTRODUCTION ..................4 WHAT’S IN THE BOX ................5 PRODUCT OVERVIEW ................6 INSTALLATION ................... 11 CONNECTING TO TV ................14 CONNECTING TO OTHER DEVICES ..........17 POWER ON ....................18 CONNECTING TO INTERNET .............19 SETTING UP MULTIBEAM SURROUND SOUND ......

  • Page 5: Introduction

    Wi-Fi to ensure that your product has the most recent software updates. Design and specifications are subject to change without notice. If you have any questions about these products, their installation or their operation, please contact your Harman Kardon retailer or customer service, or visit us at www.harmankardon.com...

  • Page 6: What's In The Box

    WHAT’S IN THE BOX Carefully unpack the box and check if the following parts are included. If any part is damaged, do not use it, contact your Harman Kardon retailer or customer service. 1. Main unit 2. Power cord* 3. HDMI cable 4.

  • Page 7: Product Overview

    PRODUCT OVERVIEW Front Panel & Top Panel 1. Touch screen • Swipe up / down to switch between the main screens. • Tap an icon to select. • Tap to return to the previous screen, tap to go to the next screen. Wi-Fi signal indicator.

  • Page 8: Back Panel

    2. - / + (Volume) • Press to decrease or increase the volume. • Press both simultaneously to mute the soundbar audio. 3. LED indicators (Google) White (Breathing slowly) Listening White (Breathing fast) Responding Amber (Constant) Microphone muted Power on / system White (Breathing for three times) startup...
  • Page 9 • Connect to an audio device (3.5mm jack). • Press and hold for 5 seconds to restore the factory settings.

  • Page 10: Remote Control

    Remote Control (Power) • Power on or switch to standby. 2. Source selector • Select an input source for the soundbar: • Press and hold to pair with a new device. 3. 1/2/3 • Select pre-recorded voice commands for source selection. •...
  • Page 11 • Decrease or increase the MultiBeam™ surround sound effect (for a standalone soundbar); or turn surround upmixing on or off (after you connect the optional satellite speakers CITATION SURROUND or CITATION TOWER) - / + • Decrease or increase the bass level of the soundbar (after you connect the optional subwoofer CITATION SUB (S)).

  • Page 12: Installation

    INSTALLATION Placement NOTES: To avoid wireless interference, keep a minimum distance of • 5 meters (16.4 feet) between other wireless devices and the soundbar. Make sure that there is an AC (mains) outlet nearby. • Place the soundbar on its rubber feet on a stable and level surface below your TV.
  • Page 13 Wall-mount NOTES: Before mounting on a wall, make sure the wall can support the • weight of this product. For the wall mounting, avoid a location with high temperature or • humidity. Install on a vertical wall only. Connect cables from the product to external devices before •...
  • Page 14 2) Screw the wall-mount brackets on the pen mark; screw the threaded mounting post into the back of the soundbar, then hook the soundbar on the wall. ≤8 mm/ 4mm/0.16" 0.31" ≥35 mm/1.4"...

  • Page 15: Connecting To Tv

    CONNECTING TO TV NOTES: If you want to enjoy sound only from the soundbar, make sure • to set your TV audio settings to support external speakers and disable the built-in TV speakers. Before you make or change any connections, make sure that all •...

  • Page 16: Tv Remote Control Setup

    Optical NOTE: Make sure you have removed the protective cap from both ends • of the optical cable. 1) Connect the connector on the soundbar to the connector of your TV with the optical cable. 2) Press on the touch screen or press the button on the remote control to select the mode.
  • Page 17 TV remote control learning 1) On the soundbar, swipe the touch screen up/down/left/right on the main screen. to select > 2) Press the button to start the Universal IR learning on your TV remote control. 3) Point your TV remote control at the soundbar. Follow the screen instructions to operate the buttons on your TV remote control.

  • Page 18: Connecting To Other Devices

    CONNECTING TO OTHER DEVICES Optical or Analog 1) Connect the connector on the soundbar to the jack of the source device by using the optical cable or a 3.5mm audio cable (sold separately). 2) Press on the touch screen or press button on the remote control to mode.

  • Page 19: Power On

    POWER ON NOTES: • Use the provided power cord only. Before connecting the power cord, make sure all other • connections have been completed. • When you disconnect the power cord, always pull the plug, never the cable. Do not connect this product or other components to an AC outlet •...

  • Page 20: Connecting To Internet

    CONNECTING TO INTERNET With the Google Home app, connect your CITATION MULTIBEAM 700 to the Internet through Wi-Fi. 1) Download the Google Home app on your smartphone or tablet. 2) Power on your CITATION MULTIBEAM 700. 3) Run the Google Home app and set up your CITATION MULTIBEAM 700 as instructed in the app.

  • Page 21: Setting Up Multibeam Surround Sound

    SETTING UP MULTIBEAM SURROUND SOUND Automatic MultiBeam Calibration (AMC) will optimize the soundbar sound settings for a better surround sound experience. • On the soundbar, swipe the touch screen up/down/left/ on the main screen. right to select > NOTE: The MultiBeam surround sound effect works best with hard walls •...

  • Page 22: Setting Up Other Citation Speakers (Optional)

    SETTING UP OTHER CITATION SPEAKERS (Optional) You can wirelessly pair your CITATION MULTIBEAM 700 with: • CITATION SUB (S) (subwoofer, sold separately): to enhance the bass performance; • CITATION SURROUND or CITATION TOWER (satellite speakers, sold separately): to set up a 5.0 channel surround sound system (with virtual surround speakers);...
  • Page 23 2) Press “Speaker Setup” > “Pairing” > “Surround Setup” or “Subwoofer Setup” on the touch screen to enter pairing mode. Æ You will hear a pairing chime once successfully connected and “Surround setup successful” or “Subwoofer connected” will be displayed on the touch screen.
  • Page 24 Test Tone Press “Speaker Setup” > “Levels” > “Test tone” to play the test tone. Each speaker location icon will blink in sequence. Speaker Volume and Bass Press “Speaker Setup” > “Levels” > “Speaker volume trim” or “Bass level trim”, then swipe up / down to select speakers or adjust the volume and bass level.

  • Page 25: Using Your Citation Multibeam 700

    USING YOUR CITATION MULTIBEAM 700 Use Voice Commands Talk to Google Assistant Your CITATION MULTIBEAM 700 comes with the Google Assistant built-in. You can play music, get answers, manage everyday tasks, and easily control smart devices around your home by using your voice. on the remote control or on the touch screen to Press activate the Google Assistant and then say your request.
  • Page 26 1) On the soundbar, swipe the touch screen up/down/left/right to select the main screen of Voice Presets. 2) Tap + to start recording voice commands. • Speak out a source on the soundbar or an online audio service supported by Google Assistant. •...
  • Page 27 Chromecast With Chromecast built-in, you can stream music, tunes, podcasts, and playlists from 300+ music apps to your soundbar by simply tapping the Cast button 1) Check that your smartphone or tablet has been connected to the same network as the soundbar. 2) Run the Chromecast enabled app on your smartphone or tablet.
  • Page 28 AirPlay With AirPlay, you can stream music on your iOS device to the soundbar. Music iPhone Citation MultiBeam 700 1) Check that your iOS device has been connected to the same network as the soundbar. 2) To enter the Control Center on an iOS device, swipe down from the upper right corner (iOS 12 or later) or swipe up from the bottom edge (iOS 11 or earlier).
  • Page 29 Multi-room Playback With the multi-room playback, you can stream music on your Android or iOS device to multiple CITATION speakers. Chromecast 1) Through the Google Home app, connect multiple CITATION speakers to the same network, assign them to multiple rooms, and create groups as needed. 2) Run the Chromecast enabled app on your smartphone or tablet.
  • Page 30 AirPlay Music Citation 300 Citation Multibeam 700 1) On an iOS device, enter the Control Center. to select multiple connected speakers as needed. 2) Tap 3) Start music streaming from an app. Bluetooth You can use your CITATION MULTIBEAM 700 as a speaker for your Bluetooth enabled smartphone or tablet.

  • Page 31: Playback Controls

    NOTES: • If you have already connected the soundbar to Wi-Fi and changed the device name, then select the new device name. To exit the Bluetooth mode, choose other sources. • • To disconnect and pair another device, press and hold until the white circle below blinks.

  • Page 32: Sound Settings

    SOUND SETTINGS This section helps you choose the ideal sound for your video or music. Volume You have four ways to adjust the volume level while playing music. • Press or press and hold - / + button on the top panel or VOL + / - on the remote control.
  • Page 33 Synchronize Video and Audio If the audio and video are not synchronized, swipe up/down the touch screen to select “Speaker Setup” > “Lipsync delay” and delay the audio to match the video.

  • Page 34: Settings

    SETTINGS Display Brightness Press Options > Brightness, then softly drag the value bar to adjust the brightness of the touch screen. Software Upgrade The software of your CITATION MULTIBEAM 700 will be automatically upgraded to the latest version when it is connected to the Internet via a Wi-Fi network or Ethernet connection.

  • Page 35: System Information

    System Information Press “System info” on the touch screen to view the system information: • Country: Country and language. • Network: Network SSID, signal strength and Wi-Fi address. • About: Model and name. • Software version: Software version and date of last update.

  • Page 36: Specifications

    SPECIFICATIONS • Power supply: 100 - 240 V ~ 50 / 60 Hz • Output power: 210 W RMS • Bluetooth version: 4.2 • Bluetooth transmitter frequency range: 2402 - 2480MHz • Bluetooth transmitter power: <10 dBm (EIRP) • Bluetooth transmitter modulation: GFSK, π/4 DQPSK, 8DPSK •...

  • Page 37: Troubleshooting

    TROUBLESHOOTING Never try to repair the product yourself. If you have any problems using this product, check the following points before you request service. Sound No sound from the soundbar. • Make sure that the soundbar is not muted. • Make sure to select the correct audio input source. No sound from CITATION SUB (S), CITATION TOWER or CITATION SURROUND.
  • Page 38 Poor audio quality from a connected Bluetooth device. • The Bluetooth reception is poor. Move the device closer to the soundbar, or remove any obstacle between the device and the soundbar. Wi-Fi Failed to connect to Wi-Fi. • Make sure that Wi-Fi is turned on. •...

  • Page 39: Trademarks

    The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
  • Page 41 Ovaj dokument je originalno proizveden i objavljen od strane proizvođača, brenda Harman Kardon, i preuzet je sa njihove zvanične stranice. S obzirom na ovu činjenicu, Tehnoteka ističe da ne preuzima odgovornost za tačnost, celovitost ili pouzdanost informacija, podataka, mišljenja, saveta ili izjava sadržanih u ovom dokumentu.
